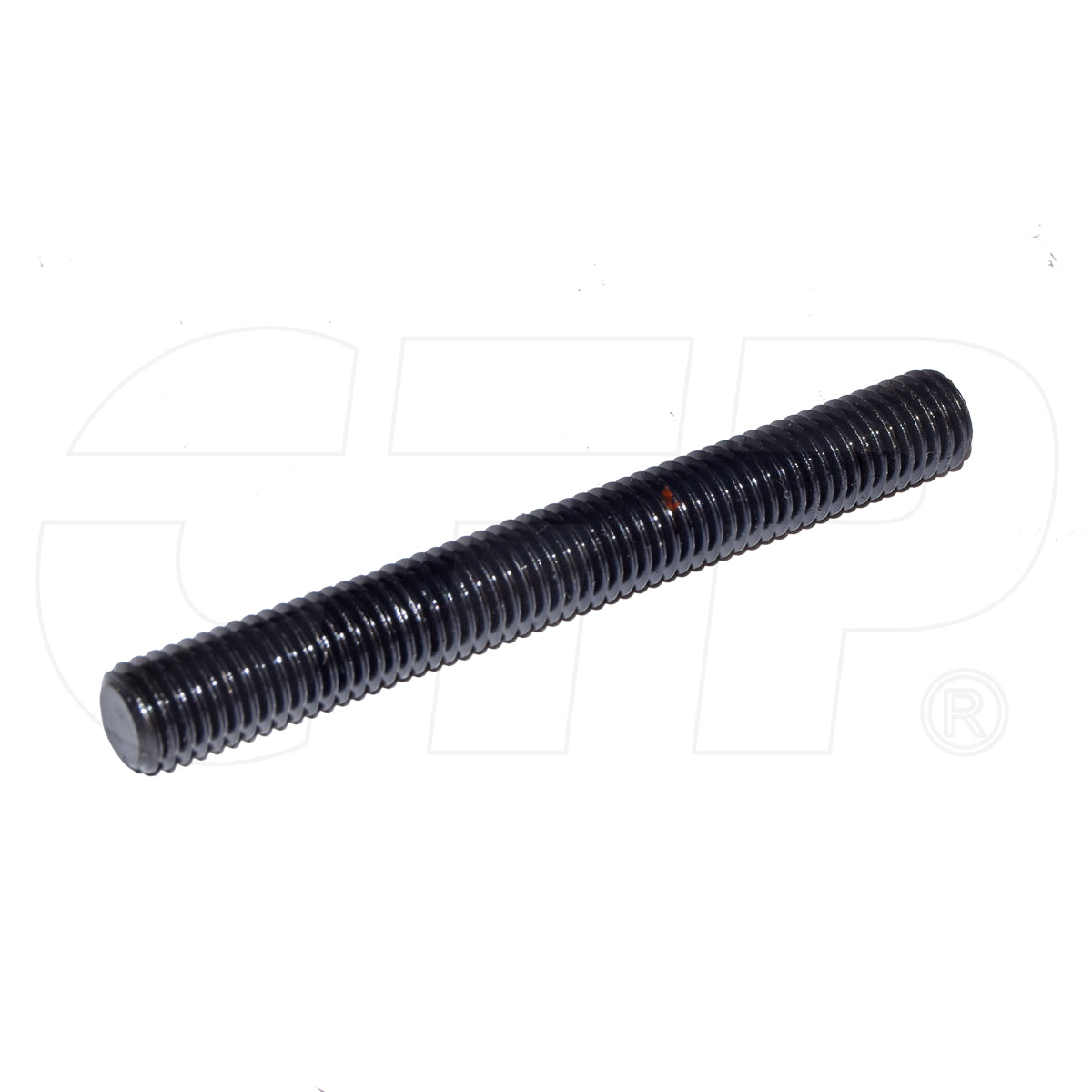

1163715 Stud-Taperlock Fits Caterpillar Models

One New Aftermarket Replacement Stud-Taperlock for Caterpillar (Cat) Engines and Equipment

This exhaust manifold taperlock stud is a direct replacement for Caterpillar (Cat) engines including the 3176, C9, C10, C11, C12, and C13 series. The fully-threaded M10 x 1.5 x 85 mm stud is engineered from high-temperature steel capable of withstanding extreme heat in exhaust system applications, making it a reliable fastener for securing exhaust manifolds on a wide range of Cat-powered machines.

Specifications

• Thread Size: M10 x 1.5 (coarse thread)
• Length: 85 mm
• Finish: Plain
• Material: High-temperature steel
• Weight: 0.1 lbs

Compatible Models

Caterpillar Articulated Trucks: 725, 725C, 730, 730C

Caterpillar Challenger: 45, 55, 65E, 75D, 75E, 85D, 85E, 95E, MTC735, MTC835

Caterpillar Excavators: 330C, 330C FM, 330C L, 330C MH, 330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 336E, 336E H, 336E L, 336E LH, 336E LN, 336F L, 340D L, 340D2 L, 345B, 345B II, 345B II MH, 345B L, 345C, 345C L, 345C MH, 345D, 345D L, 345D L VG, 349D, 349D L, 349E, 349E L, 349E L VG, 349F L, 365B, 365B II, 365B L, 568 FM LL

Caterpillar Motor Graders: 120H, 120M, 12H, 12M, 12M 2, 12M 3, 12M 3 AWD, 135H, 140H, 140M, 140M 2, 140M 3, 140M 3 AWD, 143H, 14H, 14M, 160H, 160M, 160M 2, 160M 3, 160M 3 AWD, 163H, 16H, 16M

Caterpillar Industrial/Generator Set Engines: 3176C, 3196, C-9, C-10, C-11, C-12, C9, C11, C13, C9.3, C13 XQ350

Caterpillar Landfill Compactors: 816F, 816F II

Caterpillar Load Haul Dump: R1600, R1600G, R1600H, R1700G

Caterpillar Pipelayers, Feller Bunchers, and Other Equipment: See engine compatibility - fits Cat 3176C, 3196, C9, C10, C11, C12, C13 powered machines

Caterpillar Petroleum Engines/Packages: C11, C13, C9, CX31-C13I, CX31-C9I, TH35-C11I, TH35-C13I, TH35-C13T

Replaces Part Number(s):

1163715, 116-3715

Aftermarket Interchange Numbers

M-1163715, M1163715, H1163715, PAI 340115, FPDFP-3E8017, FPDFP3E8017, 340115

New aftermarket replacement part - not remanufactured, not used.
