(10)Ten Teeth w/Brackets Fits New Holland Hay Rake 55 56 57 256 258 64562 792493
(10)Ten Teeth w/Brackets Fits New Holland Hay Rake 55 56 57 256 258 64562 792493
Couldn't load pickup availability
Ten New Aftermarket Replacement Hay Rake Teeth with Hold Down Clips and Hardware Fits Ford/New Holland (Fits New Holland) Rolabar Rakes

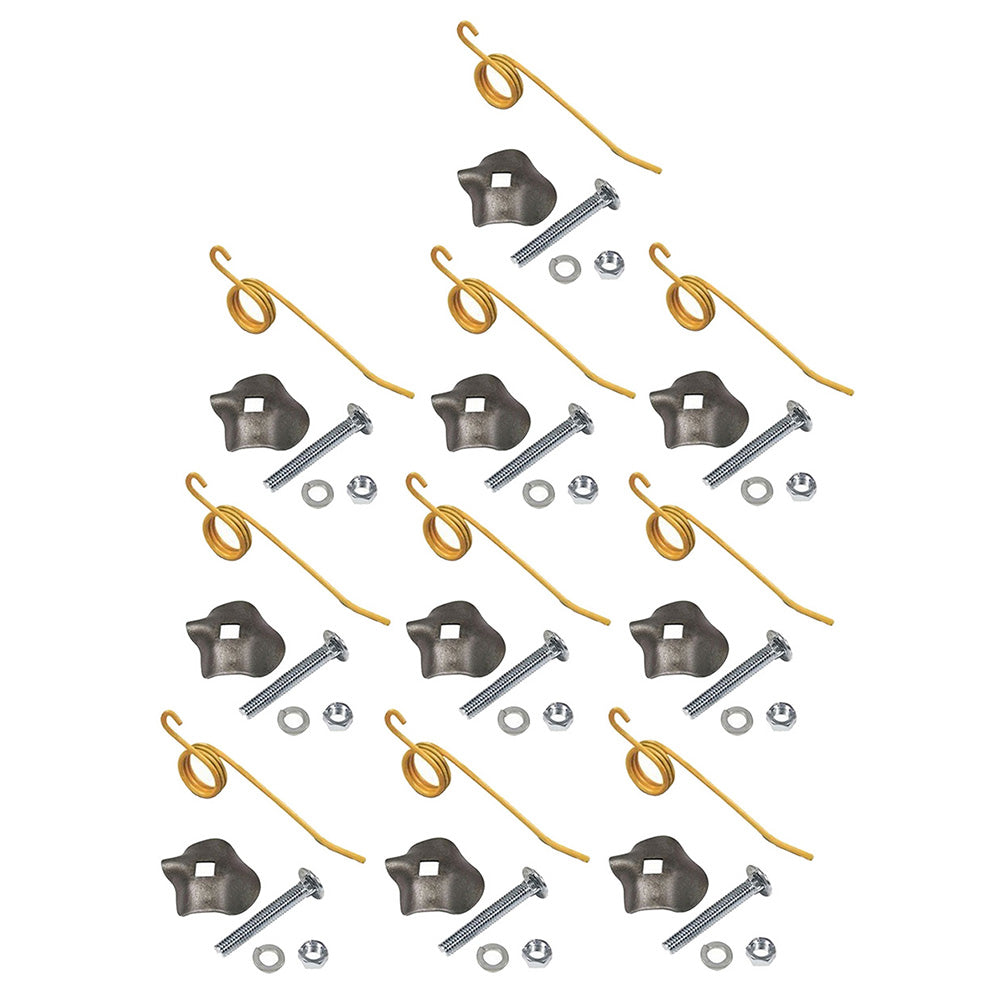

This kit includes ten replacement coil hay rake teeth painted yellow plus ten tooth holder brackets with mounting hardware for 1-prong tooth installations. The spring-coil teeth mount to Fits New Holland Rolabar and Rotobar rakes and are designed to collect and windrow cut hay. The tooth holders (brackets) clamp to the rake bar and secure each tine via a 3/8" round-head bolt and hex nut.
Kit Includes (10 of Each)
- Rake Teeth - painted yellow, spring coil, 1-prong style
- Tooth Holder / Bracket (Hold Down Clip)
- 3/8" Round Head Bolt
- 3/8" Hex Nut

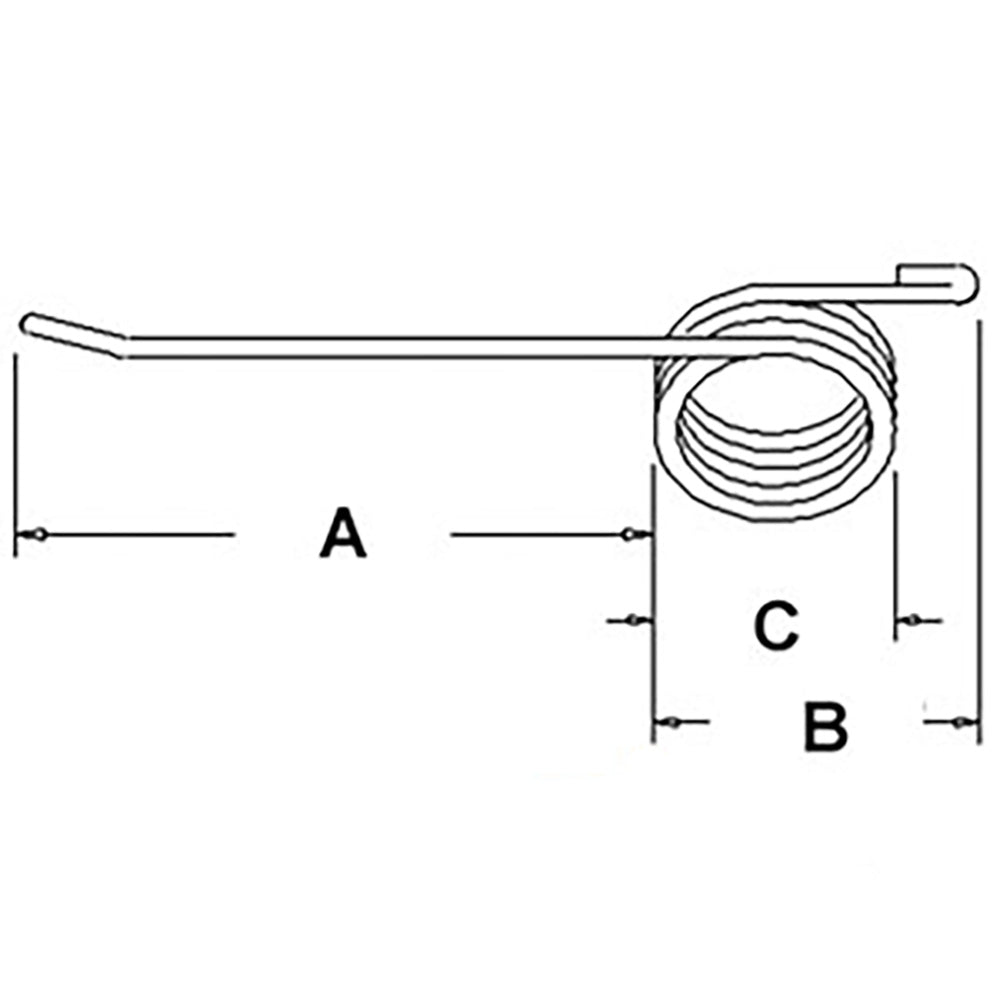

Rake Tooth Specifications
- Coil Outer Diameter: 2.375" (2-3/8")
- Tine Length: 7"
- Coil to Hook: 3.875" (3-7/8")
- Wire Diameter: .262"
- Color: Yellow

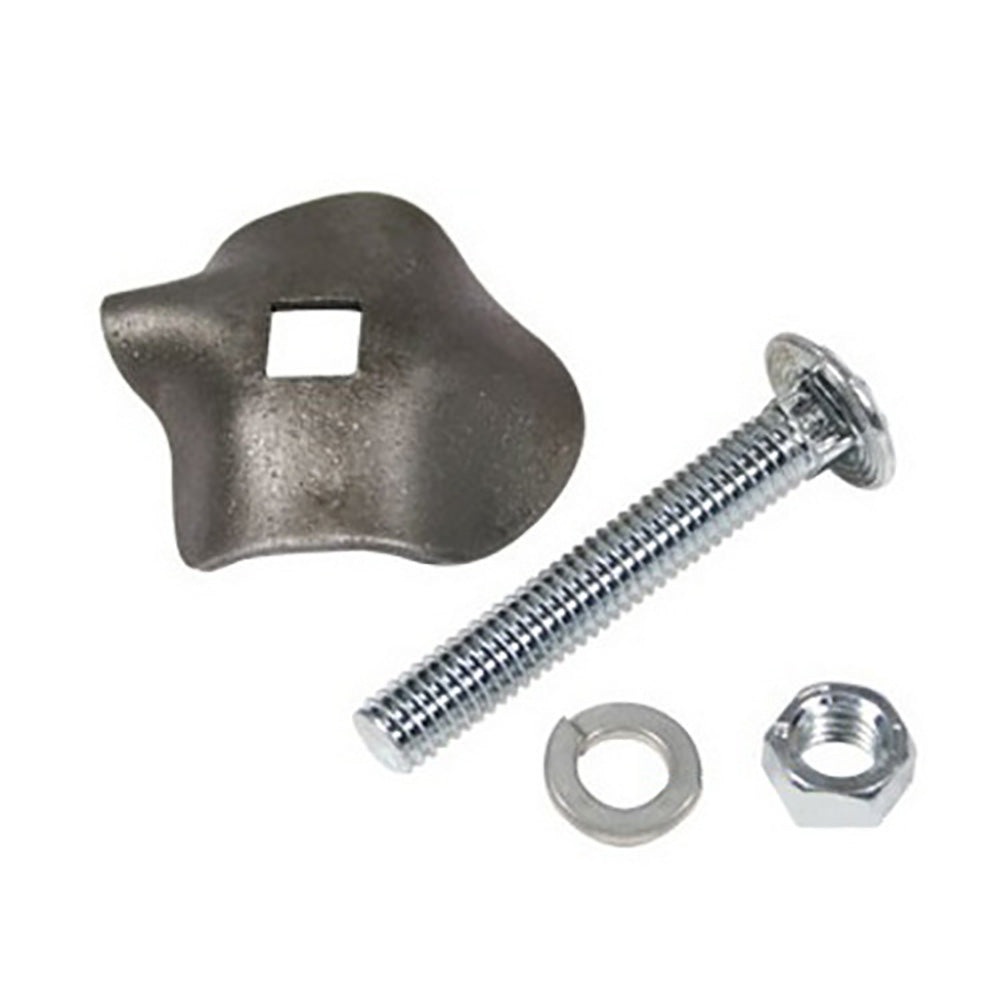

Tooth Holder Specifications
- Uses 3/8" carriage bolt, 2-1/2" or 2-3/4" long depending on model
- For use with 1-prong steel coil tooth
Compatible Models
Fits Ford/New Holland Rolabar and Rotobar Rakes: 55, S55, 56, 56B, 57, 256, 258, 259, 260
New Idea Rakes: 49 (1955 and later), 400, 402, 403
Replaces Part Number(s):
Rake Teeth: 804-64562, 804792493, 64562, 46993, 96NH1A, PMNH-1A, TENI2D, TENH1A, NH-1A
Tooth Holders / Brackets: 804792493, 804-792493, 792493, 792493K, 280744, HD38NCNUT, 84944, C792
New aftermarket replacement part - not remanufactured, not used.
