1099350 Engine Mounts Fits CAT Fits Caterpillar 3066 320C 320CL
1099350 Engine Mounts Fits CAT Fits Caterpillar 3066 320C 320CL
Couldn't load pickup availability

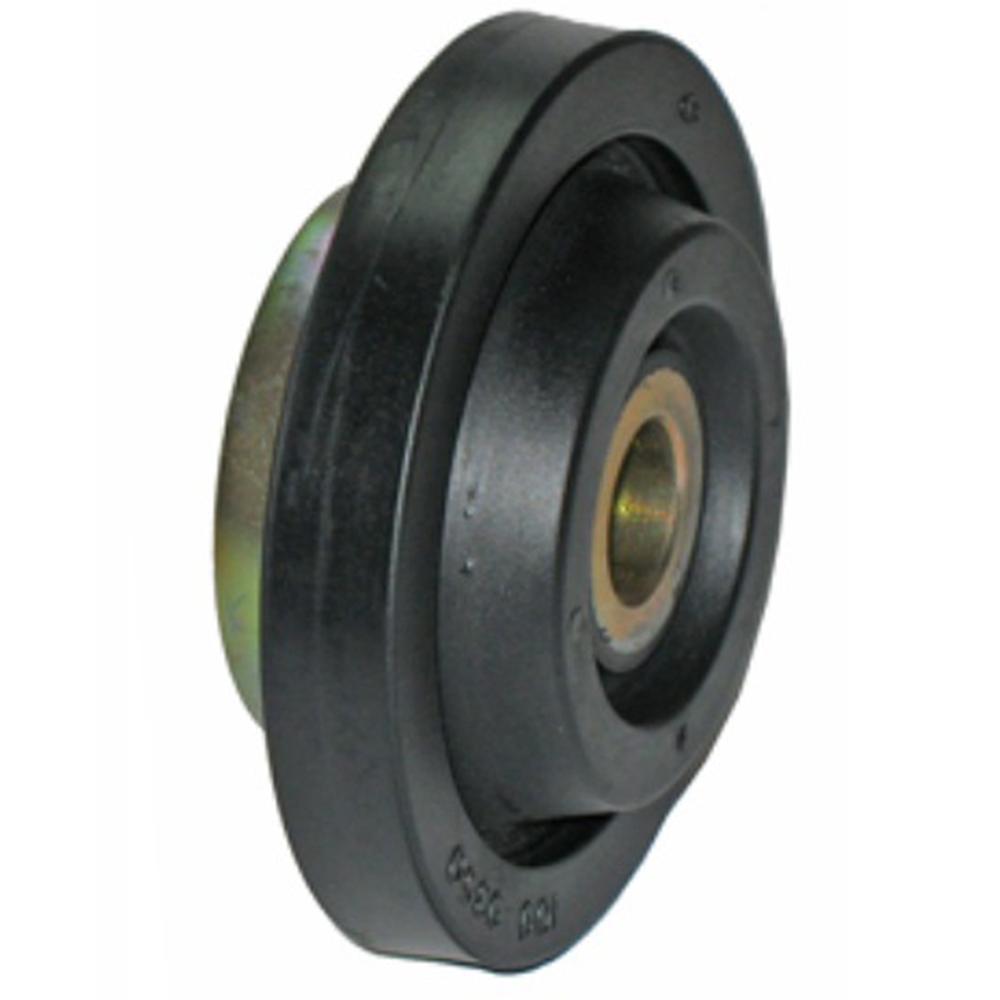

One New Aftermarket Replacement Engine Mount Rubber Insert Fits Caterpillar (Fits CAT) Excavators
This flexible rubber engine mount (also called a mount-flexible or rubber cushion mount) isolates the engine from the machine frame, absorbing vibration and shock generated during operation. It is used in the engine mounting system of Fits Caterpillar excavators powered by the 3066, 3116, 3126, 3126B, C6.4, and C7 engines.
Specifications
- Mount Type: Two-Piece, Symmetric
- Head Outside Diameter: 110 mm (4.33 in)
- Head Thickness: 27.3 mm (1.07 in)
- Pilot Outside Diameter: 67.6 mm (2.66 in)
- Material: Rubber insert
Compatible Models
Fits Caterpillar (Fits CAT) Excavators: 318C, 319C, 320B, 320B FM LL, 320B L, 320B LL, 320B LU, 320B N, 320B S, 320B U, 320C, 320C FM, 320C L, 320CL, 321B, 321C, 322B, 322B L, 322B LN, 322C, 322C FM, 324D, 324D FM, 324D FM LL, 324D L, 324D LN, 325B, 325B L, 325B LN, 325C, 325C FM, 325C L, 325C LCR, 325D, 325D FM, 325D FM LL, 325D L, 325D MH, 326D L, 328D LCR, 329D, 329D L, 329D LN, M325B, M325C MH, M325D L MH, M325D MH
Replaces Part Number(s):
109-9350, 1099350, 1099350-A, 6V1500, 6V1500-A
Aftermarket Interchange Numbers
CA1099350, CA3931046, 393-1046, 3931046
New aftermarket replacement part - not remanufactured, not used.
