104496K 12" Clutch Kit Fits Case IH Harvester Tractor Models 986 3688
104496K 12" Clutch Kit Fits Case IH Harvester Tractor Models 986 3688
Couldn't load pickup availability
One New Aftermarket Replacement 12" Clutch Kit Fits International Harvester (IH) / Fits FARMALL Tractors

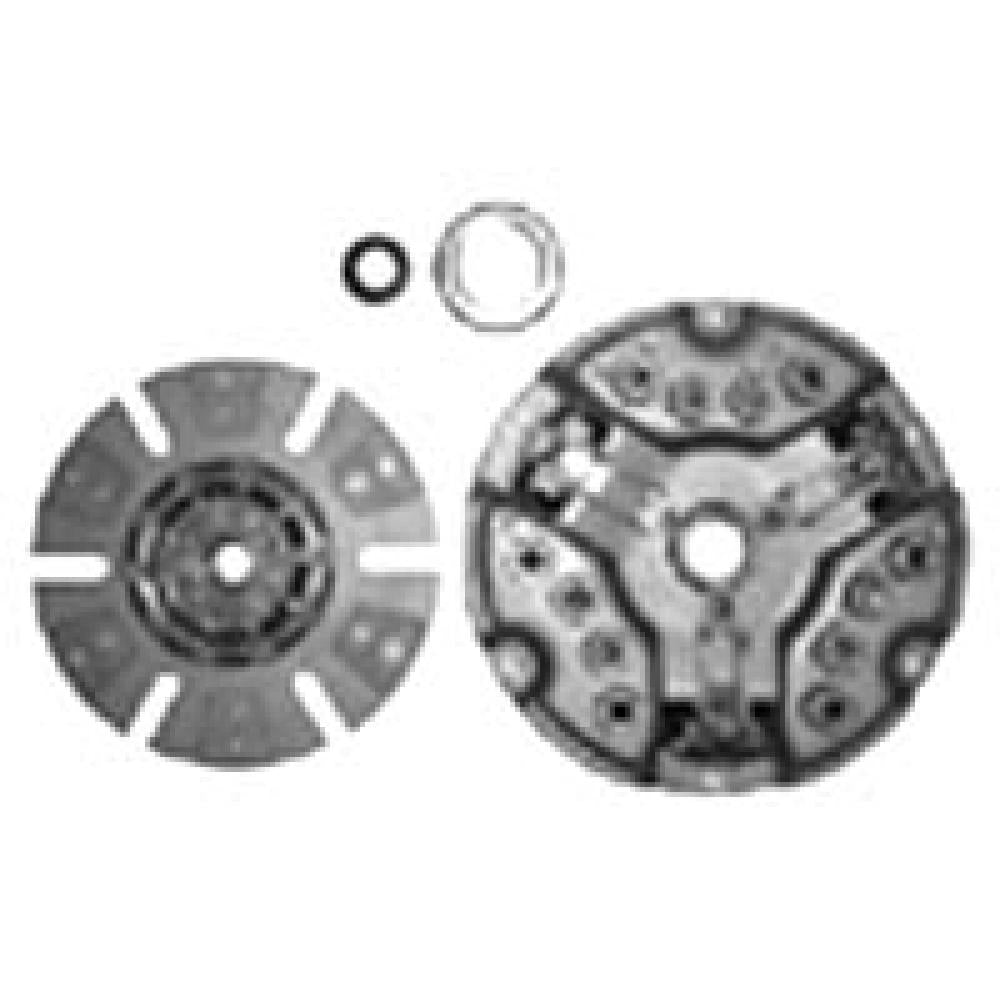

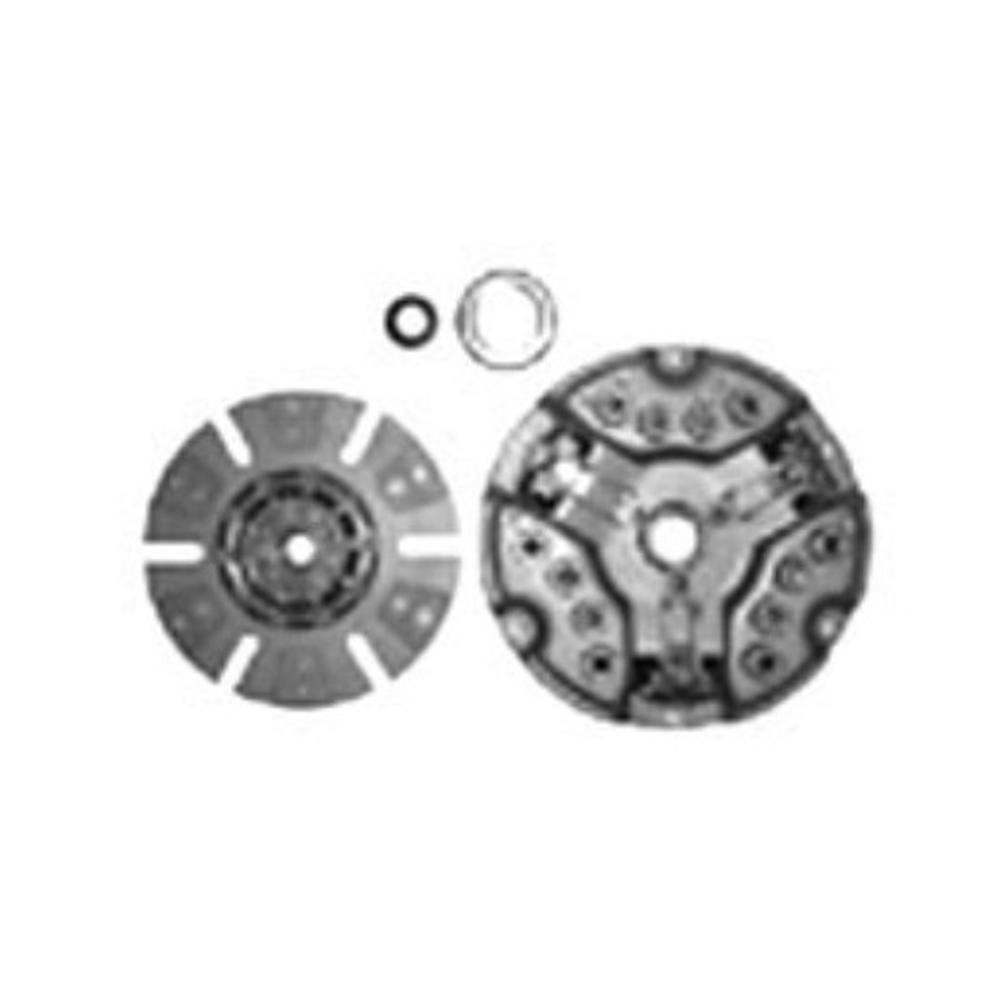

This 12" single-stage clutch kit is a heavy-duty aftermarket replacement for the drivetrain clutch assembly on Fits International Harvester (IH) and Fits FARMALL 986 and 3688 tractors. The kit includes everything needed for a complete clutch service, covering the pressure plate assembly, disc, release bearing, pilot bearing, IPTO seals, and IPTO bearing cage o-ring. Hydraulic assist is recommended for installation on these models.
Specifications
- Clutch Diameter: 12"
- Hub Size: 1-3/4"
- Spline Count: 17
- Flywheel Step: 1.406"
- Pressure Plate Springs: 12 Coil Springs
- PPA Levers: 3
- Disc Spec: 6 Pad; 1-3/16" 11 Spline Hub; Spring Center
Kit Includes
- Pressure Plate Assembly (PPA) - 104496
- Heavy-Duty 6 Pad Clutch Disc - 384395 HD6
- Greaseable Release Bearing - 8250529
- Pilot Bearing - 836304
- Inner IPTO Seal - 535208
- Outer IPTO Seal - 535209
- IPTO Bearing Cage O-Ring - 22414
Compatible Models
Fits International Harvester (IH) / Fits FARMALL: 986, 3688
Replaces Part Number(s):
104496K, 104496C1, 104496C2, 104496C2R, 104496KIT, 84354928
Note: Hydraulic assist is recommended. Converting to a 14" clutch is an option for these machines using flywheel HH672215 and clutch kit 120181. If the tractor has Hydraulic Assist, part number 67597 Kit is recommended for the clutch.
New aftermarket replacement part - not remanufactured, not used.
