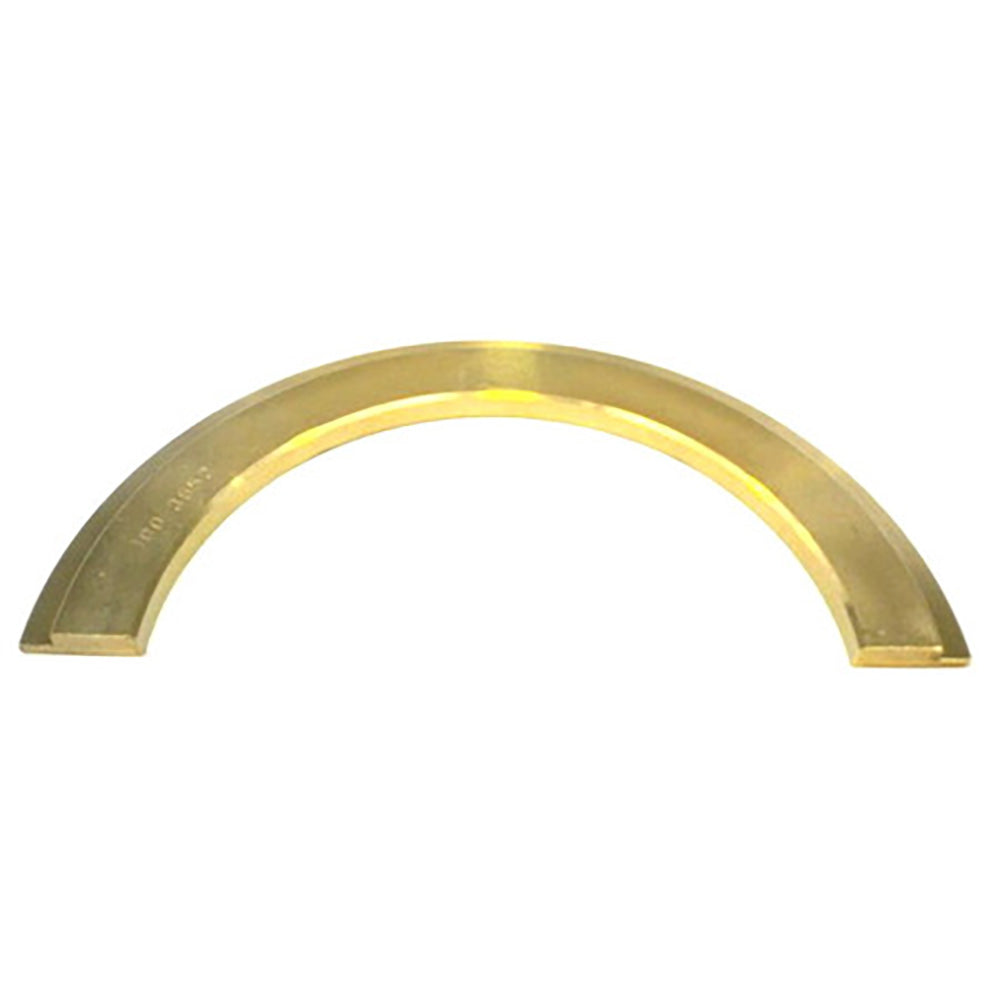

1003652 Thrust-Plate Fits Caterpillar Models

One New Aftermarket Replacement Thrust Plate for Caterpillar (Cat) Equipment

This camshaft thrust plate controls axial movement of the crankshaft within the engine block, maintaining proper end play in Caterpillar 3204, 3304, 3304B, 3306, 3306B, and 3306C engines. It is an engine internal component used across a wide range of Caterpillar construction, grading, and earthmoving equipment. Two plates are required per engine.

Specifications

• Thickness: 0.214 in.
• Length: 6.77 in. (171.91 mm)
• Width: 3.42 in. (86.74 mm)
• Height: 0.73 in. (18.49 mm)
• Weight: 0.58 lbs. (0.26 kg)
• Quantity required per engine: 2

Compatible Models

Caterpillar Motor Graders: 12G, 12H, 12H ES, 12H NA, 120G, 130G, 140G, 140H, 140H ES, 140H NA, 143H, 14G, 14H NA, 160G, 160H, 160H ES, 160H NA, 163H NA

Caterpillar Excavators: 235, 235B, 330, 330B L, 350

Caterpillar Track-Type Tractors / Dozers: D4E SR, D4H, D4H XL, D5B, D5E, D5H, D6D, D6D SR, D6E SR, D6G, D6G SR, D6G2 LGP, D6G2 XL, D6H, D6H II, D6H XL, D6H XR, D7G, D7G2, D7H, D7R

Caterpillar Articulated Trucks: D250E, D250E II, D300E, D300E II

Caterpillar Wheel Loaders: 515

Caterpillar Soil Compactors: 815F, 816F

Caterpillar Load-Haul-Dump: R1300, R1300G

Caterpillar Engines (standalone): 1673C, 3204, 3304, 3304B, 3306, 3306B, 3306C

Replaces Part Number(s):

1003652, 100-3652

Aftermarket Interchange Numbers

7N9342, M-1003652

New aftermarket replacement part - not remanufactured, not used.
