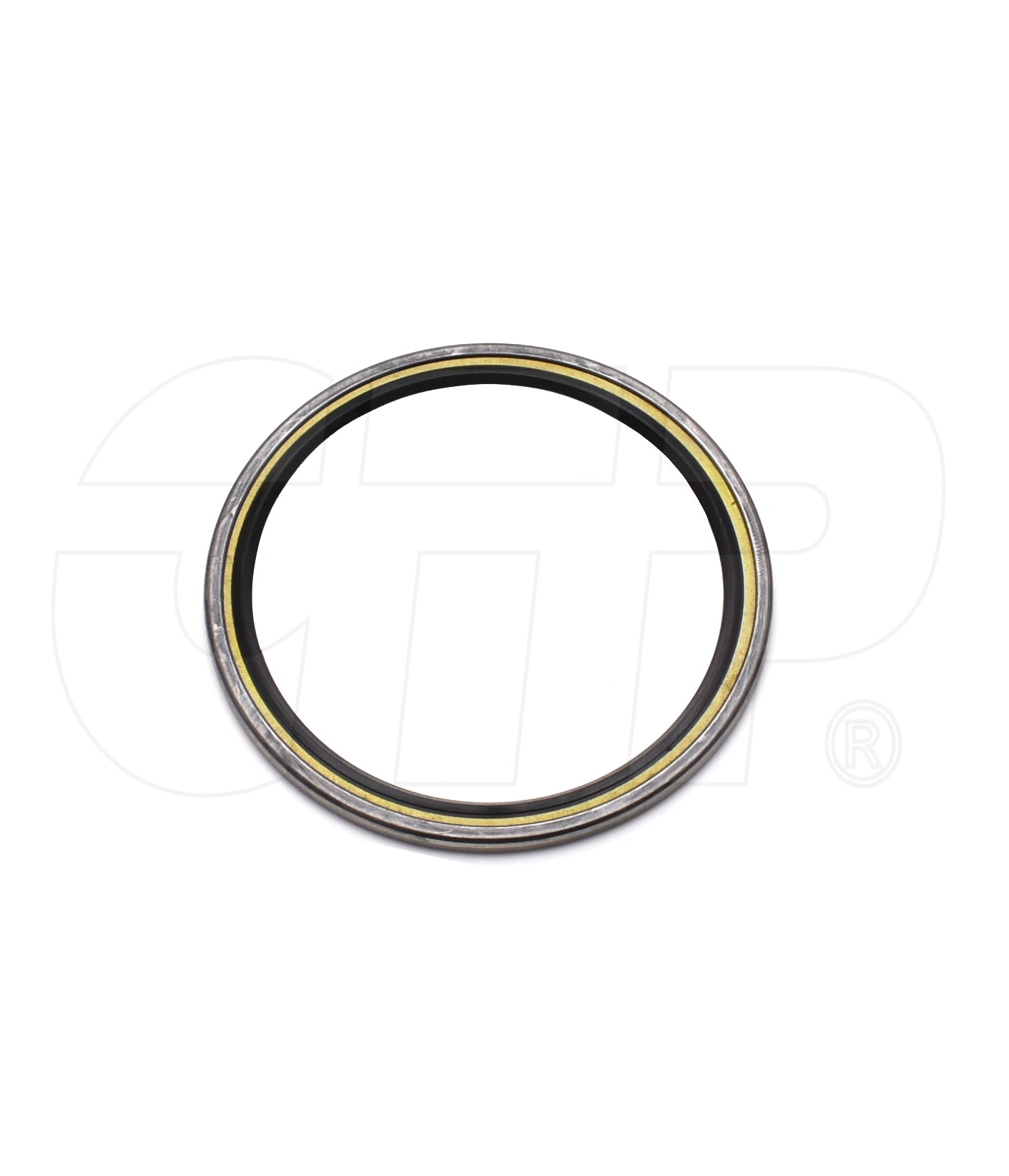

07145-00080 Dust Seal Fits Komatsu Models

One New Aftermarket Replacement Dust Seal for Komatsu Excavators

This aftermarket replacement dust seal (also called a bucket pin seal or wiper seal) fits Komatsu hydraulic cylinders, including arm cylinders and bottom dump cylinders. It seats at the rod end of the cylinder to keep contaminants out of the hydraulic system, protecting bushings and internal seals from dirt, debris, and moisture. Replaces Komatsu OEM part number 07145-00080.

Specifications

• Inner Diameter: 80 mm
• Outer Diameter: 95 mm
• Width: 4 mm
• Material: NBR (Nitrile Rubber)
• Type: Hydraulic Dust / Wiper Seal

Compatible Models

Komatsu Excavators: HB205, HB215, PC118MR, PC120, PC128UU, PC130, PC138US, PC150, PC160, PC160LC-8, PC180, PC180L, PC190, PC200, PC200CA, PC200EL, PC200EN, PC200LL, PC200SC, PC200Z, PC210, PC220, PC220LL, PC228, PC228US, PC228UU, PC230, PC230NHD, PC240, PC250, PC250HD, PC25R, PC270, PC270LL, PC27R, PC290, PC300, PC300HD, PC308, PC350, PC400, PC400-8, PC400-8R, PC400HD, PC400LC-8R, PC400ST, PC410, PC450, PC490, PC58UU, PC60, PC600, PC650, PC650SE, PC70, PC750, PC800, PC88MR, PW118MR, PW128UU, PW130

Komatsu Carriers: PC130, PC160, PC190, PC220, PC240, PC290, PC400

Replaces Part Number(s):

07145-00080, 0714500080

New aftermarket replacement part - not remanufactured, not used.
