0236708 Oil Pressure, Ammeter, and Water Temp Gauge Set Fits Massey Harris

Name: 0236708 Oil Pressure, Ammeter, and Water Temp Gauge Set Fits Massey Harris
SKU: MFGAUGESET-CHROME_03
Price: 81.99 USD
Availability: InStock

0236708 Oil Pressure, Ammeter, and Water Temp Gauge Set Fits Massey Harris

$81.99 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

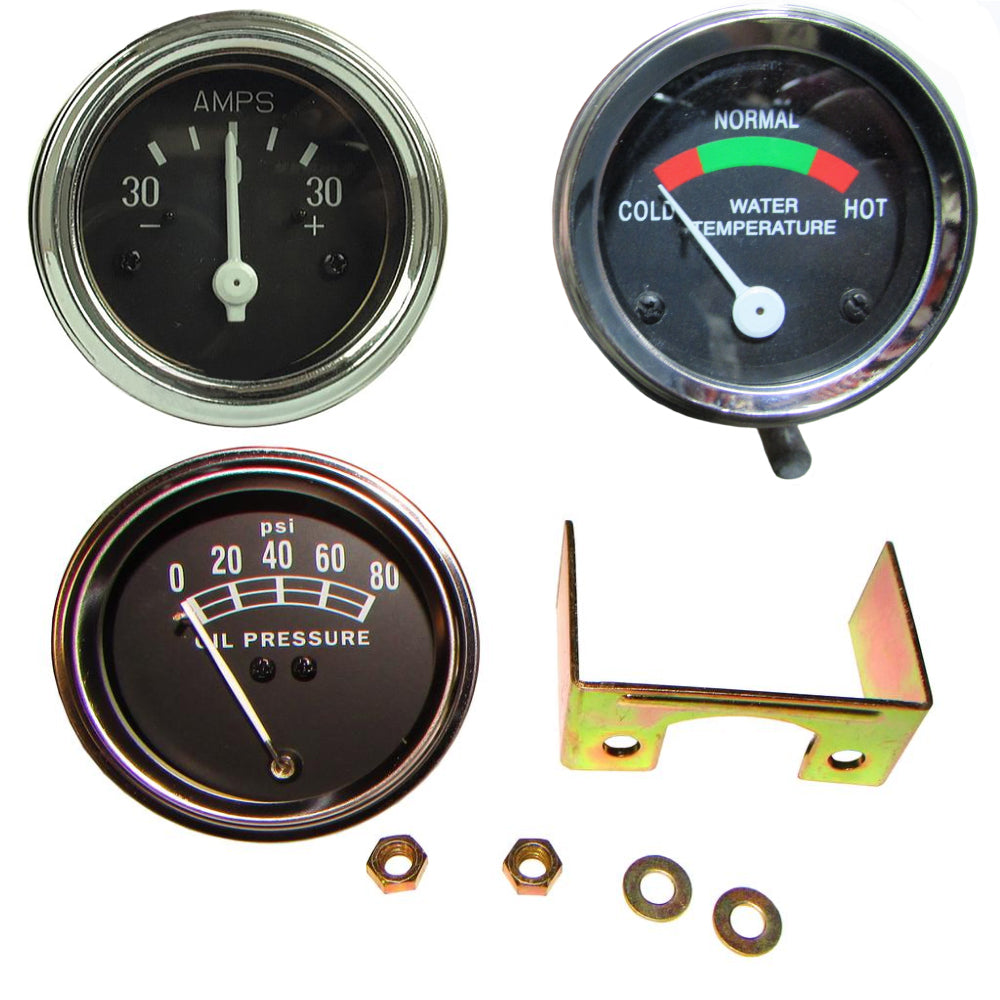

Aftermarket Oil Pressure, Ammeter, and Water Temp Gauge Set

Tech Info:
-Ammeter Gauge (30-0-30)
-30 Amp - Illuminated (Chrome Ring/Black Face)
-2" Diameter
-Black Face with Chrome Bezel
-Face Range: 30-0-30
-Replaces: 515521M91
-
-Temperature Gauge
-Chrome Ring with Black Face
-2" Body Diameter
-Mechanical Temp Gauge
-60" Capillary Tube with 3/8" NPT Nut and 1/2" NPT Bushing
-5/8" UNF Connector
-Range Cold to Hot
-6 or 12 Volt
-Replaces: 0236708, 1078125M91, 180727M91, 180727M92, 180727M93, 303485587, 30V3485587, 881369M91, 881396M91, 899455M91
-
-Oil Pressure Gauge
-Body Diameter: 2"
-80 PSI
-Chrome Bezel
-(1953-1964)
-Replaces: FAD9273A, 761511M91

Fits Massey Harris:
Tractor Models: MH44, Pony, Pacer (16), Pacemaker, 20, 20K, Colt (21), Mustang (23), 22, 22K, 30, 30K, 33, 44, 44 Special, 44-6, 44K, 50, 55, 55K, 81, 82, 101 Jr, 101 Sr, 102 Jr, 102 Sr, 201, 202, 203, 333, 444, 555, 404
Replaces Part Number(s): 0236708, 100679A, 1078125M91, 1079390M91, 10A21284, 10A2229, 15A9741, 180727M91, 180727M92, 180727M93, 182652M92, 1850512M94, 1851512M1, 236708, 303485587, 30V3485587, 881369M91, 881396M1, 881396M91, 899455M91, RAP11070553, TO17273

Models This Part Fits:

555, 20, Pacer (16), Colt (21), Pacemaker, 44-6, 101 Jr, 444, 22K, 55K, 20K, 44 Special, 44, 30K, 82, 203, MH44, 50, 404, 44K, 33, Mustang (23), 102 Sr, 333, 102 Jr, 202, 101 Sr, 30, Pony, 201, 81, 22, 55

Additional Information:

Ammeter Gauge (30-0-30) 30 Amp - Illuminated (Chrome Ring/Black Face) 2" Diameter Black Face with Chrome Bezel Face Range: 30-0-30 Replaces: 515521M91 Temperature Gauge Chrome Ring with Black Face 2" Body Diameter Mechanical Temp Gauge 60" Capillary Tube with 3/8" NPT Nut and 1/2" NPT Bushing 5/8" UNF Connector Range Cold to Hot 6 or 12 Volt Replaces: 0236708, 1078125M91, 180727M91, 180727M92, 180727M93, 303485587, 30V3485587, 881369M91, 881396M91, 899455M91 Oil Pressure Gauge Body Diameter: 2" 80 PSI Chrome Bezel (1953-1964) Replaces: FAD9273A, 761511M91

Reference Numbers:

0236708, 100679A, 1078125M91, 1079390M91, 10A21284, 10A2229, 15A9741, 180727M91, 180727M92, 180727M93, 182652M92, 1850512M94, 1851512M1, 236708, 303485587, 30V3485587, 881369M91, 881396M1, 881396M91, 899455M91, RAP11070553, TO17273
