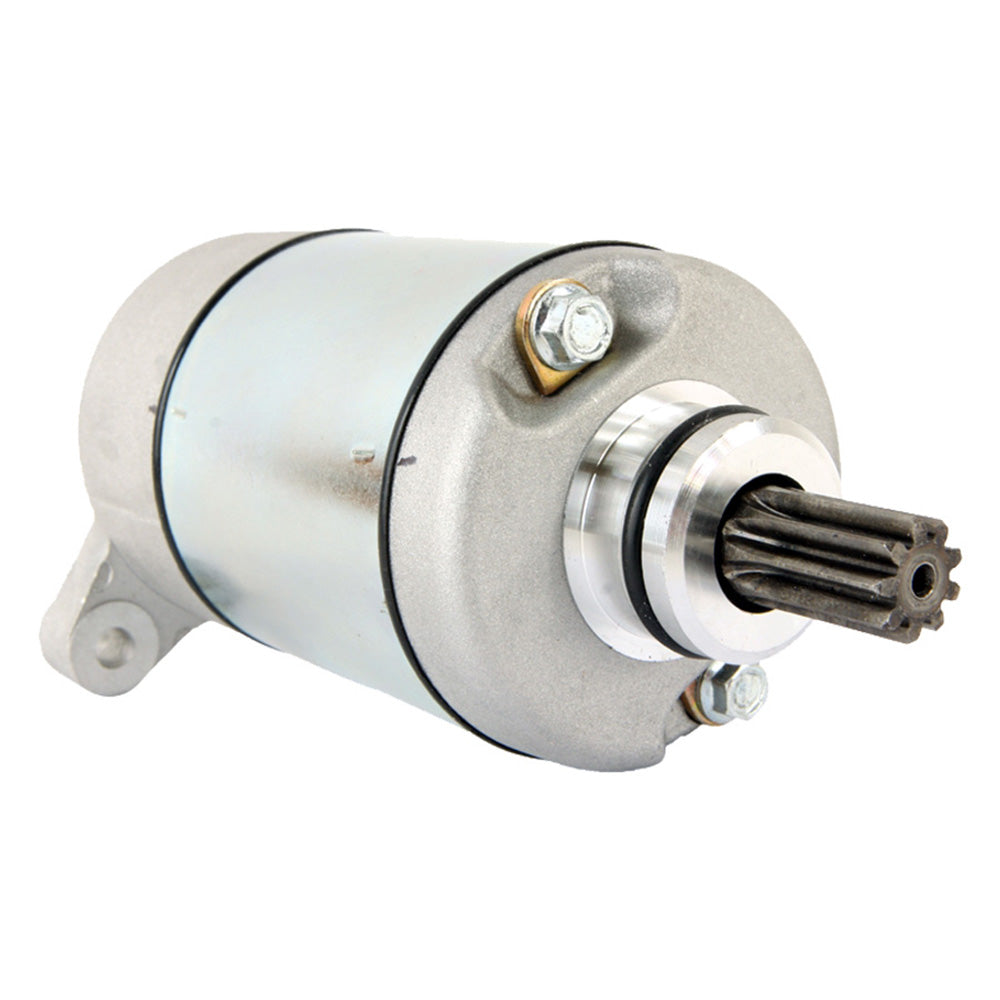

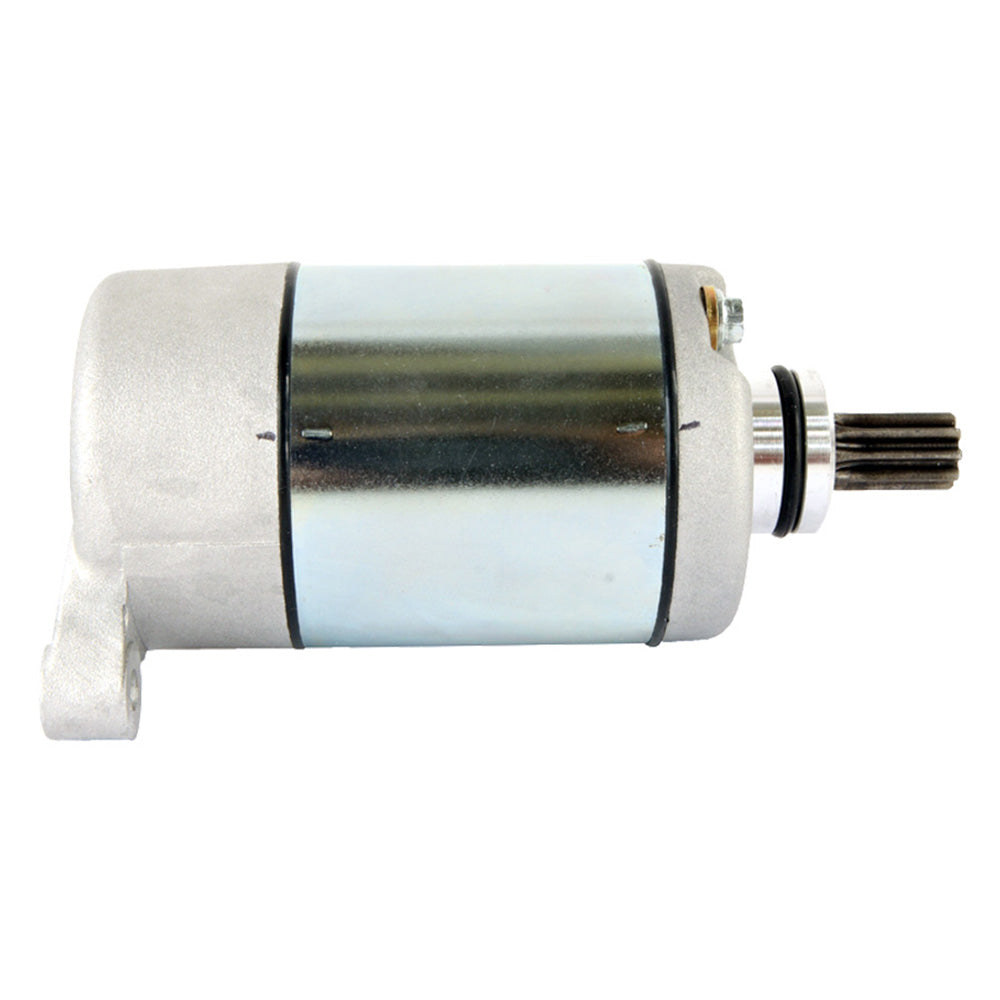

Starter , 12V, PMDD, CW, Aftermarket Mitsuba

Models This Part Fits:

Xplorer 500 (1997), Sportsman 500 EFI X2, Sportsman 500 HO, Ranger 4x4 500 EFI, Ranger Crew 500 (2011-2012), Scrambler 500 (1997-2011), Ranger 6x6 500, Trail Boss 325 (2000-2002), Magnum 425 4x4, ATP 500, Magnum 425 2x4, Worker 335 (1999), Ranger 500 (2001-2013), Scrambler 400 2x4, Sportsman 400 4x4, Sportsman 400, Ranger 4x4 500, Sportsman X2 500 (2006-2009), Sportsman 500 EFI Touring, Worker 500, Magnum 330 4x4, ATP500 (2004-2005), Magnum 325 (2000-2002), Sportsman 500 4x4, Magnum 500, Magnum 330 2x4, Ranger 4x4 400, Worker 335, ATP 330, Magnum 330 (2003-2006), Sportsman 500 RSE, Magnum 325 4x4, Xplorer 500 4x4, Magnum 425 (1996-1997), Trail Blazer 330 (2008-2011), Sportsman 500 EFI, Trail Boss 330 (2003-2011), Hawkeye 2X4, Sportsman 400 (2001-2005), Ranger 500 Crew, Trail Boss 330, Sportsman 500 6x6, Sportsman 335, Sportsman 335 (1999-2000), Big Boss 500 (1998-1999), Worker 500 (1999), Scrambler 500 4x4, Sportsman 500 (1996-2011), Trail Blazer 330, Scrambler 500 2x4, Sportsman 450, Magnum 500 (1999-2003), Sportsman 450 (2006-2007), Ranger 2x4 500, Ranger 2x4 425, Trail Boss 325, Magnum 425 6x6, Big Boss 500 6x6, ATP330 (2004-2005), Magnum 325 2x4

Additional Information:

Volt 12 Rotation Direction Clockwise Electric Starter Type Permanent Magnet Direct Drive (Pmdd) Number of Teeth 9 Gear Od 0.559" Gear Od 14.200mm Mount Hole ID 1 6.800mm Mount Hole 1 Type Unthreaded Mount Hole 2 Type Unthreaded

Reference Numbers:

3084981, 3090188
