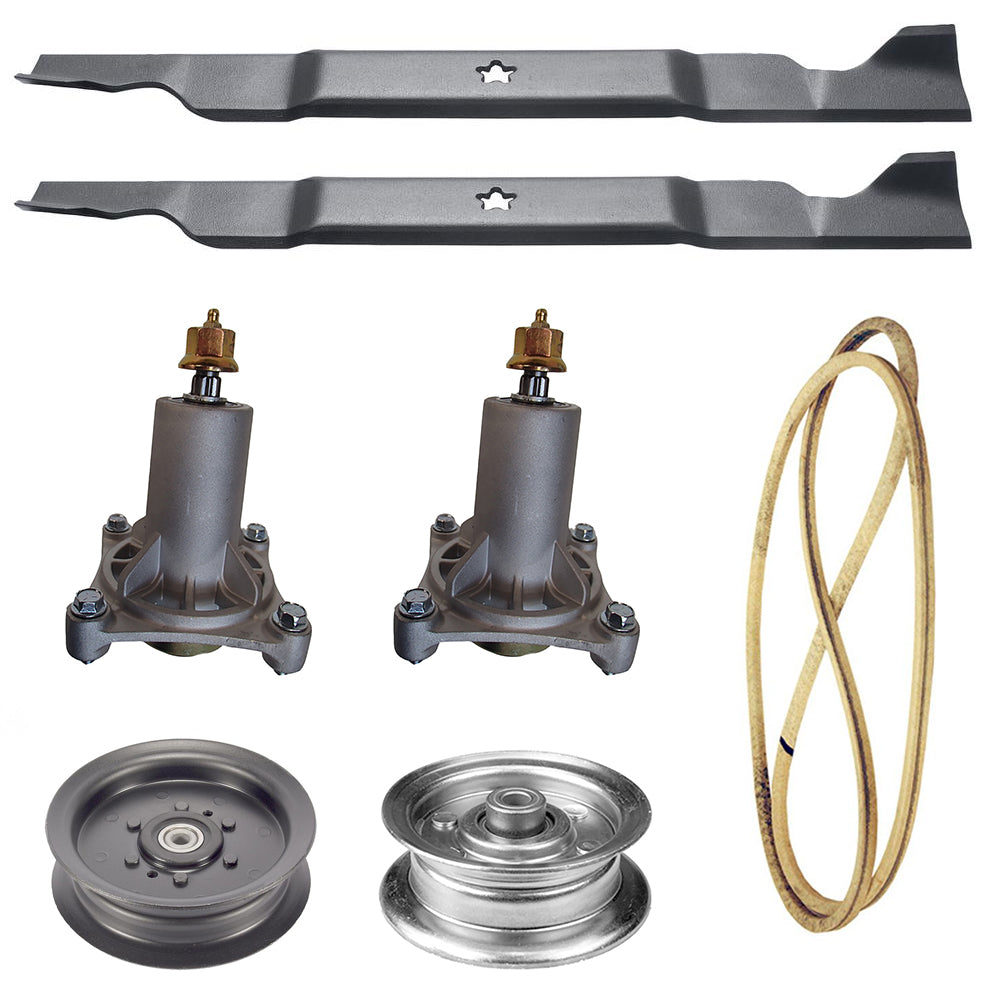

Rebuild Kit for Sears DLS 3500 46" Mower Deck Parts Spindles Blades Belt Pulleys

Models This Part Fits:

187292, 196106, 197379, 405143, 405380, 917 TYPE 2 BLADE 46" DECK, YS 4500, YTH 20 K 46, YTH21K46, yth 20 k 46

Additional Information:

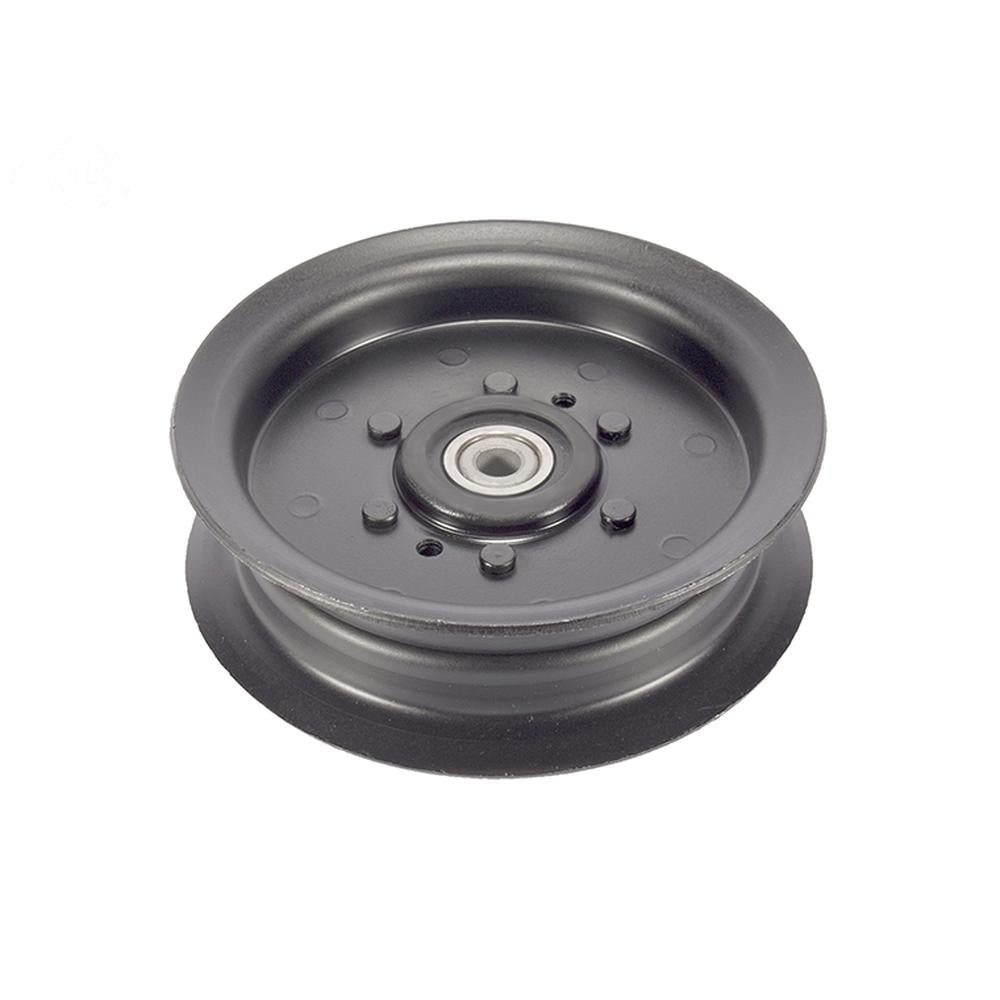

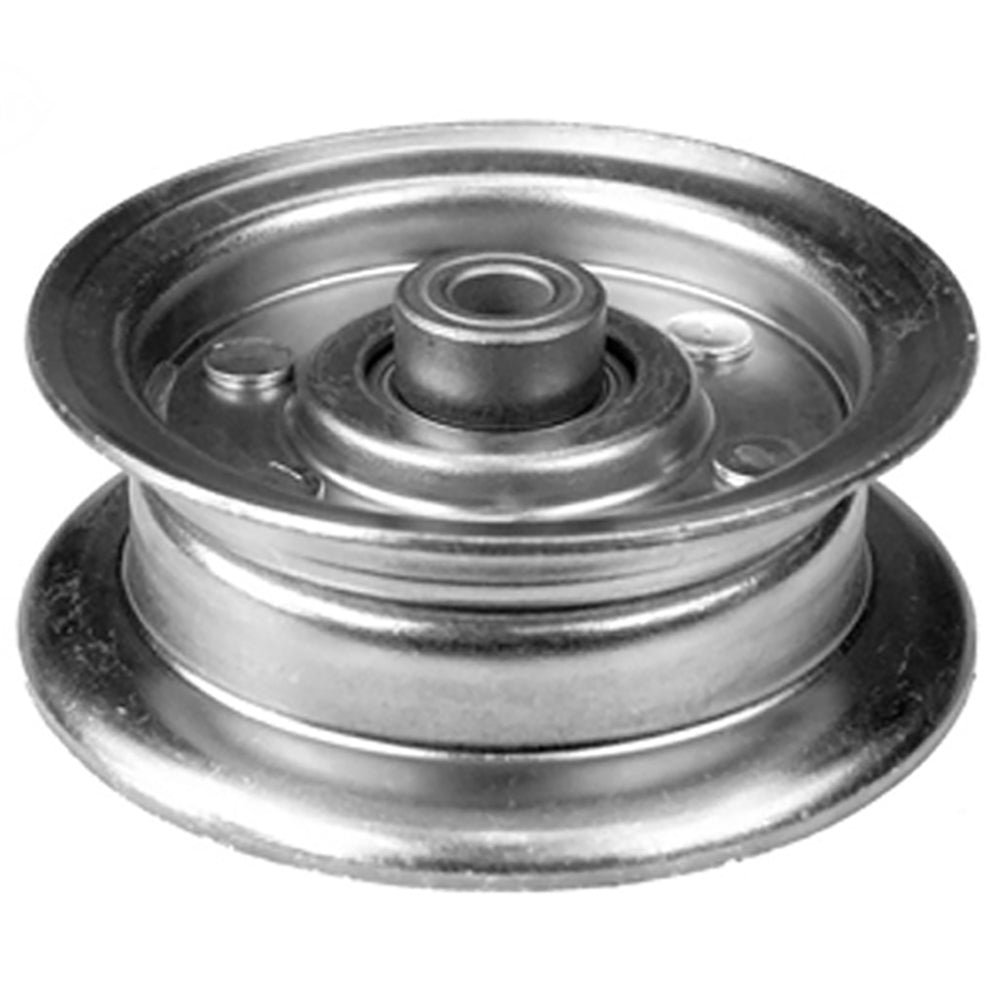

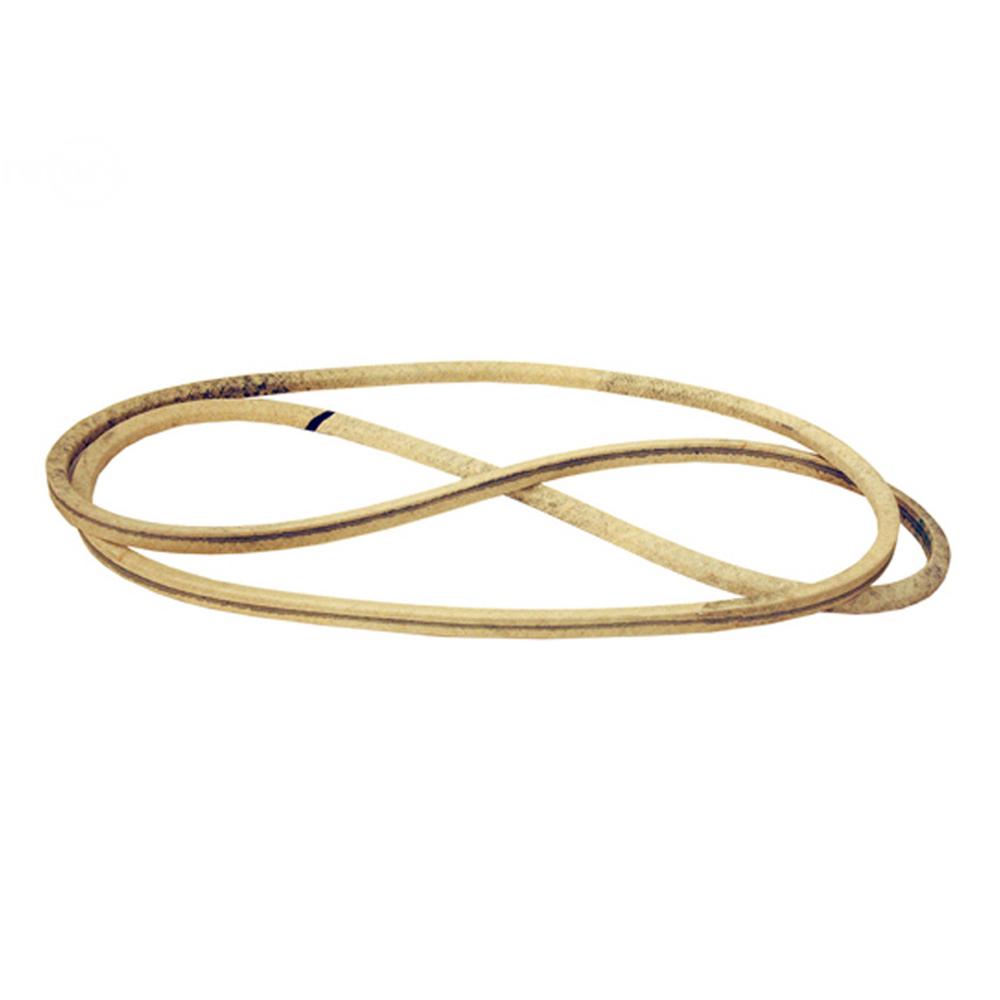

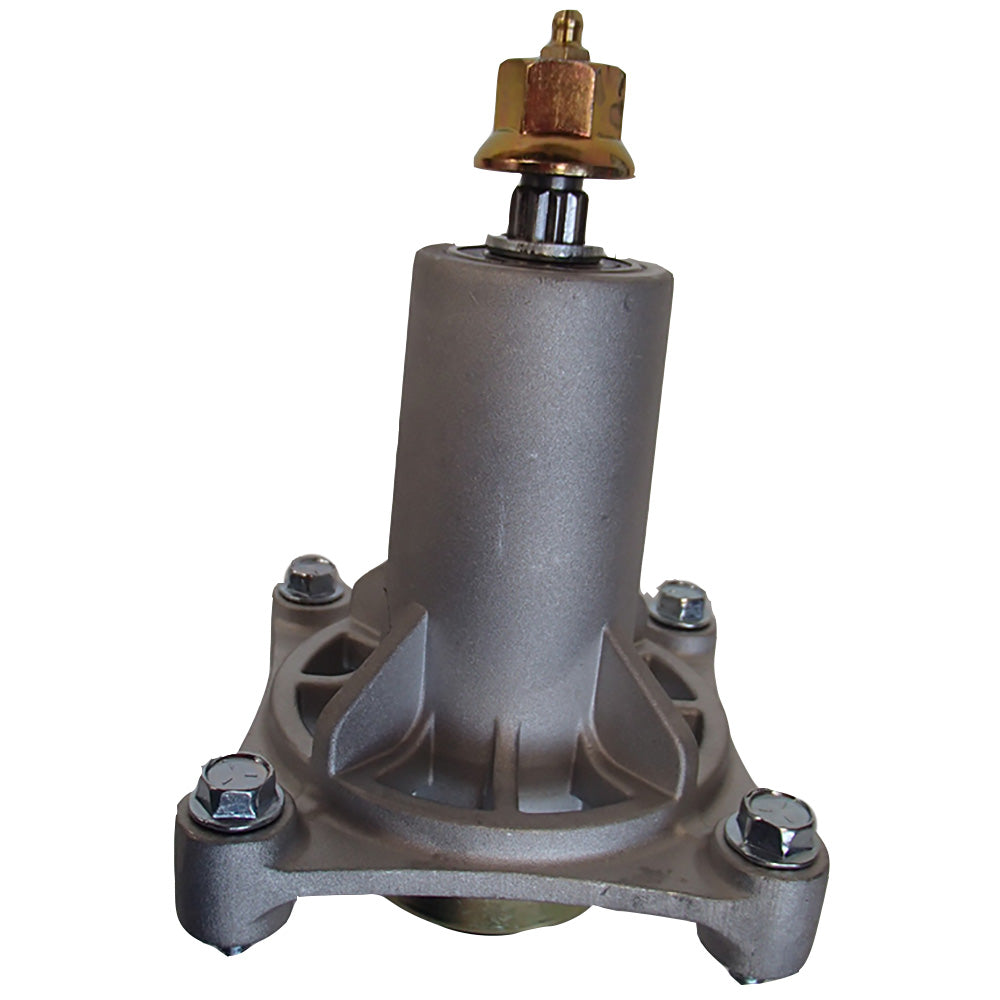

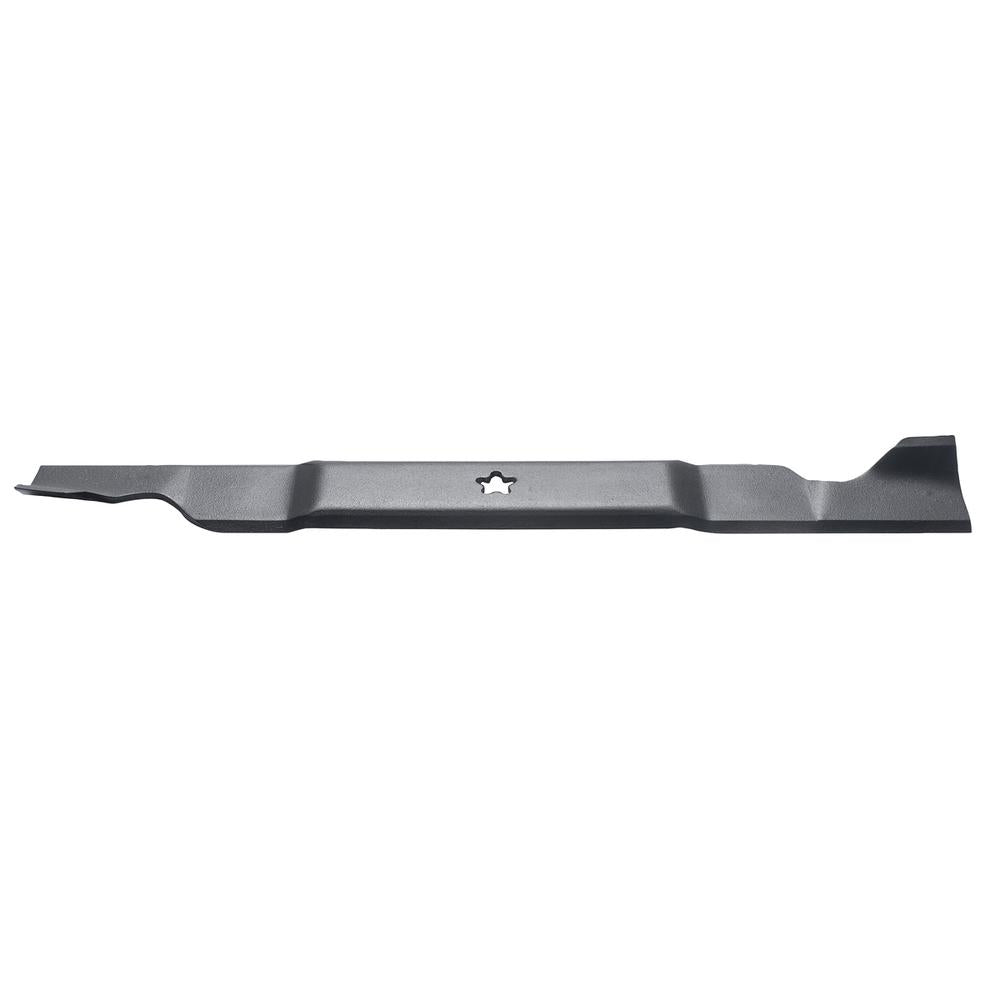

(2) Mower Blades Length: 22-7/8" Width: 2-3/4" Thickness: 0.156" Center Hole: 5 point star Replaces Part Number(s): 403107, 503405380, 532403107, 532405380, 594892801 (1) Flat Idler Pulley ID: 3/8" OD: 5-3/8" Height: 1-5/8" Painted Replaces Part Number(s): 196106, 197379, 532196106 (1) Deck Belt 1/2" x 105.875" Thickness: 0.35" Made With Aramid Cord Replaces Part Number(s): 532405143, 584453101 (2) Spindle Assemblies 4-Bolt Long Housing 5-Point Star Blade Mount Threaded Mounting Holes for Easy Installation Shaft is Splined for Spline-Type Pulleys Includes: Pulley Locknut, Blade Bolt/Washer, Spacer, 4 Mounting Bolts Replaces Part Number(s): 192870, 532187281, 532187292, 532192870, 539112057, 567253301, 587125401, 587253301, 587819701, 587820301 (1) Flat Idler Deck Pulley Height: 1-7/16" ID: 3/8" OD: 4" Material: Metal Heavy Duty: TRUE Replaces Part Number(s): 532177968, 532193197

Reference Numbers:

187281, 187281-A, 192870, 192870-A, 193197, 193197-A, 196106, 196106-A, 197379, 197379-A, 21546440, 21546440-A, 21546607, 21546607-A, 21546611, 21546611-A, 21546847, 21546847-A, 403107, 403107-A, 405143, 405143-A, 405380, 405380-A, 5.32405143532187E+35, 5.32405143532187E+35-A, 5.32405E+35, 532187292, 532187292-A, 532193197, 532193197-A, 532197379, 532405143, 532405143-A, 832405380, 832405380-A
