New Steering Kit Fits John Deere Tractor X105 X115 X125 X130R X135 X145 X165

Name: New Steering Kit Fits John Deere Tractor X105 X115 X125 X130R X135 X145 X165
SKU: AY-FRN30-0014
Price: 142.99 USD
Availability: InStock

New Steering Kit Fits John Deere Tractor X105 X115 X125 X130R X135 X145 X165

$142.99 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

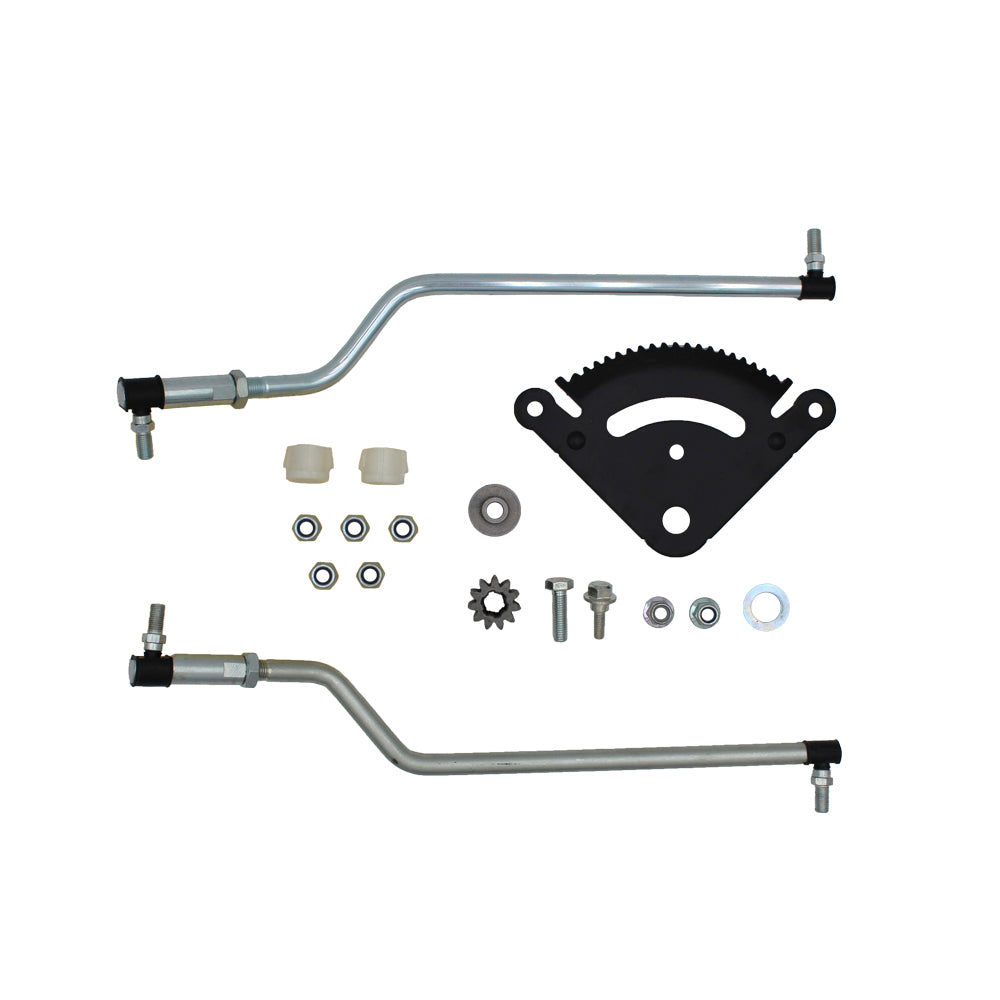

One New Aftermarket Replacement Steering Sector with Drag Link Kit

Fits John Deere Lawn Tractor Models:
X105, X115, X125, X130R, X135, X145, X165, X155R

Kit Includes:
(1)- Steering Sector gear
(1)- RH Drag Link
(1)- LH Drag Link
(1)- Pinion Gear
(1)- Steering Gear Hardware
(2)- Steering Shaft Bushings
(4)- Lock Nuts, (10mm x 1.25mm Pitch)

Replaces Part Numbers:
GX25785, GY20771, GY21251, 13340, GY20770, GY21250, GX20053, GX20053, 14M7396, M153513, 20225, GX21994, GX21994, 14M7455

Models This Part Fits:

D160, 105, X115R, 125, LA110, X130R, X165, D120, D170, X105, D130, 92H, S240, D140, LA120, LA105, 145, X125, LA150, LA175, X135R, D125, 107S, LA100, D155, LA125, D110, LA115, 107H, D100, LA140, 135, D150, X145, LA130, 155C, LA165, 190C, 102, X155R, D105, 115

Additional Information:

(1) Left Hand Adjustable Draglink Left Hand Length: 18" Thread: M10x1.25mm Replaces Part Number(s): GY20770, GY21250 (1) Right Hand Adjustable Draglink Right Hand Length: 18" Thread: M10x1.25mm Replaces Part Number(s): GY21251, GY20771 (1) Pinion Gear Height: 1" OD: 1 3/8" Replaces Part Number(s): GX20053 (1) Steering Sector Gear Teeth: 21 Replaces Part Number(s): GX21924BLE, GX25785BLE, GX25785 (1) Steering Gear Bushing Flange Thickness 0.16" Flange Outside Diameter 1.382" Inside Diameter 0.407" Length 0.45" Outside Diameter 0.710" Replaces Part Number(s): UC13360, GX20054 (1) Steering Bolt Hex Flange Bolt Thread Size: 10mm Length: 35mm Thread Pitch: 1.25mm Replaces Part Number(s): 19M7835 (1) Flat Washer ID: .781" OD: 1.25" Thickness: .036" Material: Steel Replaces Part Number(s): 24M7053 (2) Steering Shaft Bushing I.D.: .625" O.D.: .900" Height: .870" Flange OD: 1" Replaces Part Number(s): GX21994 (1) Hexagonal Lock Nut - M10 Flange Diameter: 21.80mm Wrench Height: 5.60mm Thickness: 13.50mm Replaces Part Number(s): 14M7400 (5) Hexagonal Lock Nut - M10 10mm x 1.25mm Pitch Width Across Flats: 17mm Wrench Height: 7mm Replaces Part Number(s): 14M7455 (1) Locking Flange Nut Thread Size: 8mm Pitch: NC Thread Style: Right Hand Replaces Part Number(s): 14M7396 (1) Shoulder Bolt Thread Size: 8mm Length: 1.1” Replaces Part Number(s): M153513
