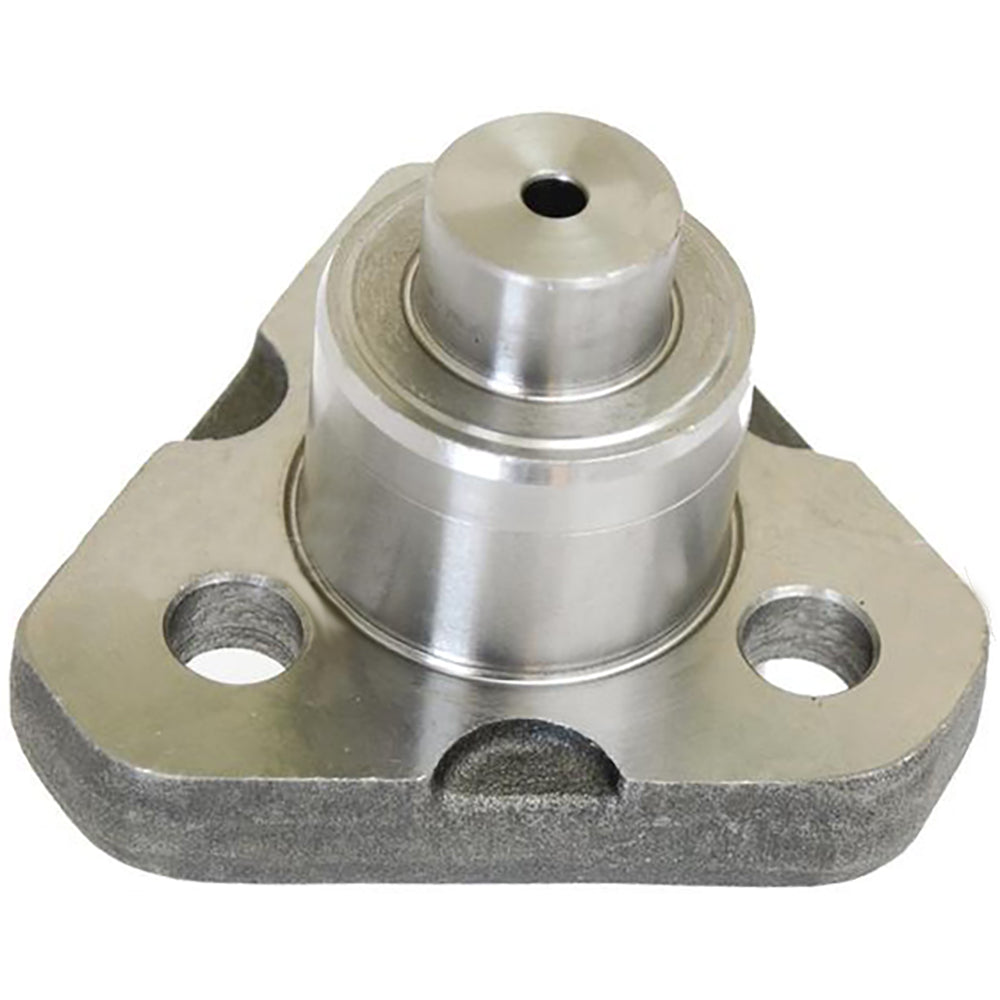

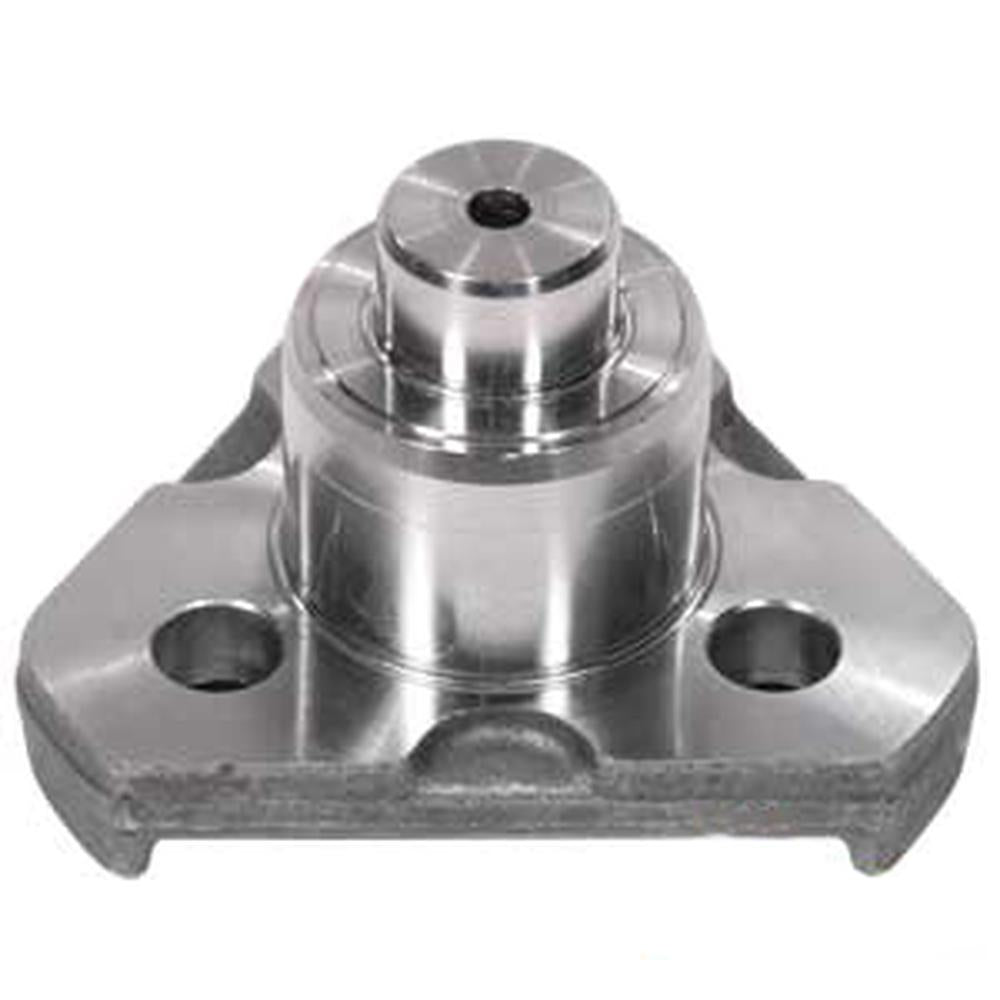

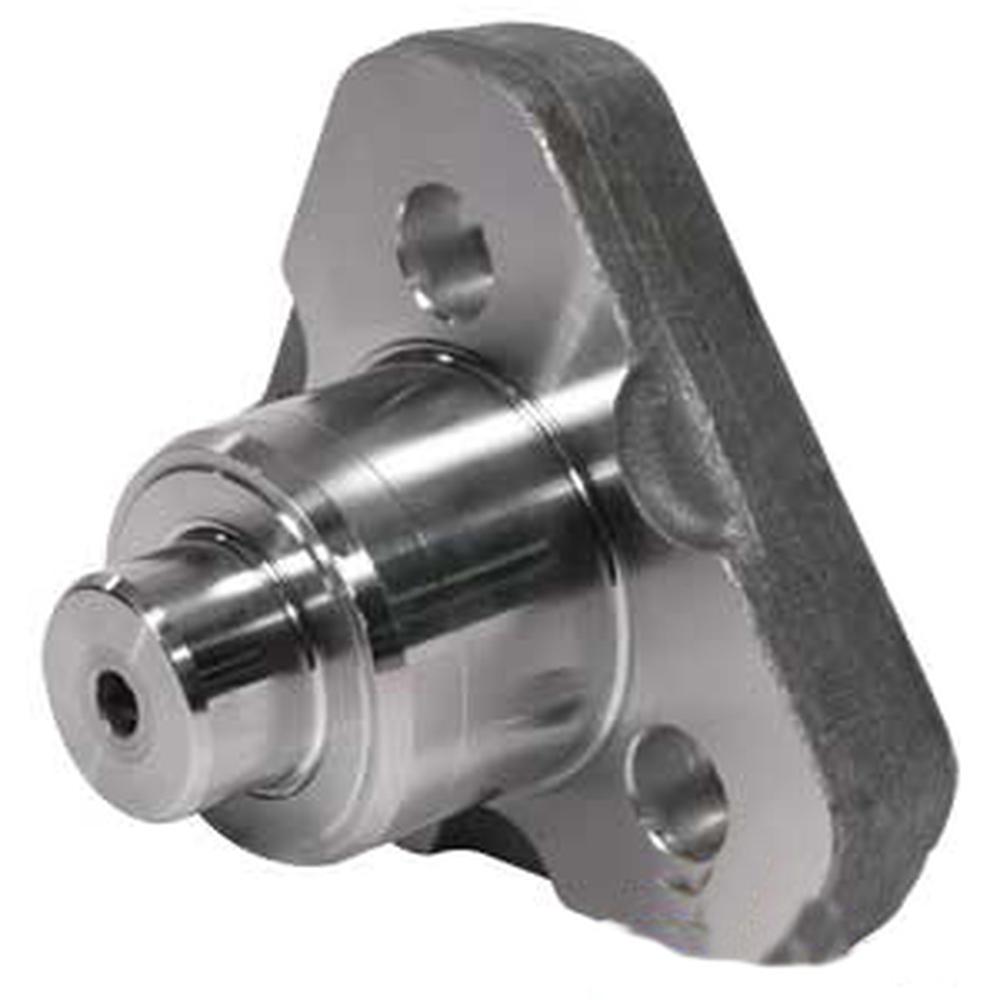

One New Aftermarket Replacement MFWD Lower King Pin Fits Case, Fits Case IH, Fits Ford/New Holland, and Fits Massey Ferguson Equipment
This lower king pin fits the Carraro mechanical front wheel drive (MFWD) axle and is a three-bolt design used in the swivel housing cap of the front axle steering knuckle. It is a critical steering and axle component that controls front-wheel pivot on 4WD-equipped backhoe loaders and tractors. Pairs with the upper king pin (N14376) to complete a full king pin rebuild on one side.
Serial Number Restriction (Fits Case 580K): Fits Case 580K with serial number JJG0020000 and above. Early 580K and 580SK models prior to Carraro axle serial number 4253 use a different king pin kit configuration -- verify your axle serial number before ordering.
Specifications
- Pin Height from Base: 50 mm
- Small Pin Diameter: 28 mm
- Small Pin Height: 16 mm
- Hole Diameter: 15 mm
- Hole Center to Center: 66 mm
- Three-bolt mounting pattern
- Weight: approx. 2.5 lbs
Compatible Models
Fits Case / Fits Case IH Backhoe Loaders (MFWD): 480E, 480E LL, 480F, 480F LL, 580K (s/n JJG0020000 and above), 580 Super E (580SE), 580 Super K (580SK), 584E, 585E, 586E, 590 Turbo, 760, 860
Fits Case IH Tractors (MFWD): 5120, 5130, 5140, 5150, 5220, 5230, 5240, 5250
Fits Ford/New Holland Backhoe Loaders and Construction (MFWD): 250C, 260C, 345C, 345D, 445, 445A, 445C, 445D, 450, 455C, 455D, 545, 545A, 545C, 545D, 555B, 555C, 555D, 575D, 655, 655A, 655C, 655D, 675D
Fits Ford/New Holland Tractors (MFWD): 5640, 6640, 7740, 7840, 8240, 8340
Replaces Part Number(s):
N13504, 83952503, 3475348M1, 137700410835, CAR118526
New aftermarket replacement part - not remanufactured, not used.
