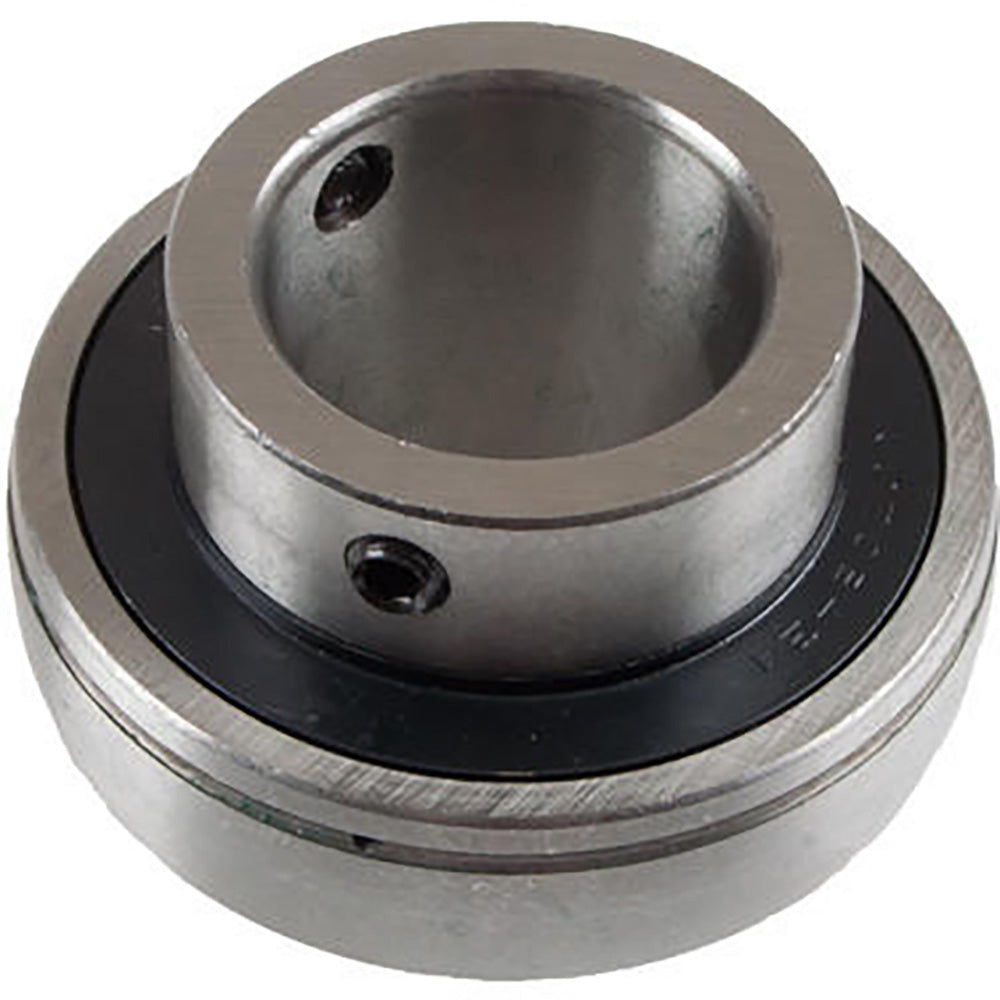

One New Aftermarket Replacement UC208-24 Insert Bearing - 1-1/2" Bore with Set Screw Locking
This UC200 series insert bearing features a 1-1/2" bore secured by set screws and a spherical outer diameter for self-alignment, making it a versatile replacement for agricultural equipment, conveyors, material handling systems, and a wide range of industrial machinery. The bearing is relubricable and uses a single lip seal to protect against contamination.
Specifications
- Bearing Type: Insert Ball Bearing (UC200 Series)
- Bore Diameter: 1-1/2 in (38.1 mm)
- Outside Diameter: 3.1496 in (80 mm)
- Overall Width: 1.937 in
- Outer Ring Width: 0.827 in
- Outer Race Shape: Spherical
- Locking Device: Set Screw (2-bolt)
- Bore Shape: Straight / Cylindrical
- Seal Type: Single Lip Contact Seal
- Lubrication: Relubricable
- Bearing Material: Bearing Grade Steel (AISI 52100)
- Precision Standard: C3
Compatible Applications
This UC208-24 insert bearing is widely used across agricultural machinery, construction equipment, conveyors, fans, textile machinery, printing equipment, and general industrial and commercial applications. It is dimensionally interchangeable with UC208-24 bearings from all major manufacturers.
Replaces Part Number(s):
UC208-24, HIB10-0250
New aftermarket replacement part - not remanufactured, not used.
