H4 Magneto Kit w/ Coil Fits FARMALL Super A, Super C Tractor

Models This Part Fits:

OS4, HV, F20, BN, I4, Super MDV-TA, 130, T20, C, Super AV-1, Super MDV, WDR9, 650, Super MD, T6, 300, O12, 100, Super W6, Super WD6, W12, Super WD9, 350, Super H, O6, ODS6, F14, MV, 600, Super MV, W450, TD6, 230, W9, WR9, 15-30, 22-36, W400, T5, 450, Super MTA, W4, Super W9, Super WDR9, Super A-1, Super W4, AV, H, O4, Super M, W14, W6, MD, W6TA, 10-20, F12, Super W6TA, B, Super MVTA, OS6, Super MDTA, W40, M, 400, A, Super HV, Super C, WD6, 200, ID9, MDV, Super A, I9, Regular, WD9

Additional Information:

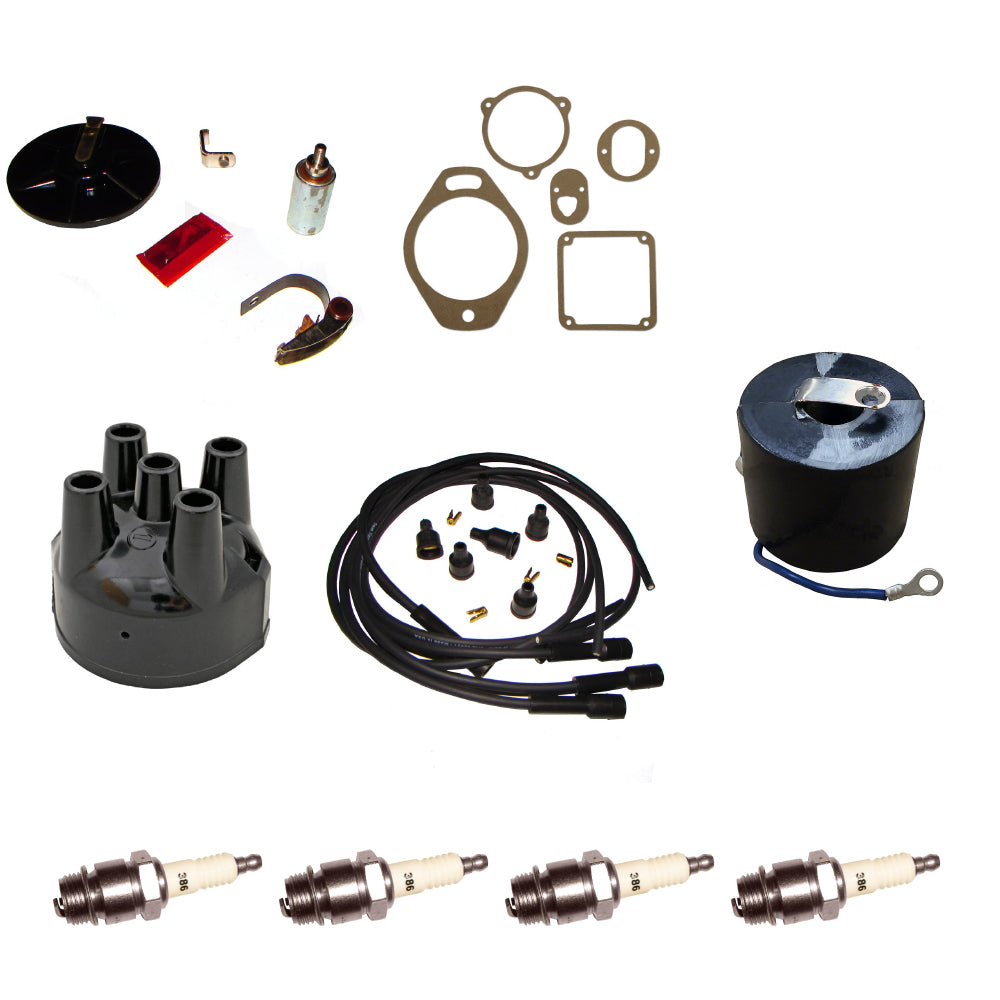

Kit Contains: (1) Ignition Kit Contains Points, Condensers & Rotors to service H-4 Magneto Replaces Part Number(s): 407017R91, 407017R92 (4) Spark Plugs Standard Info Thread Size: 18mm 7/8" Hex Shoulder Hex Size: 13/16" (20.6mm) Reach: 12mm (.472") Seat Type: Gasket Gap: .028" (0.7mm) Heat Range: 2 Terminal Type: Removable Nut Resistor: No Thread Pitch: 1.5mm Center Electrode Type: Standard Material: Nickel Size: 2.5mm Projection: Non-Projected Ground Electrode Type: Standard Material: Nickel Replaces Part Number(s): G44840, 4012405C (1) Magneto Coil Cover Replaces Part Number(s): 47449DAX, 47449DAY (1) Distributor Cap Services H-4 Magneto, Clip Style Replaces Part Number(s): 407017R91, 407017R92 (1) Gasket Set includes: Coil Cover Gasket Distributor Body Gasket Distributor Gear Cover Gasket Condenser Hole Cover Gasket Magneto Mounting Gasket Replaces Part Number(s): 359966R1, 47408D, 47453D, 48472DA, 49419D, 55780DD, 55780DE, E4226 (1) Spark Plug Wiring Set (4 Cyl.) 4 Cylinder (Non-tailored Straight Boot) (1) Magneto Coil Replaces Part Number(s): 21401D, 21401DAX, 361114R91, 47439D, 47439DA, 47439DAX, 57926DX, RW104

Reference Numbers:

21401D, 21401DAX, 361114R91, 47439D, 47439DA, 47439DAX, 57926DX, RW104

Product Category:

Agriculture
View More: Agriculture Replacement Parts

Product Sub Group:

Ignition Components
View More: Ignition Components Replacement Parts
