CEN-A3-228-JN C.E. Niehoff Pulley

CEN-A3-228-JN C.E. Niehoff Pulley

$208.99 USD
$208.99 USD
Sale Sold out
Shipping calculated at checkout.
One New Aftermarket C.E. Niehoff Pulley

Tech Info:

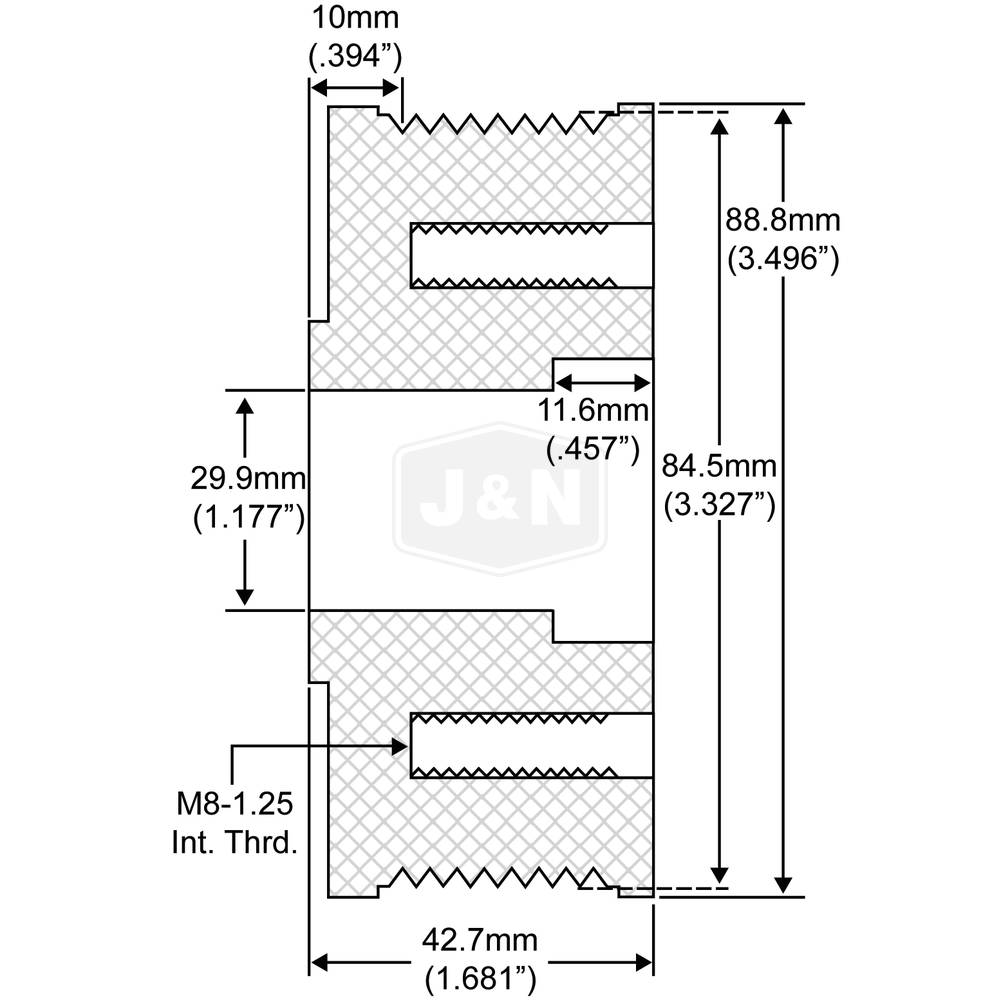

-: (2) M8-1.25 Threaded Holes, CENTER OF GROOVE TO REAR: 0.394", CENTER OF GROOVE TO REAR: 10mm, GROOVE OD: 3.327", GROOVE OD: 84.500mm, GROOVE TYPE: Serpentine, ID: 1.177", ID: 29.900 mm, KEYWAY WIDTH: 0.181", KEYWAY WIDTH: 4.600mm, NUMBER OF GROOVES: 8, NUT RECESS: 0.457", NUT RECESS: 11.600mm, OD: 3.496", OD: 88.800 mm, PULLEY TYPE: Solid, THICKNESS: 42.700 mm
-Arrowhead: A3-228; C.E. Niehoff: A3-228

Replaces Part Number(s): CEN-A3-228

Additional Information:

: (2) M8-1.25 Threaded Holes, CENTER OF GROOVE TO REAR: 0.394", CENTER OF GROOVE TO REAR: 10mm, GROOVE OD: 3.327", GROOVE OD: 84.500mm, GROOVE TYPE: Serpentine, ID: 1.177", ID: 29.900 mm, KEYWAY WIDTH: 0.181", KEYWAY WIDTH: 4.600mm, NUMBER OF GROOVES: 8, NUT RECESS: 0.457", NUT RECESS: 11.600mm, OD: 3.496", OD: 88.800 mm, PULLEY TYPE: Solid, THICKNESS: 42.700 mm, Arrowhead: A3-228; C.E. Niehoff: A3-228

Reference Numbers:

CEN-A3-228
