42" Deck Rebuild Kit Fits Snapper Replaces 705061

Name: 42" Deck Rebuild Kit Fits Snapper Replaces 705061
SKU: AY-LAB50-0104
Price: 69.99 USD
Availability: InStock

42" Deck Rebuild Kit Fits Snapper Replaces 705061

$69.99 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket 42" Deck Rebuild Kit

Tech Info:

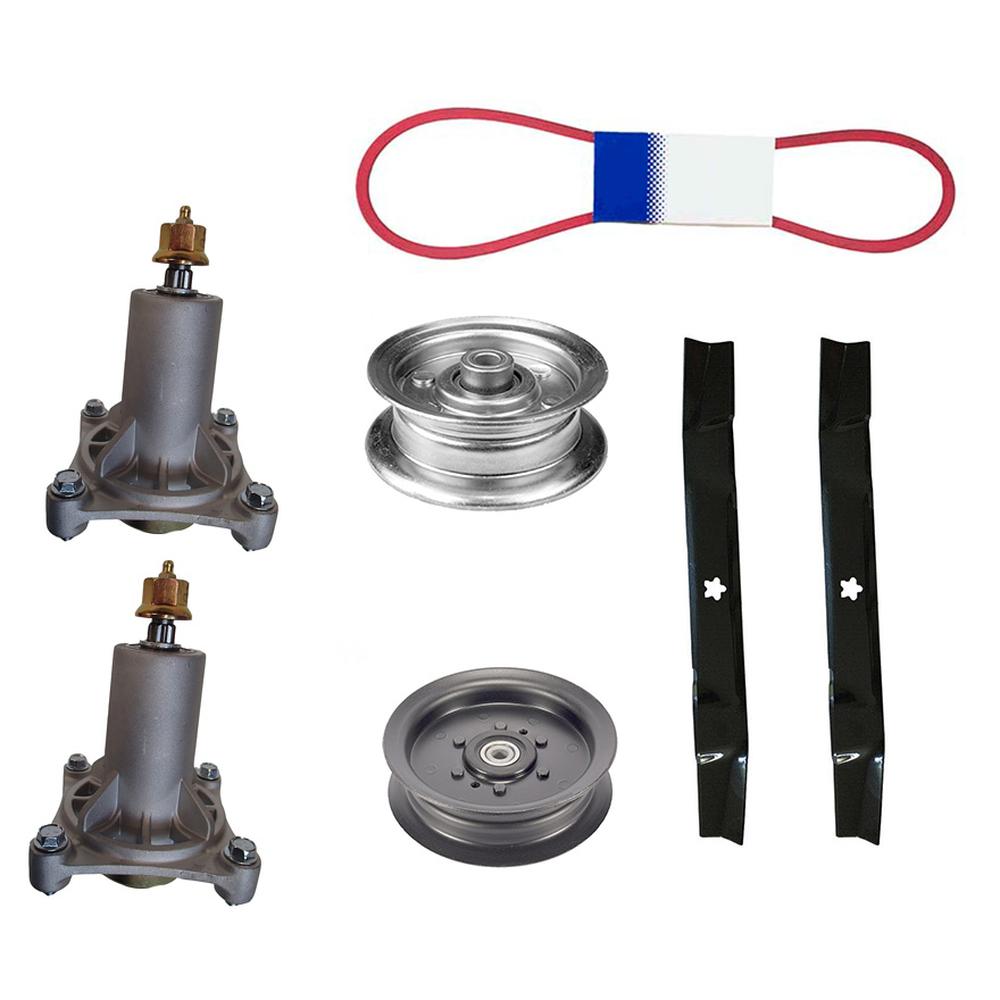

-Kit Includes:

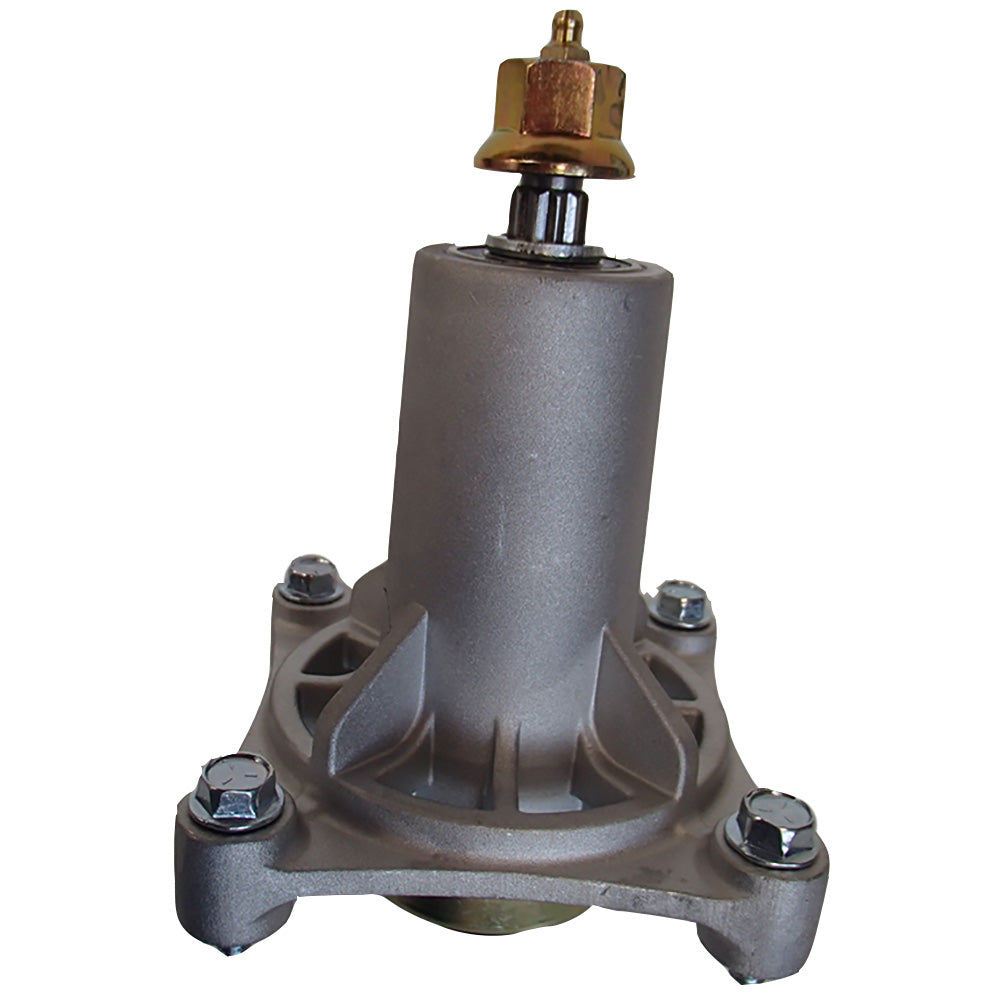

-(2) Spindle Assemblies
-4-Bolt Long Housing
-5-Point Star Blade Mount
-Threaded Mounting Holes for Easy Installation
-Shaft is Splined for Spline-Type Pulleys
-
-Includes:
-Pulley Locknut,
-Blade Bolt/Washer,
-Spacer,
-4 Mounting Bolts
-
-Replaces Part Number(s):
-187292, 532187292, 532192870, 539112057, 587125401, 587253301, 587819701, 587820301, 192870, 532187281, 567253301
-

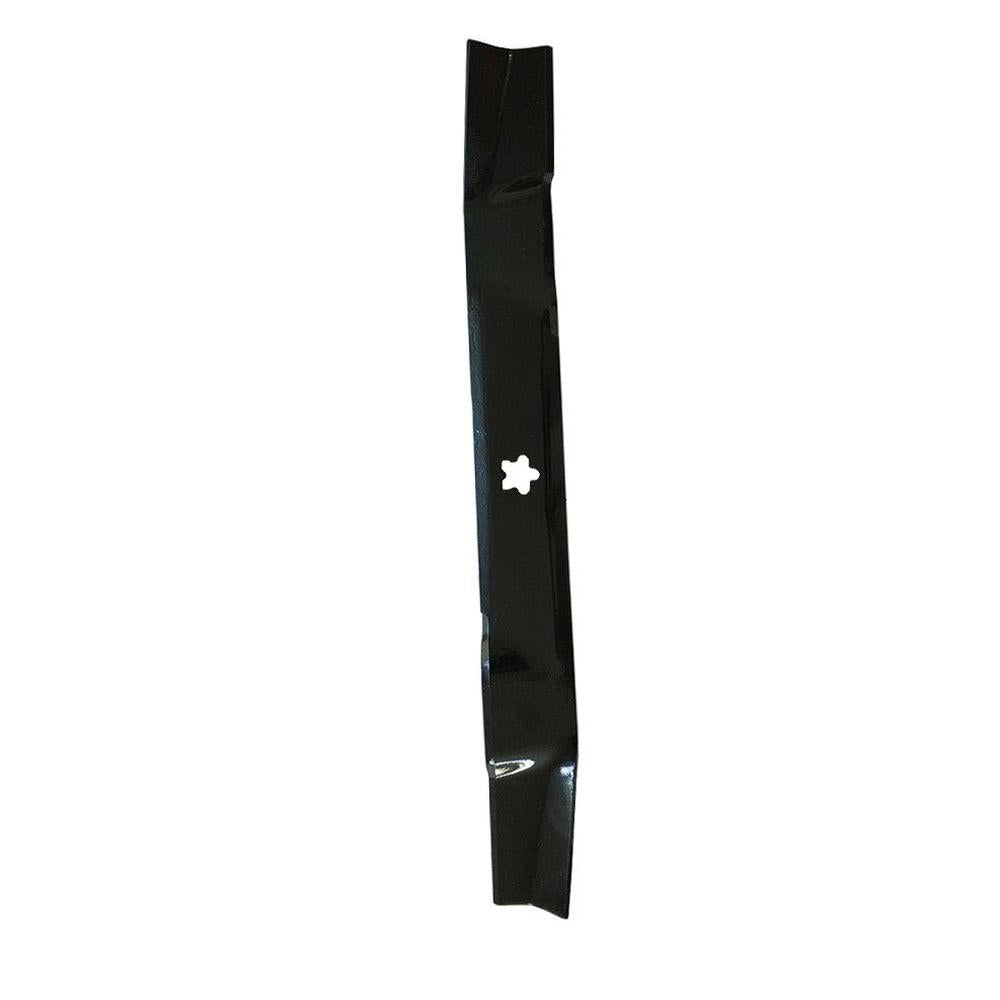

-(2) Mulching Lawn Mower Blades
-Length: 21"
-Width: 2-1/4"
-Center Hole: 5 Point Star
-Thickness: .134"
-Mulching Blade
-
-Replaces Part Number(s):
-134149, 24676, 422719, 424752, 531005085, 531307223, 532422719, 532424752, 539110460, 91724676, 917532422719, 917532424752, 917539110460, 917777134149, 954636867, 532134149, 594892701, 594893101, 777134149
-

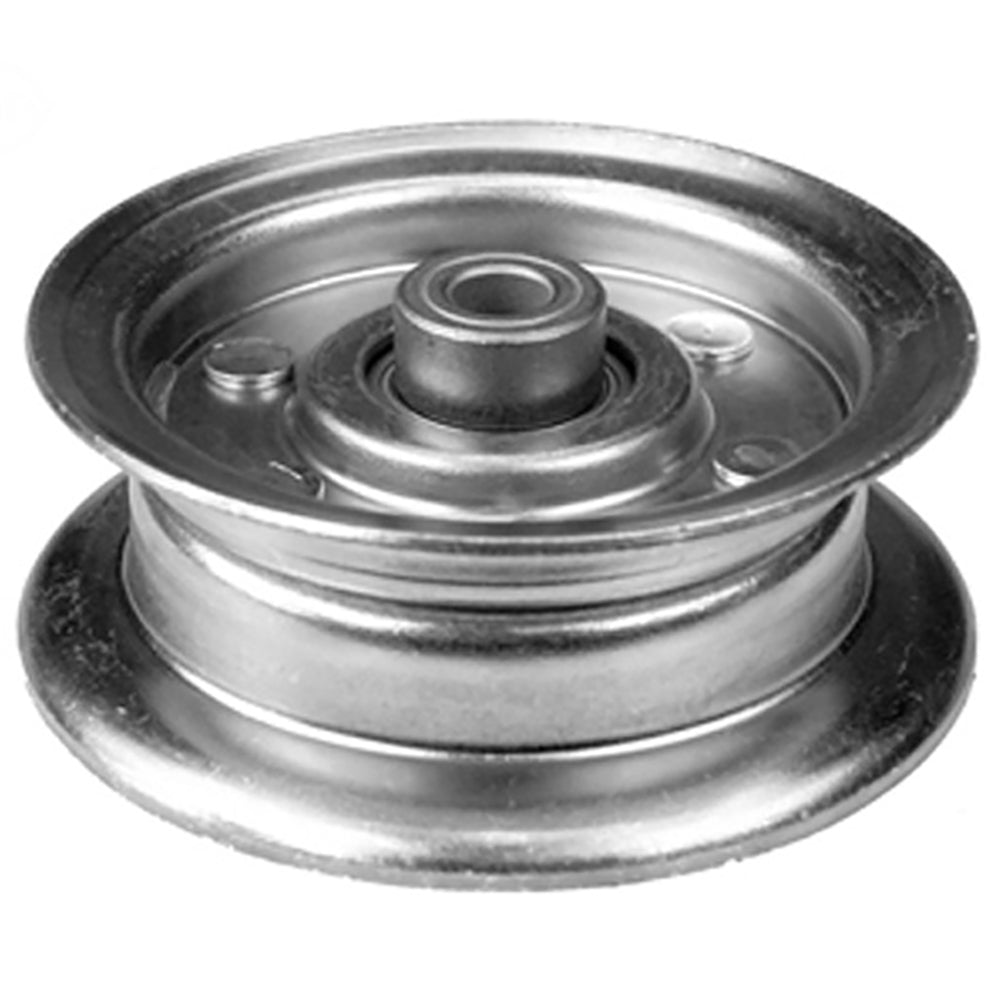

-(1) Flat Idler Spindle Pulley
-Height: 1-7/16"
-ID: 3/8"
-OD: 4"
-Material: Metal
-Heavy Duty: TRUE
-
-Replaces Part Number(s):
-177968, 193197, 532177968, 532193197
-

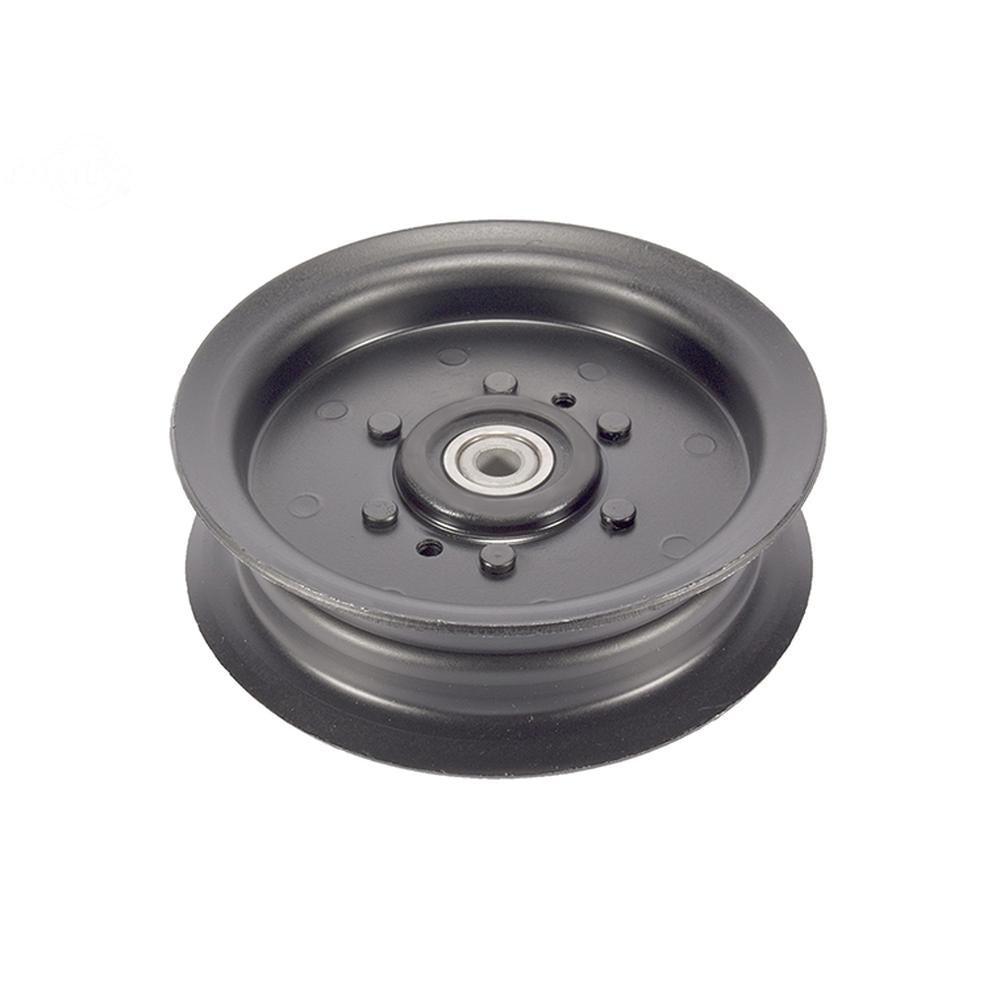

-(1) Flat Idler Pulley
-ID: 3/8"
-OD: 5-3/8"
-Height: 1-5/8"
-Painted
-
-Replaces Part Number(s):
-196106, 197379, 532196106
-

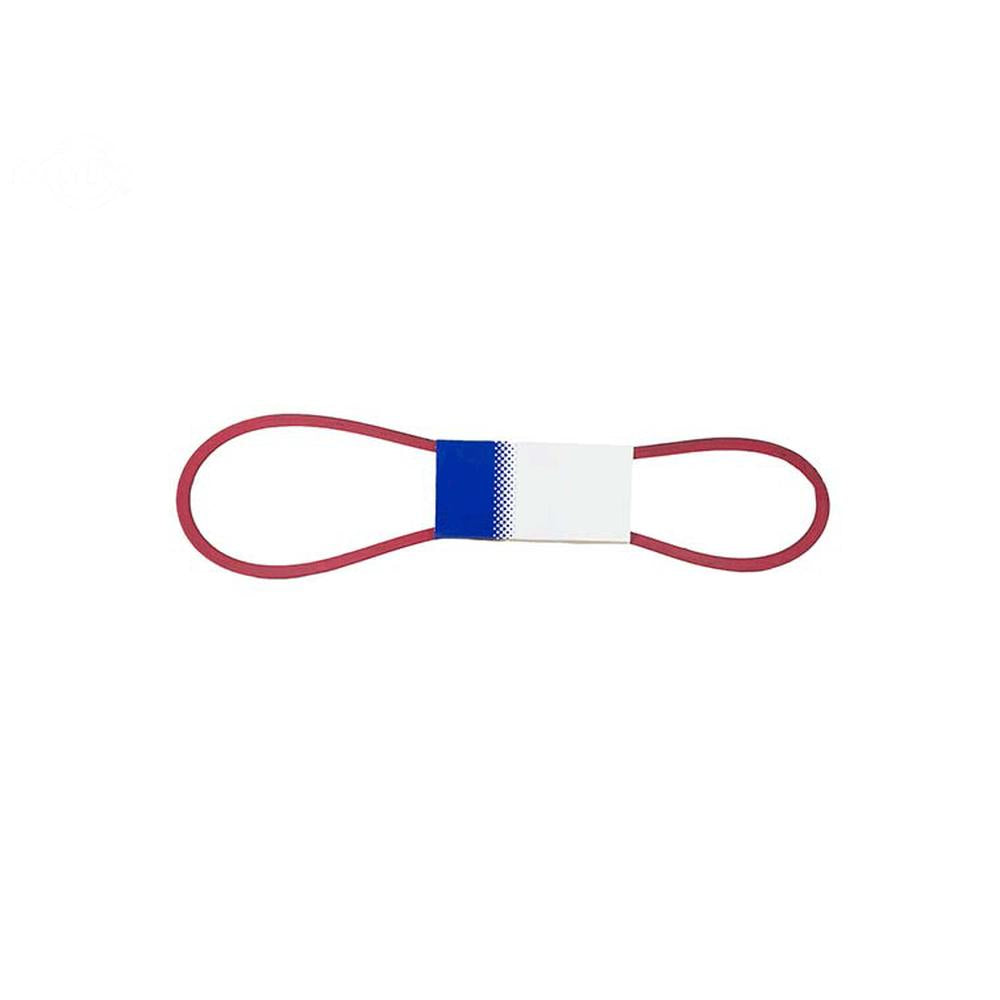

-(1) Deck V Belt
-Color Blue
-Depth 5/16"
-Length 95
-Material Kevlar Cord
-OC Length 1/2" X 95"
-Thickness .315
-Top Width 1/2"
-Type A Section Made With Kevlar Cord
-Width 1/2
-
-Replaces Part Number(s):
-532138255

Made to Fit Snapper:
Replaces Part Number(s): 705061,708000

Additional Information:

Kit Includes: (2) Spindle Assemblies 4-Bolt Long Housing 5-Point Star Blade Mount Threaded Mounting Holes for Easy Installation Shaft is Splined for Spline-Type Pulleys Includes: Pulley Locknut, Blade Bolt/Washer, Spacer, 4 Mounting Bolts Replaces Part Number(s): 187292, 532187292, 532192870, 539112057, 587125401, 587253301, 587819701, 587820301, 192870, 532187281, 567253301 (2) Mulching Lawn Mower Blades Length: 21" Width: 2-1/4" Center Hole: 5 Point Star Thickness: .134" Mulching Blade Replaces Part Number(s): 134149, 24676, 422719, 424752, 531005085, 531307223, 532422719, 532424752, 539110460, 91724676, 917532422719, 917532424752, 917539110460, 917777134149, 954636867, 532134149, 594892701, 594893101, 777134149 (1) Flat Idler Spindle Pulley Height: 1-7/16" ID: 3/8" OD: 4" Material: Metal Heavy Duty: TRUE Replaces Part Number(s): 177968, 193197, 532177968, 532193197 (1) Flat Idler Pulley ID: 3/8" OD: 5-3/8" Height: 1-5/8" Painted Replaces Part Number(s): 196106, 197379, 532196106 (1) Deck V Belt Color Blue Depth 5/16" Length 95 Material Kevlar Cord OC Length 1/2" X 95" Thickness .315 Top Width 1/2" Type A Section Made With Kevlar Cord Width 1/2 Replaces Part Number(s): 532138255
