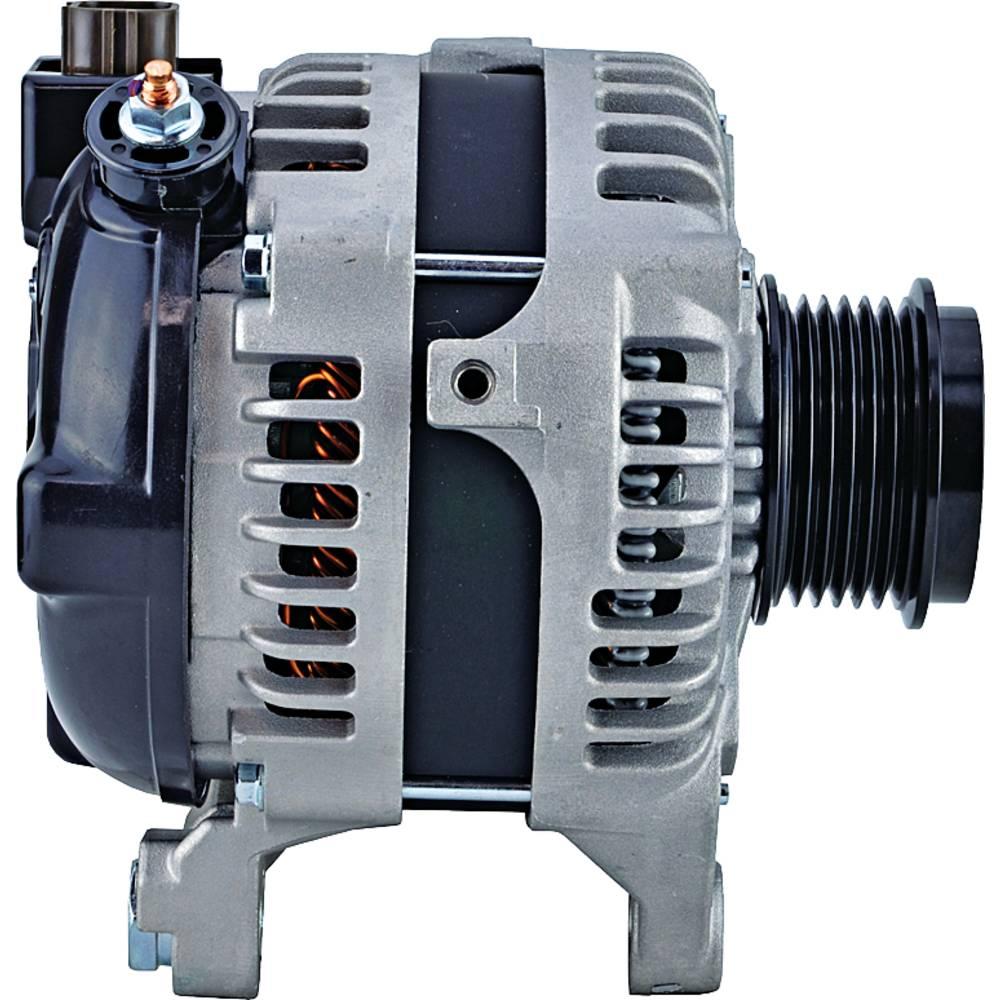

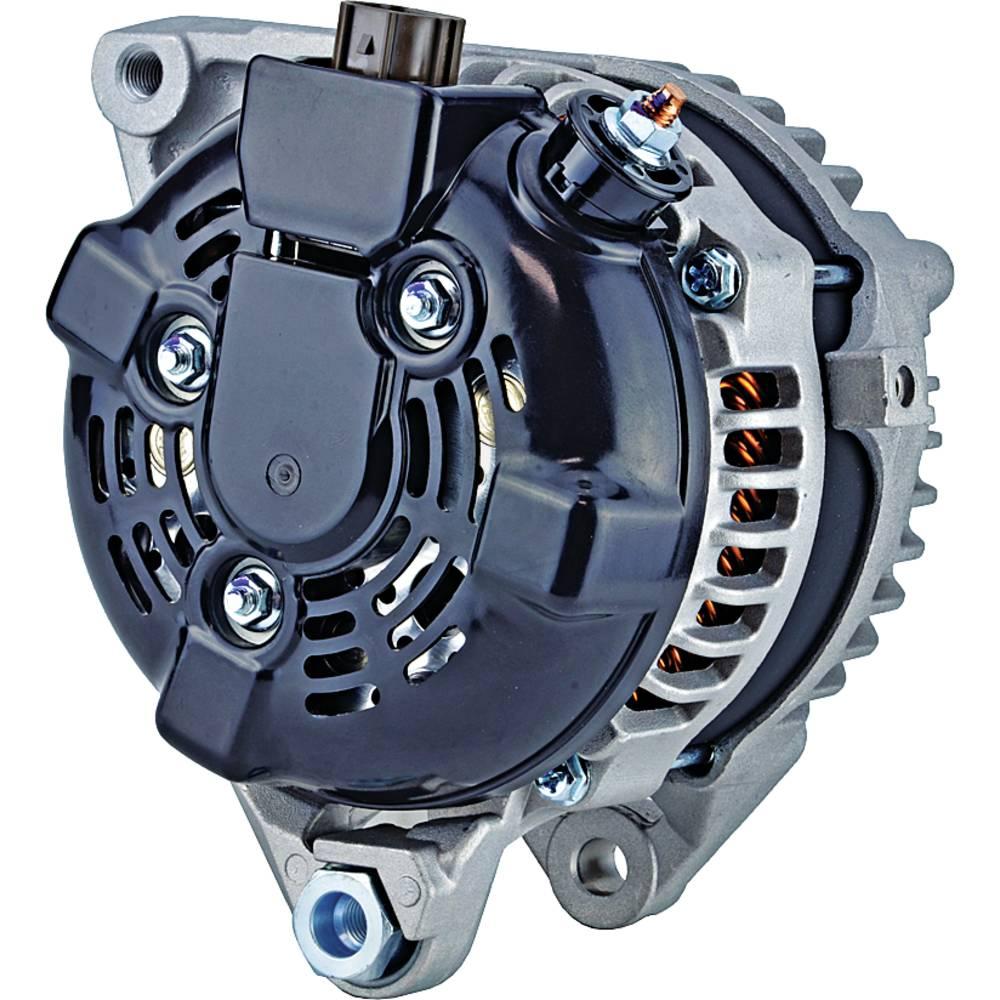

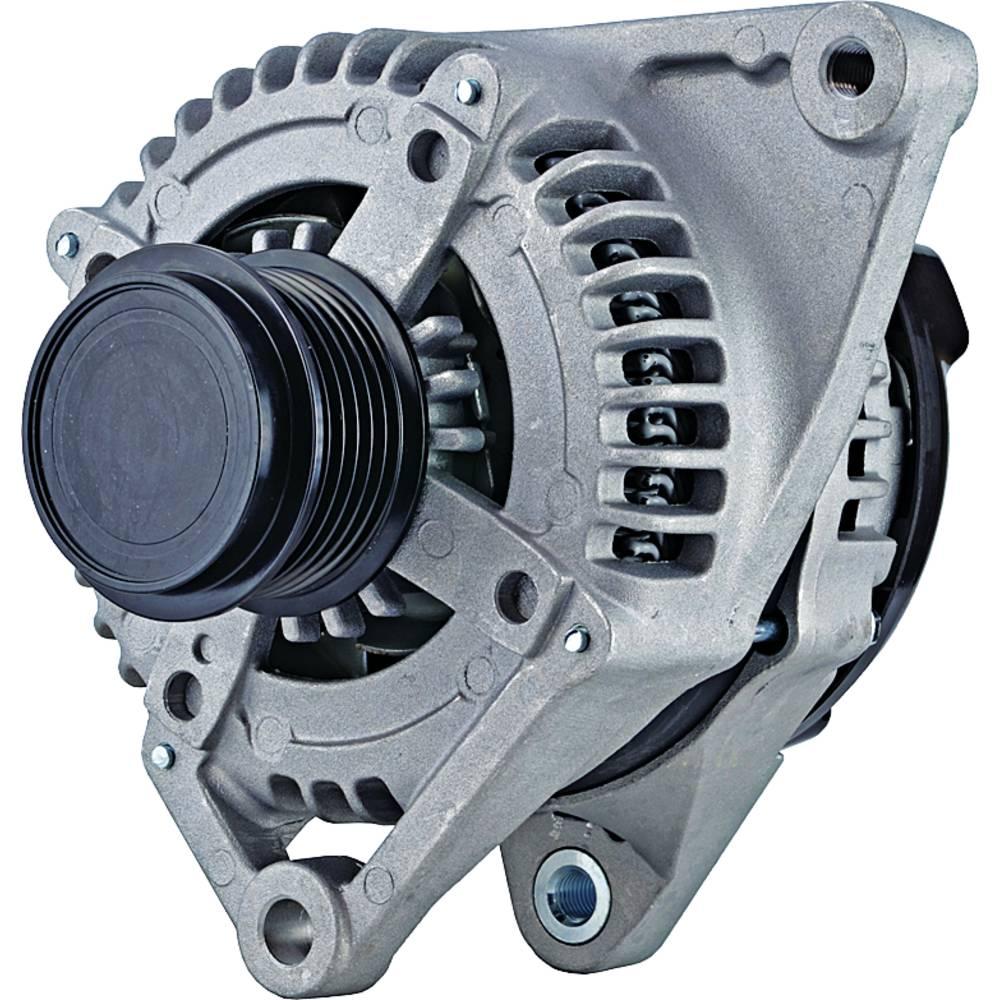

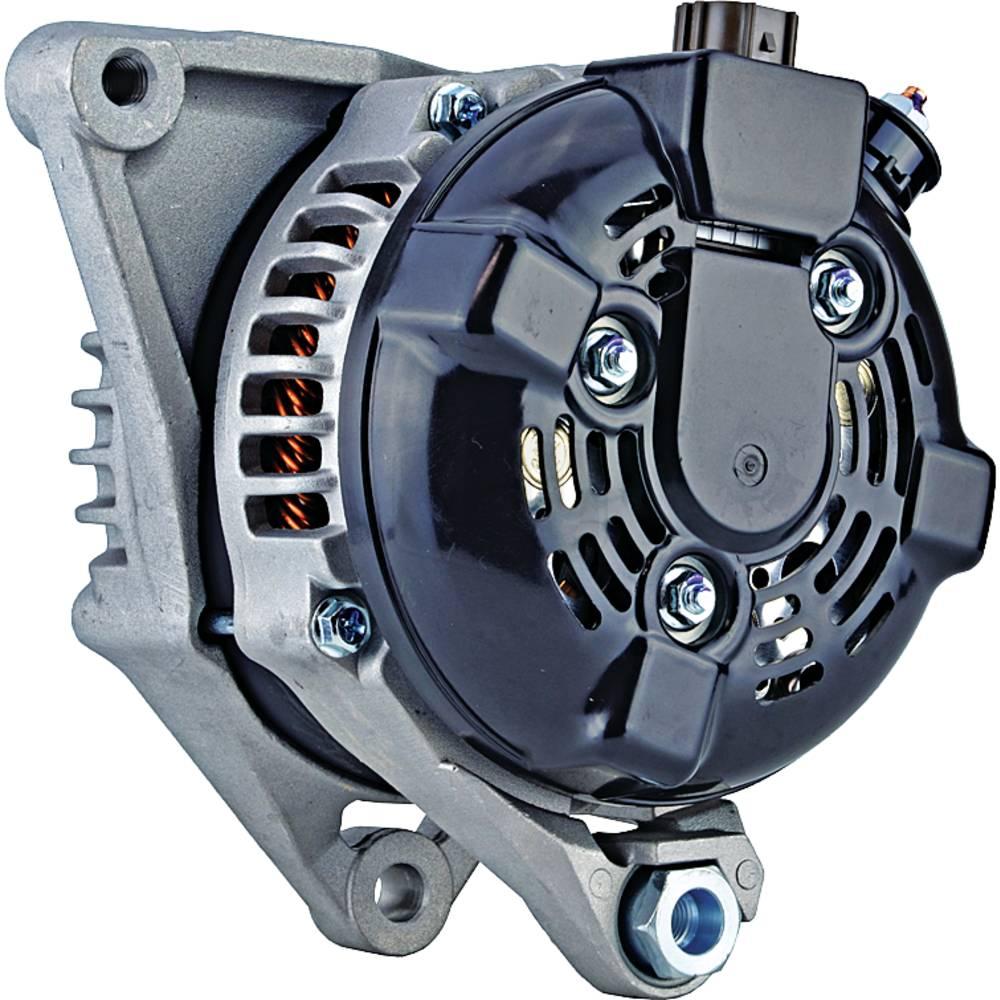

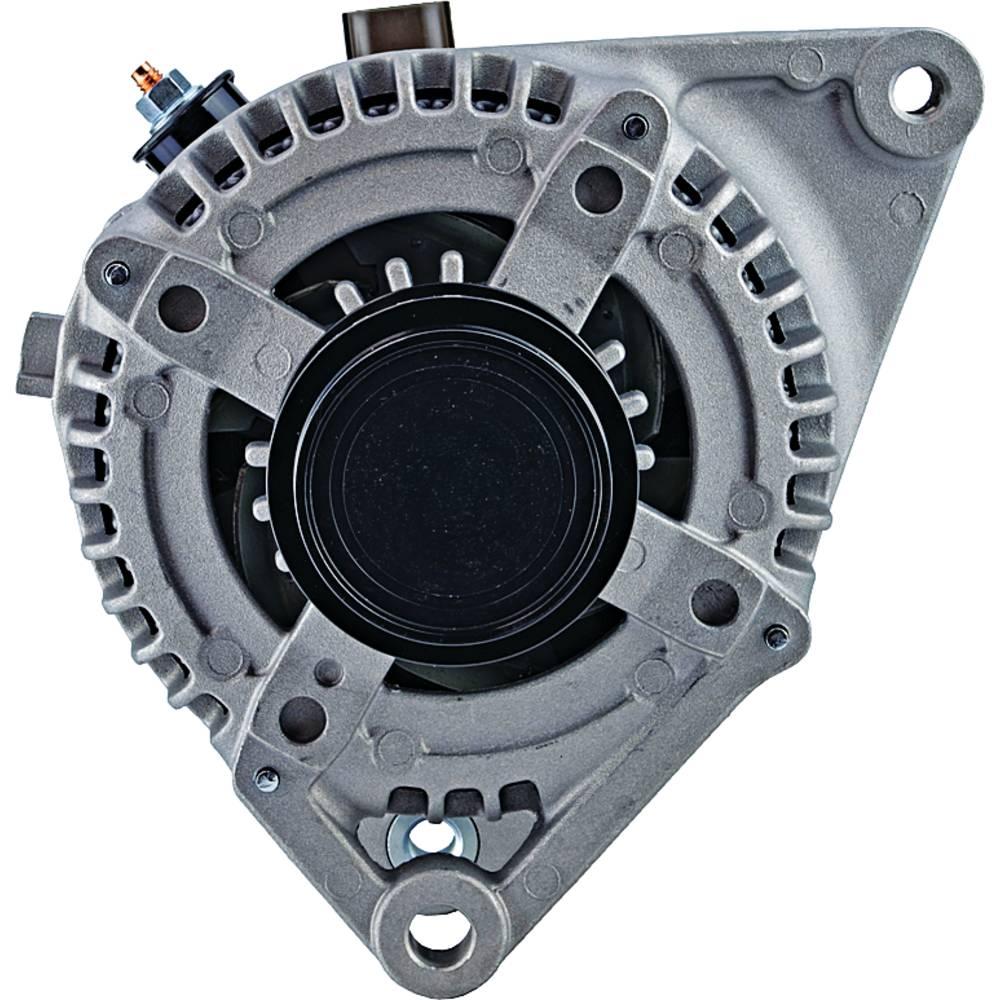

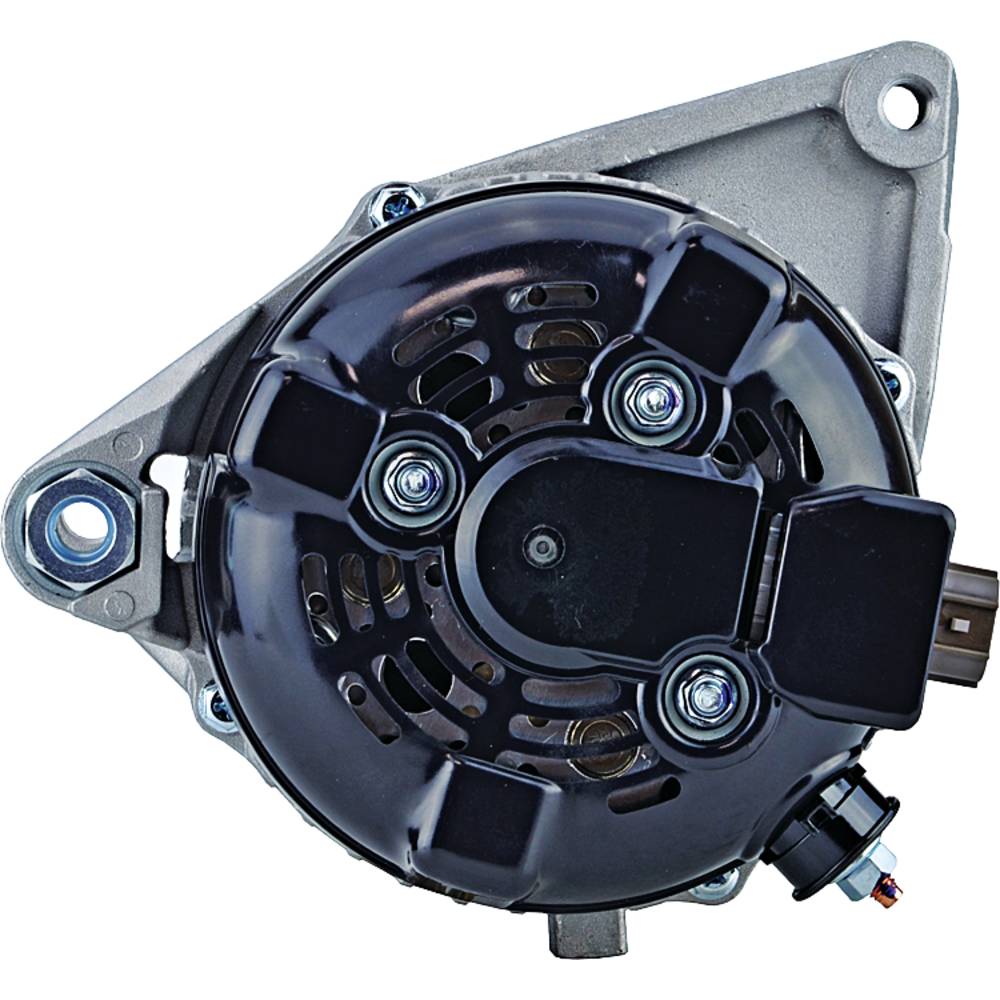

400-52452R-JN J&N Electrical Products Alternator

Additional Information:

LESTER: 11402, FAMILY: Denso SC (Hairpin), VOLT: 12, AMPS: 100, CONDITION: Remanufactured, REGULATOR CLOCK: 12:00, ROTATION DIRECTION: Clockwise, MOUNT HOLE ID 1: M10x1.25, MOUNT HOLE 1 TYPE: Threaded, MOUNT HOLE 2 TYPE: Unthreaded, MOUNT HOLE ID 3: M10x1.25, MOUNT HOLE 3 TYPE: Threaded, MOUNTING EAR THICKNESS: 0.843", MOUNTING EAR THICKNESS: 21.400mm, MOUNTING EAR 2 THICKNESS: 0.630", MOUNTING EAR 2 THICKNESS: 16mm, MOUNTING EAR 3 THICKNESS: 0.913", MOUNTING EAR 3 THICKNESS: 23.200mm, FAN LOCATION: Internal, REGULATOR LOCATION: Internal, TERMINAL ID 2: B+, TERMINAL 2 SIZE: M6x1.00, TERMINAL ID 3: IG, TERMINAL 3 SIZE: Spade, TERMINAL ID 4: S, TERMINAL 4 SIZE: Spade, TERMINAL ID 5: L, TERMINAL 5 SIZE: Spade, TERMINAL ID 6: FR, TERMINAL 6 SIZE: Spade, POLARITY: Negative, NUMBER OF GROOVES: 6, PULLEY TYPE: Clutch, PULLEY OUTER DIAMETER: 2.421", PULLEY OUTER DIAMETER: 61.500mm, Arrowhead: AND0512, VND0512; Denso: 104210-2270, 104210-2340, 104210-2341, 104210-2344, 104211-8430, 104211-8432;

Reference Numbers:

400-52452R
