Mower Deck Kit Fits MTD Replaces 335-067

Mower Deck Kit Fits MTD Replaces 335-067

$118.99 USD
$118.99 USD
Sale Sold out
Shipping calculated at checkout.
One New Aftermarket Mower Deck Kit

Tech Info:

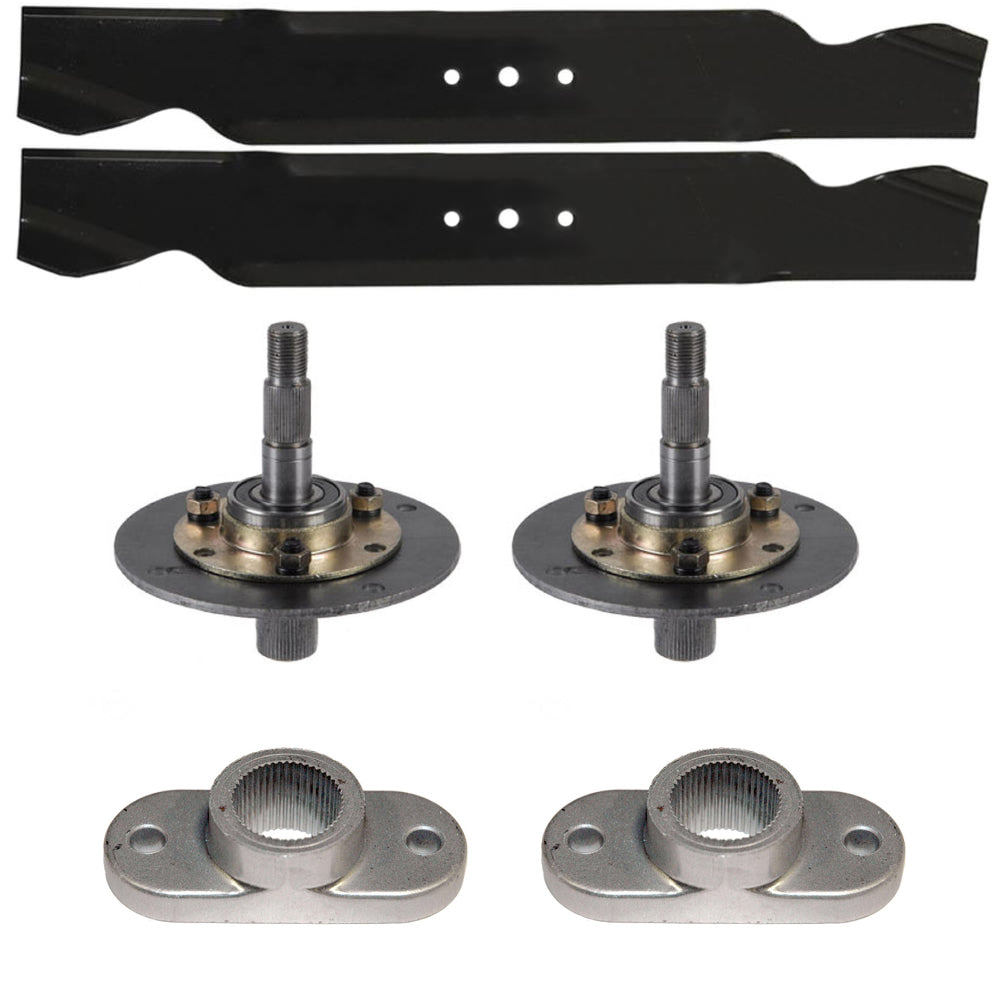

 -Kit Contains:
 -
 -(2) 21-3/16" x 13/32" Blade
 -Length: 21-3/16"
 -Width: 3"
 -Thickness: 0.1500"
 -CH Diameter: 13/32"
 -Cut Direction: Right
 -Diameter of Outside Holes: 5/16"
 -Center to Center (Outside Holes): 2-1/2"
 -Replaces Part Number: 98499, 4415029, 335067, 91151, 7420503, 742-0508A
 -
 -(2) Spindle Assembly
 -Height: 5-1/2"
 -Splined Shaft
 -Replaces Part Numbers: 9170906, 753-05319, 917-0906A, 9170906A, 9170916, 7170906
 -
 -(2) Blade Adapter
 -Splined Adapter.
 -
 -Adapter ONLY (Hardware not included)
 -Replaces Part Number: 9480300B, 7480300B, 7480300, 748-0-00, 748000B

Made to Fit MTD:
 Model Breaks: 42" decks, 1990-1996; requires 2 for 42" deck
 Replaces Part Number(s): 98499, 4415029, 335067, 91151, 7420503, 742-0508A, 335782, 98-499, 9420499, 9420499A, 942-0538, 942-0503, 335600, 942-0508A, 942-0508, 6028-Toothed, 742-0503, 742-0499, B1MA2406, 335-067, 704681, 7-04681, 490110M112, 335-600, 335-067-Toothed, 742-0508, 490-110-M112, 50-3006, 942-0499A, 942-0499, 742-0499A, 335-782, 7420499A, 7420499, 9170906, 753-05319, 917-0906A, 9170906A, 9170916, 7170906, 7170906A, 717-0906, 717-0906A, 917-0916, 717-0916, 7170916, 75305319, 917-0906, 9480300B, 7480300B, 7480300, 748-0-00, 748000B, 748-0300, 748-000B, 748300, 748000, 748-300B, 748-300, 748-0300B, 748-000, 748-0-00B, 748300B, 753-0583, 7530583, 948-0300B

Models This Part Fits:

1990-1996. requires 2 for 42" deck, 42" decks

Additional Information:

(2) 21-3/16" x 13/32" Blades Length: 21-3/16" Width: 3" Thickness: 0.1500" CH Diameter: 13/32" Cut Direction: Right Diameter of Outside Holes: 5/16" Center to Center (Outside Holes): 2-1/2" Replaces Part Number: 98499, 4415029, 335067, 91151, 7420503, 742-0508A (2) Spindle Assemblys Height: 5-1/2" Splined Shaft Replaces Part Numbers: 9170906, 753-05319, 917-0906A, 9170906A, 9170916, 7170906 (2) Blade Adapters Splined Adapter Adapter ONLY (Hardware not included) Replaces Part Number: 9480300B, 7480300B, 7480300, 748-0-00, 748000B

Reference Numbers:

98499, 4415029, 335067, 91151, 7420503, 742-0508A, 335782, 98-499, 9420499, 9420499A, 942-0538, 942-0503, 335600, 942-0508A, 942-0508, 6028-Toothed, 742-0503, 742-0499, B1MA2406, 335-067, 704681, 7-04681, 490110M112, 335-600, 335-067-Toothed, 742-0508, 490-110-M112, 50-3006, 942-0499A, 942-0499, 742-0499A, 335-782, 7420499A, 7420499, 9170906, 753-05319, 917-0906A, 9170906A, 9170916, 7170906, 7170906A, 717-0906, 717-0906A, 917-0916, 717-0916, 7170916, 75305319, 917-0906, 9480300B, 7480300B, 7480300, 748-0-00, 748000B, 748-0300, 748-000B, 748300, 748000, 748-300B, 748-300, 748-0300B, 748-000, 748-0-00B, 748300B, 753-0583, 7530583, 948-0300B

Product Sub Group:

Deck Components
