Brush Generator Kit Fits Delco Replaces 10467830

Name: Brush Generator Kit Fits Delco Replaces 10467830
SKU: D3950-GENBRUSHKIT_05
Price: 47.99 USD
Availability: InStock

Brush Generator Kit Fits Delco Replaces 10467830

$47.99 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

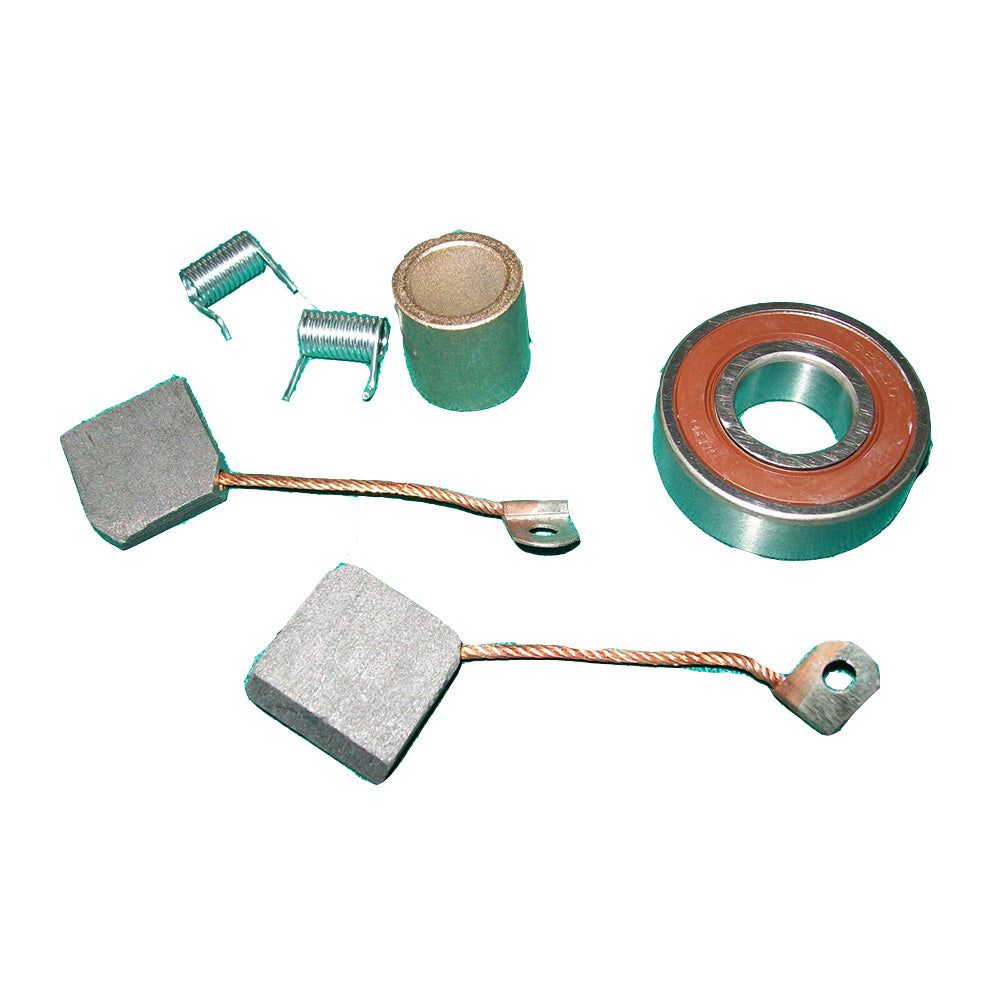

One New Aftermarket Brush Generator Kit

Tech Info:
-(2) Delco Brush Spring
-Description: Brush Spring
-Unit Type: Generators
-Notes: For Use with OEM Brush Holders
-Application: Delco Generators
-Replaces Part Numbers: 1856992,1903720,1908829
-
-(1) Generator Bushing
-Commuter End Housing Bushing
-
-ID: .56"
-OD: .78"
-Width: .8"
-Replaces Part Numbers: 133-12053-5, GDR7100
-
-(1) Sealed Ball Bearing (Econ Version)
-ID: 0.669" (17mm)
-OD: 1.575" (40mm)
-Width: 0.472" (12mm)
-Bearing Type: Double Sealed
-Replaces Part Numbers: 100-1048, 109966, 112-0423, 38-7820, 702581
-
-(2) Generator Brush
-Tech Info:
-Voltage: 12
-Length: 0.787in / 20mm
-Width: 0.866in / 22mm
-Height: 0.256in / 6.5mm
-Lead Length: 1.378in / 35mm
-Replaces part Number: 1850761,1850768,1853611,1857962

Made to Fit Delco:
Replaces Part Number(s): 1850786, 812823, D1634, GDR7100, 1850761, 1850768, 1853611, 1857962, 1857963, 1860344, 1865831, 1866148, 1906925, 1906929, 1906950, 1906955, 1906984, 1933194, D711, D712, D716, D720, D721, 10467830, 10469092, 10473403, 12320060, 16-7503, 1974861, 2995036, 3203-1, 3203-2, 3203S1446, 900529, 904751, 904759, 905920, 907503, 907996, 908419, 954298, 954378, 954938, Z9503, Z99503, Z99503-6, Z99503XR, Z99503XR1C, 1856992, 1903720, 1908829, 1916324, 1924349, D3950

Models This Part Fits:

Cub C60, Super C, W4 O4

Additional Information:

(2) Delco Brush Spring Description: Brush Spring Unit Type: Generators Notes: For Use with OEM Brush Holders Application: Delco Generators Replaces Part Numbers: 1856992,1903720,1908829 (1) Generator Bushing Commuter End Housing Bushing ID: .56" OD: .78" Width: .8" Replaces Part Numbers: 133-12053-5, GDR7100 (1) Sealed Ball Bearing (Econ Version) ID: 0.669" (17mm) OD: 1.575" (40mm) Width: 0.472" (12mm) Bearing Type: Double Sealed Replaces Part Numbers: 100-1048, 109966, 112-0423, 38-7820, 702581 (2) Generator Brush Tech Info: Voltage: 12 Length: 0.787in / 20mm Width: 0.866in / 22mm Height: 0.256in / 6.5mm Lead Length: 1.378in / 35mm Replaces part Number: 1850761,1850768,1853611,1857962

Reference Numbers:

1850786, 812823, D1634, GDR7100, 1850761, 1850768, 1853611, 1857962, 1857963, 1860344, 1865831, 1866148, 1906925, 1906929, 1906950, 1906955, 1906984, 1933194, D711, D712, D716, D720, D721, 10467830, 10469092, 10473403, 12320060, 16-7503, 1974861, 2995036, 3203-1, 3203-2, 3203S1446, 900529, 904751, 904759, 905920, 907503, 907996, 908419, 954298, 954378, 954938, Z9503, Z99503, Z99503-6, Z99503XR, Z99503XR1C, 1856992, 1903720, 1908829, 1916324, 1924349, D3950
