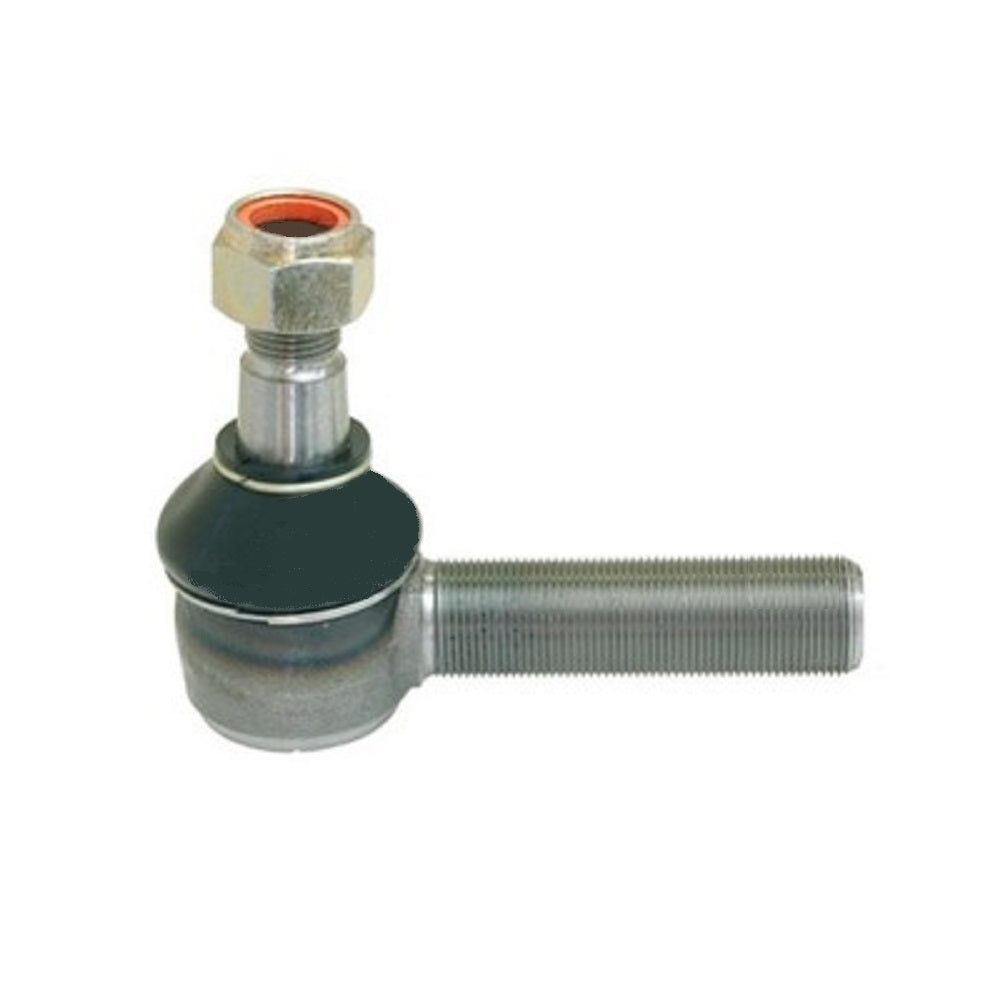

WN-K260254-PEX Tie Rod, Outer, RH Fits Case (1494 1594 1690 1694 480E 480LL 580D

Name: WN-K260254-PEX Tie Rod, Outer, RH Fits Case (1494 1594 1690 1694 480E 480LL 580D
SKU: WN-K260254-PEX
Price: 51.0 USD
Availability: InStock

WN-K260254-PEX Tie Rod, Outer, RH Fits Case (1494 1594 1690 1694 480E 480LL 580D

$51.00 AUD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Tie Rod, Outer, RH

Fits Case Models:
1494, 1594, 1690, 1694, 480E, 480LL, 580D, 580SD, 580SE, 584D, 584E, 585D, 585E, 586D, 586E, All MFD, 760, 860, All Trenchers w/ MFD

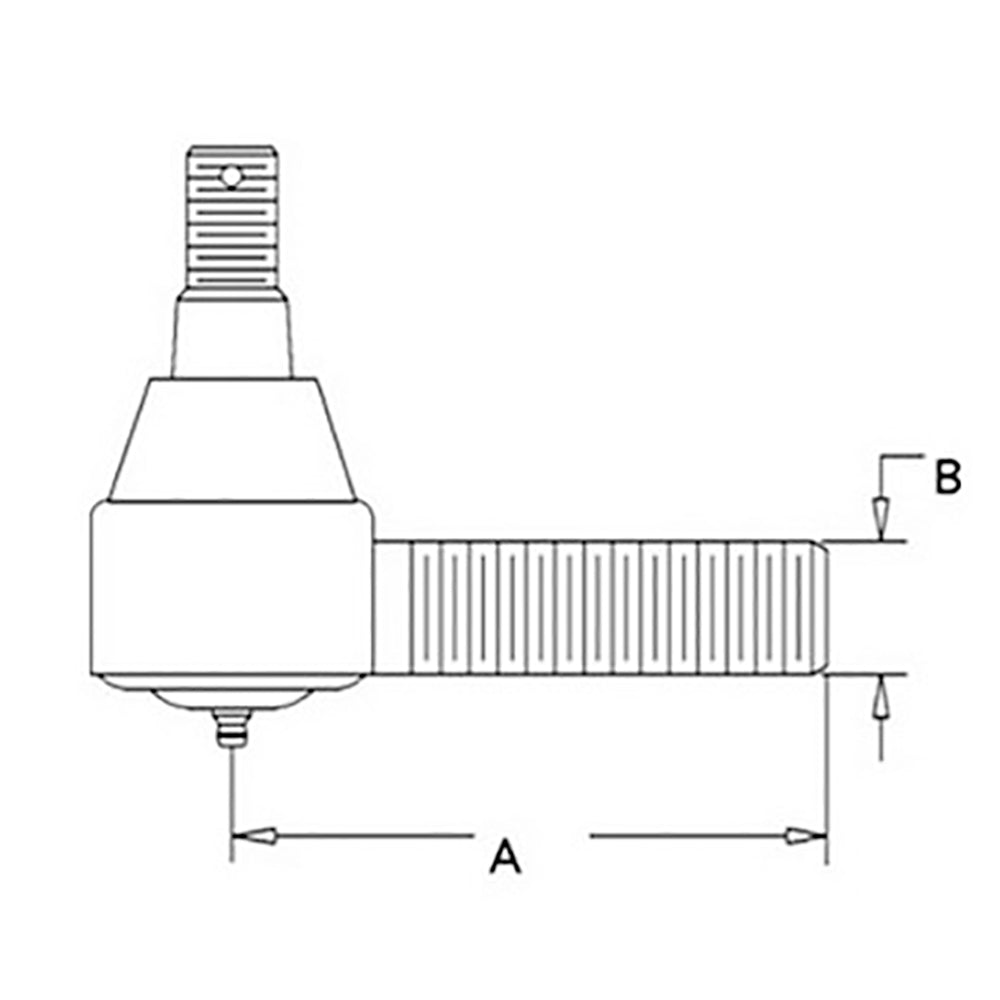

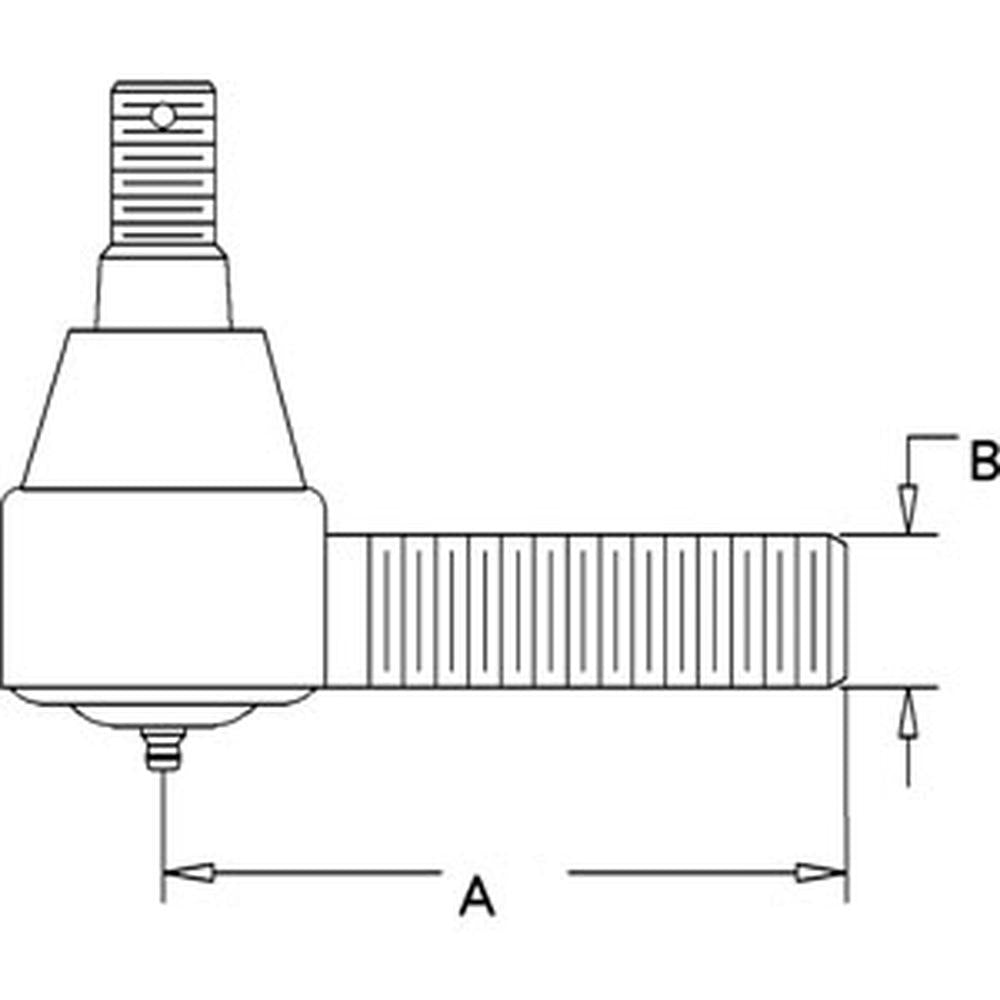

Tech Info:
Right Hand
Thread size (major diameter of the male thread): M24 x 1.5
Thread size (stud thread/upper threaded portion): M18 x 1.5
Taper diameter (large end of the tapered stud): 21.6-20mm/ 0.85" - 0.79"
Taper length (length of the tapered section): 16.5mm/0.65"

Replaces Part Number(s): K260254, A-K260254

Models This Part Fits:

480C, 586D, 480E, 480B, 3120, 580E, 1494, 586E, 585E, 580B, 3130, 580F, 1690, 586FL, 1694, 580, 584E, 585D, 3030, 584FL, 584D, 580G, 580C, 555, 580SE, 1394, 1594, 655, 1690 TURBO, 550, 580 SUPER D, 580D, 480D

Additional Information:

Right Hand Thread size (major diameter of the male thread): M24 x 1.5 Thread size (stud thread/upper threaded portion): M18 x 1.5 Taper diameter (large end of the tapered stud): 21.6-20mm/ 0.85" - 0.79" Taper length (length of the tapered section): 16.5mm/0.65"
