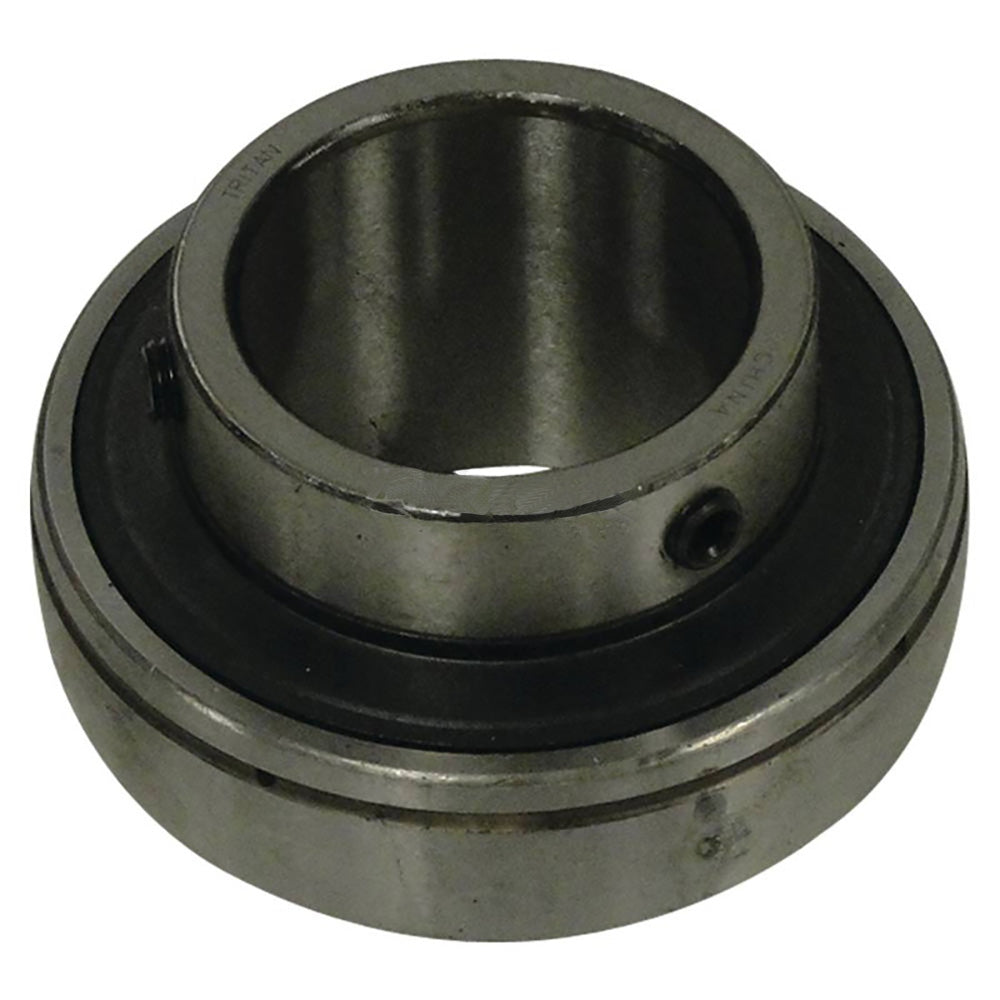

UC209-28 Bearing for Universal Products

One New Aftermarket Replacement UC209-28 Radial Insert Ball Bearing

This UC209-28 is a UC200 series radial insert ball bearing with a 1-3/4" bore and spherical outer diameter, designed to seat inside a wide range of bearing housing units including pillow blocks, 2-bolt flanges, 3-bolt flanges, 4-bolt flanges, and take-up units. The bearing locks to the shaft via two set screws on the extended inner ring and is pre-lubricated with grease, ready for immediate installation. It is widely used in agricultural machinery, construction equipment, conveying systems, forestry equipment, and other industrial shaft-support applications.

Specifications

• Bearing Series: UC200
• Bore Diameter: 1-3/4 in (44.45 mm)
• Outside Diameter: 85 mm (3.3465 in)
• Outer Ring Width: 22 mm (0.8660 in)
• Inner Ring Width: 49.20 mm (1.9370 in)
• Spherical Outer Ring: Yes (self-aligning)
• Locking Device: Two set screws
• Seal Type: Contact seal with slinger
• Bearing Material: AISI 52100 chrome steel
• Radial Dynamic Load Capacity: 7,420 lbf
• Radial Static Load Capacity: 4,610 lbf
• Lubrication: Pre-greased with grease fitting access
• Duty: Medium duty

Compatible Applications

This is a universal insert bearing used across many equipment types and brands. Compatible housing units include pillow block housings (P209), 2-bolt flange housings (FL209), 4-bolt flange housings, and take-up frames accepting a UC209 insert. Common equipment applications include agricultural machinery (tillers, planters, harvesters), construction equipment, conveyor systems, fans, forestry equipment, and other industrial machinery requiring a 1-3/4" bore insert bearing.

Replaces Part Number(s):

UC209-28

Aftermarket Interchange Numbers

VS-228, INS-SC-112, GY1112KRRB, YW250-1-3/4, UG228NL, UC209-112D1, YAR209-112, UC209.28

New aftermarket replacement part - not remanufactured, not used.
