U45205 Pin Bucket to H-link Fits John Deere 690, 690A, 690B, 690C
U45205 Pin Bucket to H-link Fits John Deere 690, 690A, 690B, 690C
Regular price
$589.00 AUD
Regular price
Sale price
$589.00 AUD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

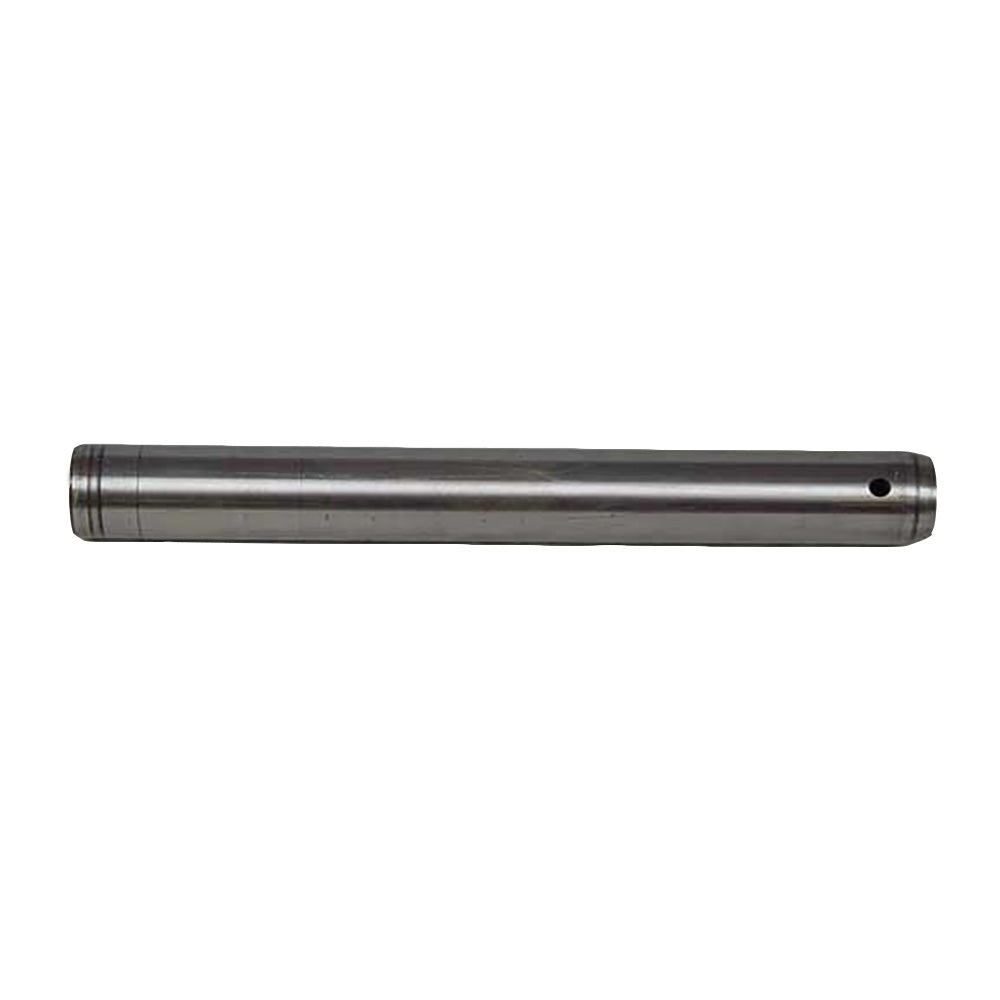

One New Aftermarket Replacement Bucket to Dipper Arm Pin for John Deere 690-Series Crawler Excavators
This bucket-to-dipper arm pin (also referenced as bucket-to-H-link pin) connects the bucket assembly to the dipper arm on John Deere 690-series crawler excavators, a high-load articulation point subject to significant stress during digging and lifting cycles. Machined from heat-treated steel, this pin is built to OEM specifications for a precise, secure fit.
Specifications
- Diameter: 2.5 in (63.5 mm)
- Overall Length: 22.25 in (565.2 mm)
- Center of Bolt Hole to End: 20.75 in (527 mm)
- Bolt Hole Diameter: 0.45 in (11.4 mm)
- Weight: 30 lbs (13.6 kg)
- Material: Precision-machined, heat-treated steel
Compatible Models
John Deere (JD) 690-Series Crawler Excavators: 690, 690A, 690B, 690C
Replaces Part Number(s):
U45205
New aftermarket replacement part - not remanufactured, not used.
