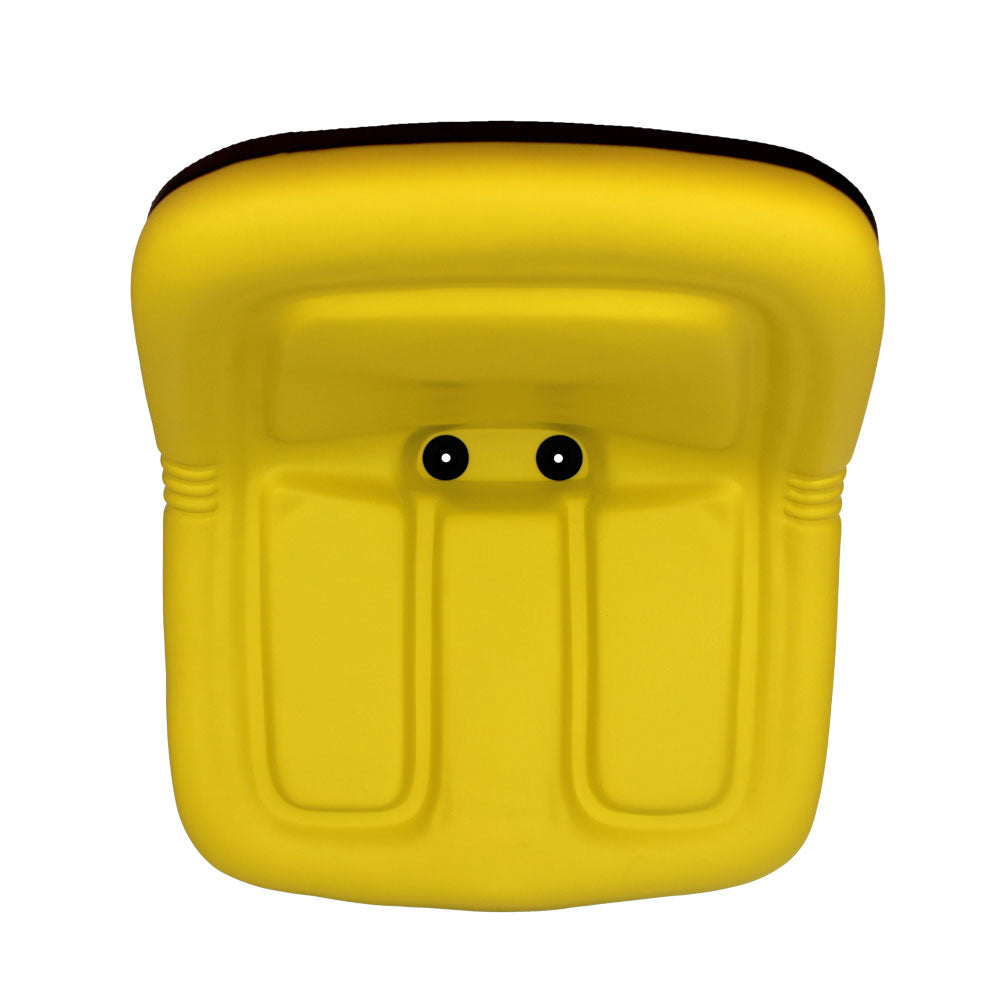

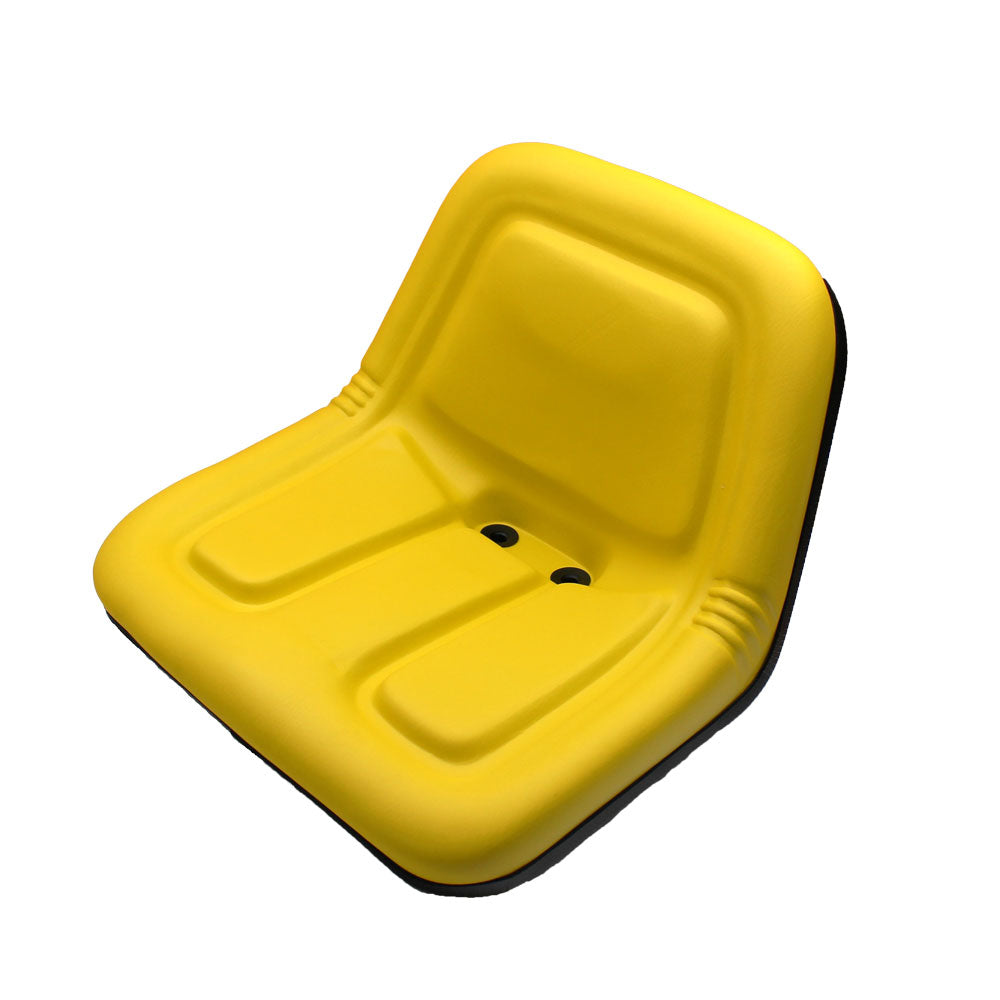

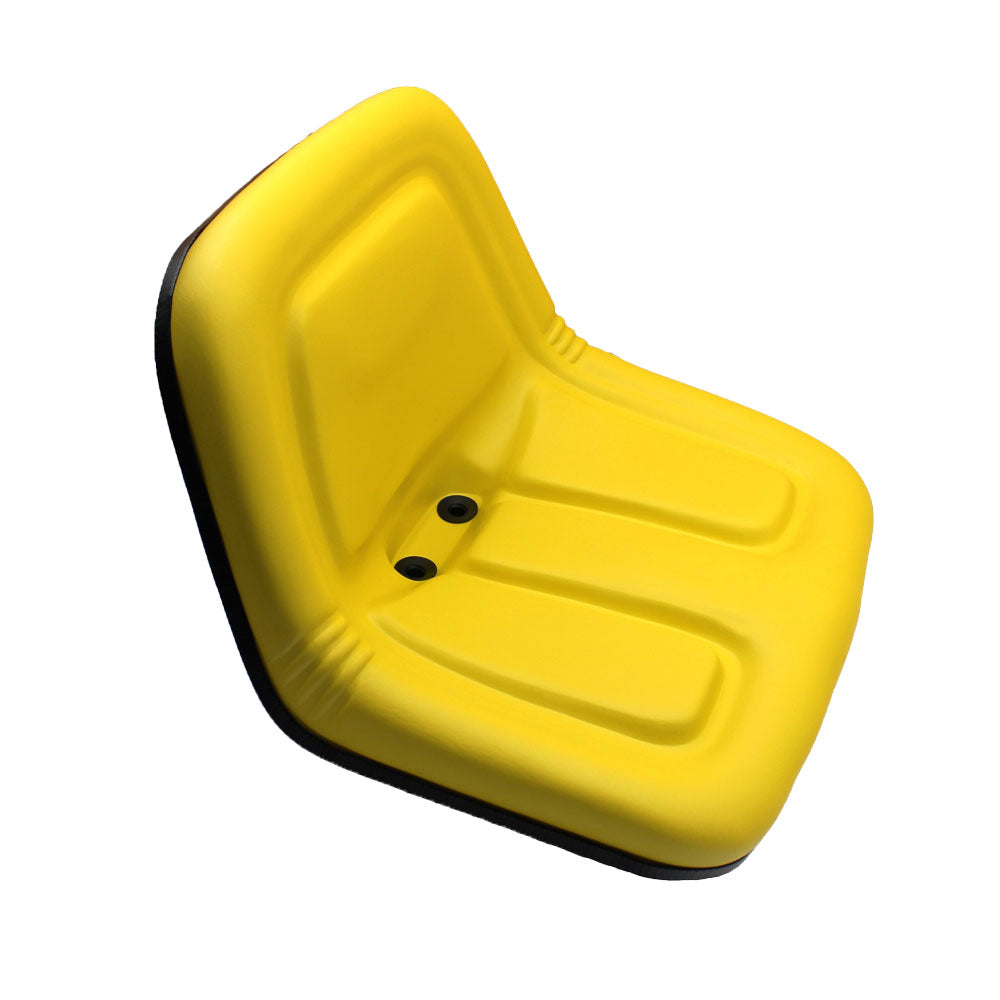

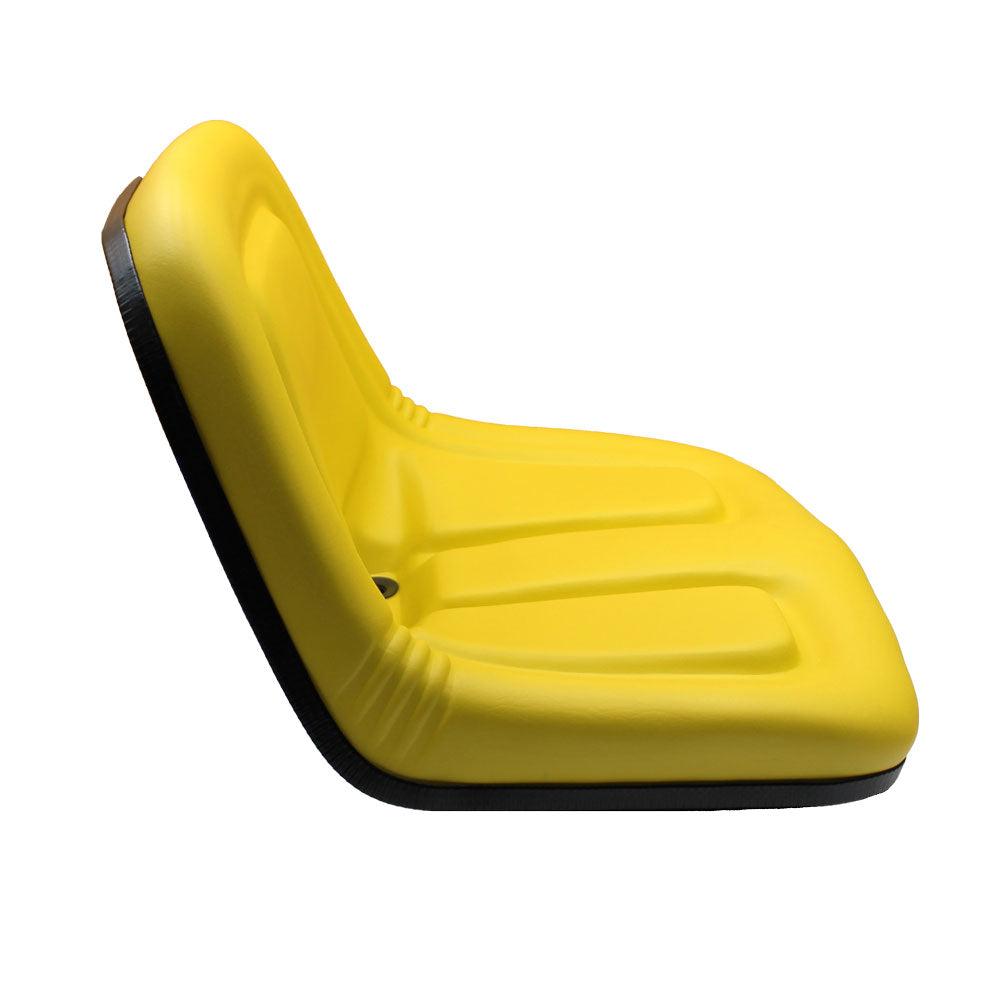

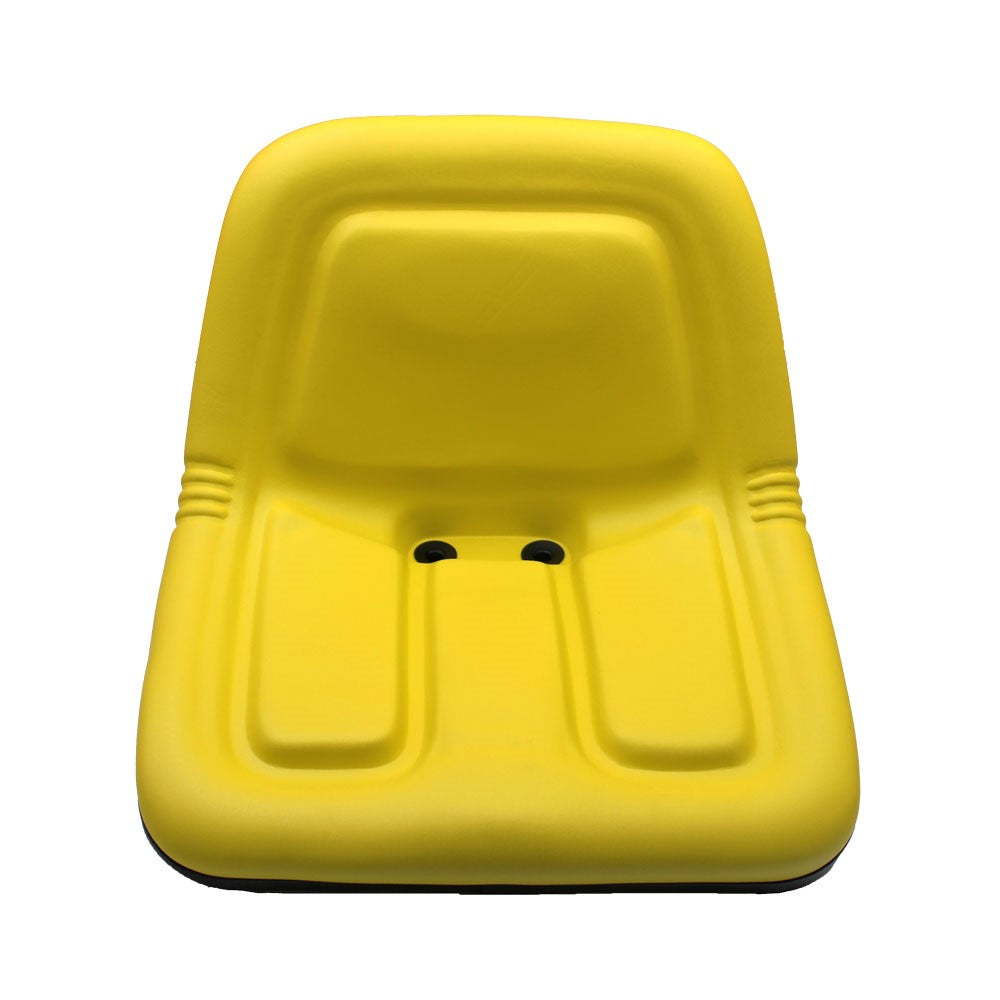

TY15863 High Back Seat - Yellow Fits John Deere 1090 3005 4005 4500

TY15863 High Back Seat - Yellow Fits John Deere 1090 3005 4005 4500

$185.00 AUD
$185.00 AUD
Sale Sold out
Shipping calculated at checkout.

One New Aftermarket Replacement Yellow High Back Seat


Fits John Deere Models:
655, 755, 756, 855, 856, 955, 670, 770, 800HC, 870, 970, 1070, 790, 990, 1090, 3005, 4005, 4500

Tech Info:
Plastic Seat Pan
Waterproof
Centralized Drain Holes
Accepts Armrests
Accepts Operator Presence Switch
Accepts Slides
Yellow (Color May Vary Slightly)

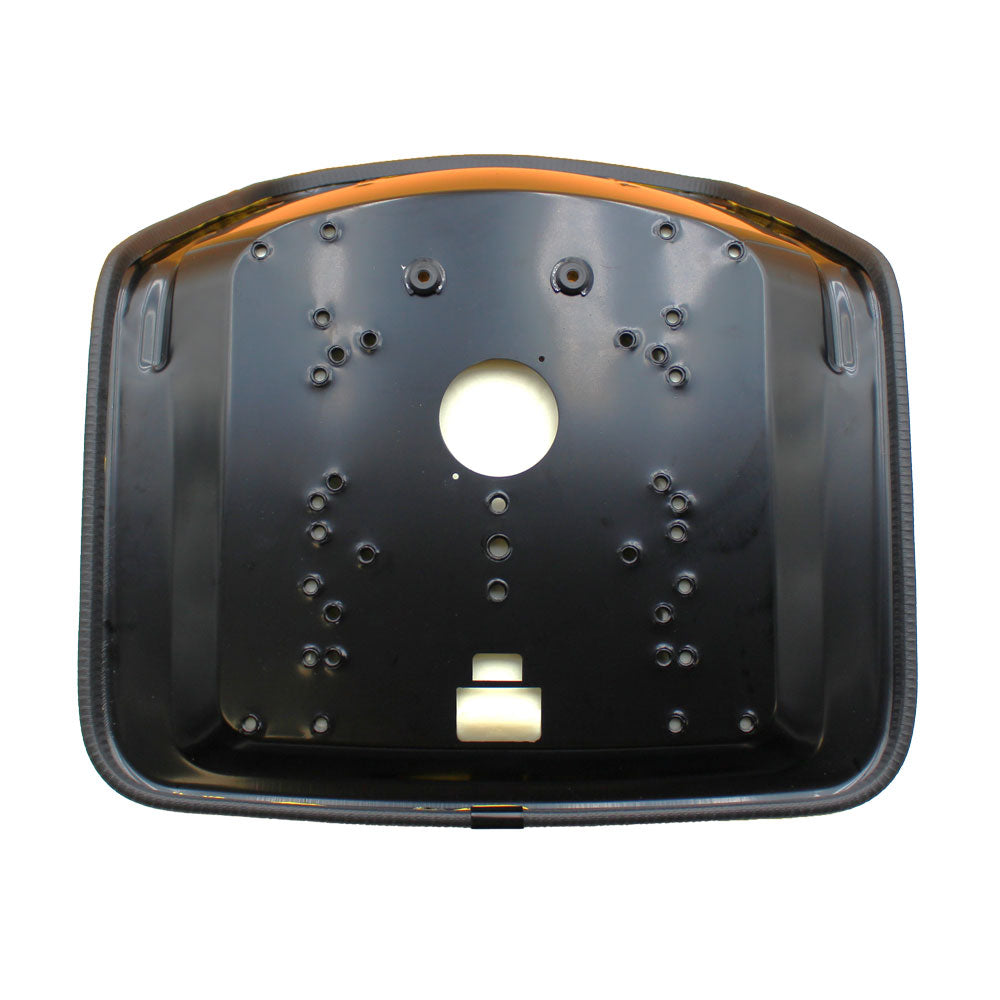

Multiple Bolting Patterns:
6" x 5"
7.5" x 3"
7.5” x 4"
7.5” x 6"
7.5" x 7"
8” x 11.5"
8.2" x 5"
8.25” x 3"
11.25" x 11"
(Width x Depth)
Please See Seat Image Dimensions for More Details

Replaces Part Numbers: TY15863, MG861683, AM117924, AM103284, AM105898, AM39582, ET12564, MG675408, 135001YE

Models This Part Fits:

165, 332, 130, 420, RX63, 170, SX95, 160, RX75, 318, RX73, 322, SX75, 330, STX38, 180, 430, STX30, RX95, 316, 175

Additional Information:

Width: 19.625" Cushion Thickness: 5" Seat Depth: 19.5" Overall Height: 13.875 Waterproof Drain Holes Accepts Armrests (93120) Accepts Operator Presence Switch Accepts Slides Yellow Bolt Patterns (width x depth): 6" x 5" 7.5" x 3" 7.5” x 4” 7.5” x 6” 7.5" x 7" 8” x 11.5” 8.2" x 5" 8.25” x 3" 11.25" x 11"

Reference Numbers:

AM105898, AM39582
