TX15107 Standard Piston Fits Long Tractors 2510 2510DTC 2510SD 2510SD-DTE

TX15107 Standard Piston Fits Long Tractors 2510 2510DTC 2510SD 2510SD-DTE

$149.00 AUD
$149.00 AUD
Sale Sold out
Shipping calculated at checkout.

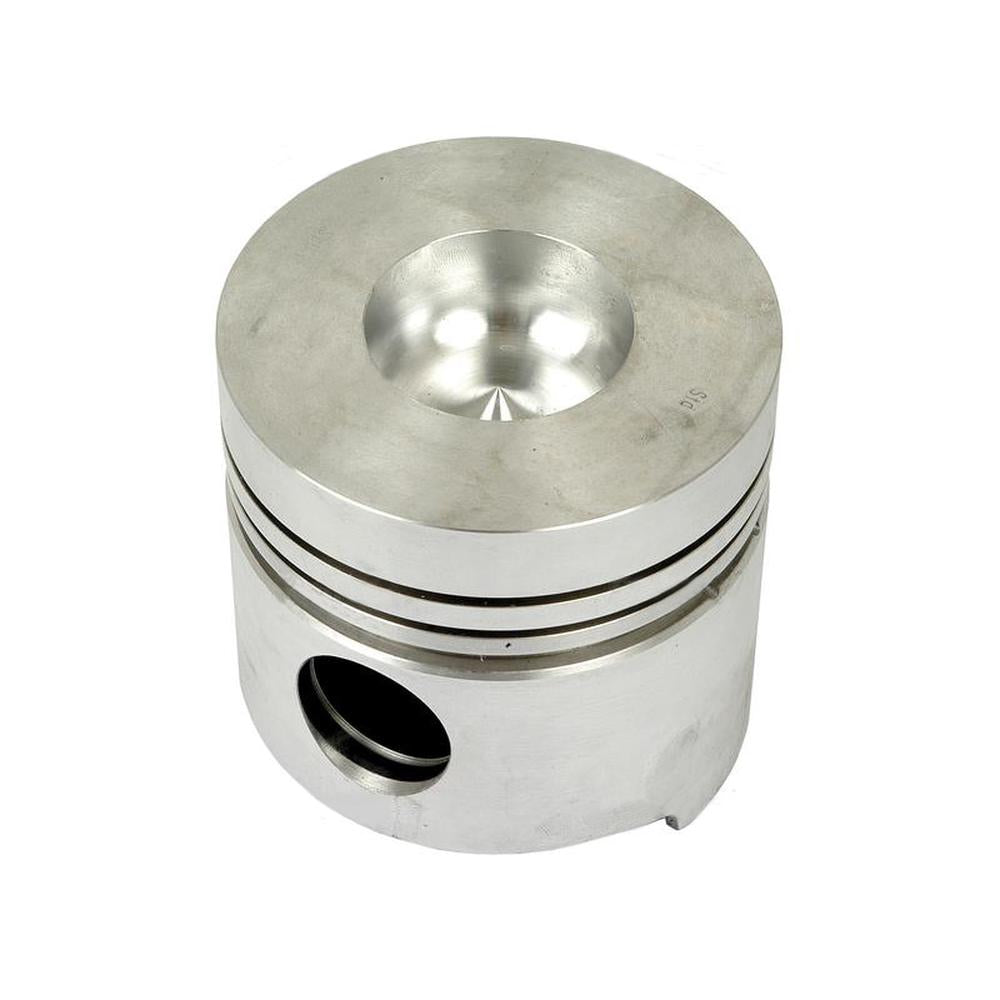

One (1) New Aftermarket Replacement Standard Piston

Fits Long Tractor Models: 2510, 2510DTC, 2510SD, 2510SD-DTE, 2610, 2610DTC, 2610SD, 2610SD-DTC, 310, 310C, 310DT, 510, 510DT, 610, 610C, 610DT, 610DTE

Specifications:
Piston Length mm: 101.40mm,
Compression Height: 59.44mm,
Bore: 101.96mm,
Bowl Depth: 24.40mm,
Chamber: 48.46mm,
Pin: 31.93mm,
No. of Rings: 3

Replaces Part Number: TX15107

Models This Part Fits:

610C, 310DT, 310C, 510DT, 2610DTC, 2610, 2510DTC, 2610SD, 510, 2610SD-DTC, 610DTE, 2510, 610, 2510SD, 2510SD-DTE, 310, 610DT

Additional Information:

Piston Length: 3.99” (101.40mm) Compression Height: 2.34” (59.44mm) Bore: 4.01” (101.96mm) Bowl Depth: 0.96” (24.40mm) Chamber: 1.90” (48.46mm) Pin: 1.25” (31.93mm) No. of Rings: 3

Reference Numbers:

11503170, 115.03.170, 115 03 170, 8772111, 11503170, TX15107
