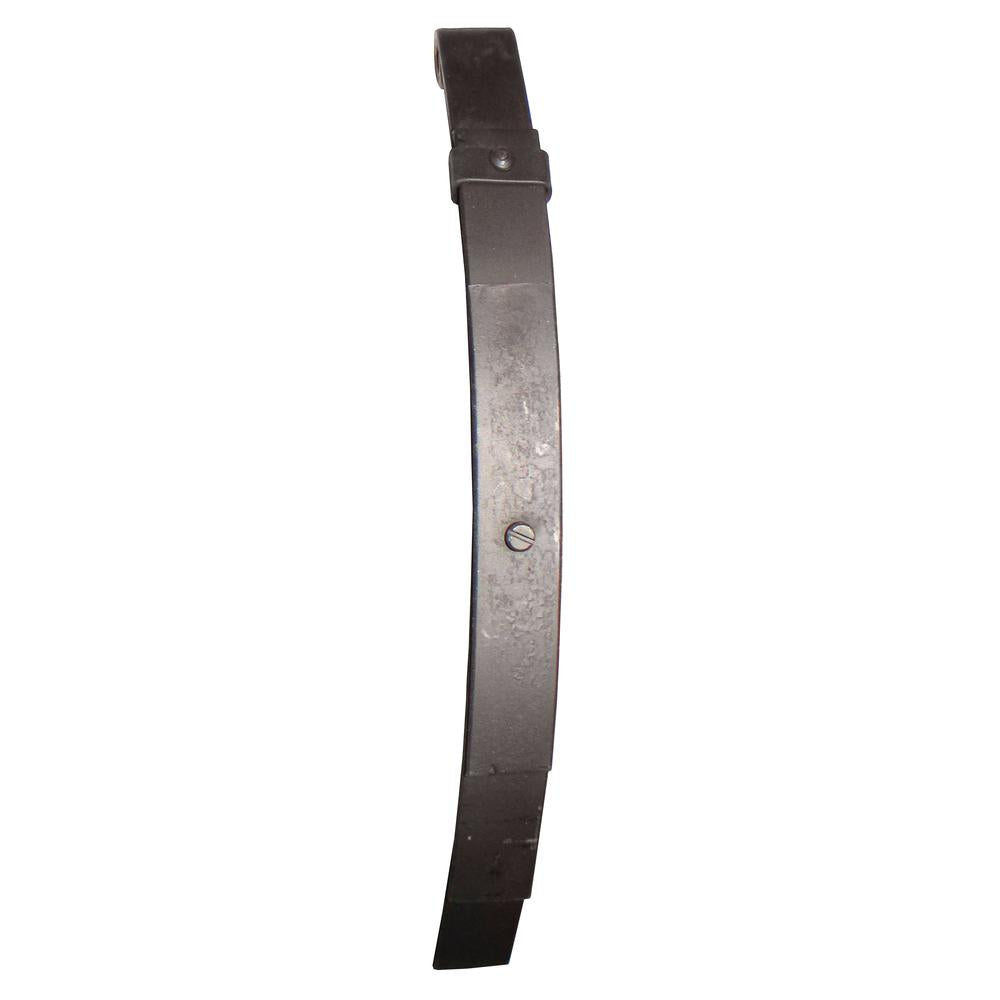

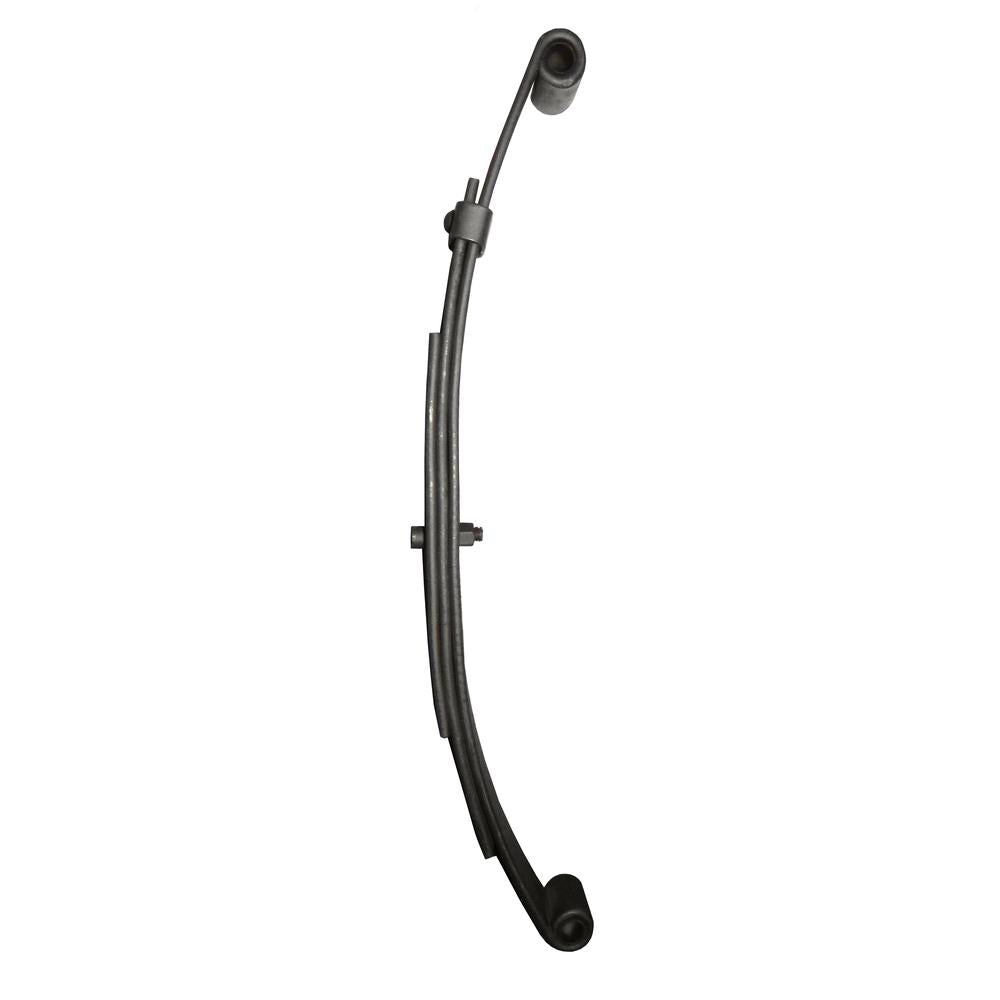

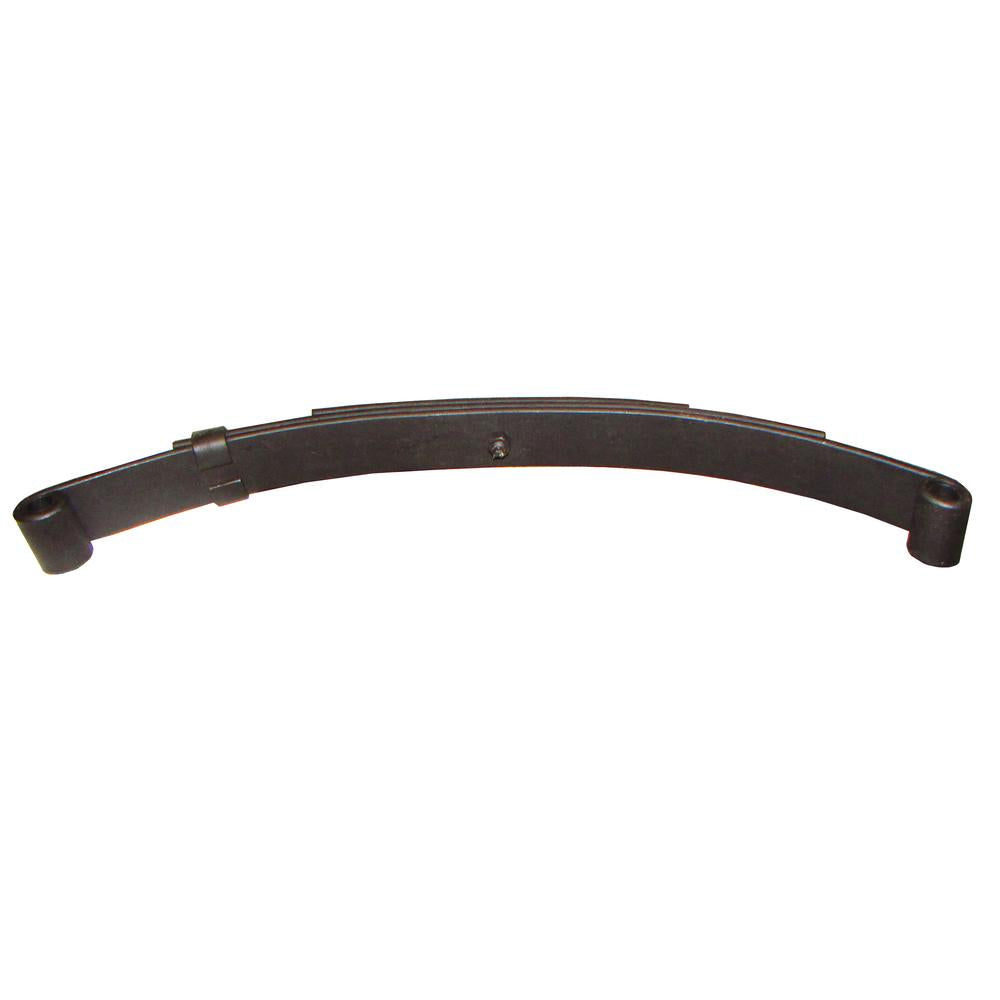

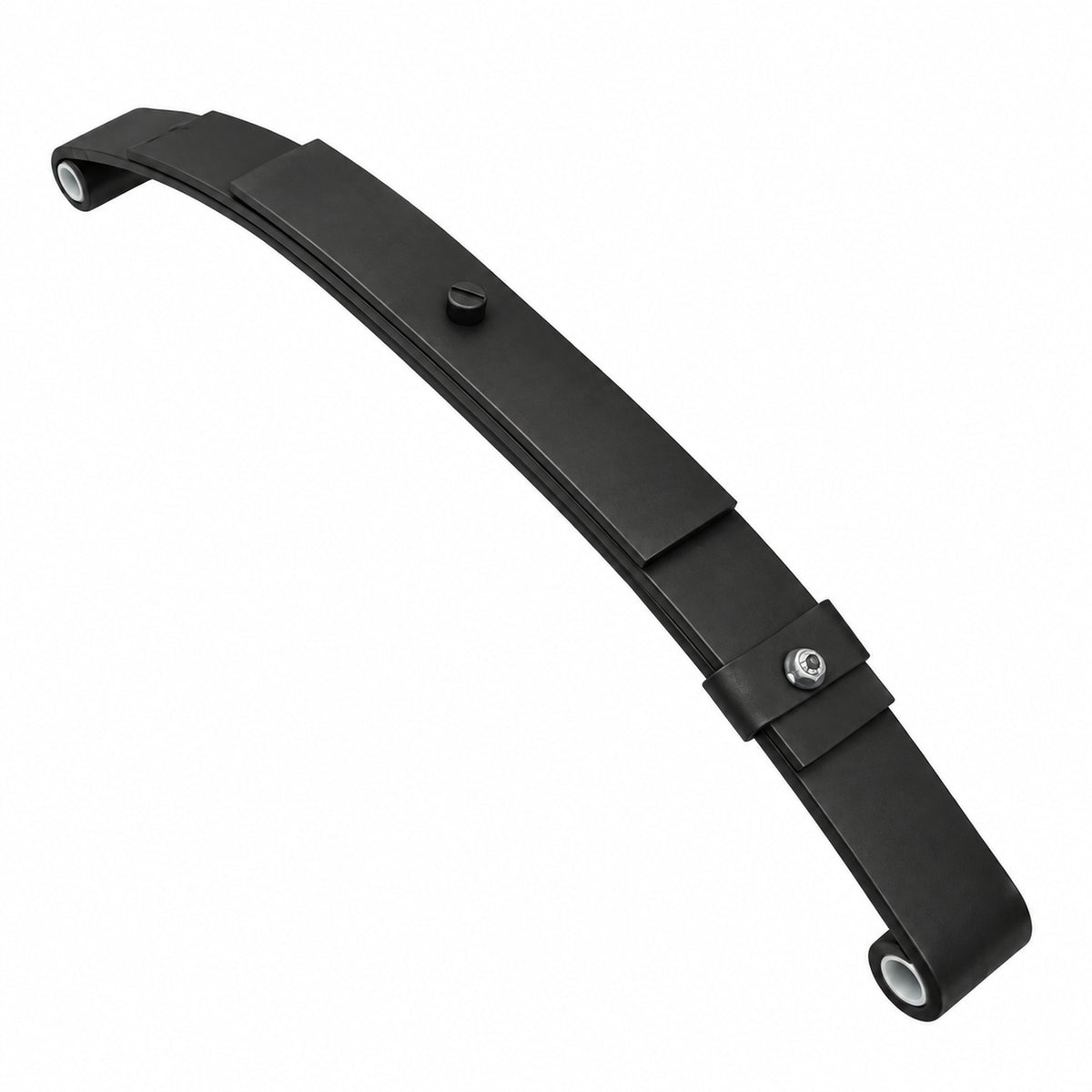

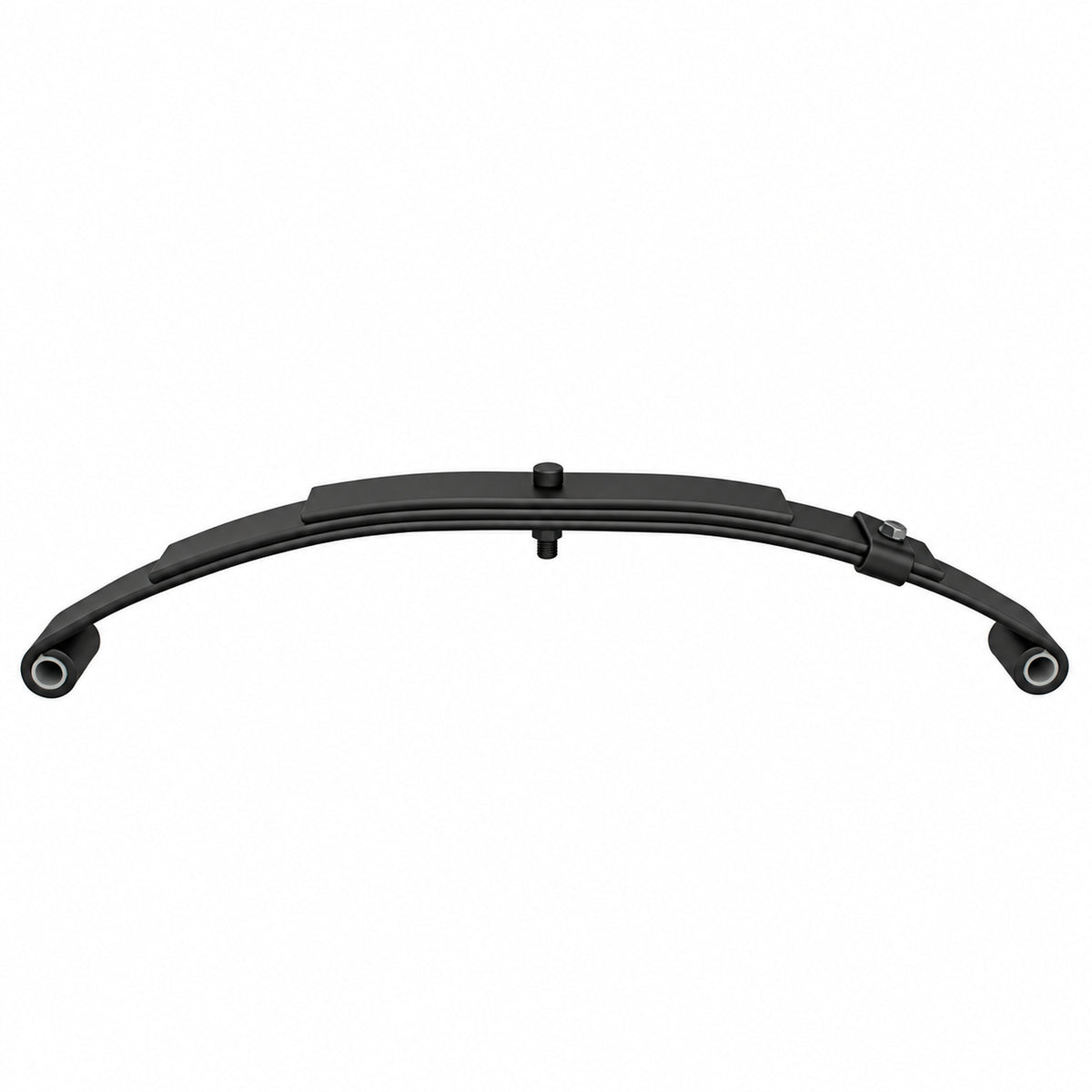

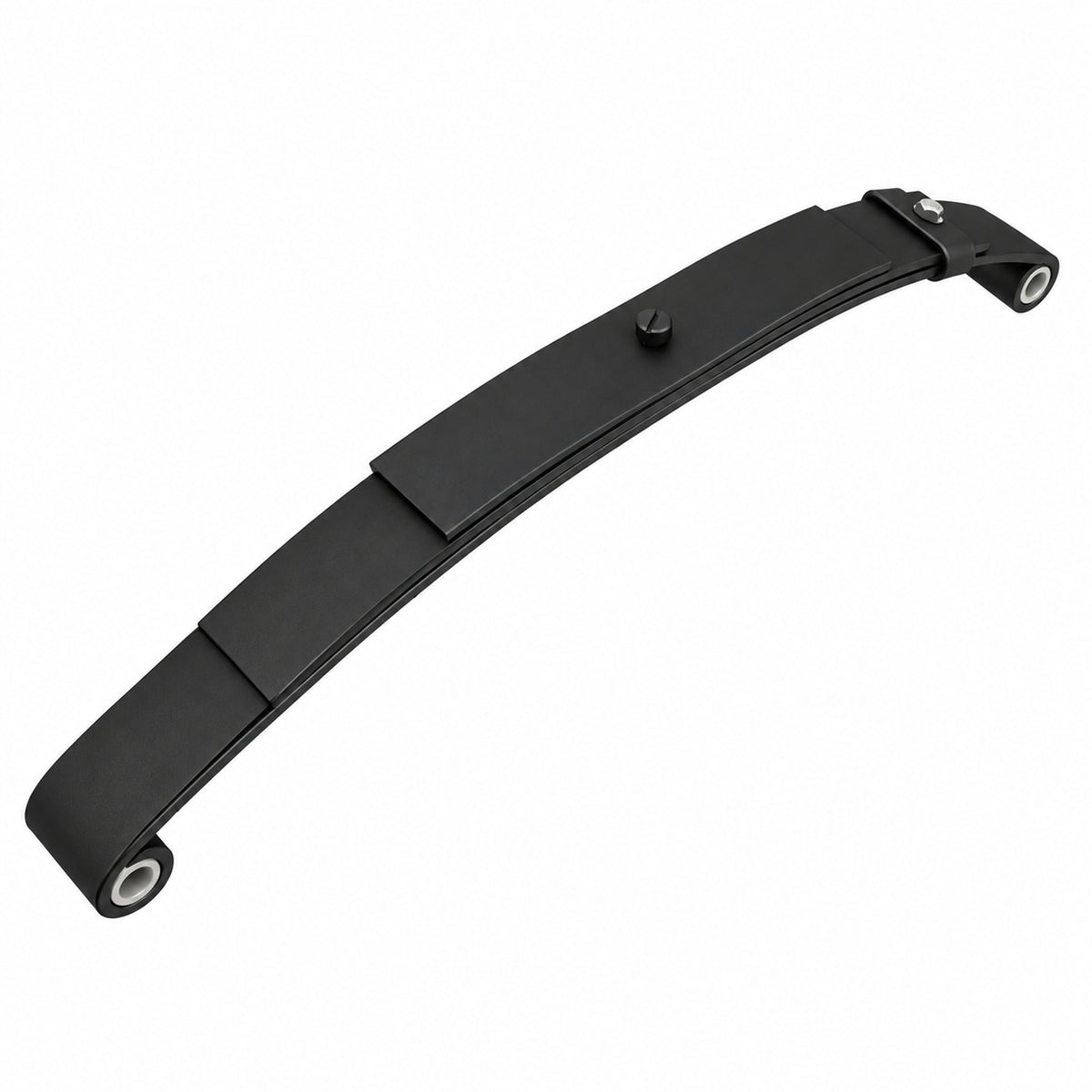

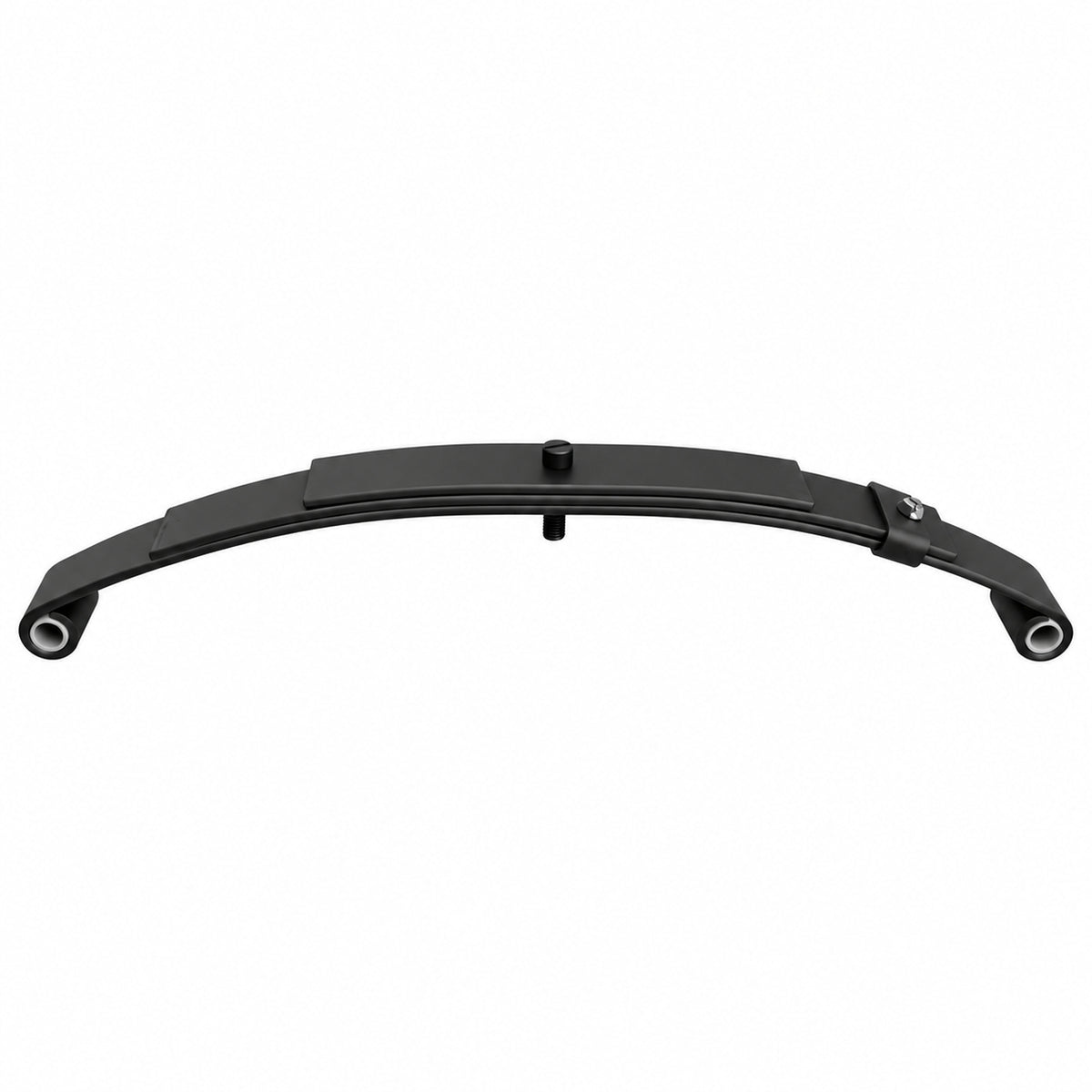

Double-Eye 3-Leaf Trailer Leaf Spring
This is a new double-eye, 3-leaf trailer leaf spring with a 20-3/8 inch eye-to-eye length. Double eye means both ends of the spring are formed into closed loops, so it mounts between the standard front and rear spring hangers. It is a universal replacement spring used on a wide range of utility, boat, and cargo trailers, so there is no brand-specific part number.
Capacity: Per Spring vs Per Axle
Each spring is rated at 1,000 lbs. A standard 2,000 lb (2K) trailer axle uses two of these springs, one on each side, so the pair carries the full 2,000 lb axle rating. This listing is for one spring sold individually. To replace both sides of one axle, order a quantity of two.
Dimensions
Eye to eye, center to center: 20-3/8 inches. Leaf width: 1-3/4 inches. Eye and bushing bore: 9/16 inch. Eye center to spring center: 10-3/16 inches. Arc height: about 3 to 3-3/8 inches. Number of leaves: 3.
Bushings Included

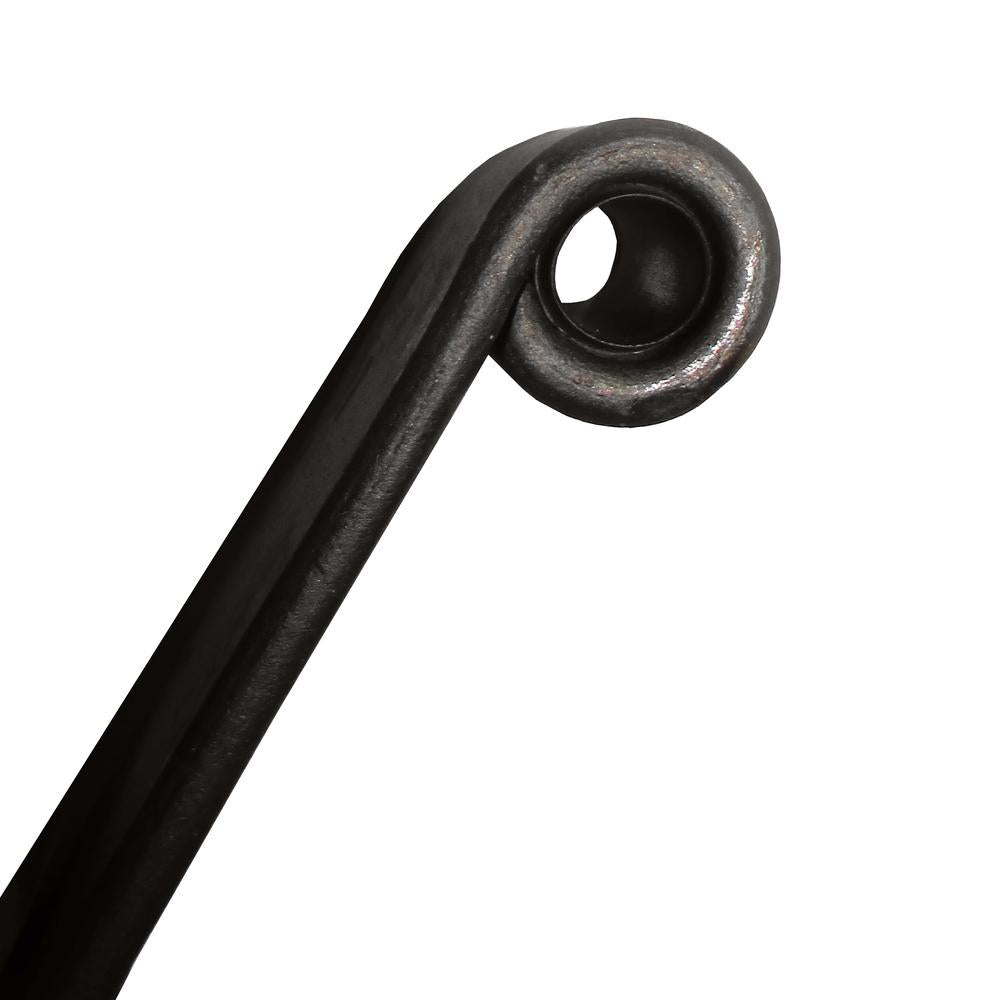

The spring comes with two nylon bushings already pressed into the eyes, so it is ready to bolt onto your trailer with the correct 9/16 inch shackle or mounting bolt.
Before You Buy
Trailer springs flatten and stretch over time, so measure your old spring eye to eye with the trailer jacked up and no weight on the suspension. Replace the springs in pairs on each axle to keep the trailer sitting level and riding evenly.
About Reliable Aftermarket Parts
We supply aftermarket trailer and equipment parts, with fast shipping and knowledgeable support. This is a universal aftermarket part. Confirm the measurements against your existing spring before ordering.
