Tie Rod - LH Fits John Deere 4720 4520 3120 4310 3520 4300 LVA14960

Name: Tie Rod - LH Fits John Deere 4720 4520 3120 4310 3520 4300 LVA14960
SKU: FRT40-0091_2
Price: 133.0 USD
Availability: InStock

Tie Rod - LH Fits John Deere 4720 4520 3120 4310 3520 4300 LVA14960

$133.00 AUD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

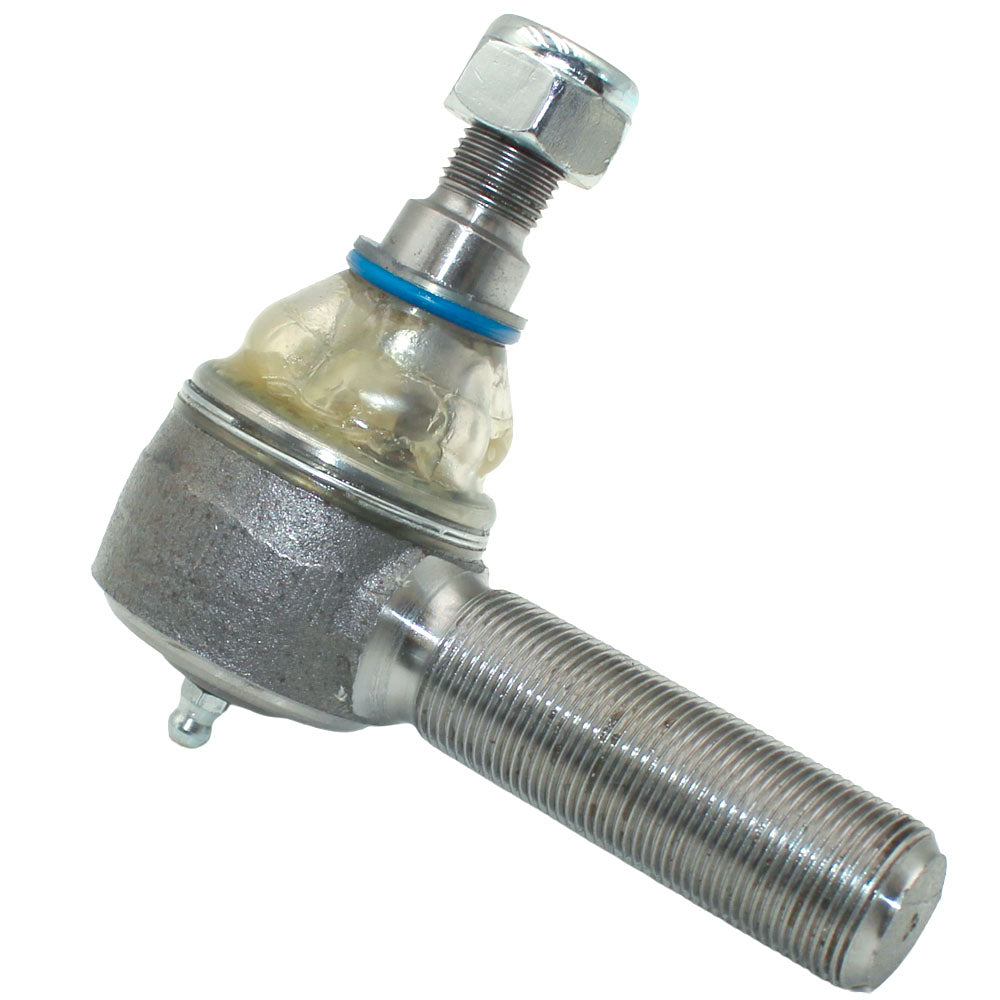

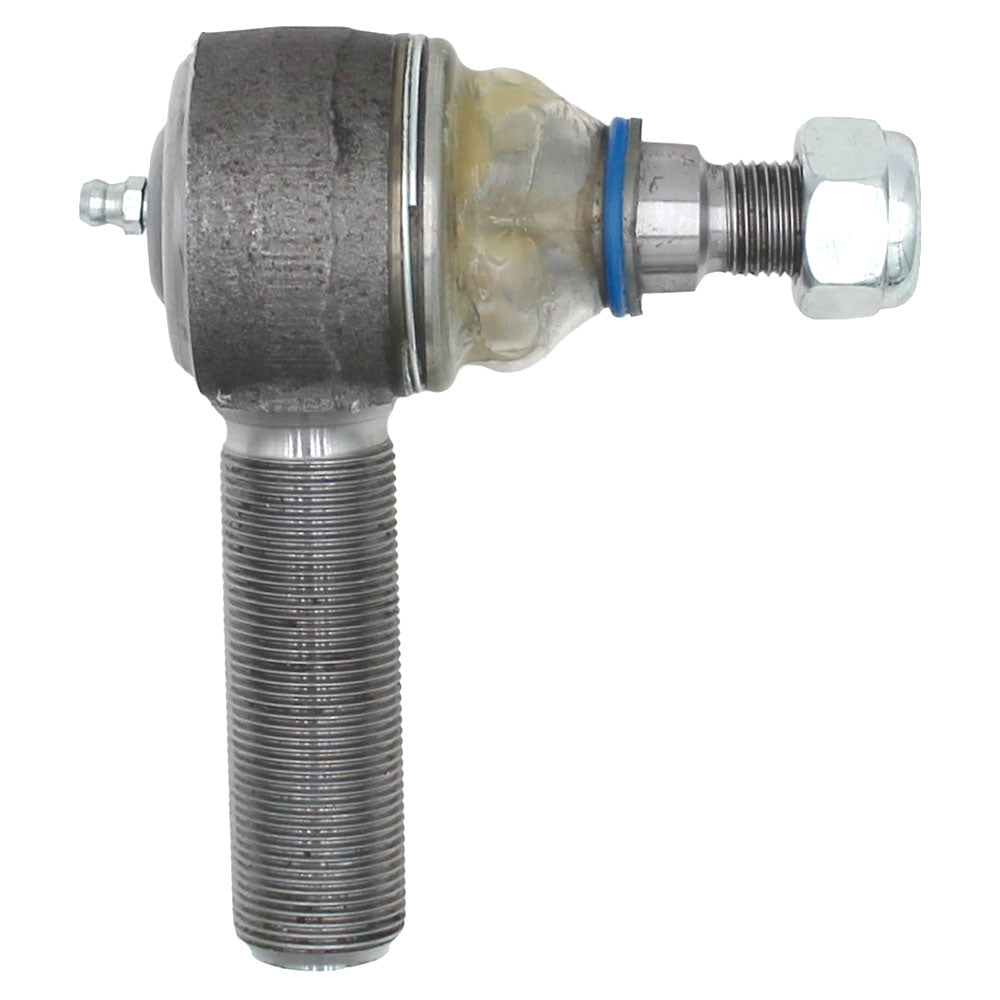

One New Aftermarket Replacement LH Threaded Tie Rod that Fits John Deere Compact Tractor models: (ALL MFWD) -- 3033R, 3038R, 3039R, 3045R, 3046R, 3120 (Late SN), 3203, 3320 (Late SN), 3520 (Late SN), 3720 (Late SN), 4044M, 4044R, 4049M, 4049R, 4052M, 4052R, 4066M, 4066R, 4105, 4120 (S/N 470001>), 4200, 4210, 4300 (Axle Marked S20BZ107-1), 4310, 4320 (S/N 470001>), 4400 (Axle Marked S20BZ107-1), 4410, 4500, 4520 (S/N 470001>), 4600, 4700 (Axle Marked S20BZ108-1 or S20BZ112-1), 4720 (S/N 470001>).

Thread: M24 x 1.5

Length of Ball Joint (from End to Center) 3.87"
Bottom of Taper (going up on Ball Joint): 0.880"
Top of Taper: 0.768"

PLEASE NOTE: Early machines had SAE threads, Later machines have these Metric threads. Please check which Thread type you have before ordering.

Replaces Part Number: LVA14960

Models This Part Fits:

4700, 4052M, 4044M, 4120, 4500, 3203, 4300, 4049M, 3038R, 3045R, 3046R, 3033R, 3520, 4066M, 4720, 4066R, 4610, 4044R, 4200, 4049R, 110, 3320, 3039R, 4410, 3720, 3120, 4310, 4520, 4600, 4052R, 4210, 4320, 4105, 4400

Additional Information:

Thread: M24 x 1.5 Length of Ball Joint (from End to Center) 3.87" Bottom of Taper (going up on Ball Joint): 0.880" Top of Taper: 0.768" Metric Threads. Early S/N machines have Standard SAE Threads.
