Steering Spindle Kit Fits Ford 2000 3000 2600 3600 3610 3900 Tractor

$180.00 AUD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

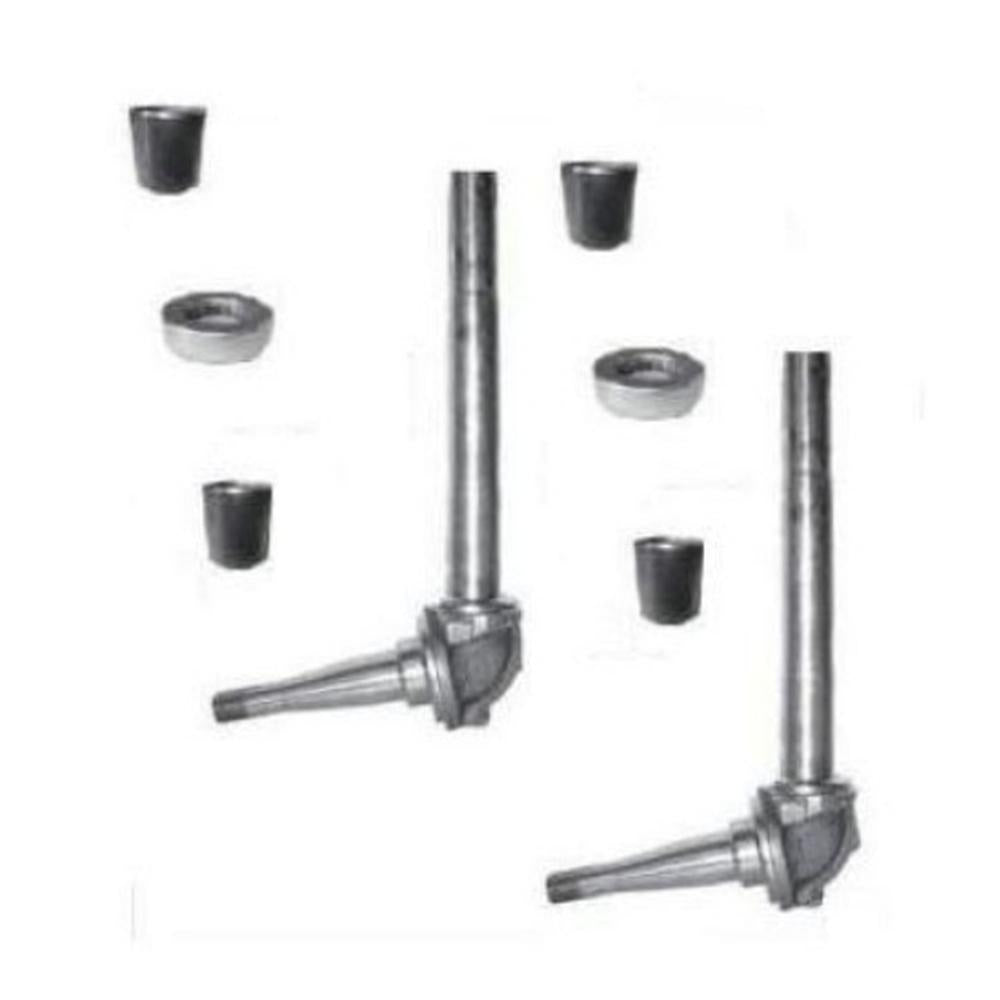

One New Aftermarket Replacement Steering Spindle Kit Fits Ford/New Holland Models: 2000, 2600, 3000, 3600, 3610, 3900

Tech Info: Kit Includes the following:

(1) C5NN3105U Spindle R/H

(1) C5NN3106R Spindle L/H

(2) 2N3109, Upper Spindle Bushing

(2) NCA3110A, Lower Spindle Bushing

(2) C0NN3123B, Spindle

Models This Part Fits:

3900, 3000, 2000, 3600, 2600, 3610, 2610, 4100

Additional Information:

(1) Right Hand Spindle 11.687" long 1.25" upper diameter 1.340" lower diameter 1.25" inner stub diameter 0.750" outer stub diameter Keyway is 0.235" W x 0.914" L Replaces Part Numbers: C5NN3105D,C5NN3105UV (1) Left Hand Spindle Left Hand 11.687" Long 1.25" Upper Diameter 1.340" Lower Diameter 1.25" Inner Stub Diameter 0.750" Outer Stub Diameter Keyway is 0.235" W x 0.914" L Replaces Part Numbers: C5NN3106D, F2NN3106AA, C5NN3106RV (1) Spindle Bushing Kit Front Spindle Bushing 4 used per tractor 1.255" inside diameter 1.378" outside diameter 1.498" long Must be honed or reamed to size when installed (1) Spindle Bushing Inner Diameter: 1.350" Material: Steel Outer Diameter: 1.480" Width: 1.500" Replaces Part Numbers: 2N2109, 2N3109, 81717387, 81802940 (2) Thrust Bearing Bearing Type Spindle Bearing Grease Greasable Inner Diameter: 1.350" ID Type Round Outer Diameter: 2.200" Sourced Import Width Overall 0.620" Replaces Part Number: 957E3123A
