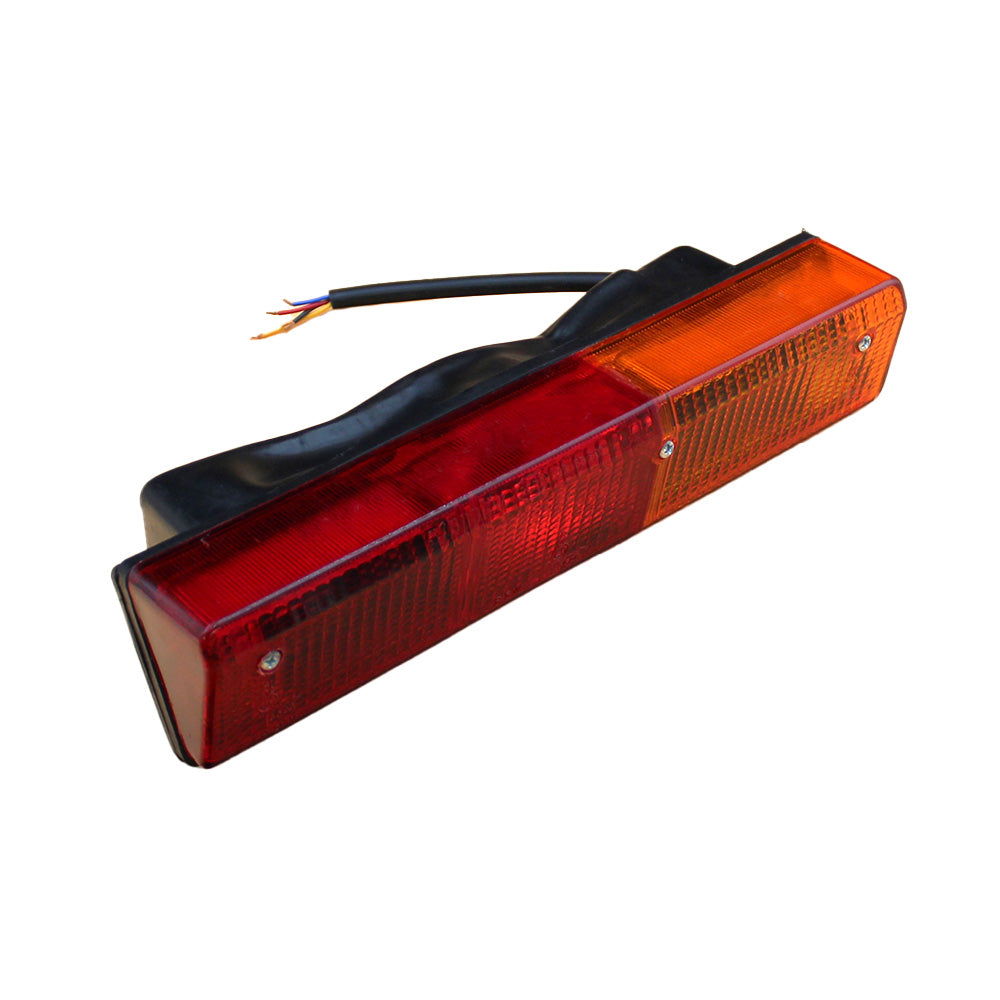

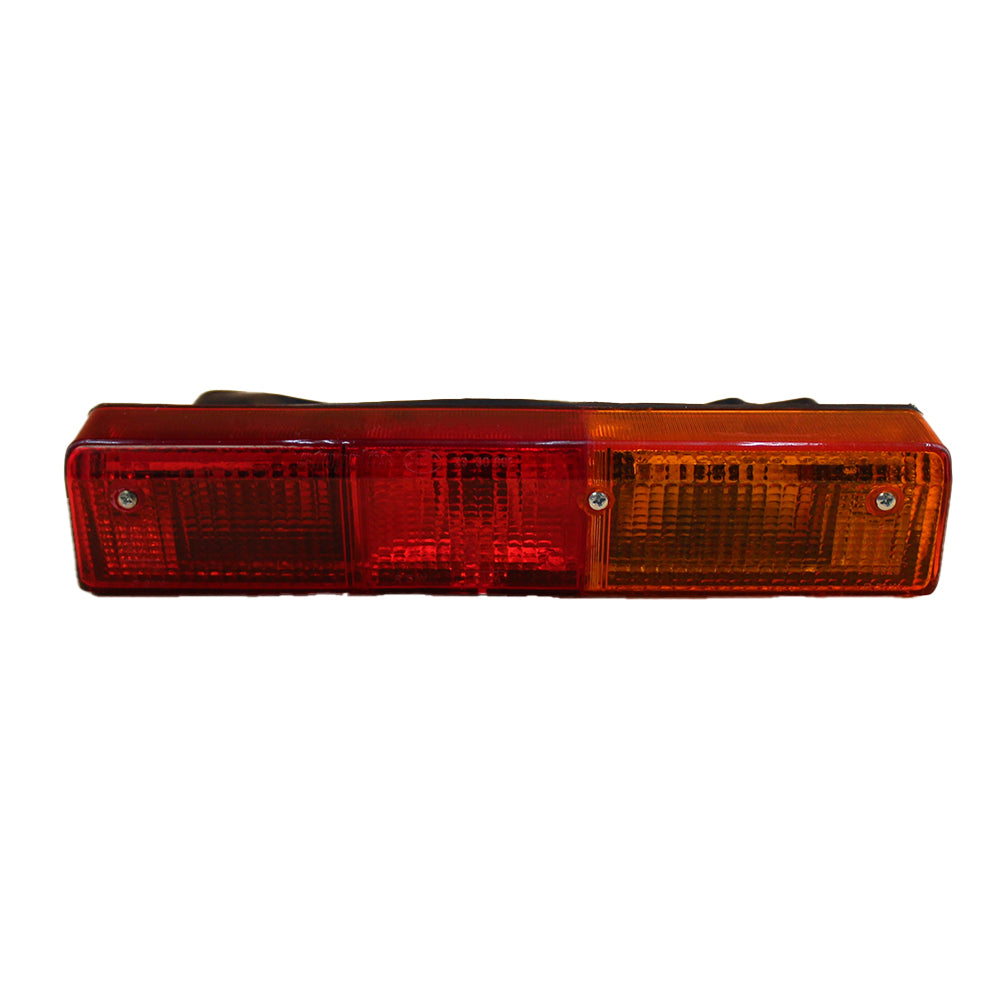

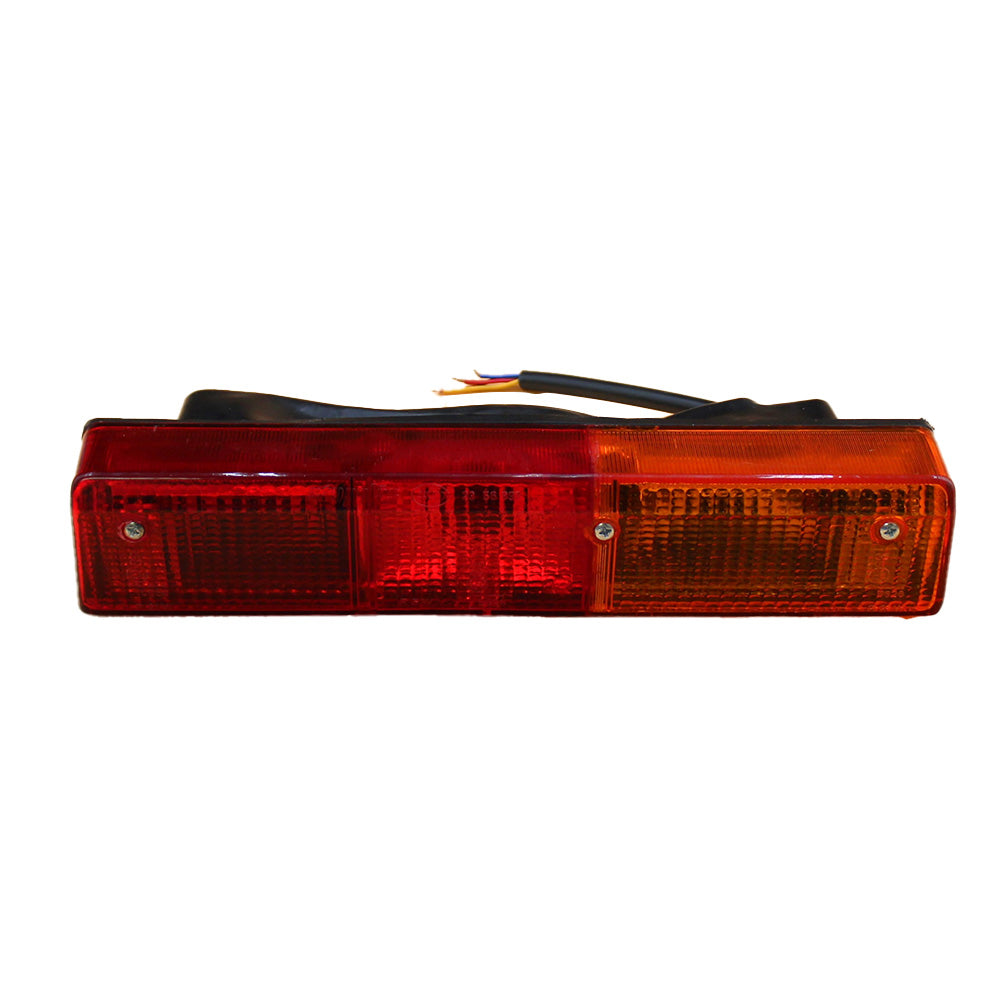

5124117 Rear Combination Light 12V, RH Fits Case IH

Models This Part Fits:

72-94, 65-93, 1280, 1580DT TURBO, 160-90, 55-90, 82-94, 60-93, 880-5, 80-90, 1880, 95-90DT, 60-94DT, 980DT, 80-66, 570, 65-90DT, 72-93DT, 50-66, 55-46, 65-66DT, 55-66DT, 680DT, 65-66, 82-93DT, 82-94DT, 1380, 274-4, 60-66, 70-66DT, 70-90, 45-66DT, 90-90, 130-90, 566, 1380DT, 666DT, 60-56, 566DT, 466, 60-66LPDT, 115-90, 1180, 85-90, 60-66DT, 60-93DT, 80-90DT, 446, 766DT, 65-56, 82-93, 110-90, 880DT, 140-90DT, 60-90DT, 65-90, 72-93, 670DT, 65-94, 60-46DT, 115-90DT, 65-56DT, 580DT, 780DT, 1580 TURBO, 60-94, 766, 70-56, 70-56DT, 1280DT, 65-94DT, 1880DT, 70-66, 72-86LPDT, 980, 60-90, 680, 160-90DT, 60-46, 180-90DT, 254-4, 294-4, 95-90, 100-90, 670, 65-93DT, 580, 50-66DT, 880-5DT, 65-46DT, 1180DT, 110-90DT, 100-90DT, 80-66DT, 90-90DT, 72-94DT, 55-90DT, 65-46, 666, 70-90DT, 60-56DT, 780, 180-90, 88-94, 140-90, 446DT, 45-66, 880, 88-94DT, 466DT, 55-46DT, 55-66, 130-90DT, 85-90DT, 570DT

Additional Information:

Connection Type DT Connector Fixing Clamp Function 3, Brake / Tail / Indicator Housing Material Various Plastic Compounds Lens Colour Red / Amber Lens Material Polycarbonate Light source Halogen Overall height 2.44” (62mm) Overall length 3.70” (94mm) Overall width 11.61” (295mm) RH or LH Fitment RH Volts 12V Shape Rectangular

Reference Numbers:

1425885M91, 1425885M92, VPM3621, 4997267
