RA100RRB-P: Ball Bearing Spherical W/ Collar fits Universal Several

One New Aftermarket Replacement Spherical Ball Bearing Insert with Eccentric Collar - RA100RRB-P

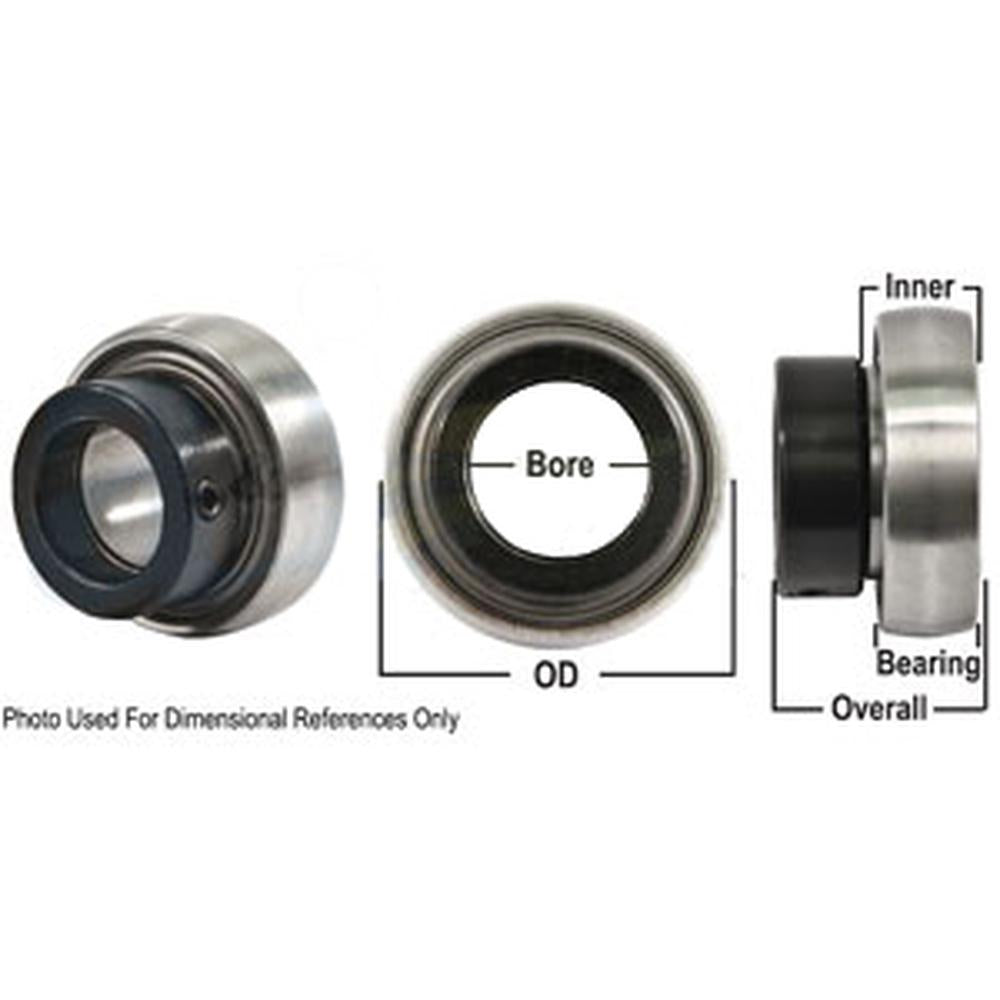

This spherical insert ball bearing (RA100RRB-P) features a 1-inch bore, extended inner ring, and eccentric self-locking collar for secure shaft mounting. The spherical outside diameter allows the bearing to seat in housings with a corresponding spherical inside surface, providing unrestricted initial alignment. The double-contact seal (R-seal) protects against contamination and retains factory grease, making this a non-relubricatable, factory-prelubricated bearing suited for agricultural and industrial equipment including tractors, combines, seeders, harvesters, and similar machinery.

Specifications

• Bore Diameter: 1 in (25.4 mm)
• Outside Diameter: 52 mm
• Overall Width: 31 mm
• Outer Ring Width: 15 mm
• Locking Device: Eccentric Self-Locking Collar
• Sealing: Double Contact Seal (Non-Relubricatable)
• Outside Profile: Spherical OD for self-aligning housings
• Dynamic Load Capacity: approx. 3,450 - 3,550 lbf
• Static Load Capacity: approx. 1,560 lbf
• Series: RA-RRB

Compatible Applications

This is a universal insert bearing used across a wide range of agricultural equipment (tractors, combines, seeders, harvesters, irrigation systems) and general industrial machinery wherever a 1-inch bore spherical insert bearing with eccentric collar is specified. Verify housing bore matches spherical OD profile before ordering.

Replaces Part Number(s):

RA100RRB-P, A-RA100RRB-P-AI, RA100RRB

Aftermarket Interchange Numbers

FH205-16, SA205-16, AEL205-100, NPS100RPC, YET205-16, KH205-16, JD8665, RANPPB, GRA100RRB (grease variant)

New aftermarket replacement part - not remanufactured, not used.
