195498M1 PTO Shaft Bearing Seal O-Ring Kit Fits Massey Ferguson 135 165 TO35 35

Name: 195498M1 PTO Shaft Bearing Seal O-Ring Kit Fits Massey Ferguson 135 165 TO35 35
SKU: KT-CLB10-0006
Price: 69.0 USD
Availability: InStock

195498M1 PTO Shaft Bearing Seal O-Ring Kit Fits Massey Ferguson 135 165 TO35 35

$69.00 AUD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

What You Get

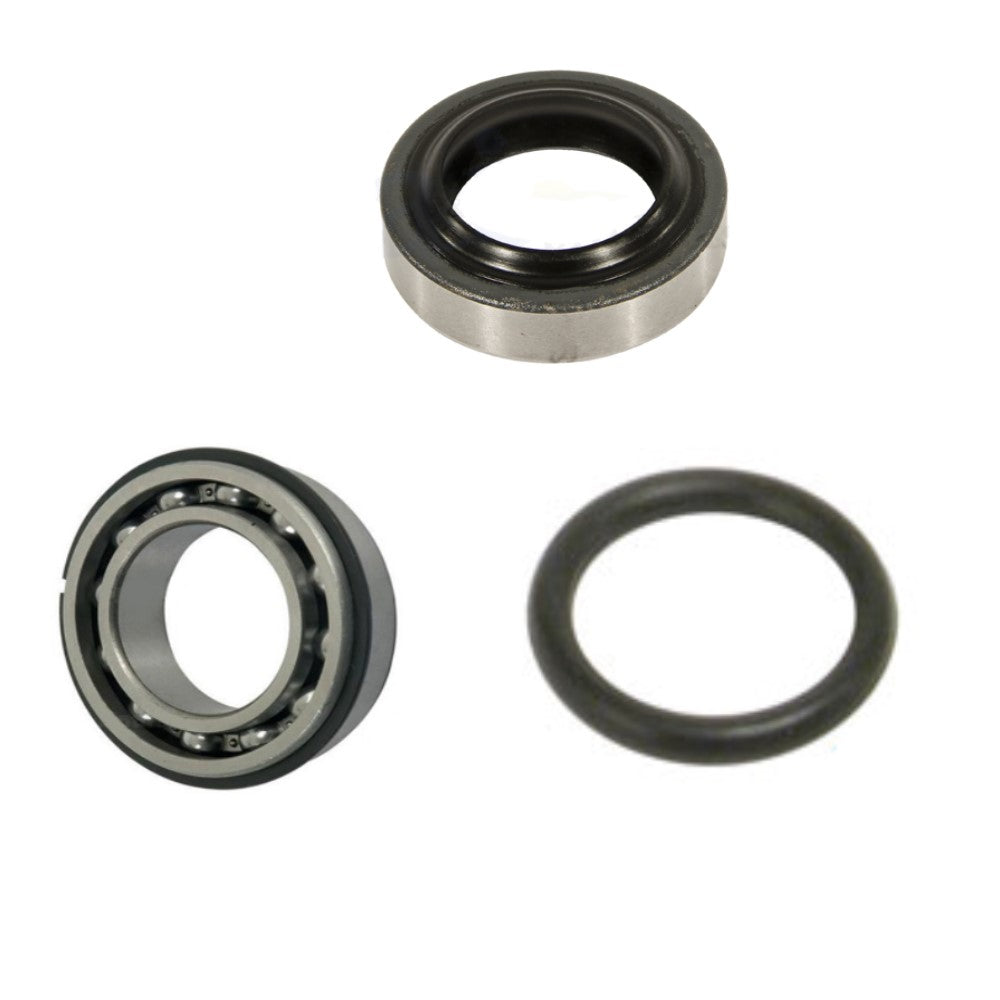

A complete three-piece PTO output shaft repair kit: one ball bearing (195498M1), one double-lip oil seal (195506M1, also 1077452M1), and one O-ring (195522M1).

Fits

Massey Ferguson and related Massey Harris and Ferguson tractors: TO35, 35, 50, 65, 135, 150, 165, 175, 235 (Independent PTO), 255, 265, and 275 (dry brakes, live or Independent PTO). The 265 and 275 fit to serial 9A349239; 35 and 35X fit to serial 819045.

Bearing

Deep-groove ball bearing, 1.771 in (45 mm) bore x 2.952 in (75 mm) OD x 0.629 in (16 mm) wide. This is the snap-ring style PTO output shaft bearing.

Seal and O-Ring

Oil seal 1.750 in ID x 2.685 in OD x 0.625 in wide, double lip. O-ring 2-7/8 in with a 3/16 in cross section.

Replaces

195498M1 (bearing); 195506M1 and 1077452M1 (seal); 195522M1 (O-ring). Also referenced as 1860325M1 and 70923936.

Models This Part Fits:

150, 275, 135, 230, 255, 165, 265, 180, 175, 50, F40, 3165, 2200, 235, 40, TO35, 65, 35, 2135

Additional Information:

(1) O-Ring PTO shaft seal housing 3/16'' x 2 7/8'' Nitrile Rubber 70° shore hardness. For general use at temperatures: -40°C to +135°C Replaces Part Numbers: 195522M1 (1) PTO Shaft Bearing Bearing Sides: Open Bore: 1.772" (45.008mm) Outside Diameter: 2.953" (75.006mm) Width: .630" (16.002mm) Replaces Part Numbers: A-195498M1 (1) PTO Shaft Seal Inside Diameter: 1.600" Outside Diameter: 2.690" Width: .625" Steel shell, rubber center Replaces Part Numbers: 1860325M1, 1077452M1, 195506M1
