AM39285 Starter & Gear Set Fits Cub Cadet BS-499521 Fits John Deere 1338G 18HP

AM39285 Starter & Gear Set Fits Cub Cadet BS-499521 Fits John Deere 1338G 18HP

$101.00 AUD
$101.00 AUD
Sale Sold out
Shipping calculated at checkout.

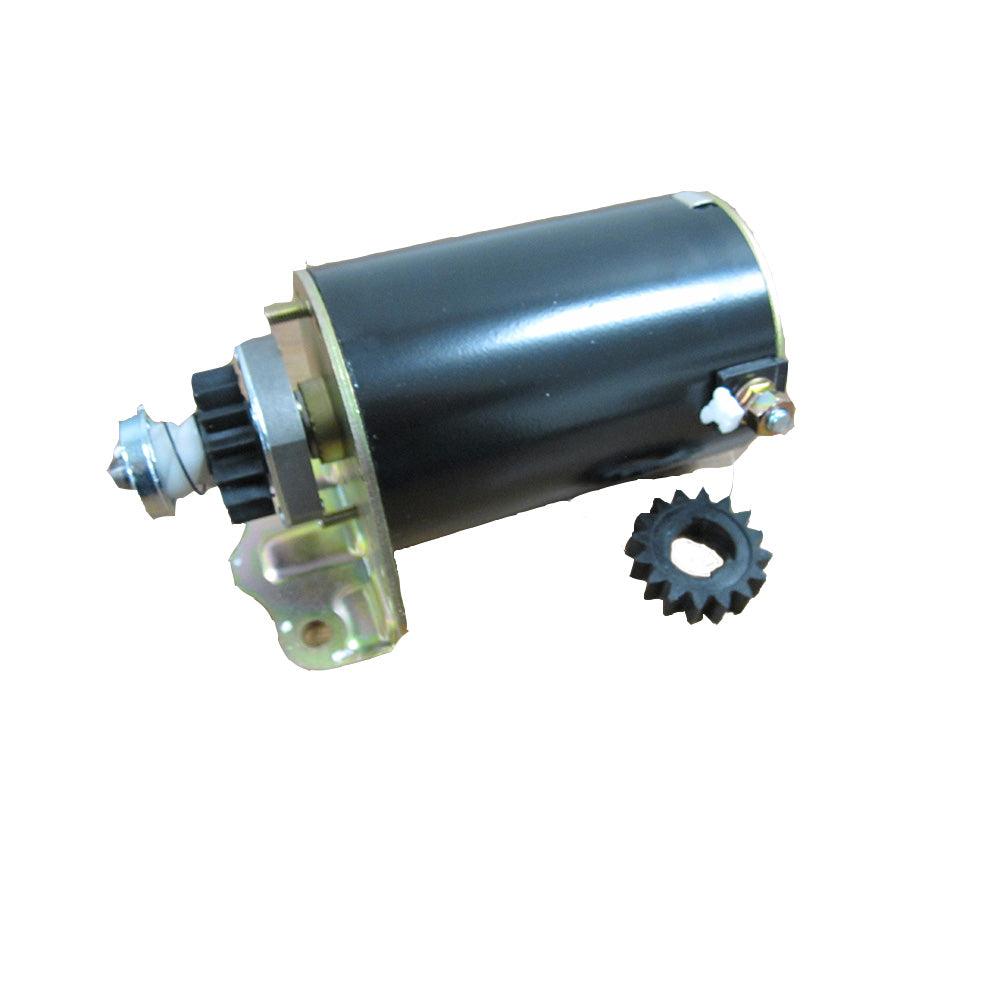

One New Aftermarket Replacement Permanent Magnet Direct Drive (PMDD) Starter with Drive Gear Set


Fits Briggs and Stratton Air Cooled Engine Models:
10HP Horizontal, 11HP Horizontal, 11HP Vertical, 12.5HP Vertical, 12HP Vertical, 16HP Horizontal, 16HP Vertical,
18HP Horizontal, 7HP Horizontal, 7HP Vertical, 8HP Horizontal, 8HP Vertical

Fits John Deere Tiller Models:
820, 820A

Fits John Deere Riding Lawn Mower Models:
68 Fits Briggs and Stratton 8HP (1975-1983), GX85 Fits Briggs and Stratton 13HP,
R70 Fits Briggs and Stratton 8HP (1984-1986), R72 Fits Briggs and Stratton 8HP (1984-1986),
R92 Fits Briggs and Stratton 11HP (1985-1986), S80 Fits Briggs and Stratton 8HP (1984),
S82 Fits Briggs and Stratton 8HP (1984-1986), S92 Fits Briggs and Stratton 11HP (1984-1986),
SX85 Fits Briggs and Stratton 13HP

Fits John Deere Lawn Tractor Models:
100 Fits Briggs and Stratton (1975-1978), 108 Fits Briggs and Stratton (1979-1985),
Europa 1338SGS Fits Briggs and Stratton 13HP, Europa 1438GS Fits Briggs and Stratton 14.5HP,
Europa 1538HS Fits Briggs and Stratton 15HP, Europa 1542GS Fits Briggs and Stratton 15.5HP,
Europa 1546GS Fits Briggs and Stratton 15HP, Europa 1646HS Fits Briggs and Stratton 16HP,
L111 Fits Briggs and Stratton 20HP, L118 Fits Briggs and Stratton 22HP,
Sabre 1338G Fits Briggs and Stratton 13HP, Sabre 1438GS Fits Briggs and Stratton 14.5HP,
Sabre 1438HS Fits Briggs and Stratton 14.5HP, Sabre 1538GS Fits Briggs and Stratton 15HP,
Sabre 1538HS Fits Briggs and Stratton 15HP, Sabre 1542GS Fits Briggs and Stratton 15.5HP,
Sabre 1542HS Fits Briggs and Stratton 15.5HP, Sabre 1546G Fits Briggs and Stratton 15HP,
Sabre 1646HS Fits Briggs and Stratton 16HP

Tech Info:
Volt: 12
Rotation Direction: Counter Clockwise
Electric Starter Type: Permanent Magnet Direct Drive (PMDD)
Number of Teeth: 16
Gear Outer Diameter: 1-5/8"
Mounting Ear 1 Hole: 8mm Unthreaded
Mounting Ear 2 Hole: Unthreaded
Mounting Ear 3 Hole: 8mm Unthreaded
Notes: 4.25"/108mm Long Field Fits Case for Engines with Aluminum Ring Gears

Replaces Part Numbers:
Fits Briggs and Stratton: 393499, 394943, 399169, 490420, 494148, 494198, 494990, 497401, 497595, 691262, 499529
Fits Cub Cadet: BS-399169, BS-499521
Fits John Deere: AM106883, AM38136, AM39285, LG490420, LG497401, LG691262
Fits generac: 075255, 75255, 75255-A, 75255A
Fits Remy Small Motor: RS41077
Fits Wilson: 71-09-5746, 71095746, 91-09-1002, 91091002

Models This Part Fits:

820, 100: (1975-1978)108: (1979-1985)Europa 1338SGS: 13HPEuropa 1438GS: 14.5HPEuropa 1538HS: 15HPEuropa 1542GS: 15.5HPEuropa 1546GS: 15HPEuropa 1646HS: 16HPL111: 20HPL118: 22HPSabre 1338G: 13HPSabre 1438GS: 14.5HPSabre 1438HS: 14.5HPSabre 1538GS: 15HPSabre 1538HS: 15HPSabre 1542GS: 15.5HPSabre 1542HS: 15.5HPSabre 1546G: 15HPSabre 1646HS: 16HP, 18HPVertical: 7HP, 820A, 12.5HP, 16HP, 8HP, 68: 8HP (1975-1983)GX85: 13HPR70: 8HP (1984-1986)R72: 8HP (1984-1986)R92: 11HP (1985-1986)S80: 8HP (1984)S82: 8HP (1984-1986)S92: 11HP (1984-1986)SX85: 13HP, 10HP, 11HP, Air Cooled Engines:Horizontal: 7HP, 12HP

Additional Information:

(1) Starter Critical Note for Use with Plastic Flywheels Only Volt 12 Rotation Direction Counter Clockwise Electric Starter Type Permanent Magnet Direct Drive (Pmdd) Number of Teeth 16 Gear Od 1.598" Gear Od 40.600mm Mount Hole ID 1 8mm Mount Hole 1 Type Unthreaded Mount Hole 2 Type Unthreaded Mount Hole ID 3 8mm Mount Hole 3 Type Unthreaded 4.25"/108mm Long Field Case Replaces: LG497595, LG691262, MIA12048, MIU13772, SE501880, 5406K, 691252, 691262, 693054, 795121 (1) Starter Drive Gear Outer Diameter: 1 5/8" Teeth: 16 ClockWise For aluminum and plastic ring gears Replaces: M83184, 222-22006, 222-22011, 222-22012, 280104, 4114, 4152, 4194, 693058, 693059, 695708

Reference Numbers:

Starter Drive GearBriggs & Stratton161432, 176432, 176437, 176452, 190412, 192402, 192412, 192417, 192432, 195707, 196402, 196412, 196417, 196427, 196432, 196436, 196437, 196707, 197402, 197412, 197415, 197417, 221437, 243431, 243432, 243434, 243436, 243437, 252412, 252417, 252702, 253707, 254412, 255707, 284702, 284777, 286702, 288702, 289702, 303437, 303440, 303445, 303446, 303447, 303707, 303772, 303775, 303776, 303777, 326431, 326437, 350442, 350447, 350772, 350776, 350777, 351442, 351447, 351777, 380777, 400707, 401707, 402437, 404437, 404577, 4045A7, 405777, 406577, 406777, 407577, 407677, 407777, 40A777, 40G777, 40H777, 40R877, 422432, 422435, 422437, 422442, 422445, 422707, 422777, 42A707, 42B707, 42D707, 42D777, 42E707, 42E777, 441577, 441677, 445677, 445877, 446677, 446877, 44H777, 44K777, 44L777, 44M777, 44N777, 44P777, 44R877, 44S877, 44S977, 461707, 49G575, 49M777StarterBriggs & Stratton390838, 390849, 391423, 392749, 393499, 394805, 394943, 399169, 435303, 490420, 491766, 494148, 494198, 494990, 497401, 497461, 497594, 497595, 497595P, 499521, 499529, 5406D, 5406H, 5406K, 691252, 691262, 693054, 795121, Starter Drive Gear John DeereLG280104, LG280104S, LG693059, LG695708, M150236, M83184StarterJohn DeereAM106883, AM122237, AM122337, AM37352, AM39137, AM39285, BS497595, LG490420, LG497401, LG497595, LG691262, MIA12048, MIU13772, SE501880

Product Category:

Agriculture
