Minor Starter Repair Kit Fits Delco Replaces 151-12008

Minor Starter Repair Kit Fits Delco Replaces 151-12008

$35.00 AUD
$35.00 AUD
Sale Sold out
Shipping calculated at checkout.

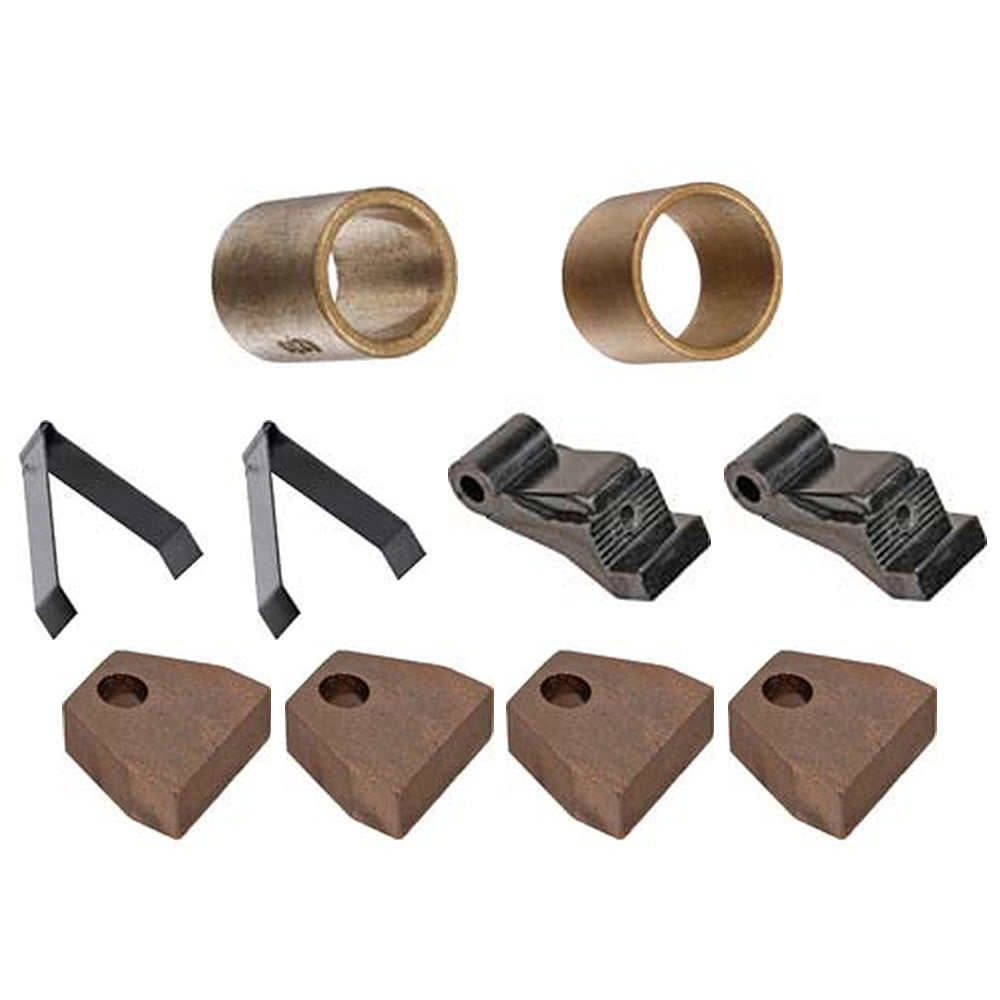

One New Aftermarket Minor Starter Repair Kit

Tech Info:

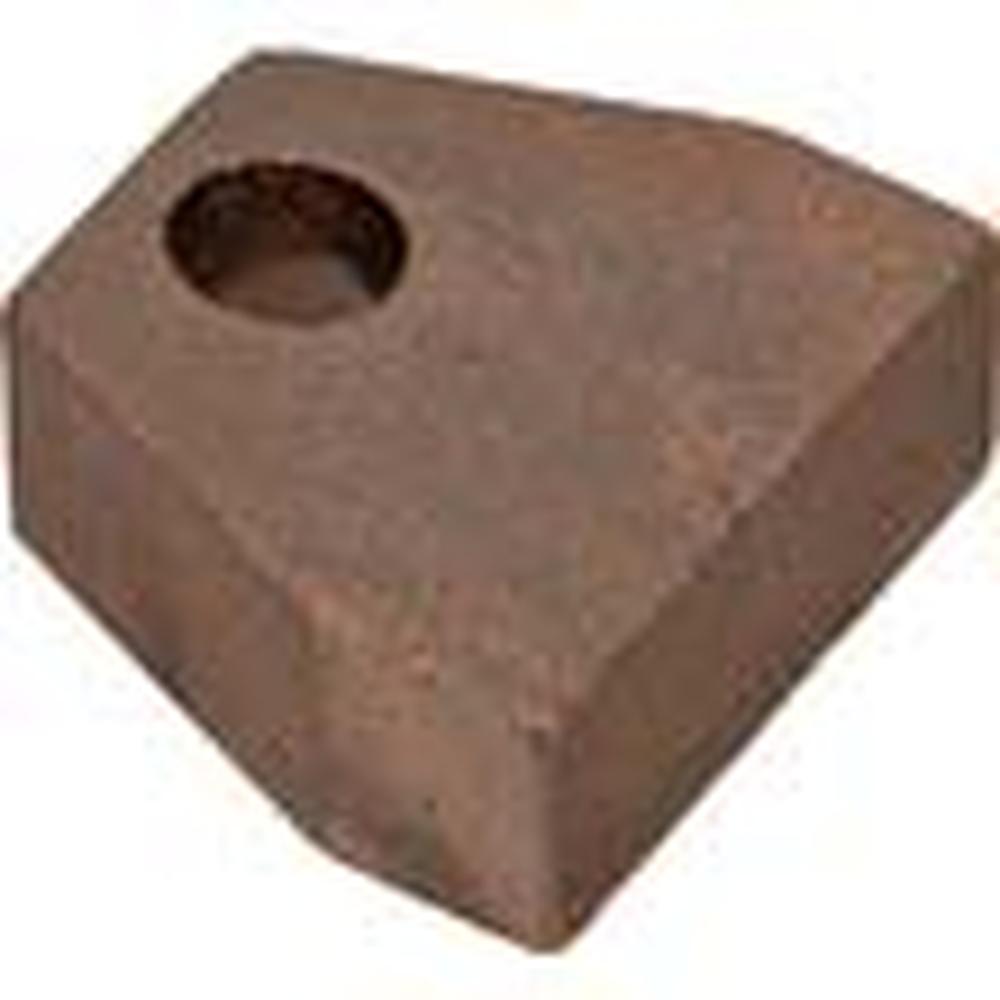

 -(4) Starter Brushes
 -Length: 0.63" / 16mm
 -Width: 0.748" / 19mm
 -Height: 0.256" / 6.5mm
 -Replaces Part Number: 1906945
 -

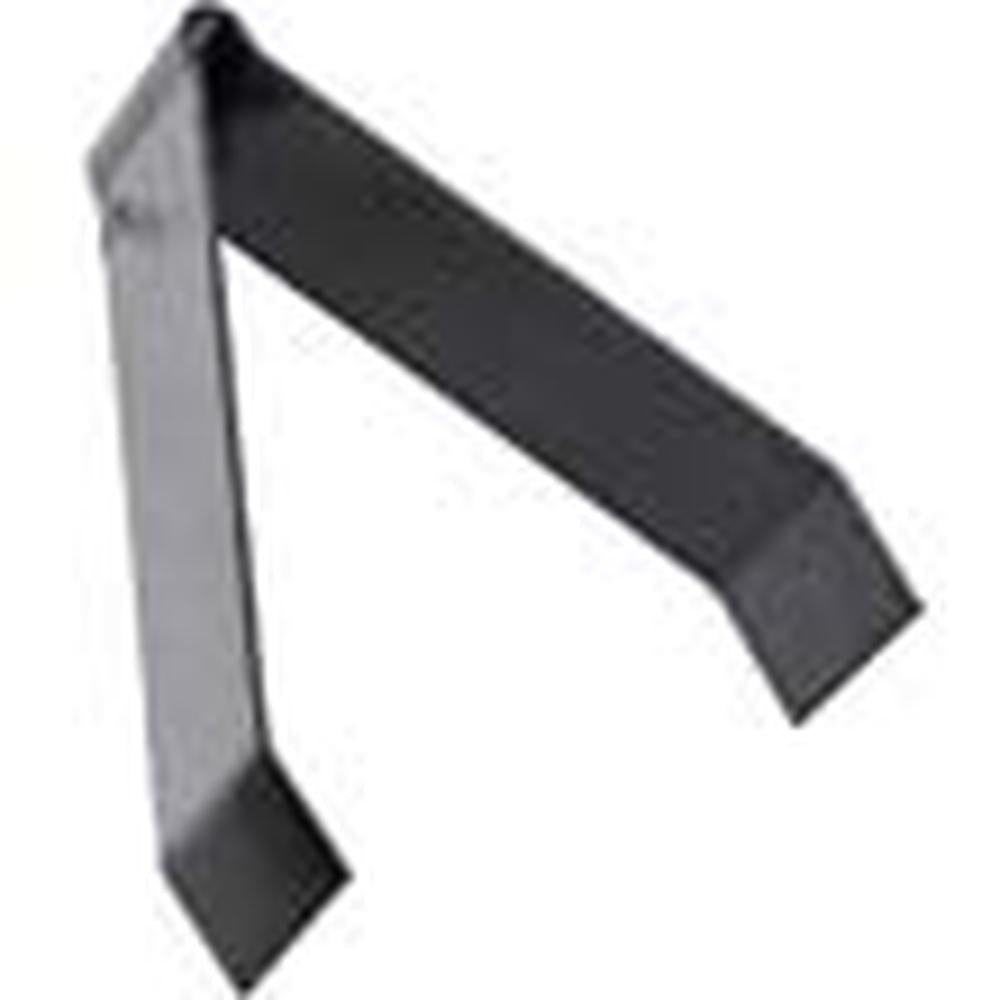

 -(2) Brush Springs
 -20-27MT Series w/ Step-Down Field Fits Case
 -Replaces Part Number: 10498866
 -

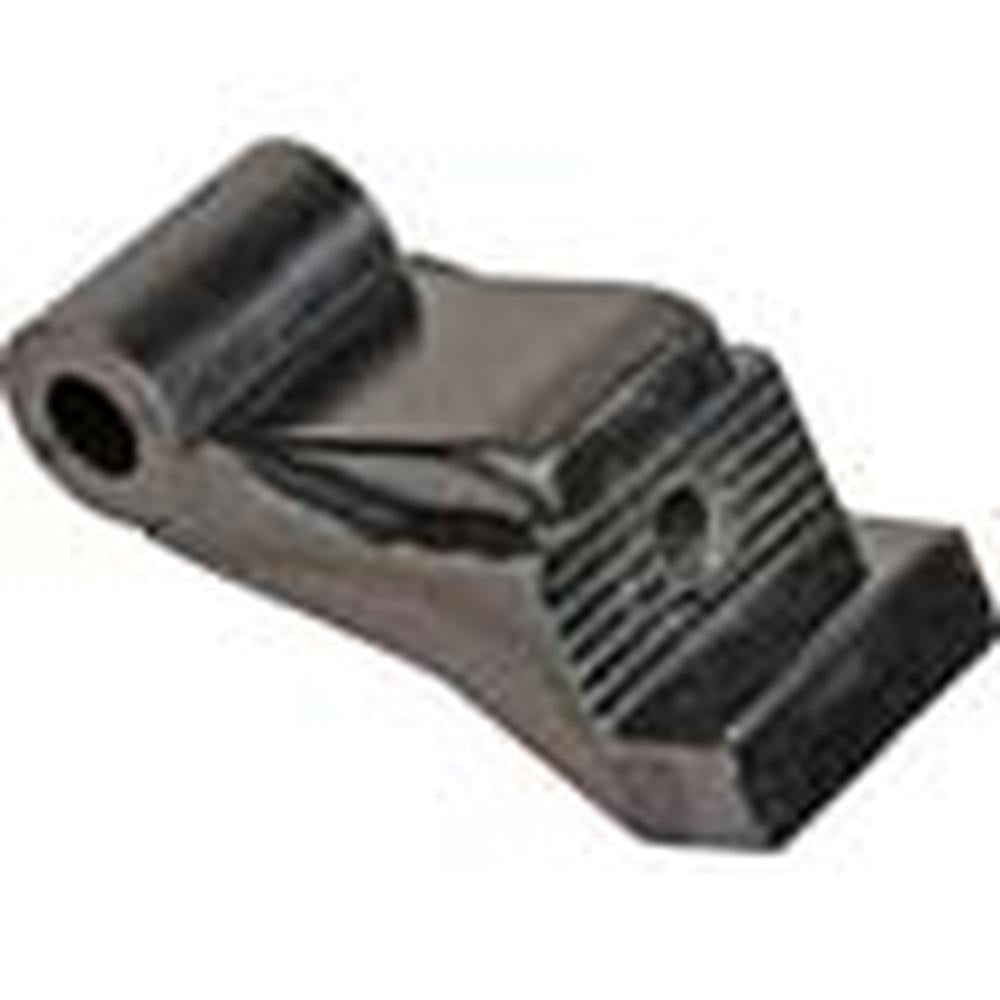

 -(2) Brush Holders
 -Insulated & Tapped with 8-32
 -Replaces Part Number: 1926618
 -

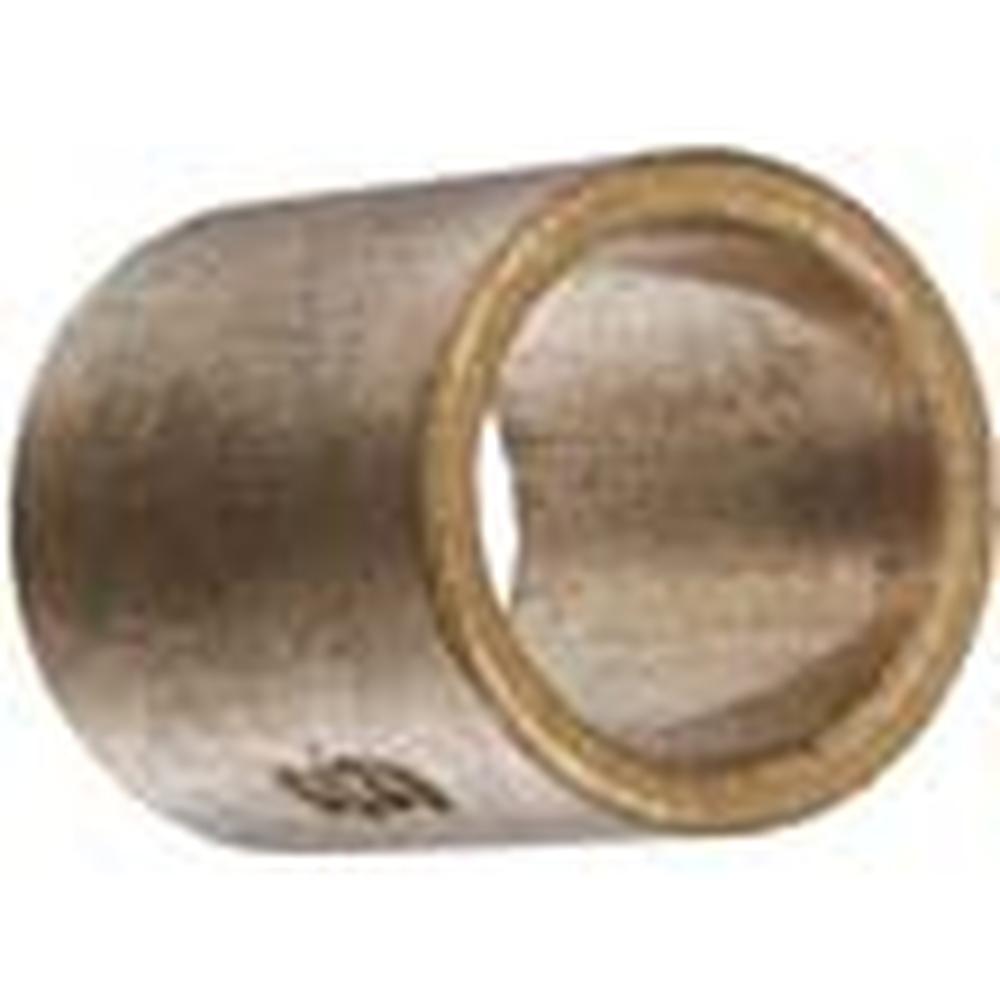

 -(1) Commutator End Bushing
 -Location Used: DE Housing
 -ID: 0.501" / 12.73mm
 -OD: 0.627" / 15.93mm
 -Width: 0.776" / 19.7mm
 -Bushing Type: Oilite
 -Bushing Size: Standard
 -Replaces Part Number: 1862383
 -

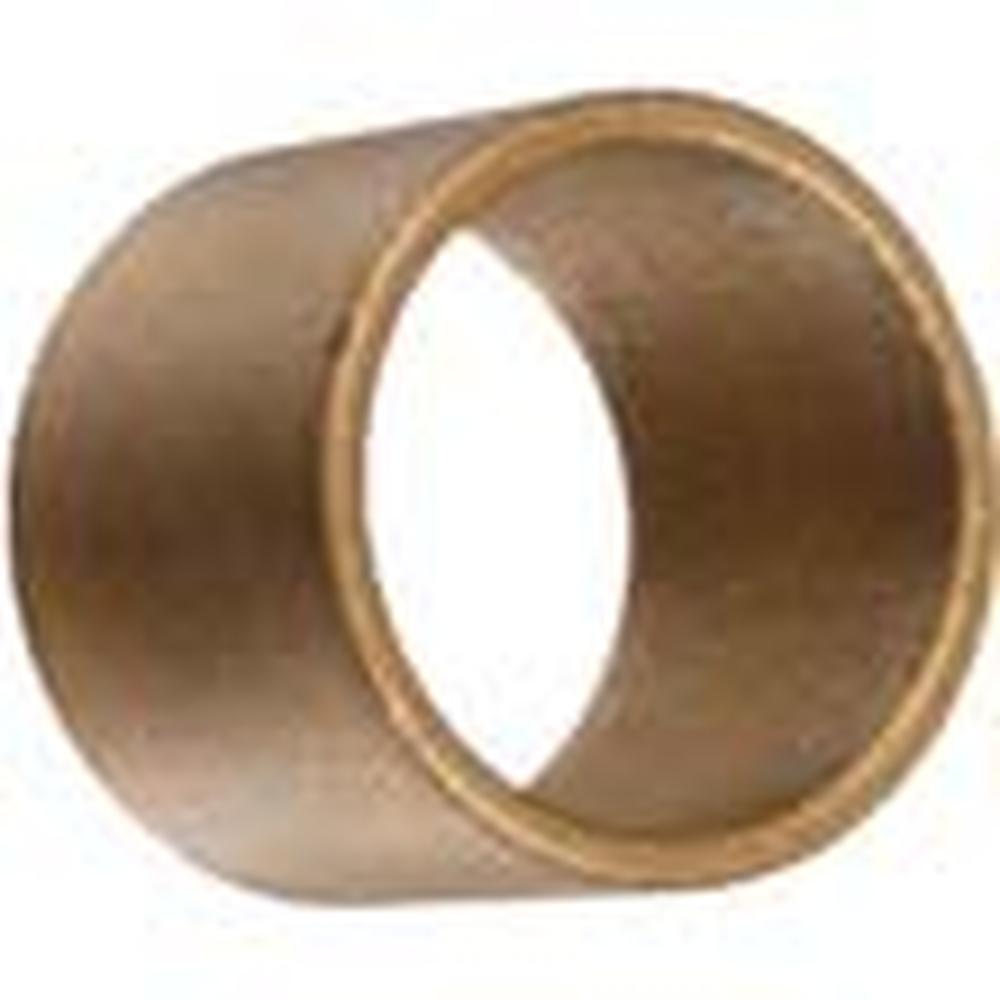

 -(1) Center Support Bushing (Late)
 -Inner Diameter: 19.23 mm
 -Outer Diameter: 22.34 mm
 -Length: 18.30 mm
 -Replaces Part Number: 1108394

Made to Fits Delco:
 Other (Agriculture) Models: 10MT, 20MT, 25MT, 27MT, 30MT, 35MT
 Replaces Part Number(s): 1926618, 1950546, 1988414, 1938587, S1851, SDR1302, 151-12008, 21401, 69-1202, 55-460, 5540-460, 419-19305NT, 52-1021

Models This Part Fits:

27MT, 35MT, 10MT, 20MT, 30MT, 25MT

Additional Information:

(4) Starter Brushes Length: 0.63" / 16mm Width: 0.748" / 19mm Height: 0.256" / 6.5mm Replaces Part Number: 1906945 (2) Brush Springs 20-27MT Series w/ Step-Down Field Fits Case Replaces Part Number: 10498866 (2) Brush Holders Insulated & Tapped with 8-32 Replaces Part Number: 1926618 (1) Commutator End Bushing Location Used: DE Housing ID: 0.501" / 12.73mm OD: 0.627" / 15.93mm Width: 0.776" / 19.7mm Bushing Type: Oilite Bushing Size: Standard Replaces Part Number: 1862383 (1) Center Support Bushing (Late) Inner Diameter: 19.23 mm Outer Diameter: 22.34 mm Length: 18.30 mm Replaces Part Number: 1108394

Reference Numbers:

1926618, 1950546, 1988414, 1938587, S1851, SDR1302, 151-12008, 21401, 69-1202, 55-460, 5540-460, 419-19305NT, 52-1021
