Left Hand Spindle Fits International Replaces 67535C91

Name: Left Hand Spindle Fits International Replaces 67535C91
SKU: 67535C91_02
Price: 254.0 USD
Availability: InStock

Left Hand Spindle Fits International Replaces 67535C91

$254.00 AUD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

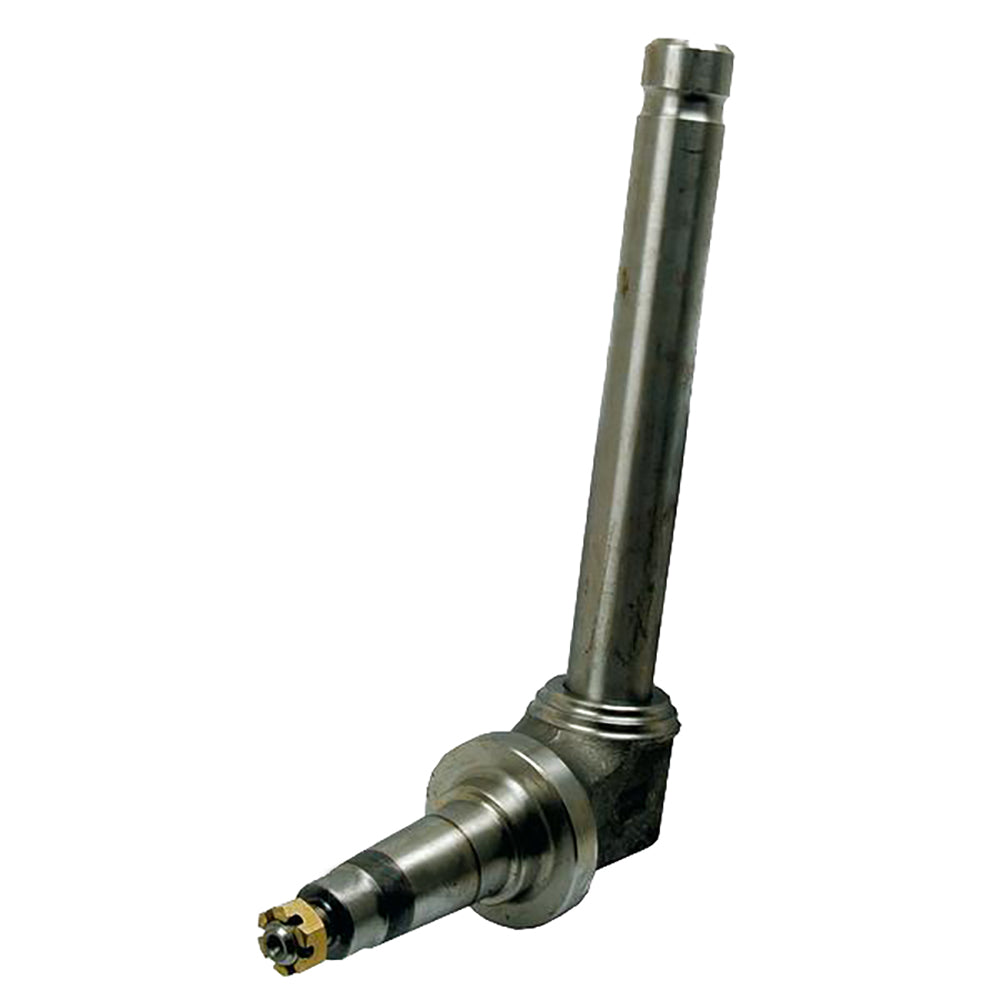

One New Aftermarket Left Hand Spindle

Tech Info:
Spindle:Low (LH/RH) Heavy Duty
(Shaft Length - 12 1/8'' - 308mm)
Adjustable Front Axle - Straight (52-82 Tread Width)

A: Spindle Shaft (Vertical Spindle)
The long vertical shaft that goes up into the axle support
Allows the wheel hub to pivot for steering
B: Spindle Diameter / Bearing Surface
The machined area where bushings or bearings ride inside the axle
Critical for smooth steering rotation
C: Steering Arm / Spindle Arm Area
The section where the steering arm is integrated or attaches
Transfers motion from the tie rod to turn the wheel
D: Tie Rod Connection (Tapered Stud / Tie Rod End Mount)

Made to Fits International:
Tractor Models: 2400A, 454
Replaces Part Number(s): 67535C91

Tractor Models: 248, 2500A, 258, 484, 574, 584, 674
Model Breaks: w/ 1.780" Inner Wheel Hub Bearing ID
Replaces Part Number(s): 67535C91

Models This Part Fits:

574, 454, 248, 674, 2500A, 584, 2400A, 258, 484

Additional Information:

Spindle:Low (LH/RH) Heavy Duty (Shaft Length - 12 1/8'' - 308mm) Adjustable Front Axle - Straight (52-82 Tread Width) A: Spindle Shaft (Vertical Spindle) The long vertical shaft that goes up into the axle support Allows the wheel hub to pivot for steering B: Spindle Diameter / Bearing Surface The machined area where bushings or bearings ride inside the axle Critical for smooth steering rotation C: Steering Arm / Spindle Arm Area The section where the steering arm is integrated or attaches Transfers motion from the tie rod to turn the wheel D: Tie Rod Connection (Tapered Stud / Tie Rod End Mount)
