470J6 J-POLY-V BELT
470J6 J-POLY-V BELT
Couldn't load pickup availability

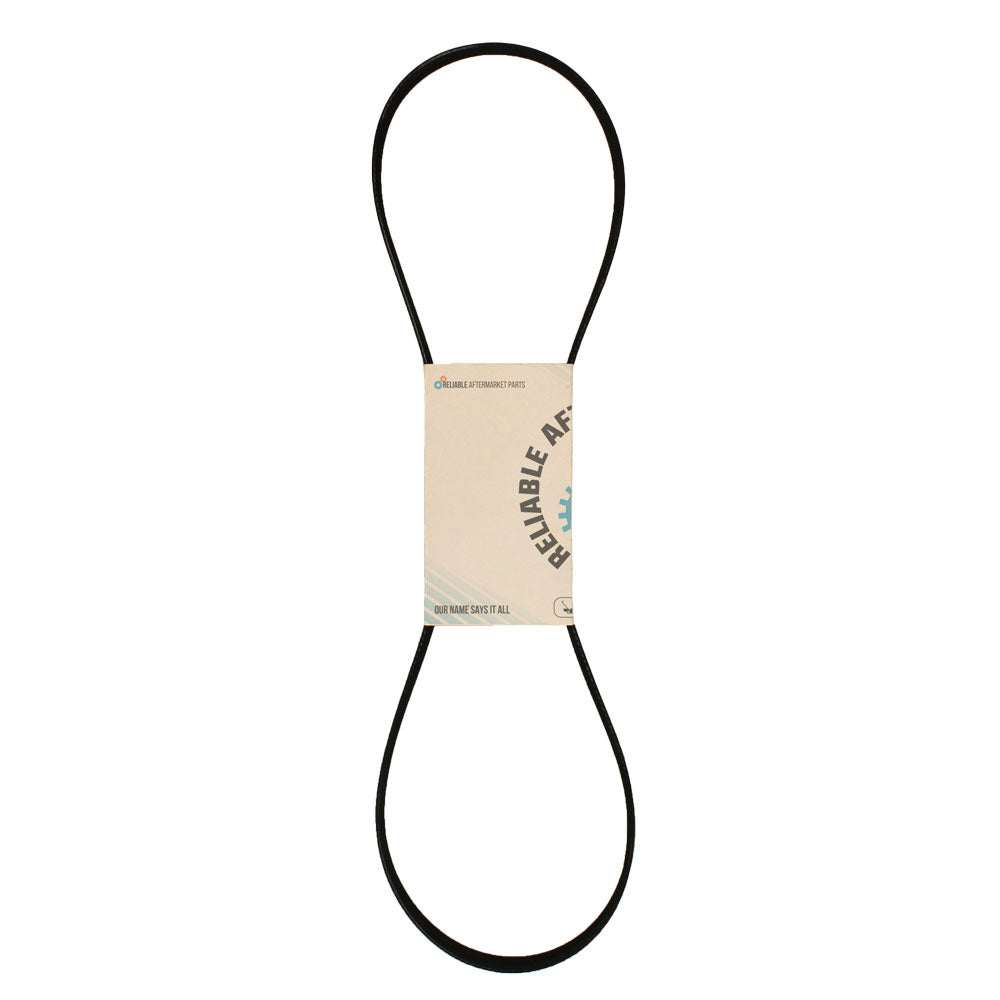

One New Aftermarket Replacement J-Section Poly-V (Micro-Rib) Belt - 470J6
This 470J6 J-section Poly-V belt is a 6-rib micro-rib drive belt used in a wide range of agricultural, industrial, and power equipment applications including air compressors, fitness machines, floor burnishers, and electric motor drives. The polyester cord construction and truncated rib profile deliver smooth, vibration-free power transfer while resisting heat, abrasion, and mineral oils.
Specifications
- Belt Section: J (PJ) Micro-Rib Poly-V
- Pitch Length: 47.0" (1194 mm)
- Number of Ribs: 6
- Top Width: approx. 9/16" (0.54")
- Belt Depth/Thickness: 0.16"
- Rib Pitch: 2.34 mm
- Cord Material: Polyester
- Metric Designation: 6PJ1194
Compatible Applications
Air Compressors: Sears Fits Craftsman, Porter Cable, DeVilbiss air compressors (replaces C-BT-224 / CBT224 series)
Fitness Equipment: Diamondback 300/U Series Elliptical Machine; recumbent exercise bike drive belt applications
General Industrial/Power Equipment: Electric motor drives, floor burnishers, vari-speed mixers, woodworking equipment, and other J-section Poly-V drive applications
Replaces Part Number(s):
470J6, 6PJ1194, GAT470J6, 470J6DC
Aftermarket Interchange Numbers
Bando 470J-6, Browning/Jason/Gates 470J-6, Goodyear/Veyance 470J-6, Optibelt RB PJ1194, Metric equivalent: 6-PJ1194
New aftermarket replacement part - not remanufactured, not used.
