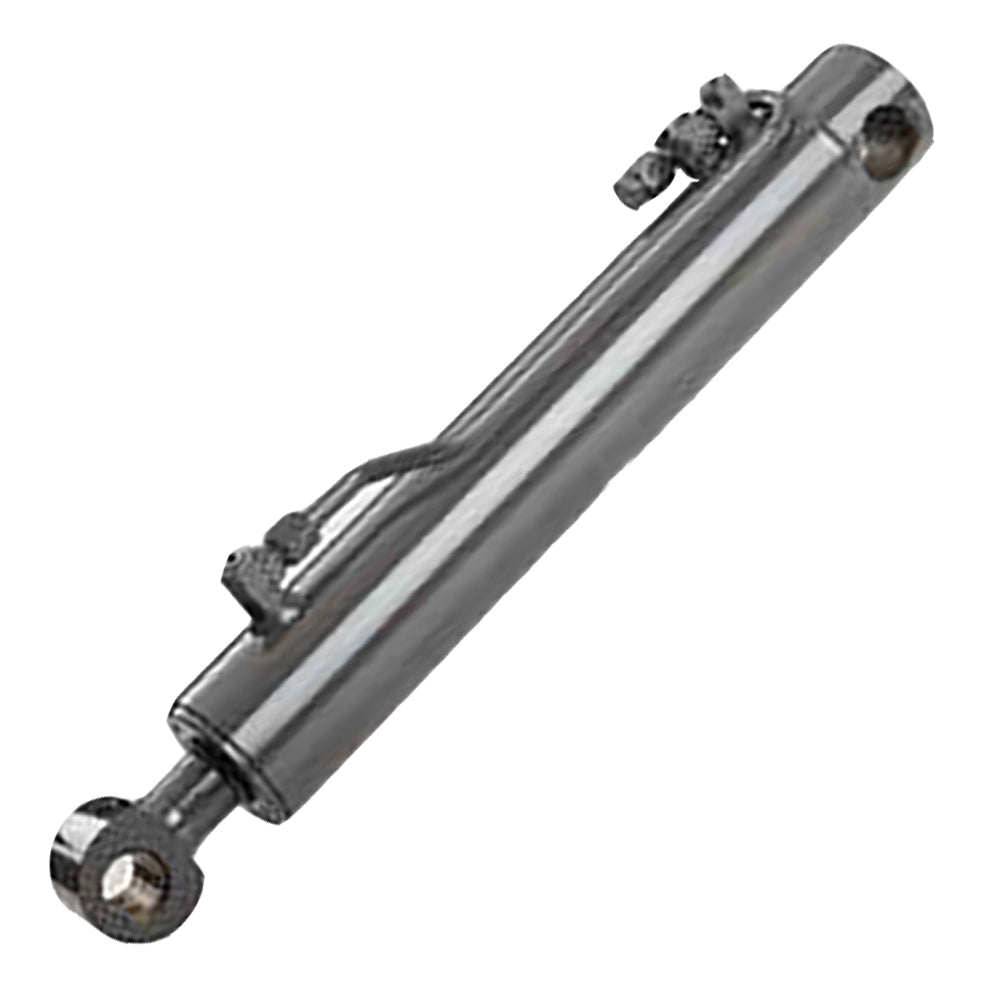

Hydraulic Tilt Cylinder Fits Bobcat T250, T300, T320, T320 7208419

Models This Part Fits:

S250, S330, T320, S220, S300, T300, A300, T250

Additional Information:

Rod: 1.5" Bore: 3.0" Stroke: 15.0" Seal rated for 250°F and up to 7250 psi; resulting in extended seal life. Cast iron gland with buttress threads versus aluminum OEM gland means less galled or damaged threads. Hardened chrome rod which is less susceptible to bending. Cast iron piston Cast iron gland with buttress threads Pressure rated 3000-3500 psi SAE and JIC flared ports Grease ports on both pin eyes

Reference Numbers:

7208419

Product Sub Group:

Cylinders
View More: Cylinders Replacement Parts
