PM03000 Fits CATegory 1 Universal Implement Lift Arm Draw Pin 7/8" Dia 6-1/4" Le
PM03000 Fits CATegory 1 Universal Implement Lift Arm Draw Pin 7/8" Dia 6-1/4" Le
Couldn't load pickup availability

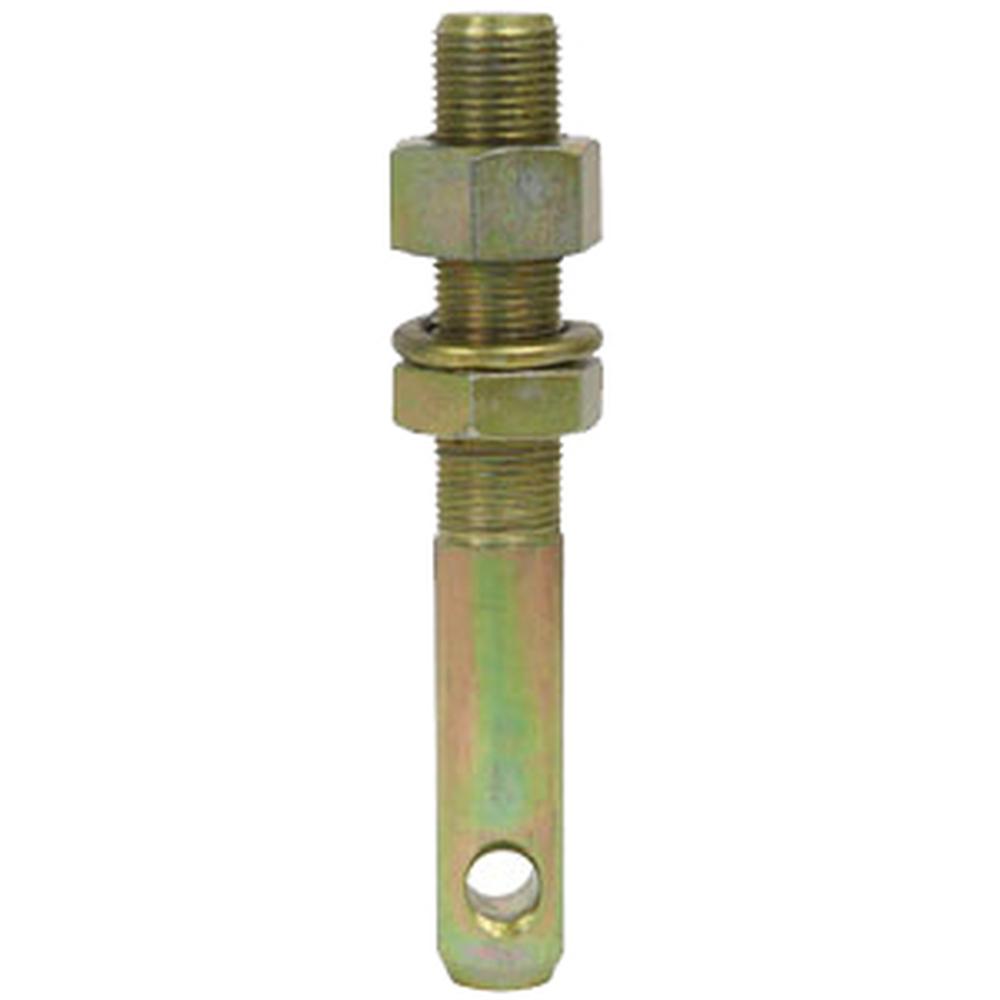

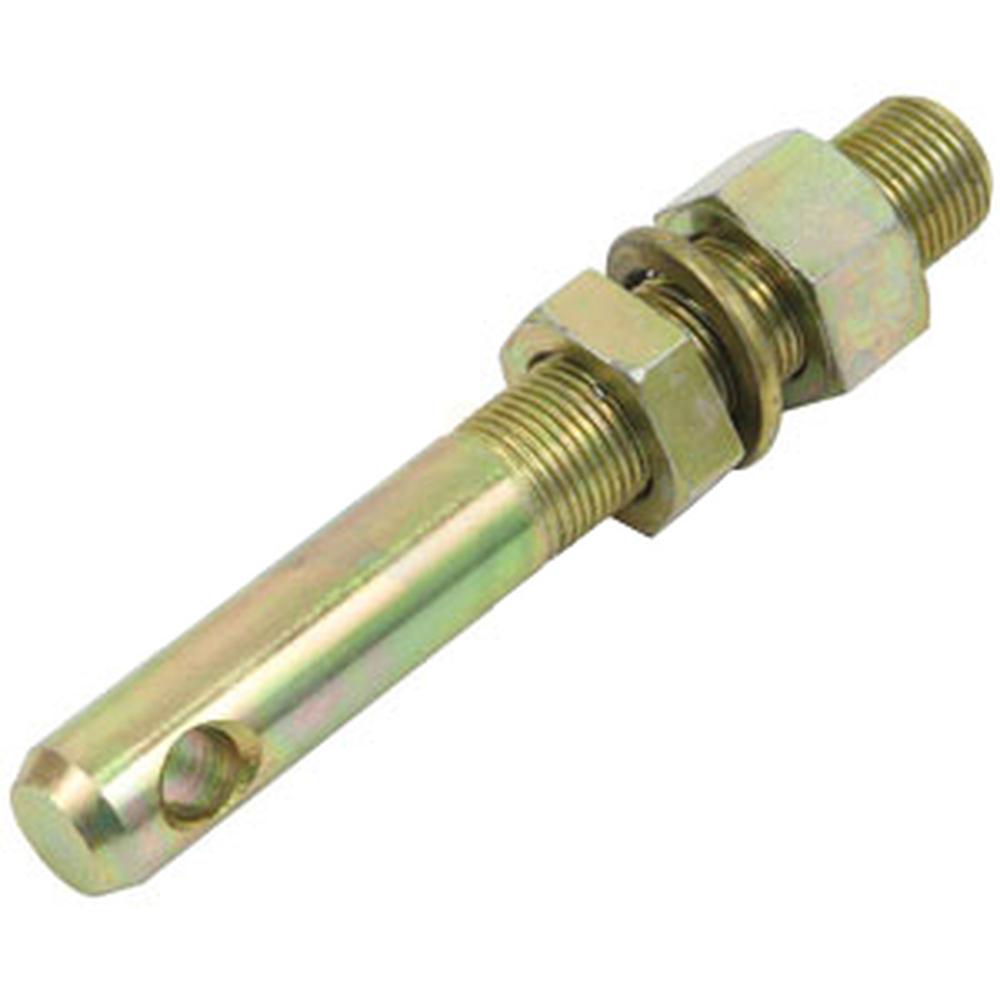

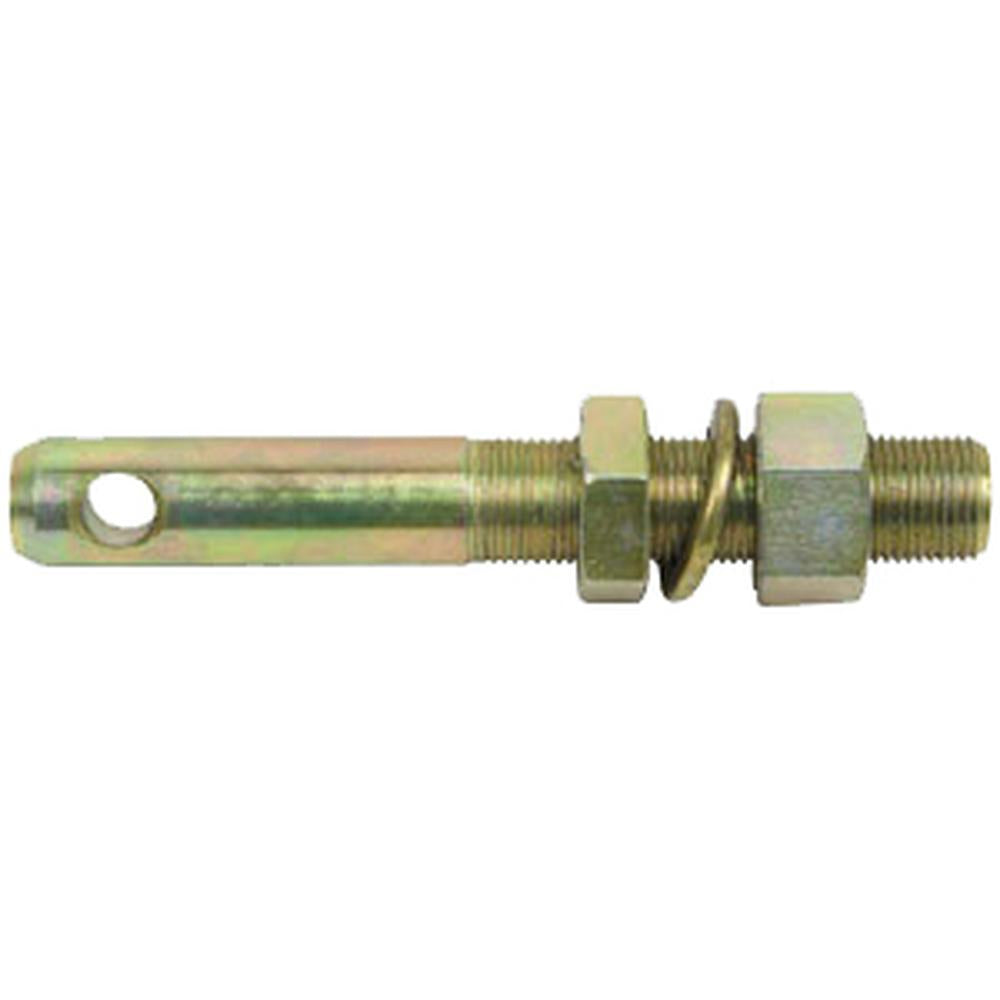

One New Aftermarket Replacement Category 1 Universal Implement Lift Arm Draw Pin for Tractors
This lower lift arm link pin (also called a draw pin) connects implements to the 3-point hitch lower lift arms on Category 1 tractors. The adjustable design with 7/8" NF thread accommodates a wide range of implement attachment points. Fits John Deere, Fits Case/International Harvester (Fits Case IH), Fits Kubota, Farmex, Speeco, and other Category 1 tractor hitch applications.
Specifications
- Overall Length: 6-1/4" (6.250")
- Pin Diameter: 7/8"
- Thread Diameter: 7/8" NF
- Thread Length: 3-1/2"
- Usable Length: Adjustable
- Category 1 (up to 92 PTO HP)
- Standard Category 1 lift arm spacing: 26"
Compatible Models
Universal Fitment: Fits Category 1 Hitches and Category 1 Tractor Hitches on tractors from Fits John Deere, Fits Case/International Harvester (Fits Case IH), Fits Kubota, Farmex, and Speeco-equipped machines. Category 1 is rated for tractors up to 92 PTO horsepower.
Replaces Part Number(s):
PM03000, HIJ40-0030, P7219, P2009XL, 251547, 30132E91, 1341A, LP04, LP004, 3000, 70000-16613
New aftermarket replacement part - not remanufactured, not used.
