Hitch Bearing For Tractor SA207-20G
Hitch Bearing For Tractor SA207-20G
Couldn't load pickup availability
One New Aftermarket Replacement Insert Ball Bearing for Agricultural Tractors and Equipment

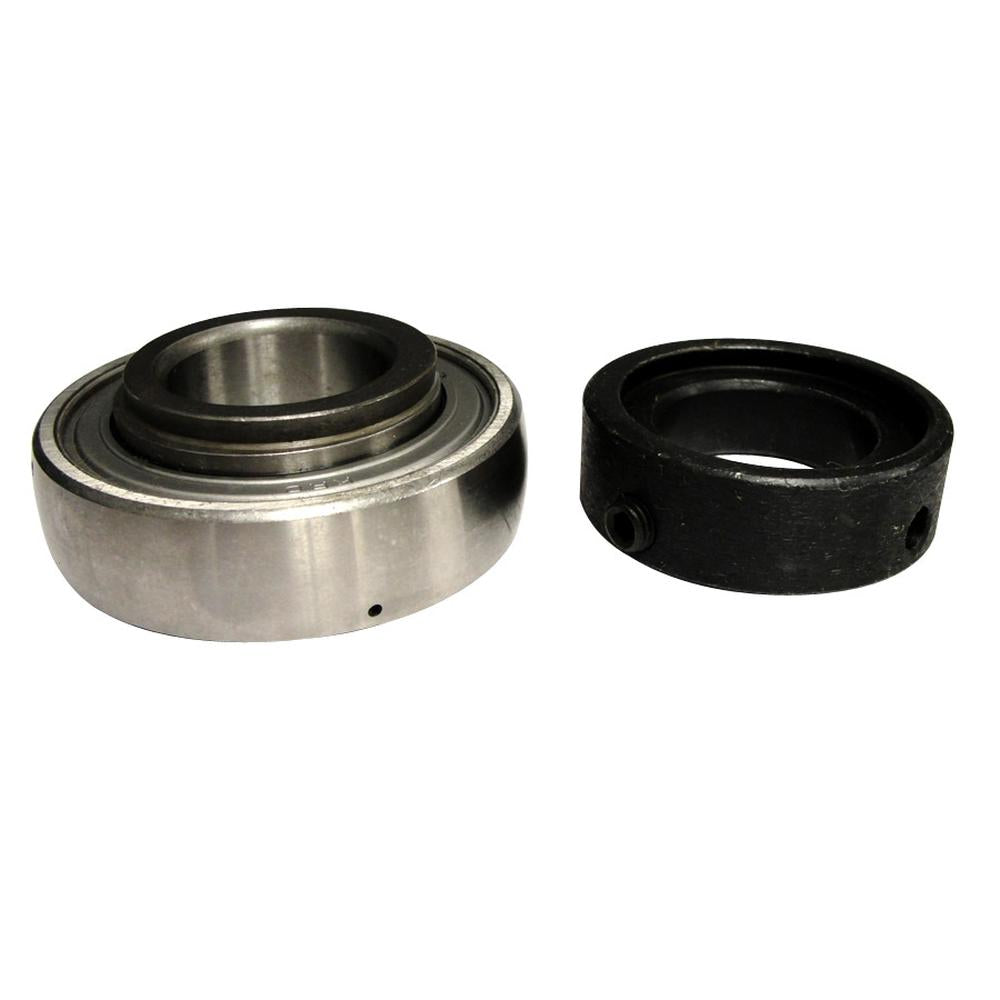

This SA207-20G insert ball bearing features a spherical outer diameter that self-aligns within the housing, making it well suited for tractor hitch and general agricultural equipment applications. The eccentric locking collar design secures the bearing to the shaft without damaging it, and the double-rubber seal closure keeps contaminants out while retaining grease. The "G" suffix designates a lubrication groove with grease hole on the set screw side, allowing relubrication in service.
Specifications
- Bore Diameter: 1-1/4 in (1.250 in)
- Outside Diameter: 2.4409 in (62 mm)
- Outer Ring Width: 15/16 in (0.709 in)
- Bearing Type: Radial / Deep Groove Ball, Spherical OD
- Locking Type: Eccentric (Cam) Locking Collar
- Seal Type: Double Sealed (Contact) - Regreasable
- Inner Ring: Wide Inner Ring
- Cage Material: Nylon
- Ball / Ring Material: Alloy Steel
- Temperature Range: -50 to 120 deg C (-58 to 250 deg F)
- Dynamic Load Rating: 4,400 - 4,850 lb
- Static Load Rating: 2,500 - 2,530 lb
Compatible Applications
Universal Fit: Suitable for agricultural tractors and equipment using a standard SA207-20G / 1-1/4 in bore insert bearing with eccentric locking collar. Commonly used in tractor hitch assemblies, pillow block housings (P207), 2-bolt flange housings (LF207), 3-bolt flange housings (TRD207), and other 207-series mounted bearing units.
Replaces Part Number(s):
SA207-20G
Aftermarket Interchange Numbers
GRA103RRB2 (Timken / Fafnir), GRA103RRB2-I (A&I Products), 3013-0215
New aftermarket replacement part - not remanufactured, not used.
