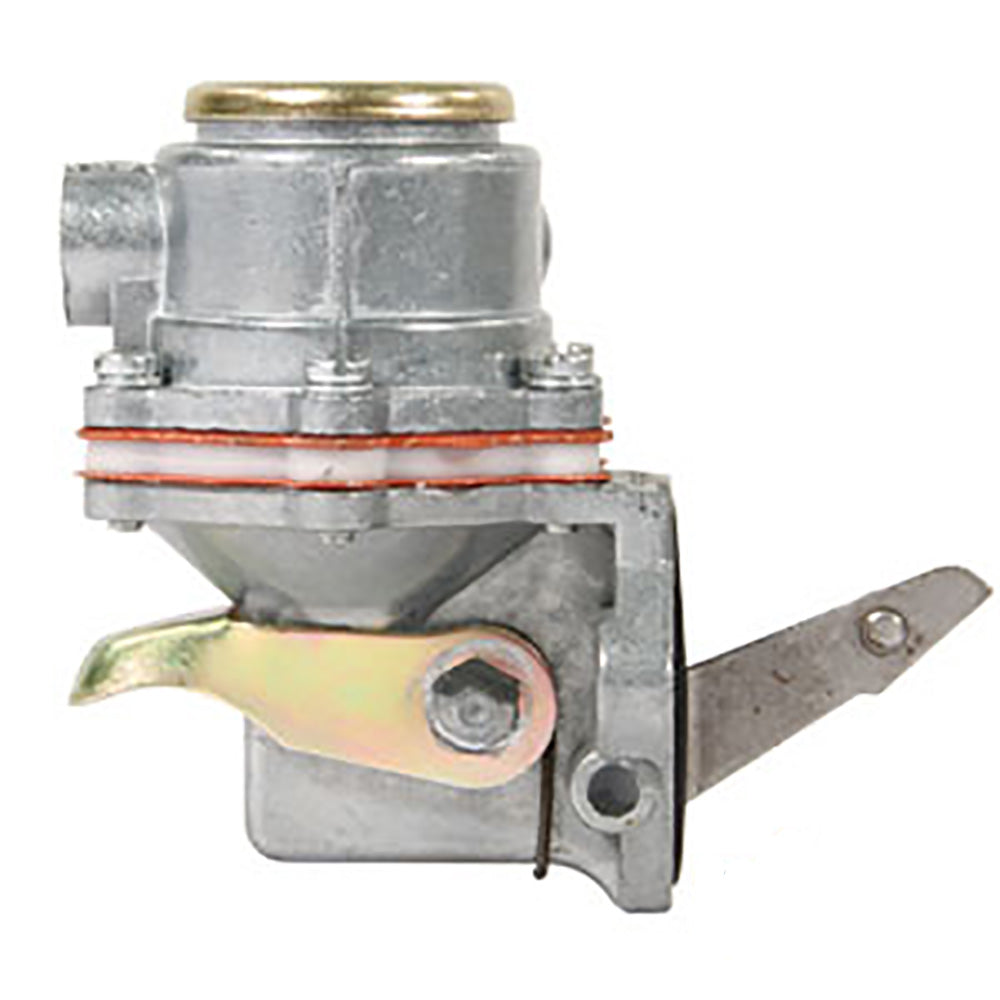

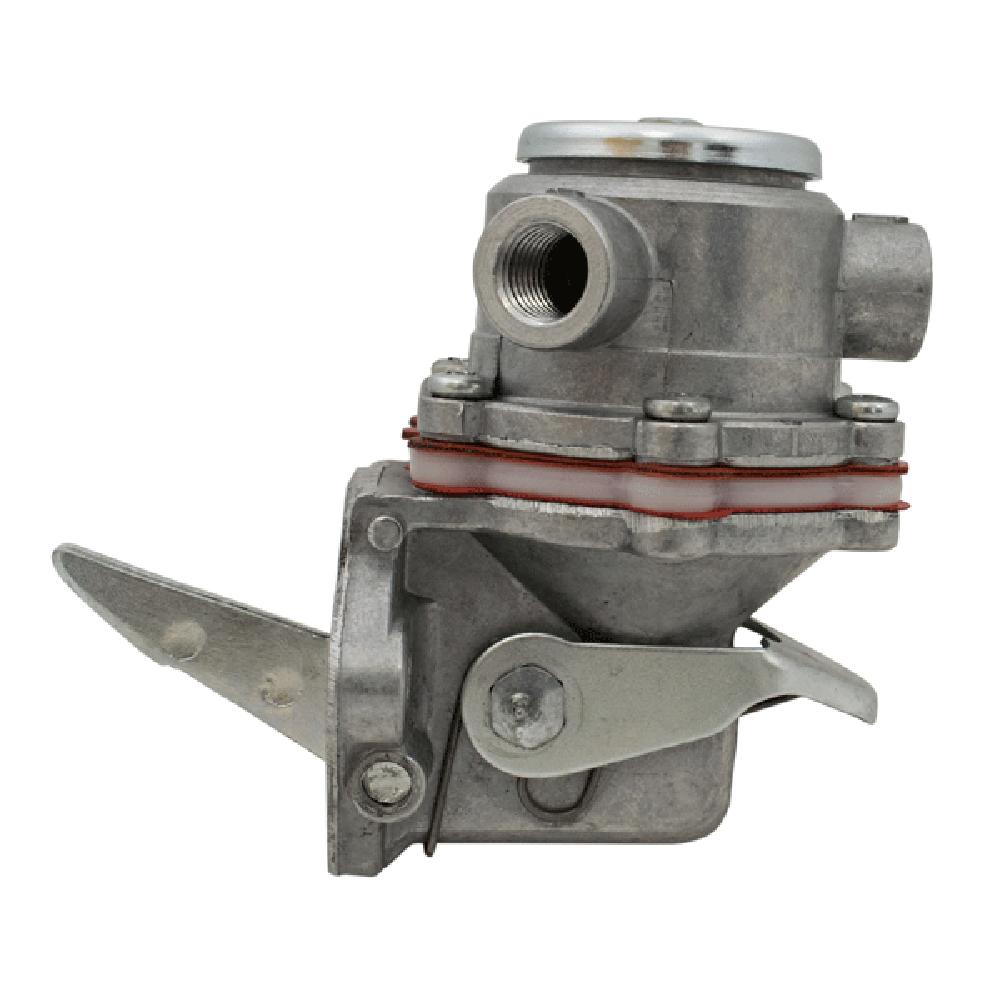

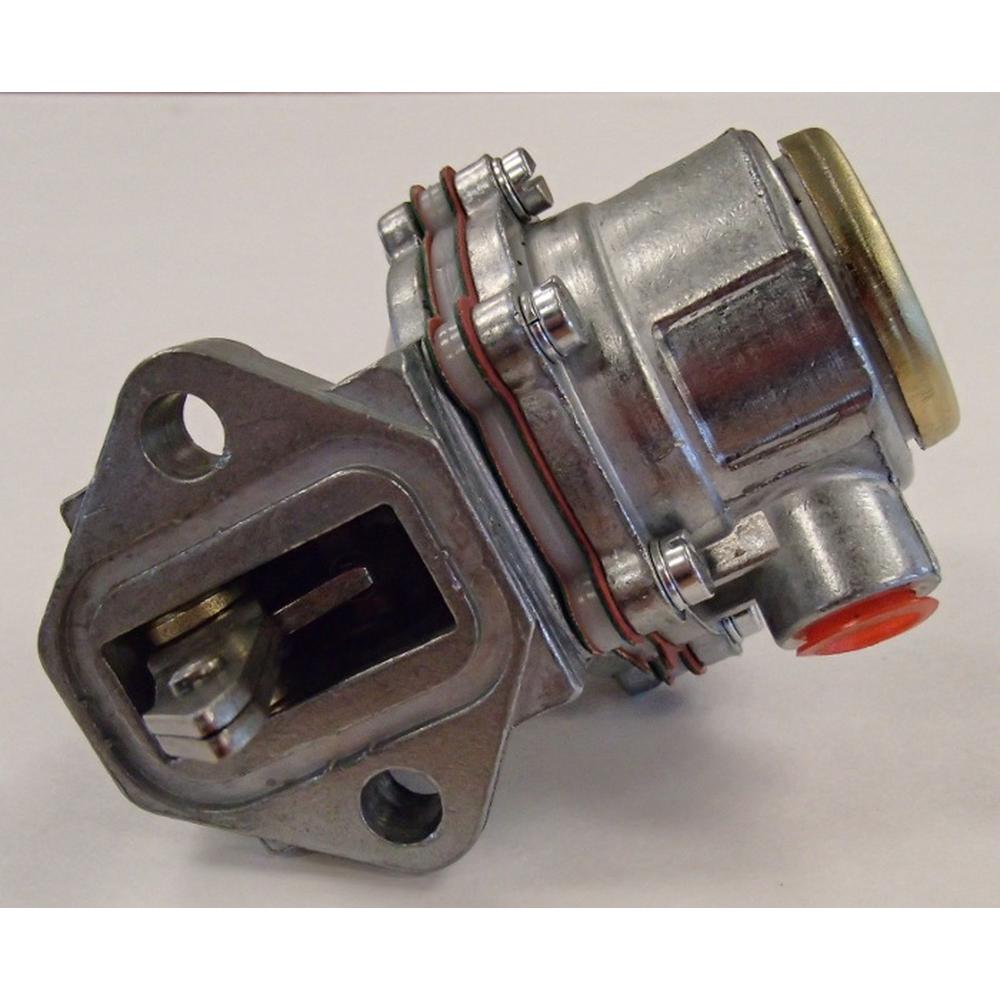

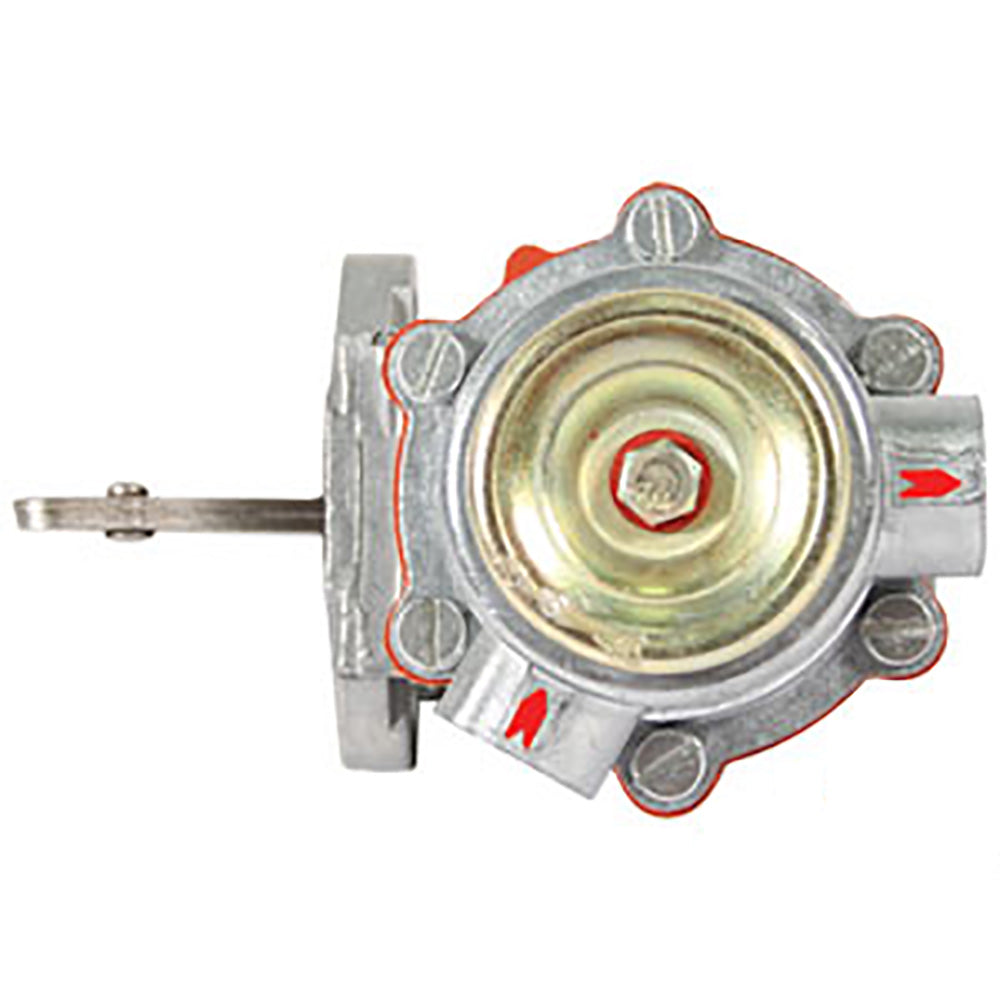

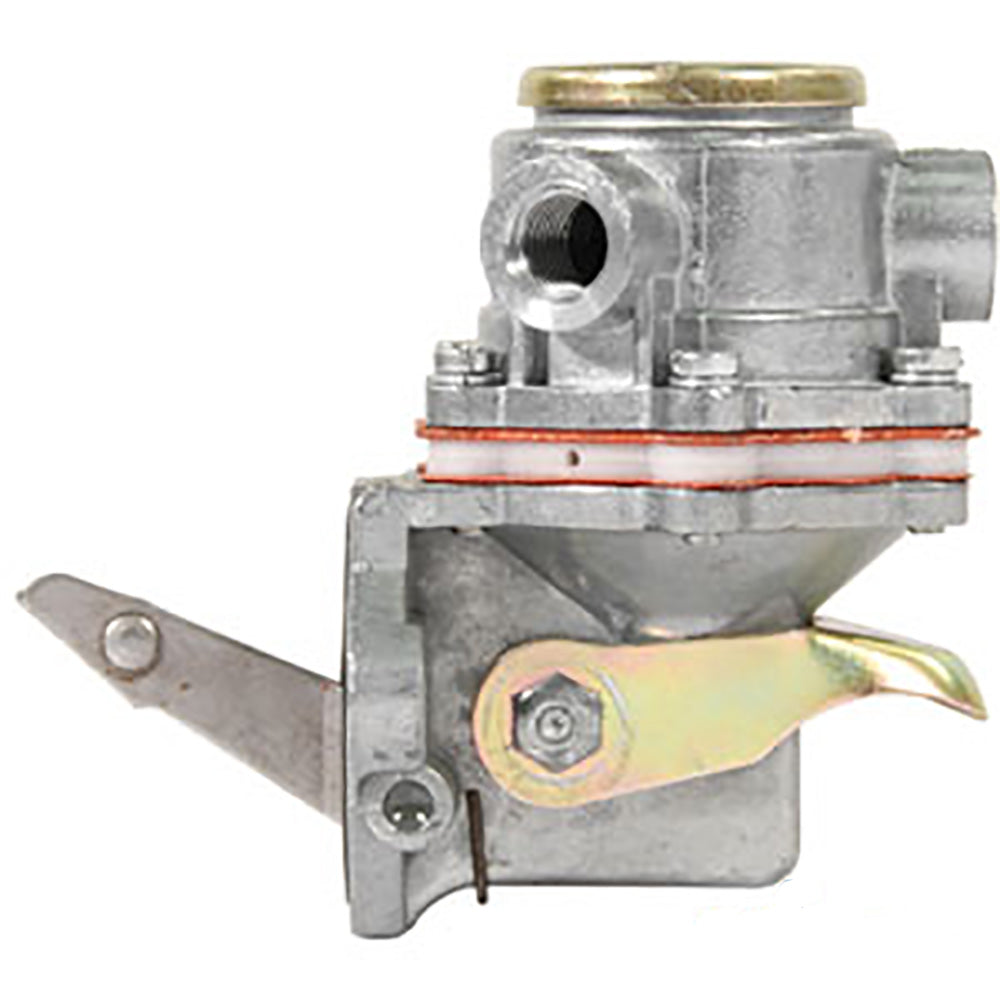

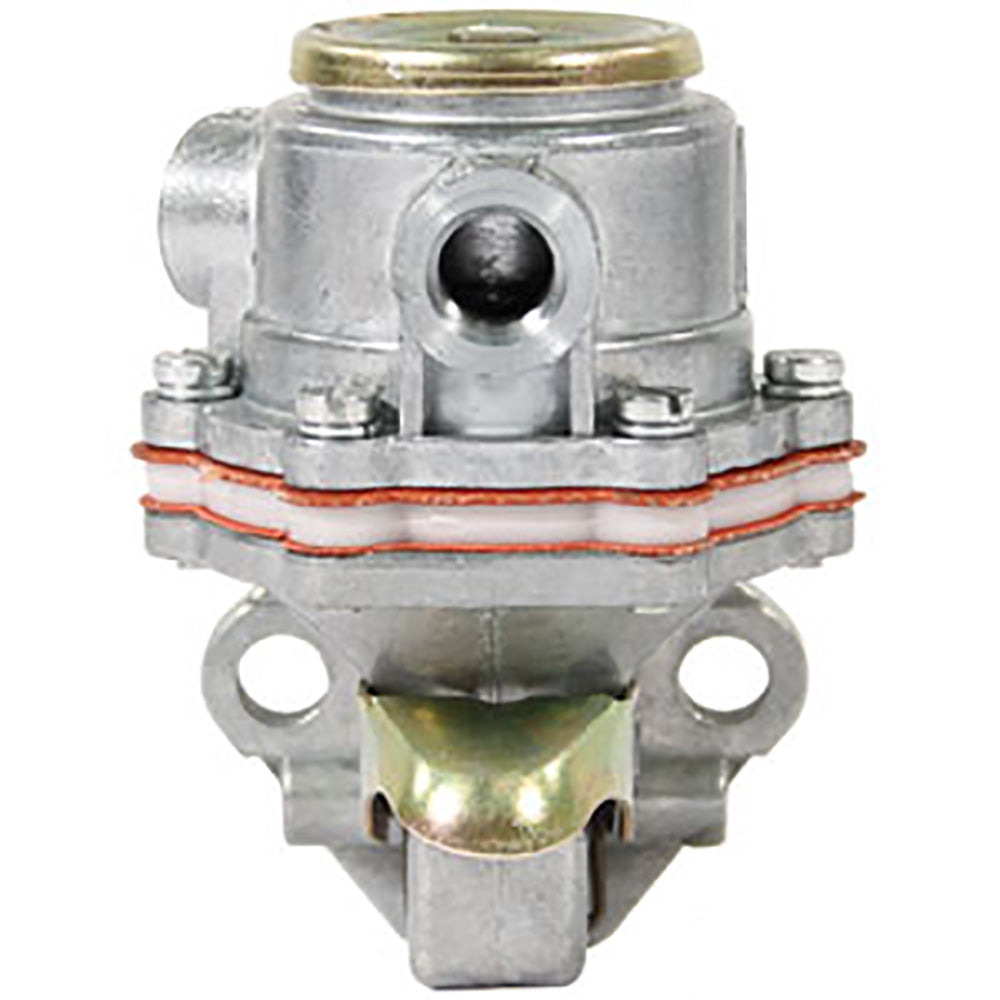

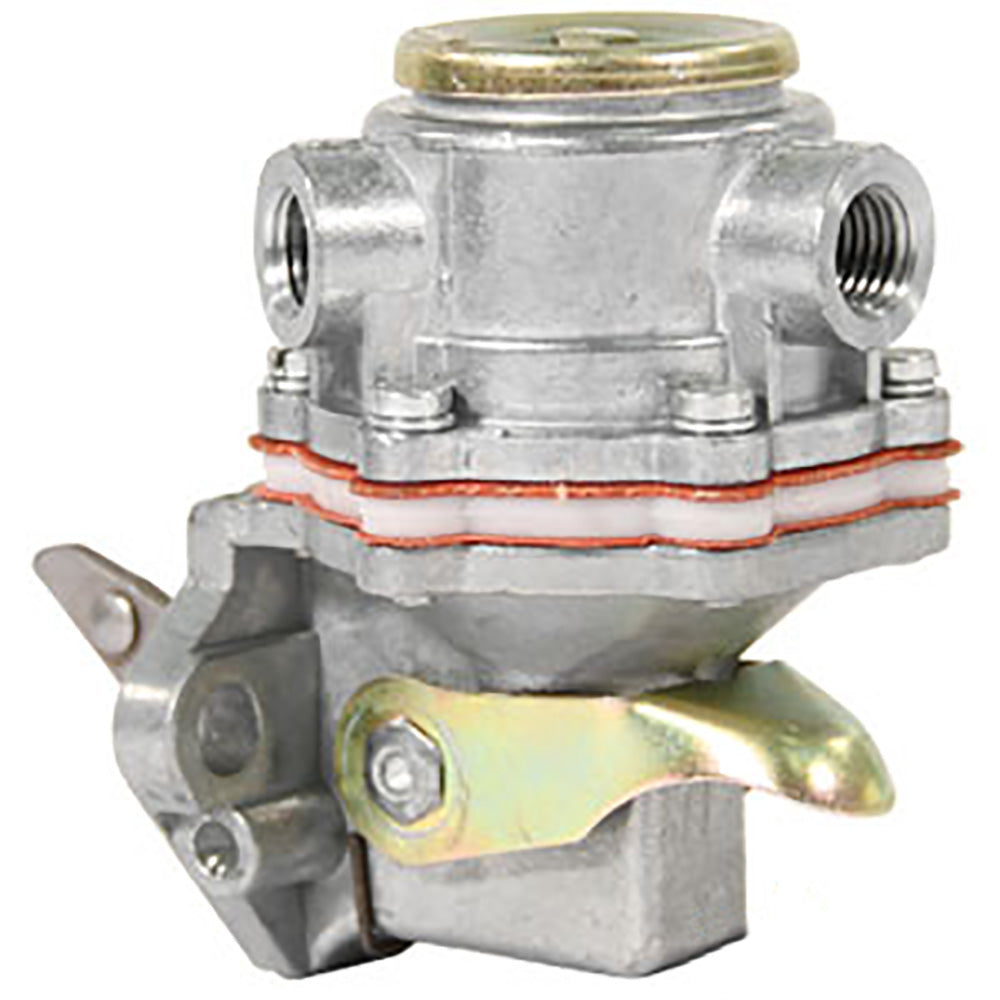

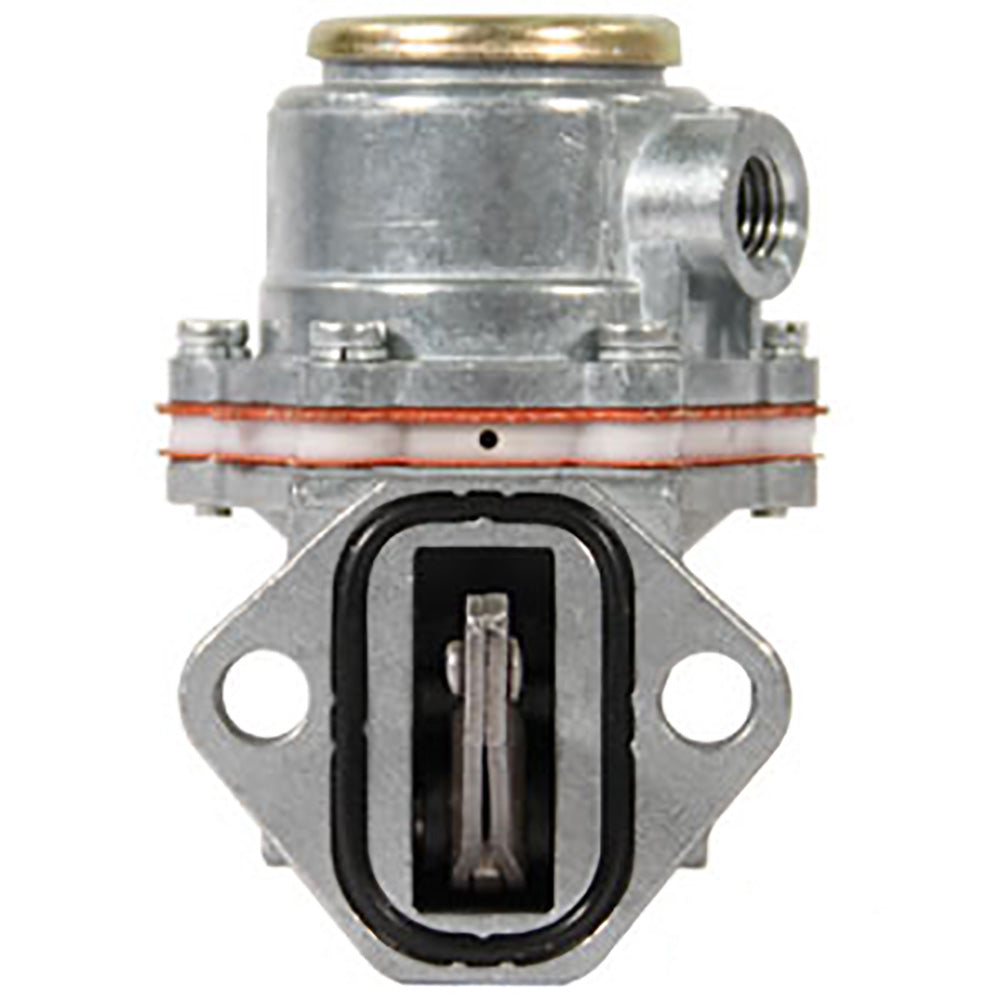

Fuel Lift Transfer Pump Fits Allis-Chalmers Tractor AC 5040 5045 5050 72093848

Fuel Lift Transfer Pump Fits Allis-Chalmers Tractor AC 5040 5045 5050 72093848

$48.00 AUD
$48.00 AUD
Sale Sold out
Shipping calculated at checkout.

One New Aftermarket Replacement Fuel Lift Transfer Pump Fits Allis-Chalmers (AC), Fiat, Fits Ford, Fits New Holland, Fits Case IH, Long, Hesston, White, and Oliver Tractors

This aftermarket fuel lift transfer pump draws fuel from the tank and delivers it to the injection pump, keeping the engine's fuel system primed and operating correctly. An O-Ring seal for the pump flange is included. Compatible with the Fiat/Fits Iveco 8035 series diesel engines found in a wide range of agricultural tractors sold under multiple brands.

Specifications

  • Type: Mechanical fuel lift/transfer pump

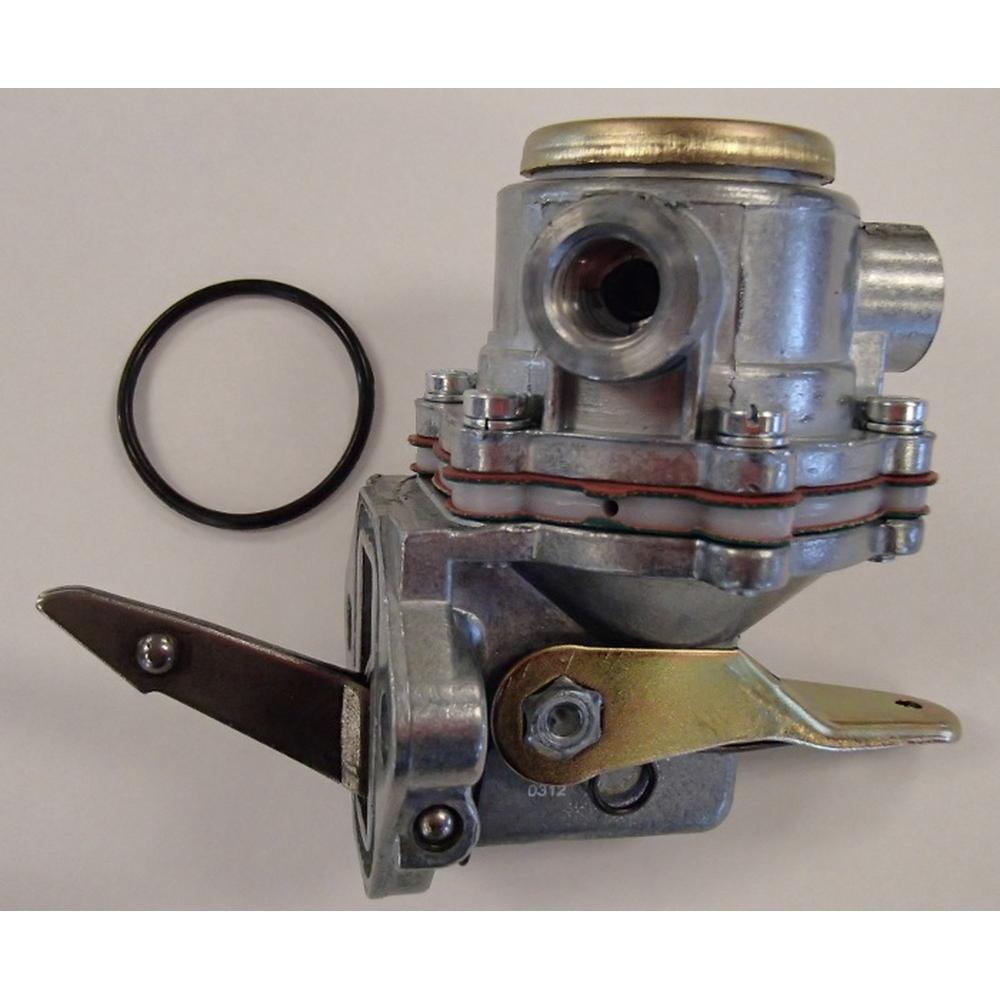

  • Includes: O-Ring seal for flange
  • Engine Compatibility: Fiat/Fits Iveco 8035.01, 8035.02, and 8035.06 series diesel engines

Compatible Models

Fits Allis-Chalmers (AC): 5040 (engine # 8035.01.306), 5045, 5050

Fits Case IH: JX55, JX65, JX70U, JX75, JX80U, JX85 (s/n 13286 and earlier), JX90U, JX95, JX100U, JX1095N

Fiat: 45-66, 45-76V, 50-66, 50-66DT, 50-86VDT, 55-46, 55-46DT, 55-56, 55-56DT, 55-66, 55-66DT, 55-76, 55-76F, 55-76FDT, 55-76V, 55-76VDT, 55-88, 55-88DT, 55-90, 55-90DT, 60-46, 60-46DT, 60-56, 60-56DT, 60-66, 60-66DT, 60-66LPDT, 60-76F, 60-76FDT, 60-86F, 60-86FDT, 60-86SV, 60-86SVDT, 60-86V, 60-86VDT, 60-90, 60-90DT, 60-93, 60-93DT, 60-94, 60-94DT, 65-46, 65-46DT, 65-56, 65-56DT, 65-66, 65-66DT, 65-90, 65-90DT, 65-93, 65-93DT, 65-94, 65-94DT, 70-56, 70-56DT, 70-66, 70-66DT, 70-66F, 70-66LP, 70-66LP DT, 70-66S, 70-66SDT, 70-66V, 70-76, 70-76F, 70-76FDT, 70-76LP, 70-76LPDT, 70-76V, 70-86VDT, 70-88, 70-88DT, 70-90, 70-90DT, 72-85, 72-85M, 72-86LPDT, 72-93, 72-93DT, 72-94, 72-94DT, 80-66, 80-66DT, 80-66F, 80-66FDT, 80-76, 80-76F, 80-76FDT, 80-88, 80-88DT, 80-90, 80-90DT, 82-93, 82-93DT, 82-94, 82-94DT, 85-55, 85-90, 85-90DT, 88-93, 88-93DT, 88-94, 88-94DT, 95-55, 400, 400DT, 446, 446DT, 450, 450DT, 460, 460DT, 466, 466DT, 480, 480DT, 500, 500DT, 540, 540DT, 550, 566, 566DT, 570, 570DT, 580, 580DT, 600, 600DT, 605C SUPER, 610, 640, 640DT, 666, 666DT, 670, 670DT, 680, 680DT, 766, 766DT, 780, 780DT

Fits Ford (Construction and Industrial): 4010

Fits Ford Tractors: 3830, 4030, 4230, 4330, 4330V, 4430, 5010

Fits Ford/New Holland: 3010S (s/n 400001M and later), 3435, 3835, 4010S (s/n 400001M and later), 4835, 5010S (s/n 400001M and later), 5530, 5635, 6530, 6635, 7635, TL70, TL80, TL90, TN95VA, TT55, TT65, TT75

Hesston: 45-66, 55-46, 55-56, 55-66, 55-76, 60-66, 60-90, 70-66, 70-90, 80-66, 82-94, 90-90, 110-90, 8100 (hay cutting), 8200 (hay cutting), 8400 (hay cutting)

Long: 260, 310, 350, 360, 445, 460, 510, 550, 560, 610, 2260, 2360, 2460, 2510, 2610

White / Oliver: 1255, 1265, 1270, 1355, 1365, 1370, 2-50, 2-60, 700

Replaces Part Number(s):

72093848, 72093848V, 72091469, 72089595, 72092036, 4609596, 4631972, 4648022, 4660003, 4660069, 4667509, 4709282, 4740717, 4756678, 4757883, TX10289, 504090935, 82982264, 98427944

Aftermarket Interchange Numbers

A-FLP222, VPD3035, 11516070, WN-72093848, 924-105, 973-779, 995-150, FSG60-0031

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

550, 80-76, 55-90DT, Hitachi Idrovert TL5 TL5H S60 SH 150, 780DT, Iveco Industrial Engine 8035.02.202/204 8045.02.200/207 8045.06.200 8045.25.380 3 cil. 4 cil. D.8031.05.300 D.8035.05.200 D.8035.05.208/265/308/359 IN M12X1.5 OUT M12X1.5, 65-94DT, 600, 80-90DT, 65-66, 4330V, TL90, 446, JX1095N, 766, 605C SUPER, 72-94, TT75, 65-93DT, 780, 7635, 60-86VDT, 70-90, 466DT, 45-66, 360, 70-65, 680DT, 65-46DT, 80-66FDT, 70-76FDT, 2360, 5040, 3830, 45-76V, 4230, 4835, 400, 460, 55-46, 55-76V, 80-66F, 510, 80-88, 60-76F, OM Carrelli DI12 DI15 DI20 DI25 DI20C DI25C DI30C DI30CH DI35C DI40C DI50 DI30 DI35 DI40, 70-90DT, 72-93DT, 85-90, 500DT, 70-56, 60-86F, 50-66, 60-86SV, 70-66V, 55-76VDT, 60-66LPDT, 566DT, 70-66, 60-94, 82-93DT, 260, 480, 350 355 400 420 450 450DT 455 455C 470 480DT 500 500DT 505 505C 540 550 550DT 555 580 600DT 600DT3 605 605C 640 640DT, 670, 5635, 95-55, TT65, 70-88, 60-66DT, 88-93, 3010S, 480DT, 55-88, 88-93DT, 2610, 60-56, 80-76F, L65, 85-55, 60-86FDT, 5050, 72-93, 70-66LP DT, 70-76, 70-76F, 88-94DT, 460DT, 6530, 540DT, 72-85, TN95VA, 50-86VDT, 70-88DT, 82-94, 80-88DT, 70-76LP, 60-66, 60-56DT, 65-90, 65-93, 45-66DT, 570, 666, 65-56DT, 72-86LPDT, 4635, 70-66DT, 3435, 60-76FDT, 4030, 450DT, 50-66DT, 85-90DT, 60-93DT, 580, TL70, 540, 80-66, 70-56DT, 580DT, 55-56, 82-94DT, 60-86V, TT55, 60-94DT, 500, 60-90DT, 65-56, 4430, 55-90, 560, 600DT, Allis AD4 FL4 FL4/C FL47D, 60-90, 446DT, 450, 80-76FDT, 55-88DT, 1370, 55-76, 640DT, 60-46, 70-66SDT, 60-93, 70-76V, 2510, 400DT, 2460, 70-66F, 670DT, 72-85M, 766DT, 65-90DT, 55-56DT, 350, TL80, 610, 80-66DT, 88-94, 70-66S, 80-90, 6635, 70-86VDT, 55-76F, 570DT, 466, 666DT, 5530, 82-93, 55-66, 55-46DT, 55-66DT, 60-86SVDT, 65-46, 65-94, 60-46DT, 70-76LPDT, 2260, 2-50, 4010S, 445, 566, 65-66DT, 55-76FDT, 70-66LP, 72-94DT, 2-60, 310, 680, 5045, 640, 5010S

Additional Information:

-Comes w O-Ring

Reference Numbers:

4609596, 4631972, 4648022, 4660069, 4667509, 4709282, 4740717, 4756678, 4757883, 72093848, 82982264, 98427944, 4660003, 4667509, 72093848, 72091469, 72093848V, 72089595, 72092036, 4747883 4609596 4648022 4660069 4709282 4740717 4756678 4757883 504090935 1947, 6 FT - 001 POC 098 PON 108 4757883 504090935 FP1947 4757883 504090935 115.16.070 5088101 9.06.032.11 9.06.161.11, 504090935, TX10289
