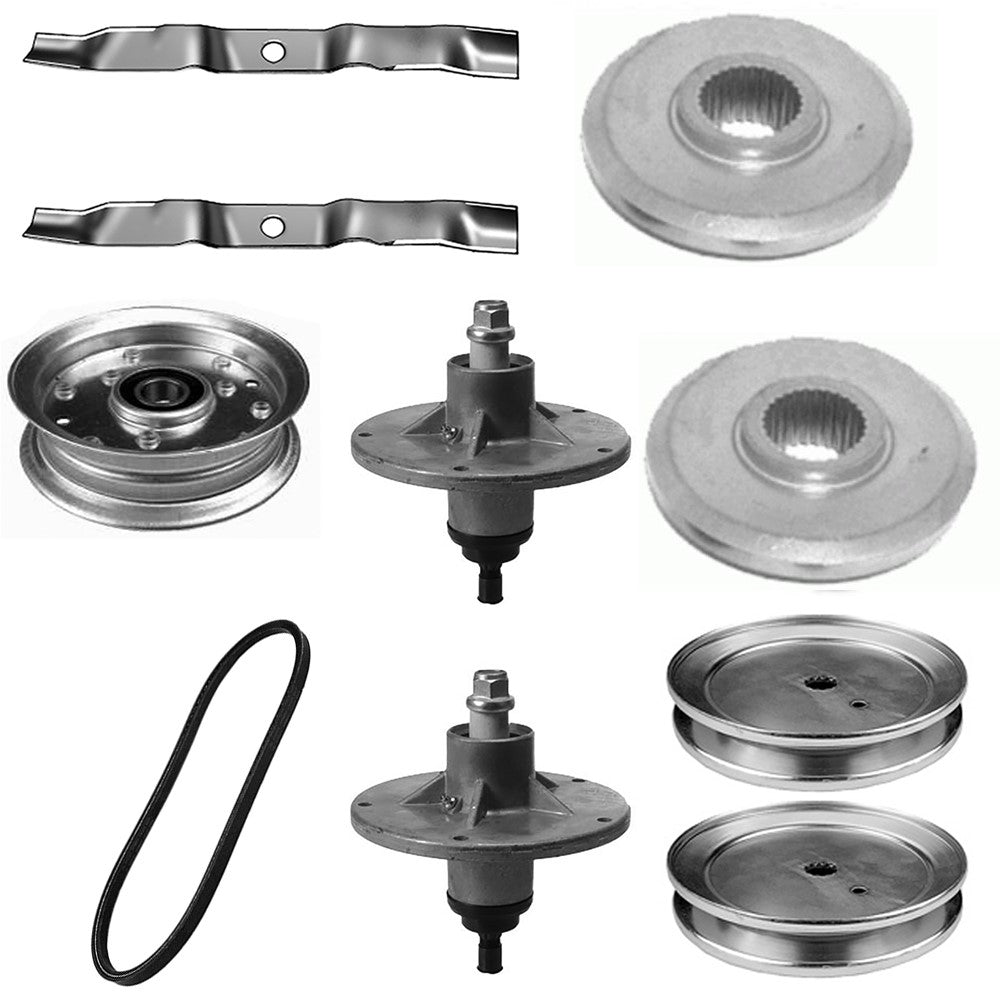

Fits Murray 42" Deck Rebuild Kit Includes Spindle Blades Belt Pulleys Adapters

Fits Murray 42" Deck Rebuild Kit Includes Spindle Blades Belt Pulleys Adapters

$262.00 AUD
$262.00 AUD
Sale Sold out
Shipping calculated at checkout.

New Aftermarket Replacement Deck Rebuild Kit Fits 42" Deck

Kit Includes:

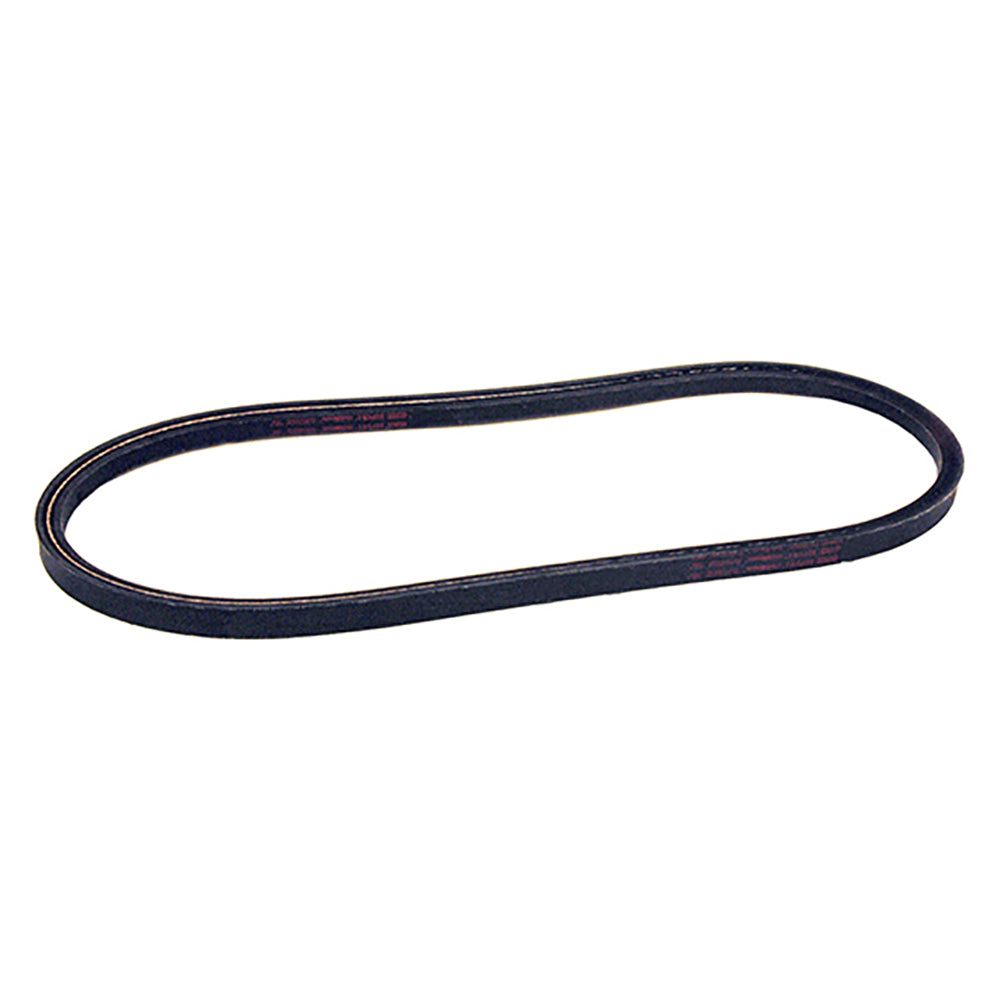

(1) Deck Belt:
1/2" x 89.38"
Thickness: 0.468"
Wrapped Polyester Cord
Replaces Part Numbers: 037X88, 037X88MA, 37X88, 37X88MA, 710213

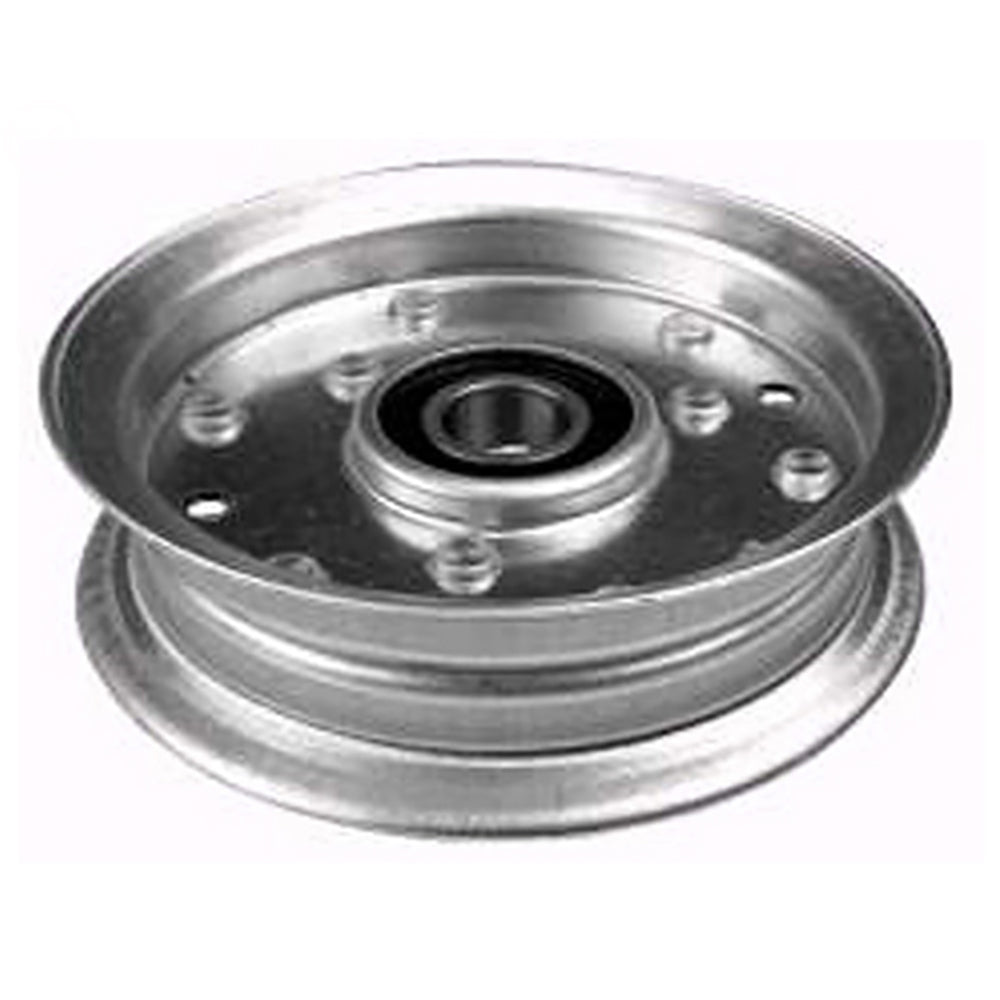

(1) Flat Idler Pulley:
OD: 4-11/16"
ID: 11/16"
Width: 1-3/8"
Replaces Part Numbers: 754-0146, 754-0252, 754-262, 690387

(2) Spindle Assemblys w/ Shaft:
OD: 6-7/8"
Height: 7-1/4"
9/16"-18 UNF thread at each end of shaft
Includes housing, shaft, bearings, grease fitting and dust cover over one bearing
Replaces Part Numbers: 1001200, 10001709MA, 1001200MA

(2) Splined Blade Adaptors:
Length 2-5/32"
C. H. DIA 0.6000"
Top ID 7/8"
Diameter 1-15/16"
Contains Only the Splined Adapter, not the washers or nuts
Replaces Part Numbers: 690411

(2) 3-in-1 Mower Blades:
Length: 21-3/16"
Width: 2-1/4"
Thickness: .134"
Center Hole: .85"
Replaces Part Numbers: 092545E701MA, 095100E701MA, 095100E701, 095100E701A, 95100, 95100E701A

(2) Jackshaft Pulleys:
OD: 5-3/8"
ID: 9/16" Splined
Pulley Groove Width: 1/2"
Replaces Part Numbers: 494199, 23347, 37X18

Fits Murray Riders Year 2000 and After

Additional Information:

Kit Includes: (1) Deck Belt: 1/2" x 89.38" Thickness: 0.468" Wrapped Polyester Cord Replaces Part Numbers: 037X88, 037X88MA, 37X88, 37X88MA, 42509X92B, 42590X92A (1) Flat Idler Pulley: OD: 4-11/16" ID: 11/16" Width: 1-3/8" Replaces Part Numbers: 754-0146, 754-0252, 754-262, 690387 (2) Spindle Assemblys w/ Shaft: OD: 6-7/8" Height: 7-1/4" 9/16"-18 UNF thread at each end of shaft Includes housing, shaft, bearings, grease fitting and dust cover over one bearing Replaces Part Numbers: 1001200, 10001709MA, 1001200MA (2) Splined Blade Adaptors: Length 2-5/32" C. H. DIA 0.6000" Top ID 7/8" Diameter 1-15/16" Contains Only the Splined Adapter, not the washers or nuts Replaces Part Numbers: 690411 (2) 3-in-1 Mower Blades: Length: 21-3/16" Width: 2-1/4" Thickness: .134" Center Hole: .85" Replaces Part Numbers: 092545E701MA, 095100E701MA, 095100E701, 095100E701A, 95100, 95100E701A (2) Jackshaft Pulleys: OD: 5-3/8" ID: 9/16" Splined Pulley Groove Width: 1/2" Replaces Part Numbers: 494199, 494199MA, 23347, 37X18

Reference Numbers:

710213, 495100, 95100, 95100E701, 1001046, 23347, 37X18, 690411,1001200, 10001709MA, 1001200MA, 092545E701MA, 095100E701MA, 2027, 2027MA, 456252, 456252MA, 495100, 4951003, 4951003MA, 495100MA, 5539, 5539MA, 56252E701, 56252E701MA, 7769203, 92545E701, 92545E701MA, 95100, 95100-853, 95100E701, 95100E701MA

Product Sub Group:

Deck Components
