Starter Armature Fits Cockshutt Replaces ELS60-1017

Starter Armature Fits Cockshutt Replaces ELS60-1017

$135.00 AUD
$135.00 AUD
Sale Sold out
Shipping calculated at checkout.

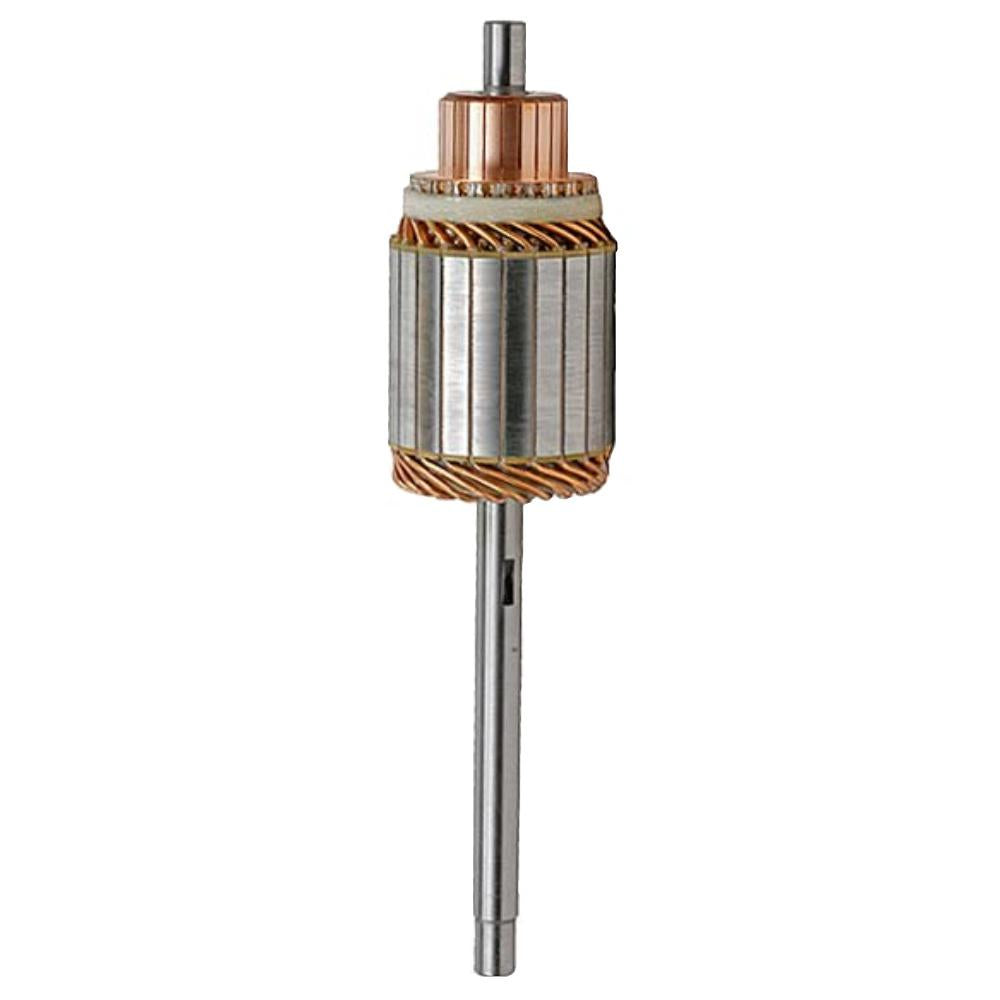

One New Aftermarket Starter Armature

Tech Info:
 -Voltage: 6/12
 -Rotation: CW/CCW
 -Body OD: 2.937" (74.6mm)
 -CE OD: 0.563" (14.3mm)
 -DE OD: 0.563" (14.3mm)
 -Length: 12.469" (316.7mm)
 -CE to Bearing/Bushing Stop: 0.827" (21mm)
 -DE to Bearing/Bushing Stop: 7.165" (182mm)
 -Number of Comm Bars: 23
 -Lam Stack Thickness: 2.614" (66.4mm)
 -High Torque
 -Set Screw & Keyway on DE

Fits Cockshutt:
 Tractor Models: 335, 445
 Model Breaks: 335 (1957), 445 (1956-1958, Gas Engines)

Models This Part Fits:

445, 335

Additional Information:

Voltage: 6/12 Rotation: CW/CCW Body OD: 2.937" (74.6mm) CE OD: 0.563" (14.3mm) DE OD: 0.563" (14.3mm) Length: 12.469" (316.7mm) CE to Bearing/Bushing Stop: 0.827" (21mm) DE to Bearing/Bushing Stop: 7.165" (182mm) Number of Comm Bars: 23 Lam Stack Thickness: 2.614" (66.4mm) High Torque Set Screw & Keyway on DE

Reference Numbers:

12072, 12072-A, 1872505, 1873354, 2027
