2058403 New Solid State Module for Kohler SV470 SV480 SV530-SV590 SV600-SV620

Name: 2058403 New Solid State Module for Kohler SV470 SV480 SV530-SV590 SV600-SV620
SKU: ELI80-0032
Price: 60.0 USD
Availability: InStock

2058403 New Solid State Module for Kohler SV470 SV480 SV530-SV590 SV600-SV620

$60.00 AUD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

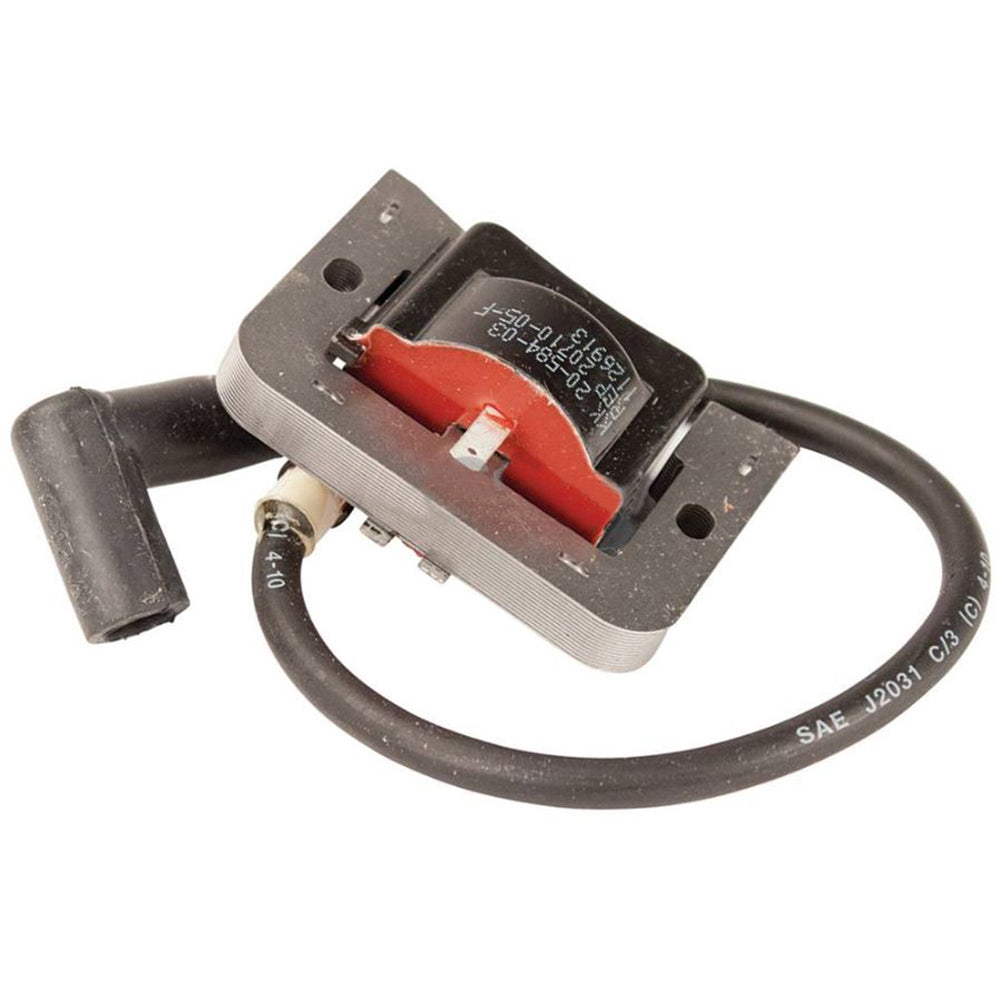

One New Aftermarket Replacement Solid State Ignition Module for Kohler Courage Single-Cylinder Engines

This aftermarket replacement solid state module (ignition coil) serves as the ignition system heart for Kohler Courage single-cylinder vertical-shaft engines. Mounted adjacent to the flywheel, the module uses the rotating flywheel magnet to generate and time spark delivery to the cylinder. A failed or weak module commonly causes hard starting, misfires, or no-spark conditions. The air gap between the module and flywheel magnet should be set to 0.008 in. - 0.012 in. (approx. 0.010 in.) upon installation. This part replaces OEM Kohler part numbers 20 584 03-S and 20 584 04-S, as well as earlier superseded numbers 20 584 01-S and 2058401-S. Also cross-references to Fits Stens 055-486 and ELI80-0032.

Specifications

Type: Solid State Ignition Module (CDI Fixed)
Installation Air Gap: 0.008 in. - 0.012 in. (recommended 0.010 in.)
Application: Kohler Courage Series single-cylinder vertical-shaft engines

Compatible Kohler Engine Models

Kohler Courage SV470: SV470-0001, SV470-0003, SV470-0004, SV470-0005, SV470-0007, SV470-0015, SV470-0103, SV470-0104, SV470-0108, SV470-0115, SV470-0117, SV470-0120, SV470-0121, SV470-0123, SV470-0200, SV470-0203, SV470-0210, SV470-0211, SV470-0212, SV470-0213, SV470-0214, SV470-0215, SV470-0216, SV470-0217, SV470-0218

Kohler Courage SV480, SV530, SV540/SV541, SV590/SV591, SV600/SV601, SV610, SV620: All spec numbers in these series. See engine nameplate for spec number confirmation.

Kohler Courage SV530: SV530-0013, SV530-0014

Kohler Courage SV600: SV600-0009

Compatible Equipment Models

Fits Cub Cadet: LT 1040 (13AX10CG709, 13AX10CG710, 13BX10CG710), LT 1042 (13AX11CG709, 13AX11CG710, 13AX11CG756, 13BX11CG709, 13BX11CG710, 13BX11CG712), LT 1045 (13AX11CH009, 13AX11CH010, 13AX11CH056, 13AX11CH256, 13AX11CH709, 13AX11CH710, 13AX11CH712, 13AX11CH756, 13BP11CH709, 13BP11CH710), LTX 1040 (13AX90AS010, 13AX90AS056, 13AX90AS210, 13WX90AS009, 13WX90AS010, 13WX90AS056, 13WX90AS210, 13WX90AS256), LTX 1042 (13BX91AS010, 13YX91AS010, 13YX91AS210), LTX 1045 (13AX91AT010, 13AX91AT056, 13WX91AT010, 13WX91AT056), i1042 (17AE9BKR010, 17AE9BKR056, 17AE9BKR256, 17RE9BKR056, 17RE9BKR256, 17WE9BKR010), LX 420 (13AX60RG544 SN: 1L215B10000 & Above, 13AX60RG744 SN: 1L215B10000 & Above), LX 425 (13BX60RG744 SN: 1A087H10172-1C307H10417, 13BX60RG744 SN: 1C307H10418 & Above, 13BX60RG748 SN: 1A087H10172-1E087H10250, 13BX60RG748 SN: 1E087H10251 & Above), LX 460 (13AX60RH544 SN: 1A056B50000 & Above, 13AX60RH744 SN: 1A056B50000 & Above), LX 465 (13AX61RH544 SN: 1A117H10393 & Above, 13AX61RH744 SN: 1A117H10393 & Above, 13AX61RH748 SN: 1A117H10393 & Above)

Fits Toro: 74360 (2007-2009), 74363 (2008-2009), 74370 (2007-2009), 74380 (2007-2009), 74391 (2007-2008)

Replaces Part Number(s):

2058403, 2058403-S, 20 584 03, 20 584 03-S, 20 584 04-S, 20-584-04-S, 20 584 01-S, 20-584-01-S, ELI80-0032

Aftermarket Interchange Numbers

Fits Stens 055-486; also supersedes/replaces Kohler 2058401-S and 2058404-S

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

LT 1042 (13AX11CG709), LT 1042 (13AX11CG756), SV470-0200, i1042 (17WE9BKR010), i1042 (17RE9BKR056), LT 1042 (13BX11CG710), LT 1042 (13BX11CG712), SV470-0212, LTX 1040 (13AX90AS056), 13AX61RH744 (LX 465) (SN: 1A117H10393 & Above), SV470-0213, SV470-0203, SV470-0216, LT 1040 (13BX10CG710), LT 1045 (13AX11CH710), SV470-0108, 13AX60RG544 (LX 420) (SN: 1L215B10000 & Above), LTX 1045 (13WX91AT056), LT 1045 (13AX11CH256), i1042 (17RE9BKR256), 13BX60RG748 (LX 425) (SN: 1E087H10251 & Above), LTX 1040 (13AX90AS210), SV470-0218, LT 1045 (13BP11CH709), i1042 (17AE9BKR256), SV470-0104, LT 1040 (13AX10CG709), 13AX60RH744 (LX 460) (SN: 1A056B50000 & Above), SV470-0003, LTX 1040 (13WX90AS009), SV530-0013, LT 1045 (13AX11CH056), LTX 1042 (13YX91AS210), LT 1045 (13BP11CH710), i1042 (17AE9BKR056), SV470-0215, SV470-0211, LTX 1040 (13WX90AS256), 13BX60RG748 (LX 425) (SN: 1A087H10172 - 1E087H10250), LTX 1045 (13AX91AT010), LTX 1040 (13WX90AS010), LT 1045 (13AX11CH009), 13BX60RG744 (LX 425) (SN: 1C307H10418 & Above), SV470-0103, SV470-0004, LTX 1042 (13YX91AS010), LTX 1040 (13WX90AS210), SV470-0120, SV470-0210, SV470-0115, SV470-0214, 13AX60RG744 (LX 420) (SN: 1L215B10000 & Above), LT 1045 (13AX11CH709), LT 1045 (13AX11CH756), LTX 1040 (13AX90AS010), LT 1045 (13AX11CH712), LTX 1045 (13AX91AT056), LT 1040 (13AX10CG710), LT 1042 (13BX11CG709), SV470-0015, SV600-0009, SV470-0005, 13AX61RH748 (LX 465) (SN: 1A117H10393 & Above), LT 1042 (13AX11CG710), i1042 (17AE9BKR010), LTX 1042 (13BX91AS010), 13AX61RH544 (LX 465) (SN: 1A117H10393 & Above), SV470-0001, SV470-0123, LTX 1045 (13WX91AT010), 13AX60RH544 (LX 460) (SN: 1A056B50000 & Above), SV470-0117, LTX 1040 (13WX90AS056), 13BX60RG744 (LX 425) (SN: 1A087H10172 - 1C307H10417), SV470-0121, SV530-0014, LT 1045 (13AX11CH010), SV470-0007, SV470-0217
