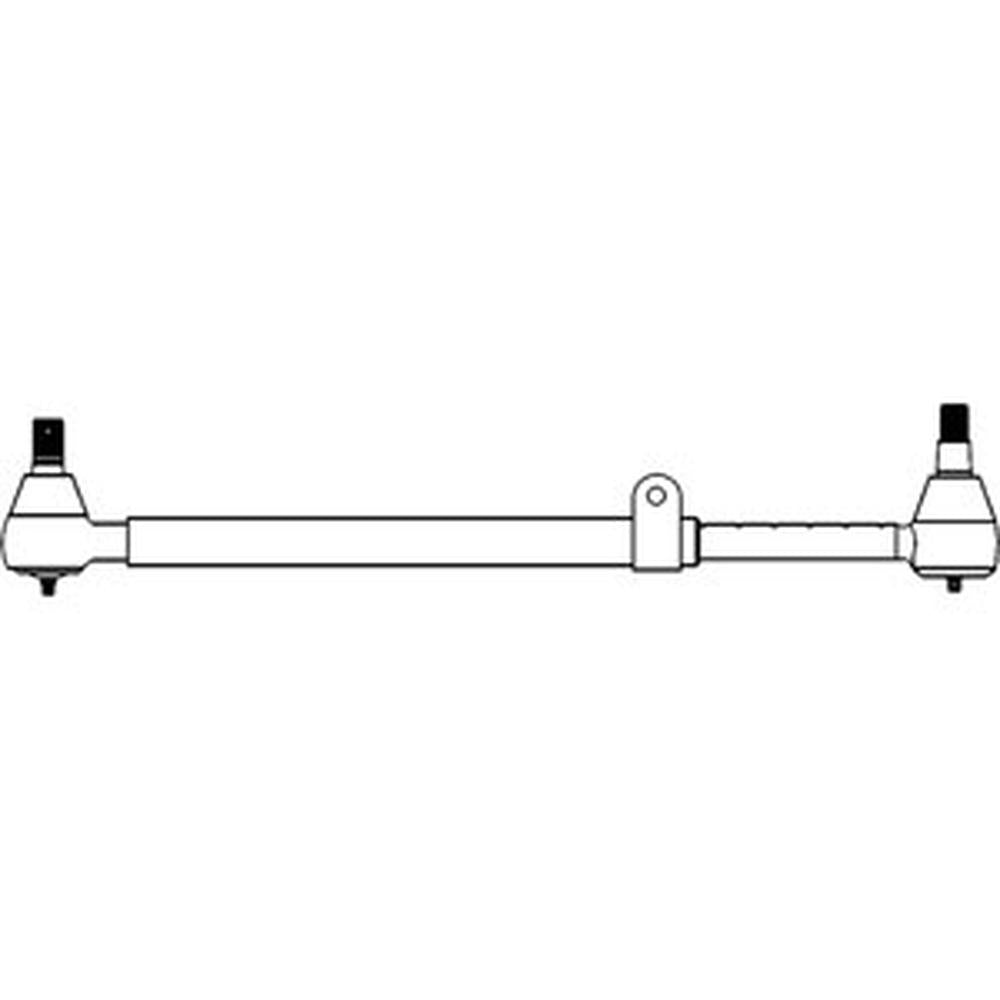

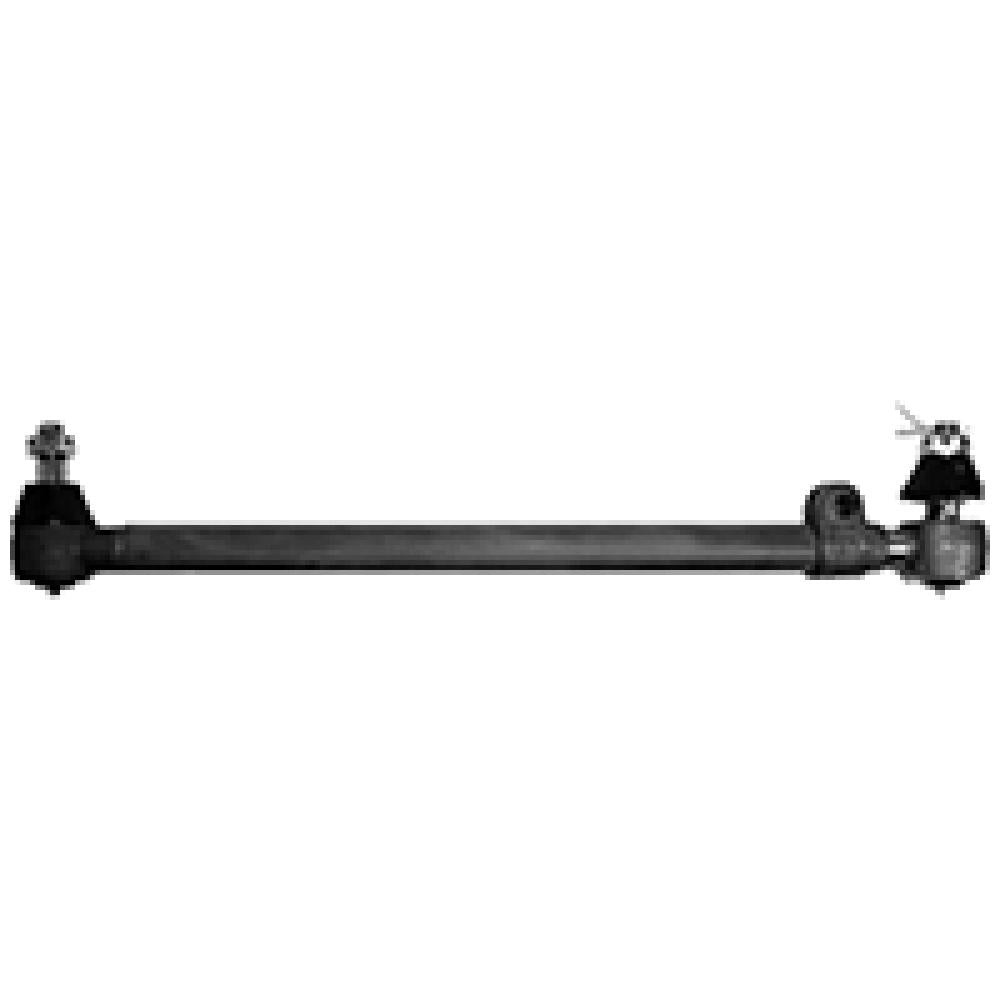

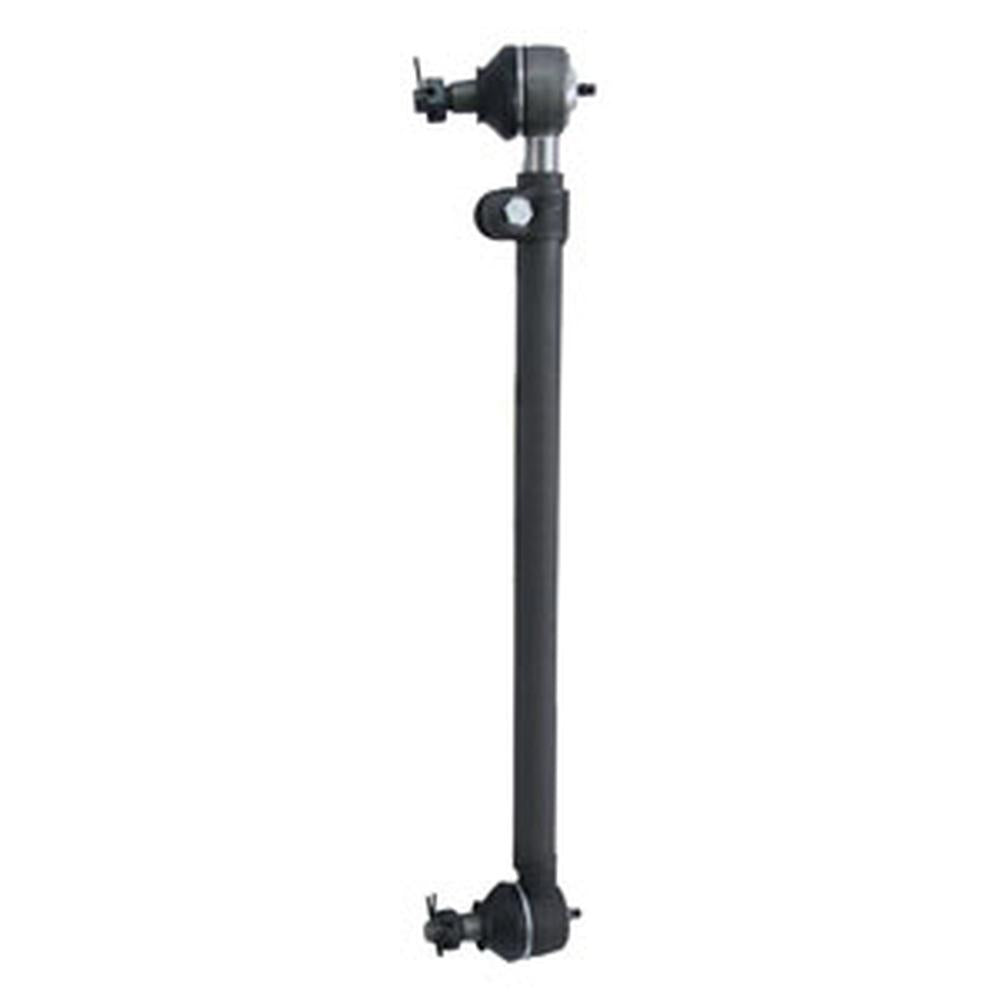

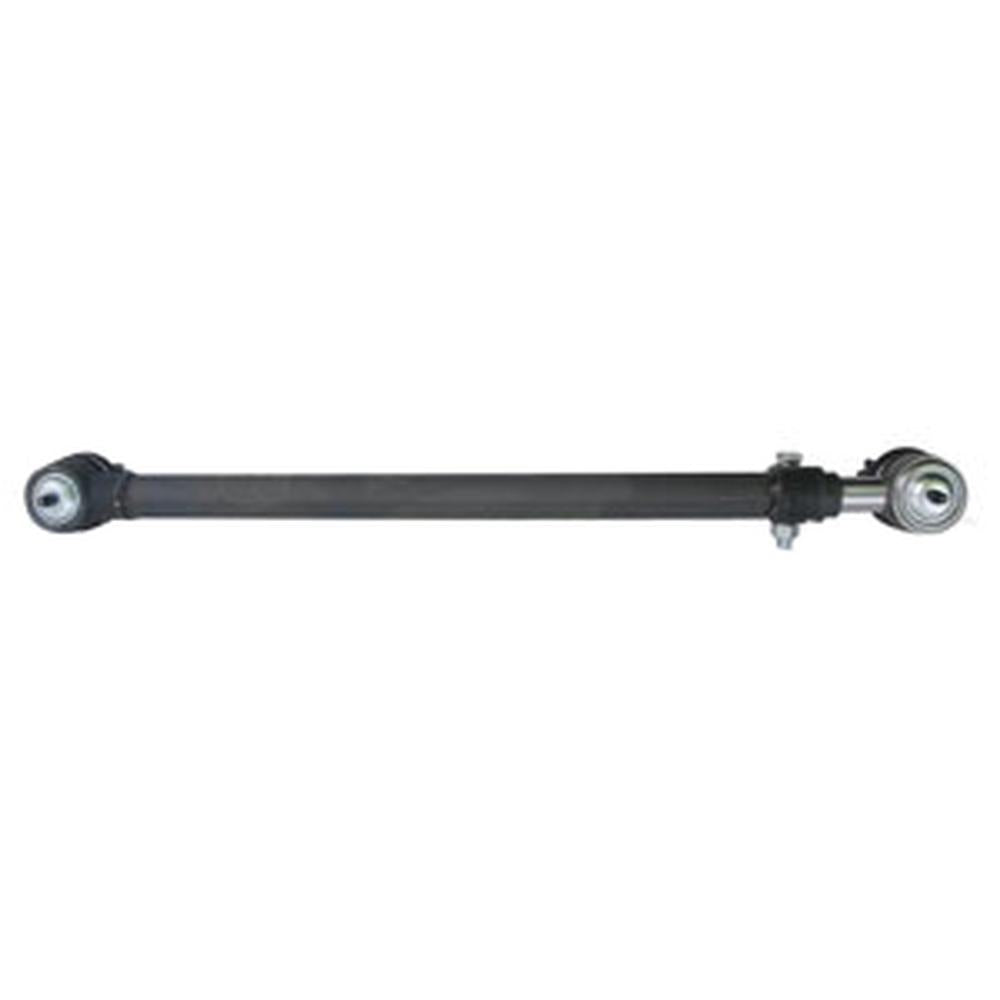

COMPLETE TIE ROD ASSEMBLY Fits Allis CHALMERS 170 175 180 185 190 190XT

Models This Part Fits:

185, D15, D17, WD, 190XT, 190XTIII, 190XT III, 190, WD45, CA, D19, 200, 175, D14, 170, 180

Additional Information:

The inside tie rod measures 16-3/8" long from the grease fitting to the end 0.782" diameter rod Outer tube is 17-3/8" long from the grease fitting to the end 1.56" tube outside diameter The tie rod end tapers from 0.660" to 0.735" Extended length with tie rod inserted 3 1/4 inches is 30 1/2 inches.(measurement from tie rod center to tie rod center) Collapsed it is 18 3/4 inches. (measurement from tie rod center to tie rod center)

Reference Numbers:

254661, 70249418, 70250141, 70250142, 250141, 250142, 225279, 249418, 70225279, 70227481, 70254661, 70254662, 227481, 225280, 254662, 70222084, 222084, 70225280, 70254660, 70250141, 70254661, 70227830, 70254662, 70253249, 70247836, 70235789, 70249418, 70254660, 70254661, 70254662, 70254662V
