84279787 AC Compressor with Clutch Fits Case IH 7240 8240 Combine
84279787 AC Compressor with Clutch Fits Case IH 7240 8240 Combine
Couldn't load pickup availability

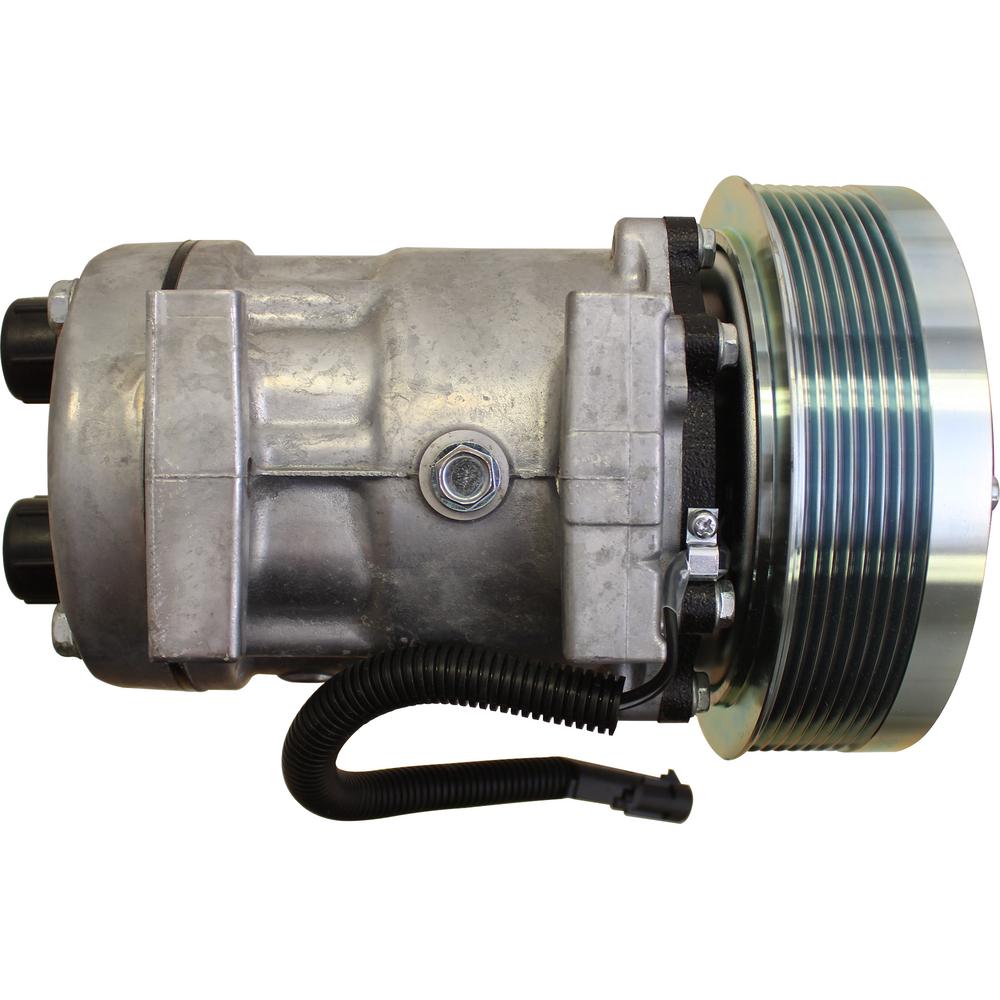

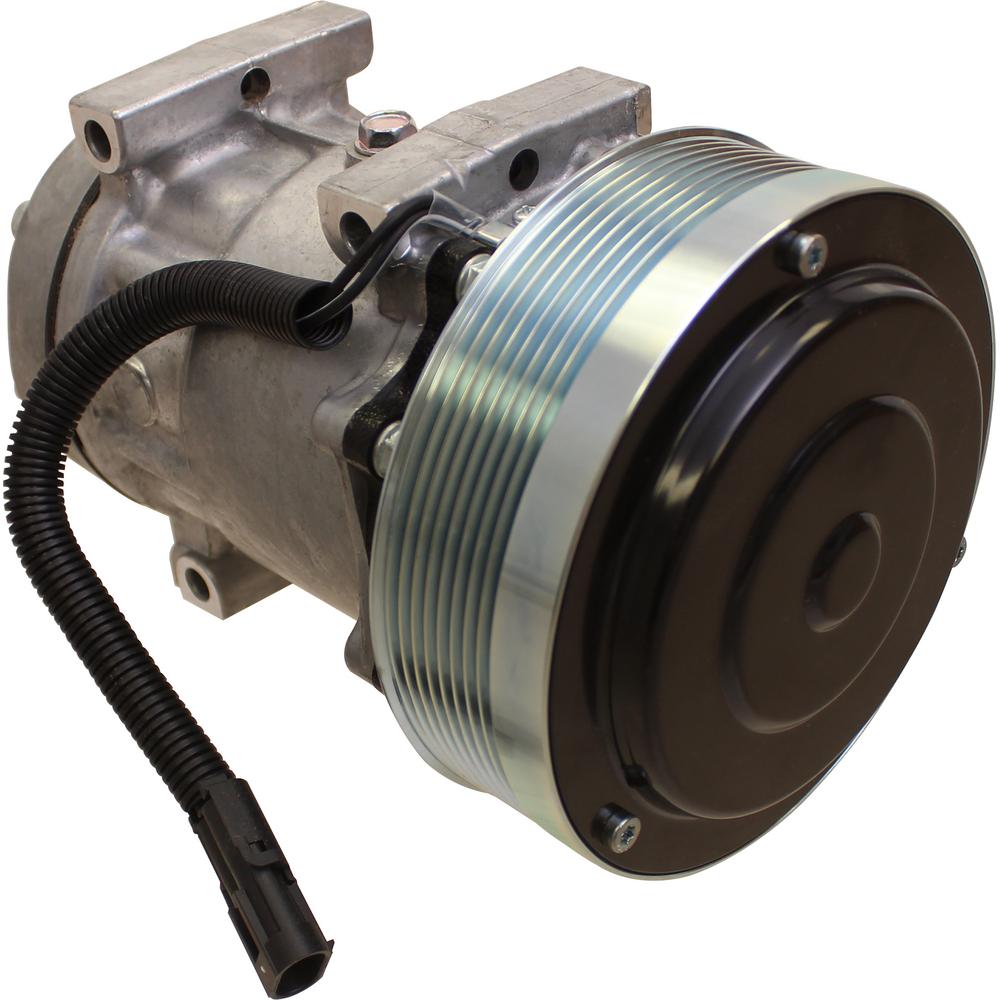

This is a new aftermarket air conditioning compressor with the electromagnetic clutch fitted, an SD7H15 SHD style seven cylinder unit for R134a systems.
Specifications
- Type: air conditioning compressor with electromagnetic clutch
- Style: SD7H15 SHD, 7 cylinder swash plate
- Displacement: 9.5 cu in (155 cc)
- Voltage: 12 V
- Clutch: 152 mm (6.0 in), 8 groove serpentine pulley
- Rotation: clockwise
- Refrigerant: R134a
- Oil: PAG100, about 135 cc
- Sold as: each
- Fitment: Fits Case IH 6140, 7140, 7240, 8240, 9240 combines; Fits New Holland CR and CX combines and FR forage harvesters listed below
Cross reference
- 84279787
- 5801558535
Combine models, not the tractors with the same numbers
The 7140 and 7240 in this fitment are Axial-Flow combines. Tractors sold under those same model numbers use a different compressor, so confirm the machine type before ordering. On the harvester side this unit covers the CR and CX combines and the FR forage harvesters listed above. Count the pulley grooves and measure the clutch face, because this compressor family is built in several pulley, voltage and port configurations that look alike. Replace the receiver drier and flush the system on any compressor replacement.
Aftermarket replacement part. Not manufactured by, sponsored by or affiliated with any equipment maker named here. All makes, models and numbers are listed for reference only.
