AH147721 Stabilizer Cylinder R/H Fits John Deere 300D 310C 310D 410C 410D 510C
AH147721 Stabilizer Cylinder R/H Fits John Deere 300D 310C 310D 410C 410D 510C
Couldn't load pickup availability

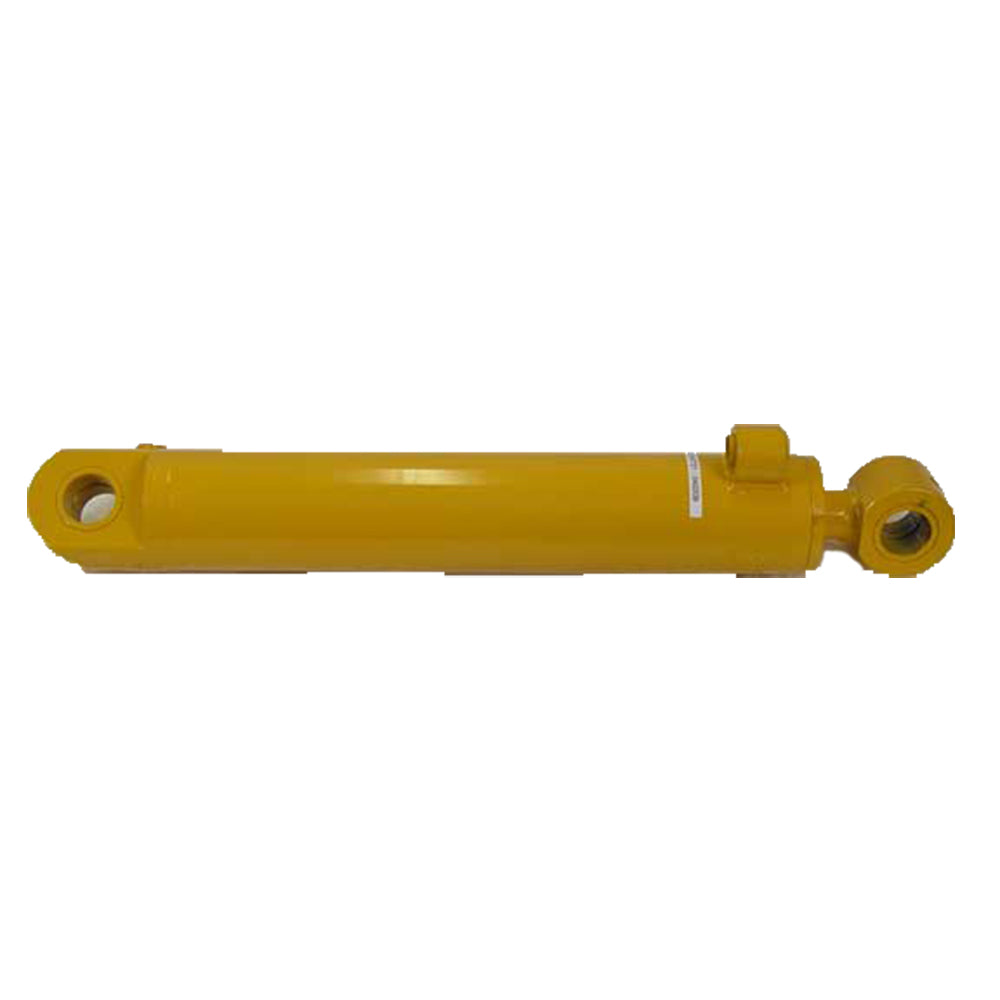

One New Aftermarket Replacement Right Hand Stabilizer Cylinder Fits John Deere Backhoe Loaders
This aftermarket replacement right-hand (R/H) stabilizer cylinder is a direct replacement Fits John Deere OEM part number AH147721. The stabilizer cylinder is a critical hydraulic component on the backhoe's outrigger/stabilizer system, extending and retracting the stabilizer legs to level and secure the machine during digging operations. Important serial number restriction: fits 310C after serial number 761935 only. For 310D after serial number 802200 and 410D after serial number 801200, also order bushing H144296 with this cylinder.
Specifications
- Side: Right Hand (R/H)
- Closed length (center-to-center of pin holes): 32 in.
- Pin hole inside diameter: 2 in.
- Weight: approximately 82.5 - 99 lbs.
Compatible Models
Fits John Deere (Fits JD) Backhoe Loaders: 300D, 310C (after s/n 761935), 310D, 410C, 410D, 510C, 510D
Note: On 310D after s/n 802200 and 410D after s/n 801200, also order bushing H144296.
Replaces Part Number(s):
AH147721
New aftermarket replacement part - not remanufactured, not used.
