A-M86649-P-AI Cone, Tapered Roller Bearing

One New Aftermarket Replacement Cone, Tapered Roller Bearing - M86649 Series

This tapered roller bearing cone (inner ring assembly) is a single-row imperial-series bearing designed to handle combined radial and axial loads. The cone pairs with a matching cup (outer ring) -- compatible cups include M86610 and M86611B. Commonly used in stub axle, front axle, drivetrain, gearbox, and harvester header applications across a wide range of agricultural equipment.

Specifications

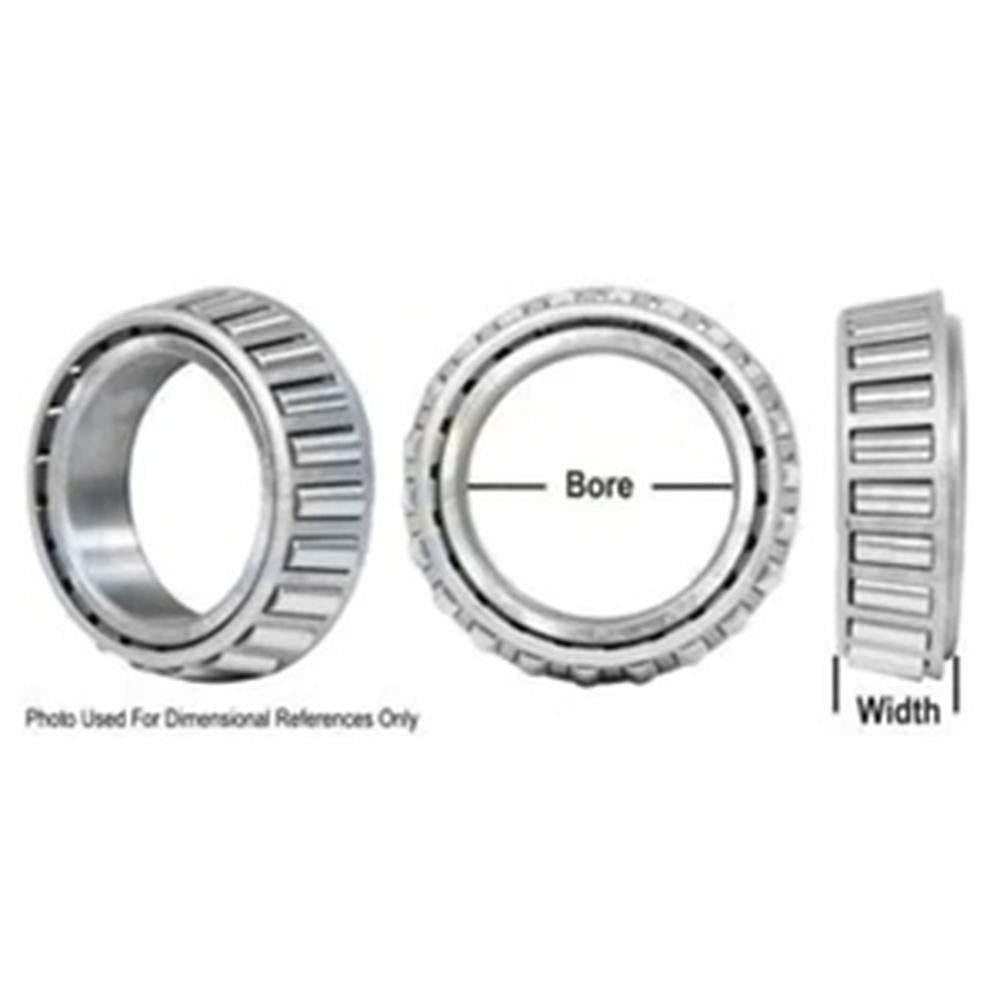

• Type: Tapered Roller Bearing Cone (inner ring assembly only)
• Bore (Inner Diameter): 1.187 in (30.162 mm)
• Width: 0.843 in (21.433 mm)
• Corner Radius: 0.06 in
• Bearing Series: M86600
• Material: Chrome Steel
• Compatible Cups: M86610, M86611B

Compatible Equipment

Fits John Deere: 6000, 6100, 6100 SE, 6200, 6200 SE, 6200 LS, 6300, 6300 SE, 6300 LS, 6400, 6400 SE, 6400 LS, 6010, 6020, 6020 SE, 6120, 6120 SE, 6220, 6220 SE, 6320, 6320 SE, 6420, 6420 SE, 6520, 6520 SE, 6620, 6620 SE, 6130, 6230, 6330, 6430, 6530, 6630 -- Combine Harvesters, Forage Harvesters, and Headers

Fits Massey Ferguson: 4WD tractor applications (stub axle)

Fits Case IH, Fits New Holland: Combine harvester and header applications

Note: This is the cone (inner ring) only. The cup (outer ring) is sold separately. Verify drivetrain and axle compatibility before ordering.

Replaces Part Number(s):

M86649, A-M86649-P-AI

Aftermarket Interchange Numbers

AL79901, AL161289, JD8947, JD8979, JD9267, RE272374, M86649/10, LM86649-610, 3104118M1, 1042596M1, 3310930R91, 3310930M91, NWB9035

New aftermarket replacement part - not remanufactured, not used.
