A-M84510-P-AI Cup, Tapered Bearing

One New Aftermarket Replacement Tapered Roller Bearing Cup - M84510

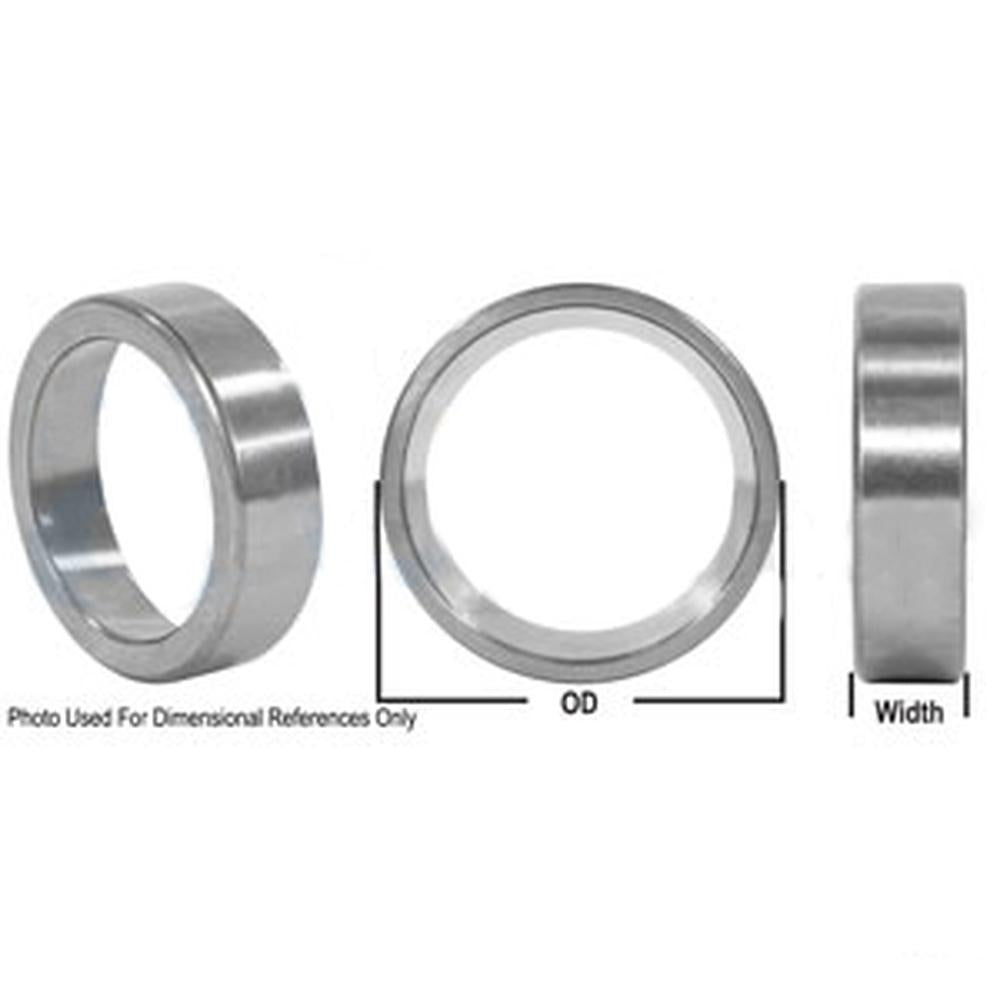

This tapered roller bearing cup (outer ring/race) serves as the outer raceway for the M84548/M84510 tapered roller bearing assembly. It is used in conjunction with the M84548 cone (inner ring assembly, sold separately) to support both radial and axial loads in agricultural, construction, and industrial equipment applications. The open design allows for in-place lubrication and accurate bearing adjustment.

Specifications

• Outside Diameter: 2.2500 in. (57.15 mm)
• Width: 0.5800 in. (14.732 mm)
• Backface Corner Radius: 0.06 in.
• Tolerance: AFBMA Class 2 (Standard)
• Outside Diameter Profile: Straight
• Material: High-alloy steel
• Configuration: Open (no seals or shields)

Compatible Applications

This is a universal tapered roller bearing cup used across a wide range of agricultural tractors, construction equipment, and industrial machinery wherever the M84510 cup or M84548/M84510 bearing set is specified. Common applications include axle assemblies, wheel hubs, transmissions, and differentials. Fits John Deere (Fits JD) and other OEM equipment specifying OEM reference JD9117 or NSN 3110-01-119-4440.

Replaces Part Number(s):

M84510, A-M84510-P-AI, JD9117, L10062-0001, 07751

New aftermarket replacement part - not remanufactured, not used.
