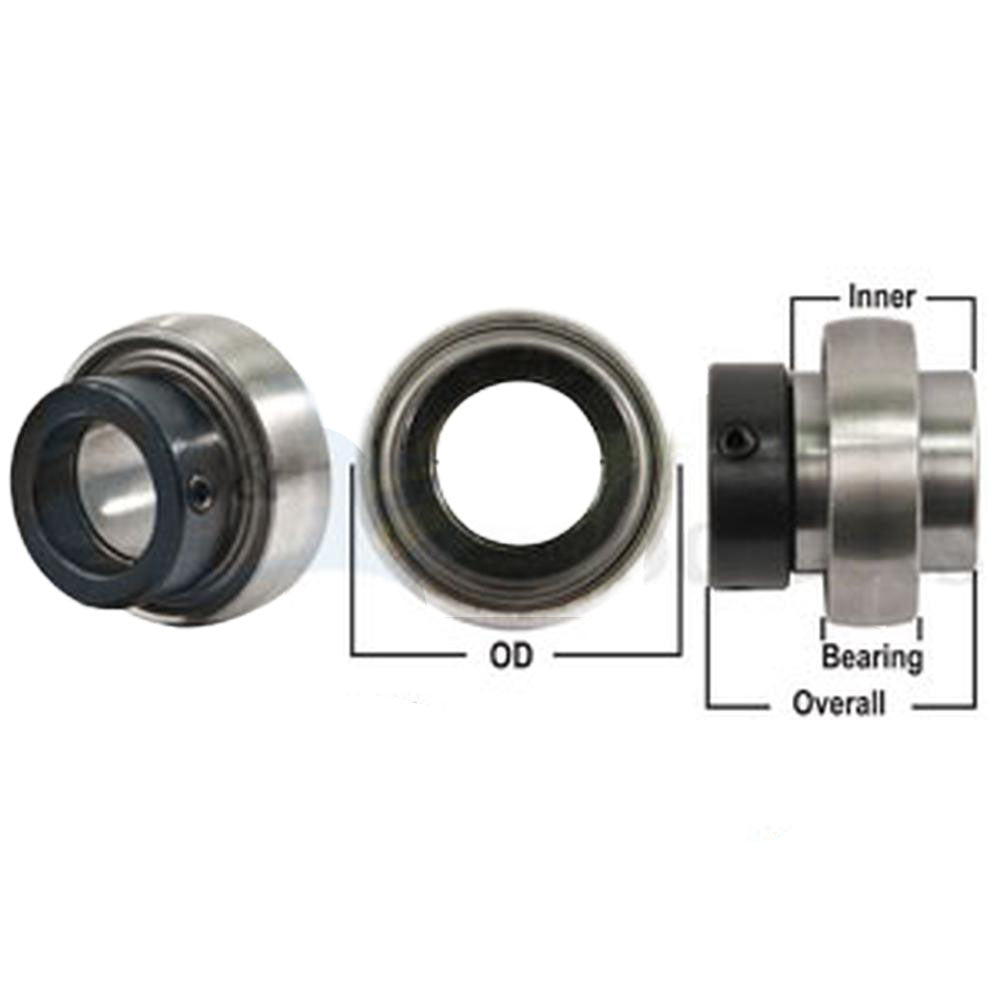

A-G1114KRRB-P Bearing, Ball; Spherical W/ Collar, Re-Lubricatable

One New Aftermarket Replacement Spherical Ball Bearing Insert with Eccentric Locking Collar - G1114KRRB-P, Re-Lubricatable Wide Inner Ring

This re-lubricatable spherical ball bearing insert with eccentric locking collar (G-KRRB series) is a wide-inner-ring design built for agricultural and industrial equipment operating in dirty, wet, or high-load conditions. The spherical outside diameter allows self-alignment within a bearing housing, and the wide inner ring delivers added shaft support and increased grease capacity. Double R-seals with flared lips lock in lubricant and seal out dust, dirt, and moisture. The eccentric locking collar secures the bearing to the shaft without damaging the shaft surface.

Specifications

• Bore Diameter: 1-7/8 in (47.625 mm)
• Outside Diameter: 3.5433 in (90 mm)
• Width: 2.466 in
• Outer Diameter Profile: Spherical
• Locking Device: Eccentric locking collar
• Bearing Series: G-KRRB
• Lubrication: Re-lubricatable (grease fitting provision)
• Closure: Double sealed
• Dynamic Load Rating: 8,740 lb
• Static Load Rating: 5,210 lb
• Maximum Speed: 2,500 rpm
• Operating Temperature: -50 to 120 deg C
• Cage Material: Nylon
• Bearing Material: Steel

Compatible Applications

Designed for use on agricultural equipment including balers, blowers, choppers, cutters, combines, loaders, rakes, and spreaders. Also suitable for general industrial and construction equipment conveyor systems and material handling applications. Compatible with standard straight shafts via slip fit mounting.

Replaces Part Number(s):

A-G1114KRRB-P, G1114KRRB

New aftermarket replacement part - not remanufactured, not used.
