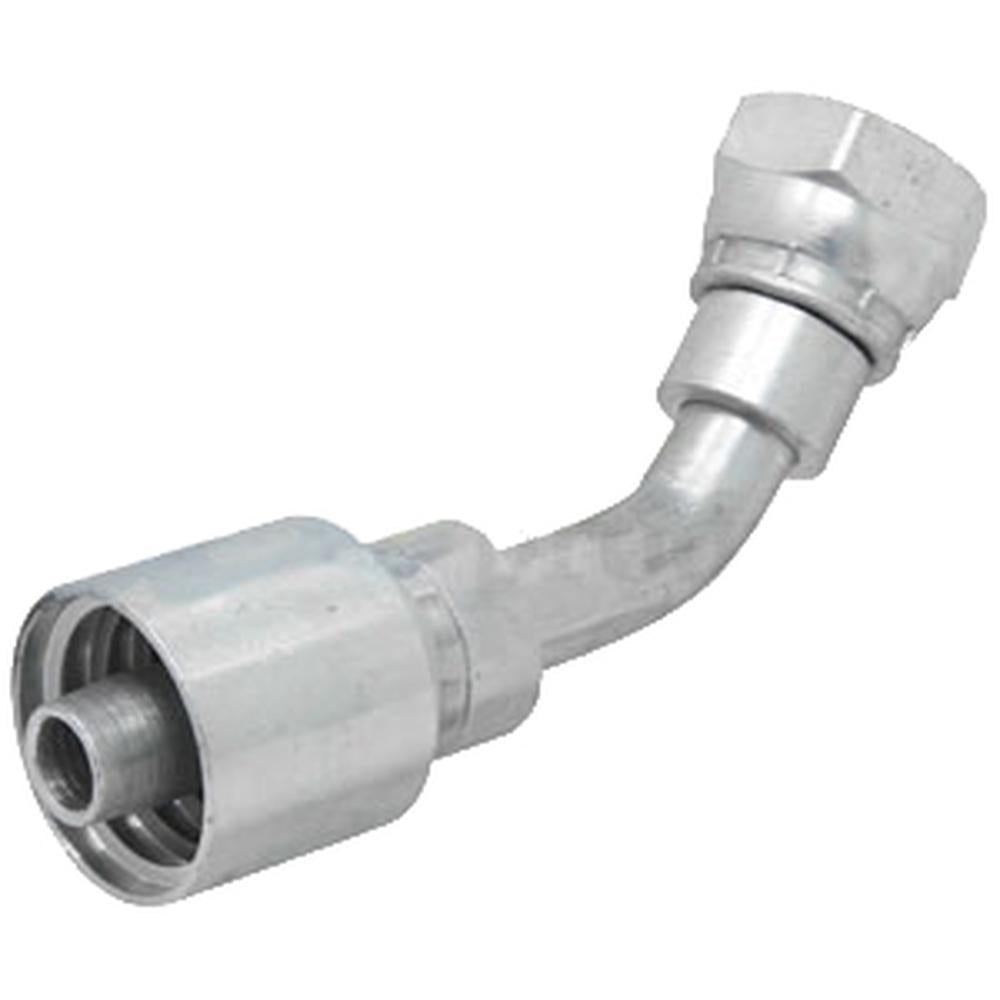

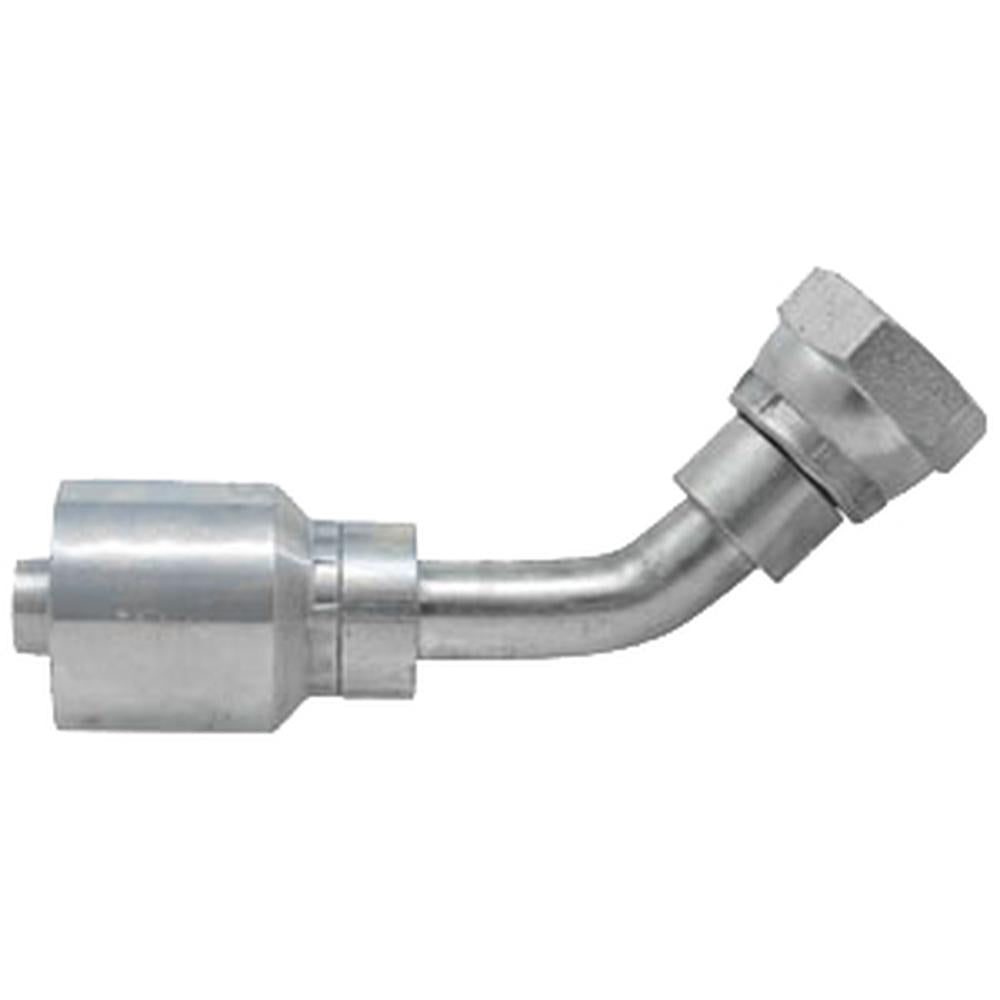

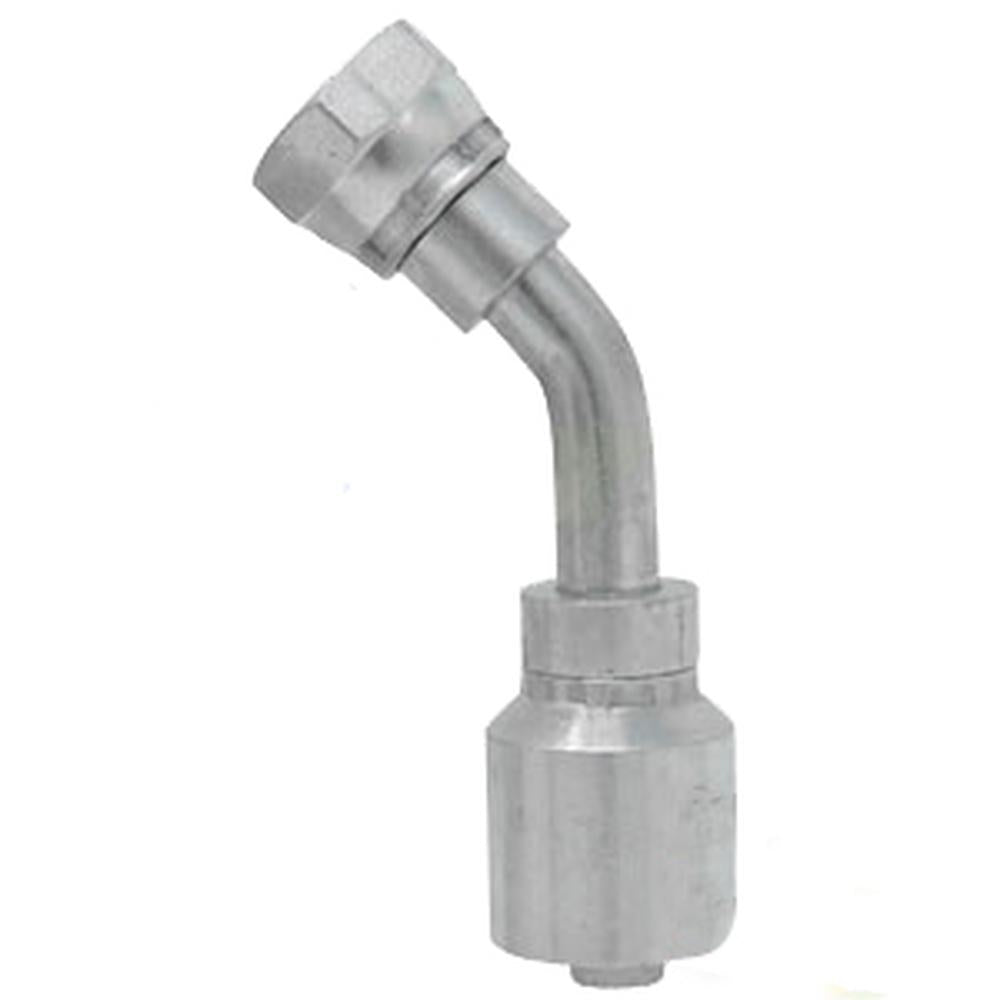

One New Aftermarket Replacement DIN Light 24-Degree Seat 45-Degree Female Swivel Hydraulic Fitting with O-Ring
This DIN Light series female swivel hydraulic hose fitting features a 24-degree cone seat with an O-ring seal and a 45-degree bent tube elbow configuration. Designed for crimp-on hose assembly applications, it provides a leak-free swivel connection in hydraulic systems on agricultural, construction, and industrial equipment. The fitting carries part number A-F-DL4508-15-22-W-AI and is distributed by A&I Products (also cataloged as F-DL4508-15-22-W).
Specifications
- Fitting Type: DIN Light 24-Degree Seat, 45-Degree Female Swivel with O-Ring
- Hose ID: 1/2 in.
- Thread: M22 x 1.5 metric

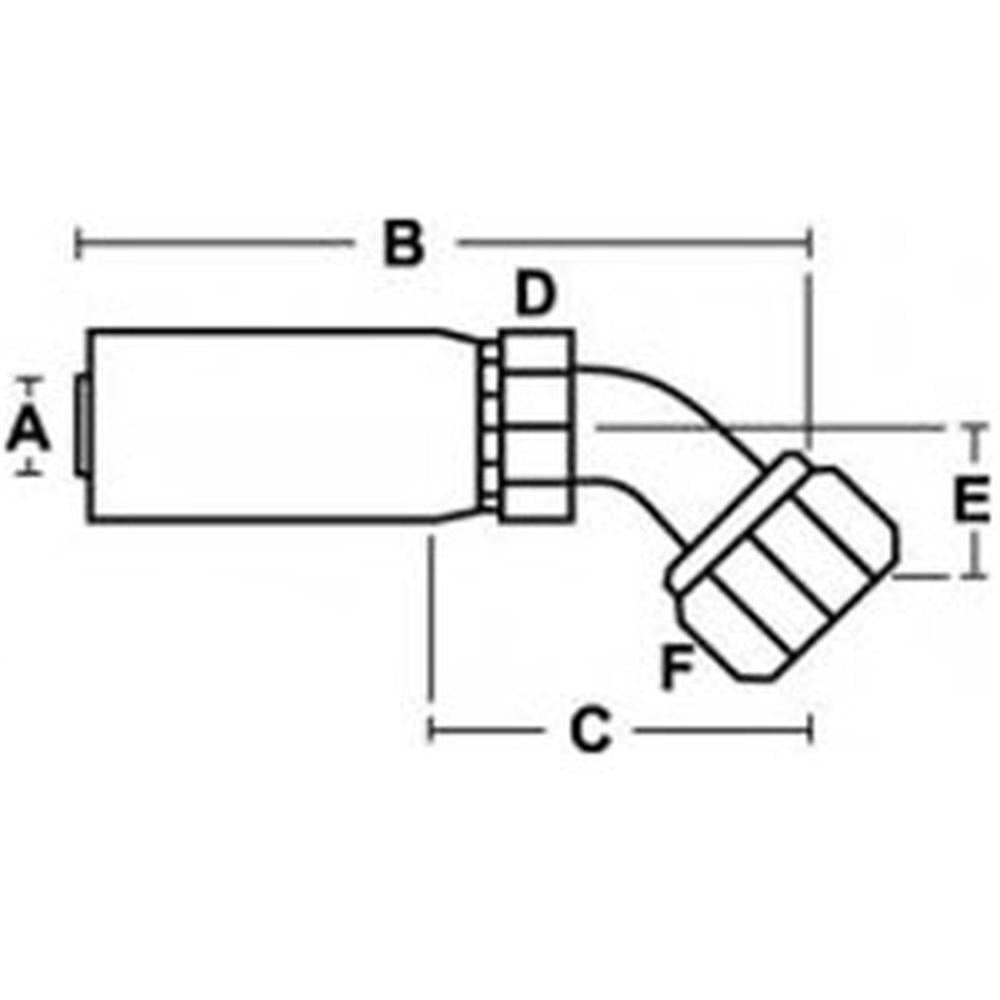

- Dim A: 1/2 in.
- Dim B: 4.28 in.
- Dim C: 2.94 in.
- Dim D: 7/8 in.
- Dim E: 1.22 in.
- Dim F: 1-1/16 in.
- Weight: 0.40 lbs.
- Series: HW Series SEAL LOK - Female Swivel 45-Degree Elbow
Replaces Part Number(s):
A-F-DL4508-15-22-W-AI, F-DL4508-15-22-W, SW14644
New aftermarket replacement part - not remanufactured, not used.
