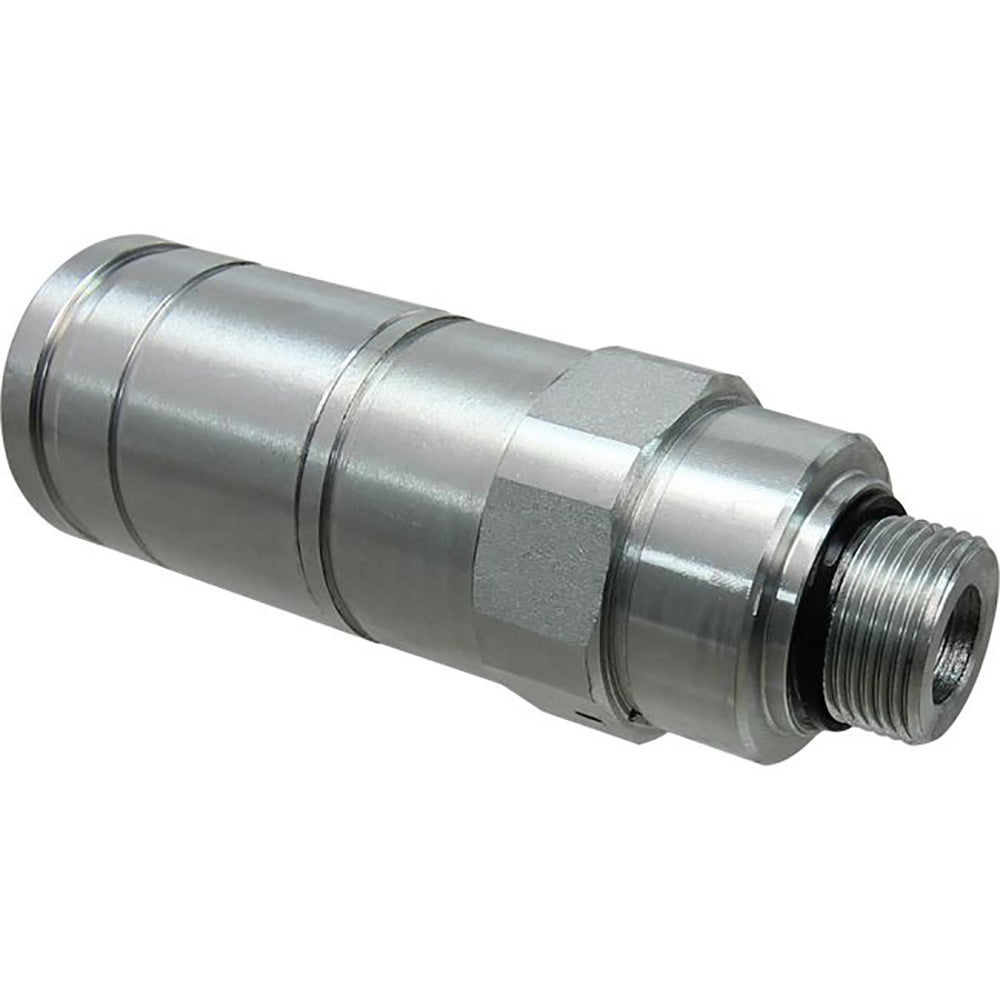

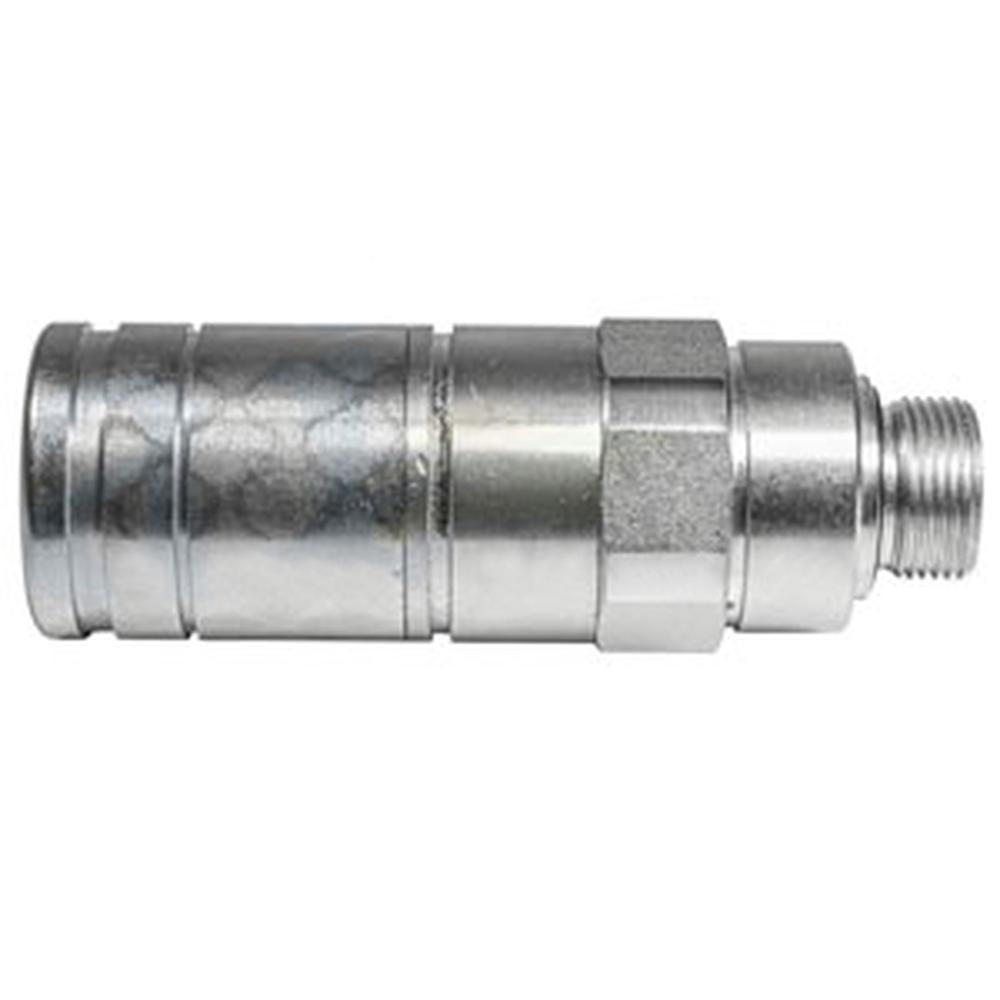

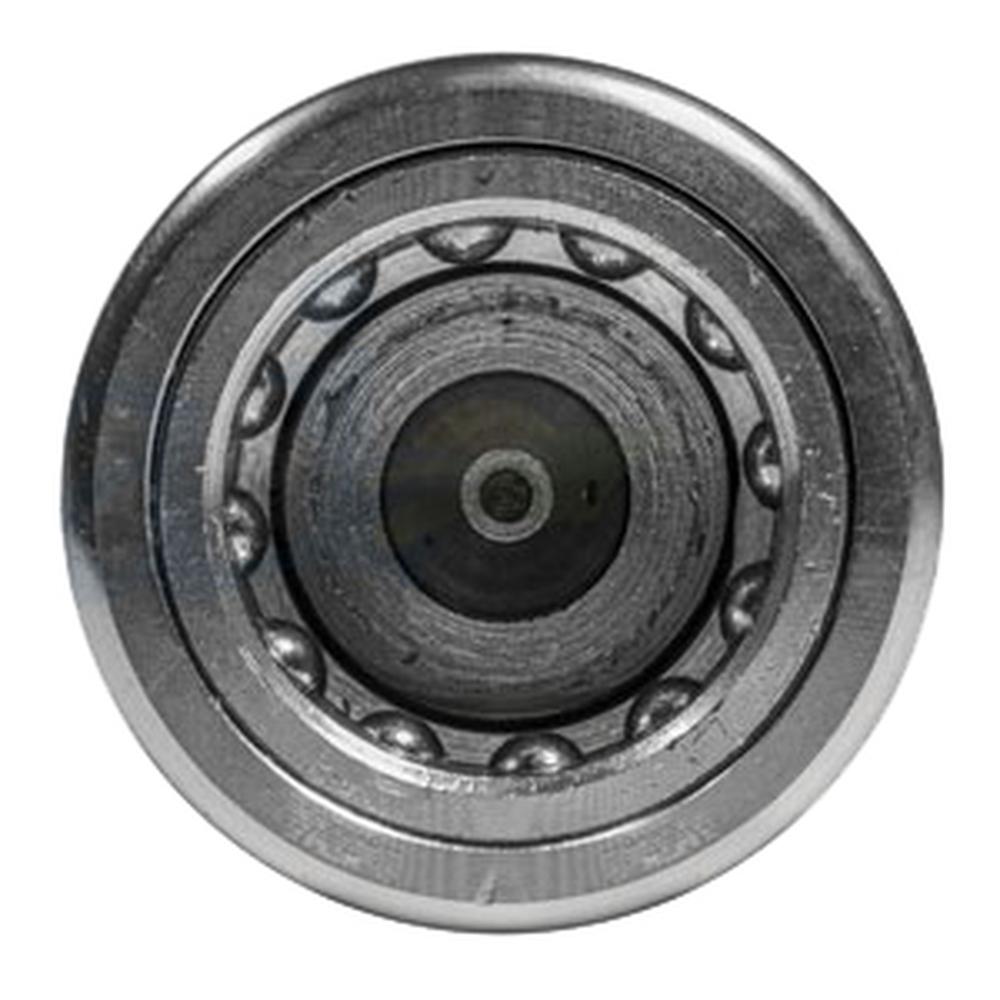

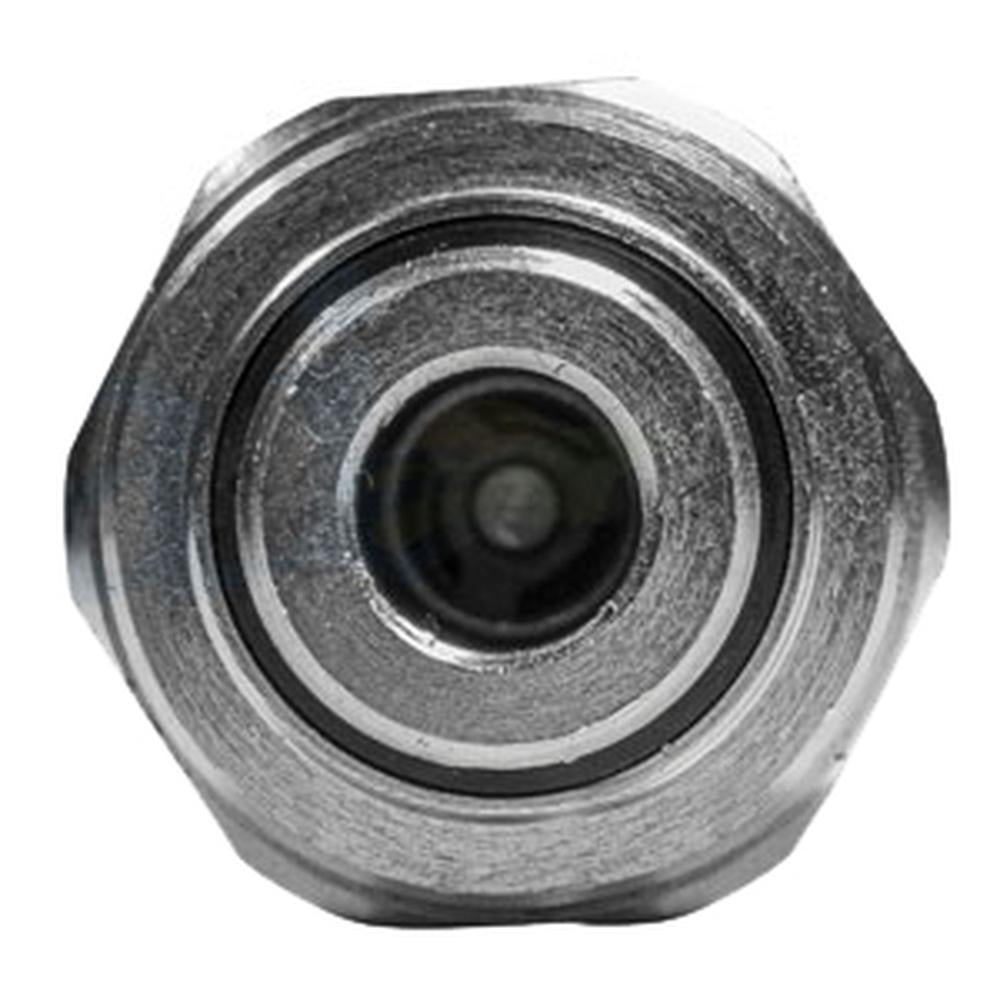

A-AL221083-AI Socket; Hydraulic Quick Coupler

One New Aftermarket Replacement Hydraulic Quick Coupler Socket Fits John Deere Tractors

This hydraulic quick coupler socket is a female (socket) half of the deluxe hydraulic quick-disconnect system used on Fits John Deere (Fits JD) 6 Series and 7 Series tractors. It allows coupling and uncoupling of hydraulic implement lines, including under pressure from the tractor or implement side. Note: couplers are recommended to be replaced in pairs.

Specifications

• Length: 4.43"
• Body Diameter: 1/2"
• Thread: M22 x 1.5
• Type: Female socket (hydraulic quick-disconnect)

Compatible Models

Fits John Deere 6 Series Tractors: 6100, 6105M, 6105R, 6110, 6110L, 6110M, 6115M, 6115R, 6120, 6120L, 6120M, 6125M, 6125R, 6130M, 6140J, 6140M, 6140R, 6145M, 6150M, 6150R, 6155J, 6155M, 6170M, 6170R, 6175M, 6190R, 6195M, 6200, 6200L, 6210, 6210L, 6210R, 6220, 6220L, 6230 Premium, 6300, 6300L, 6310, 6310L, 6310S, 6320, 6320L, 6330 Premium, 6400, 6400L, 6410, 6410L, 6410S, 6420, 6420L, 6420S, 6430 Premium, 6500, 6500L, 6506, 6510L, 6510S, 6520, 6600, 6610, 6620, 6820

Fits John Deere 7 Series Tractors: 7130, 7220, 7230, 7320, 7330, 7330 Premium, 7405, 7420, 7430 Premium, 7500, 7520, 7530 Premium

Replaces Part Number(s):

A-AL221083, AL221083

Aftermarket Interchange Numbers

AL237055 (supersedes AL221083), AL210587, AL210588, AL169645, AL178989, AL202351, AL210587, AL210588

New aftermarket replacement part - not remanufactured, not used.
