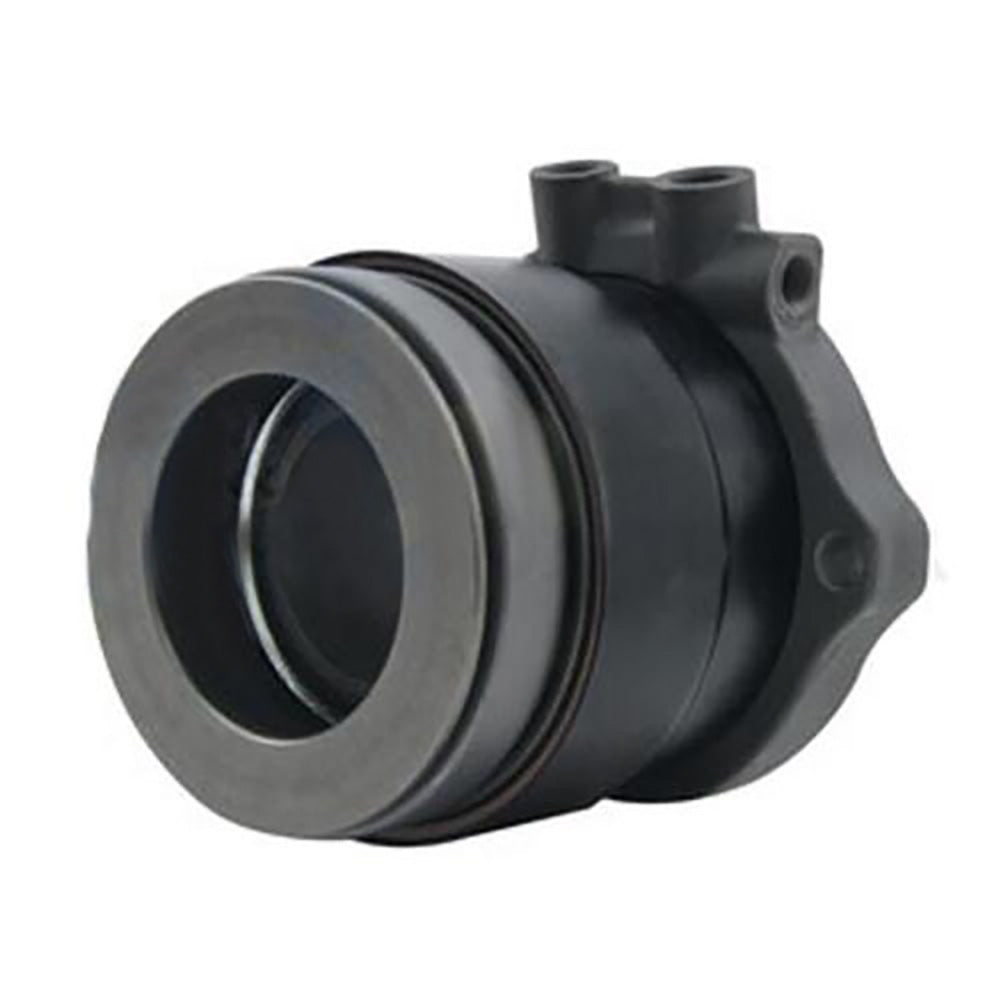

A-AL120029-AI Bearing, Trans Release, w/Slave Cyl, 3 port (sealed)

One New Aftermarket Replacement Clutch Release (Throw-Out) Bearing with Slave Cylinder for John Deere Tractors

This hydraulic-type clutch release (throw-out) bearing includes an integrated 3-port slave cylinder and is sealed for long service life. It fits John Deere 30-series and 40-series utility and row-crop tractors equipped with a Sound Guard cab or Synchro-Trans transmission as noted below. Replaces OEM part numbers AL120029 and AL39242.

Specifications

• Type: Hydraulic transmission release bearing with integrated slave cylinder
• Ports: 3-port (sealed)
• Bore: 45.5 mm
• OD: 95 mm
• Height: 105 mm
• Fluid: Use DOT 4 fluid

Compatible Models

John Deere Tractors:

30/40/50-Series (North American): 2040S, 2250, 2255, 2355, 2450, 2555, 2650, 2650N, 2750, 2755 (GPT), 2850, 2855N, 2955, 3050, 3055, 3150, 3155, 3255, 3350, 3640, 3640S, 3650

Serial Number Restrictions (IMPORTANT - verify before ordering):

• 2250, 2450, 2650, 2850, 3050, 3350: Serial Number below 649118 with Sound Guard (SG2) Cab only
• 2955: Serial Number below 767516
• 3650: Serial Number below 649118
• 2355, 2555, 2650N, 2755 (GPT), 2855N, 3055, 3155, 3255, 3640, 3640S: No serial number restriction noted
• 2650 (European Synchro-Trans Edition), 2850 (European Synchro-Trans Edition), 3050 (European Edition), 3350 (European Edition), 3640 (European Edition), 3640S (European Edition), 3650 (European Edition): Compatible

Replaces Part Number(s):

AL120029, AL39242, AL120028, AL66088

Aftermarket Interchange Numbers

500047620, 510002010, 510002020, R39242, A-AL120029-AI

New aftermarket replacement part - not remanufactured, not used.
