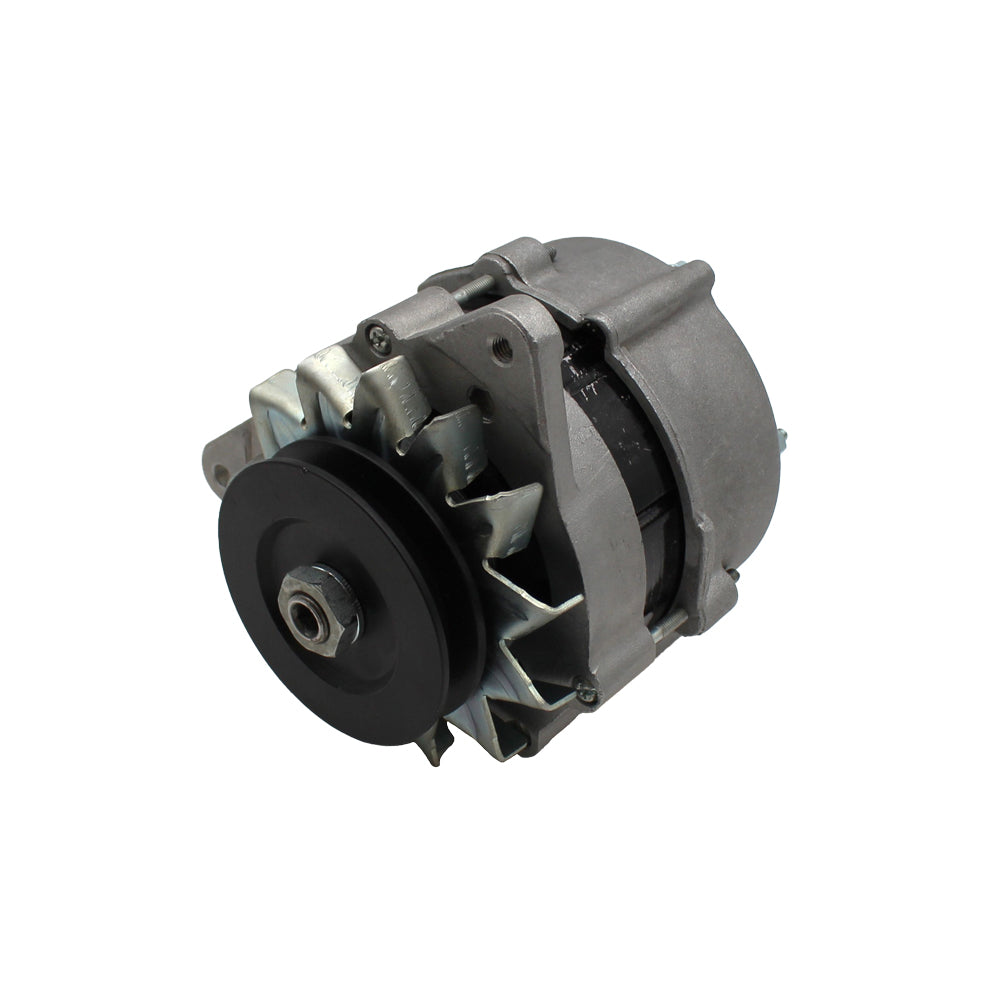

A-9821931-AI Alternator, Mag-Mar

A-9821931-AI Alternator, Mag-Mar

$257.00 AUD
$257.00 AUD
Sale Sold out
Shipping calculated at checkout.

One New Aftermarket Replacement Alternator (Magneti Marelli / Fits Lucas IR/EF) Fits Case IH, Fits Massey Ferguson, Fits Ford, Fits New Holland, and Fits Allis Chalmers Tractors and Skid Steer Loaders

This 12-volt, 45-amp Magneti Marelli (Mag-Mar) style alternator is a direct-fit aftermarket replacement for the charging system on a wide range of Fits Case IH, Fits Massey Ferguson, Fits Ford/New Holland, and Fits Allis Chalmers agricultural tractors and Fits New Holland skid steer loaders. Built to Fits Lucas IR/EF specifications with a clockwise rotation and single-groove V-belt pulley, it replaces OEM part number 9821931 and its many cross-references. Does not include a battery sensor.

Specifications

  • Voltage: 12V
  • Amperage: 45 Amp
  • Design: Fits Lucas IR/EF (Internally Regulated / Externally Fan-cooled)
  • Rotation: Clockwise (CW)
  • Pulley: Single-Groove V-Belt
  • Battery Sensor: Not included

Compatible Models

Fits Case IH Tractors: 385, 395, 485, 495, 585, 595, 685, 695, 885, 895, 3220, 3230, 4210, 4230, 4240

Fits Massey Ferguson Tractors: 240, 243, 253, 254-4, 263, 360, 365, 375, 383, 385, 390, 390E, 390T, 393, 394S, 396, 398, 4210, 4220, 4225, 4230, 4233, 4235, 4240, 4243, 4245, 4253, 4255, 4260, 4263, 4265, 4270, 485, 495, 585, 595, 685, 695, 785, 795, 885, 895, 6710, 6810, 7410, 7610, 7710, 7810, 8765

Fits Ford/New Holland Tractors: 3900, 3210, 3220, 3230, 4265, 4243, 5110, 6710, 6810, 7410, 7610, 7700, 7710, 7810, 8630, 8730

Fits New Holland Skid Steer Loaders: L781, L783, L785, L783, L865, LS180, LX865, LX885

Fits Allis Chalmers Tractors: 8745, 8765

Replaces Part Number(s):

9821931, 104020A1R, 1447312M91, 1447634M91, 1693232M91, 1693233M91, 1897695M91, 1897695R91, 245531C91, 3125132R92, 3698016M91, 3698017M91, 3930501R, 87800219, 92281C1, 92292C1, 92293C1, ELV40-0023, K306549, K311696, K925009, K956426, 12041N

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

585, 8630, 8730, 396, 4225, 394S, 398, LX885, 495, 4235, 375, 4243, 8745, LX865, 240, 485, 7410, 3900, 895, L781, 7810, 365, 795, 4270, LS180, 360, 4233, 395, 4255, 7610, 7710, L865, 695, 785, 390E, 3210, 595, 254-4, 4253, 385, 4245, 885, 253, 4265, 4260, 6710, 6810, L785, 3230, 4263, 390, 4220, L783, 243, 390T, 263, 383, 4240, 4210, 5110, 8765, 685, 4230, 393, 7700, 3220

Additional Information:

Amperage: 45 Design: Ir/Ef Pulley Class: V1 Rotation: Cw Specs For: Lucas Ir/Ef Specs: 45 Amp/12 Volt, Cw, 1-Groove Pulley Voltage: 12

Reference Numbers:

3698016M91, 3698017M91, 92281C1, 12041N, 9821931, 104020A1R, 1447312M91, 1447634M91, 1693232M91, 1693233M91, 1897695M91, 1897695R91, 245531C91, 3125132R92, 3930501R, 87800219, 92292C1, 92293C1, ELV40-0023, K306549, K311696, K925009, K956426
